DZR Brass Fixed Orifice Balancing Valve [00/0102]

by Valves Instruments Plus

Download Add to collection

Description

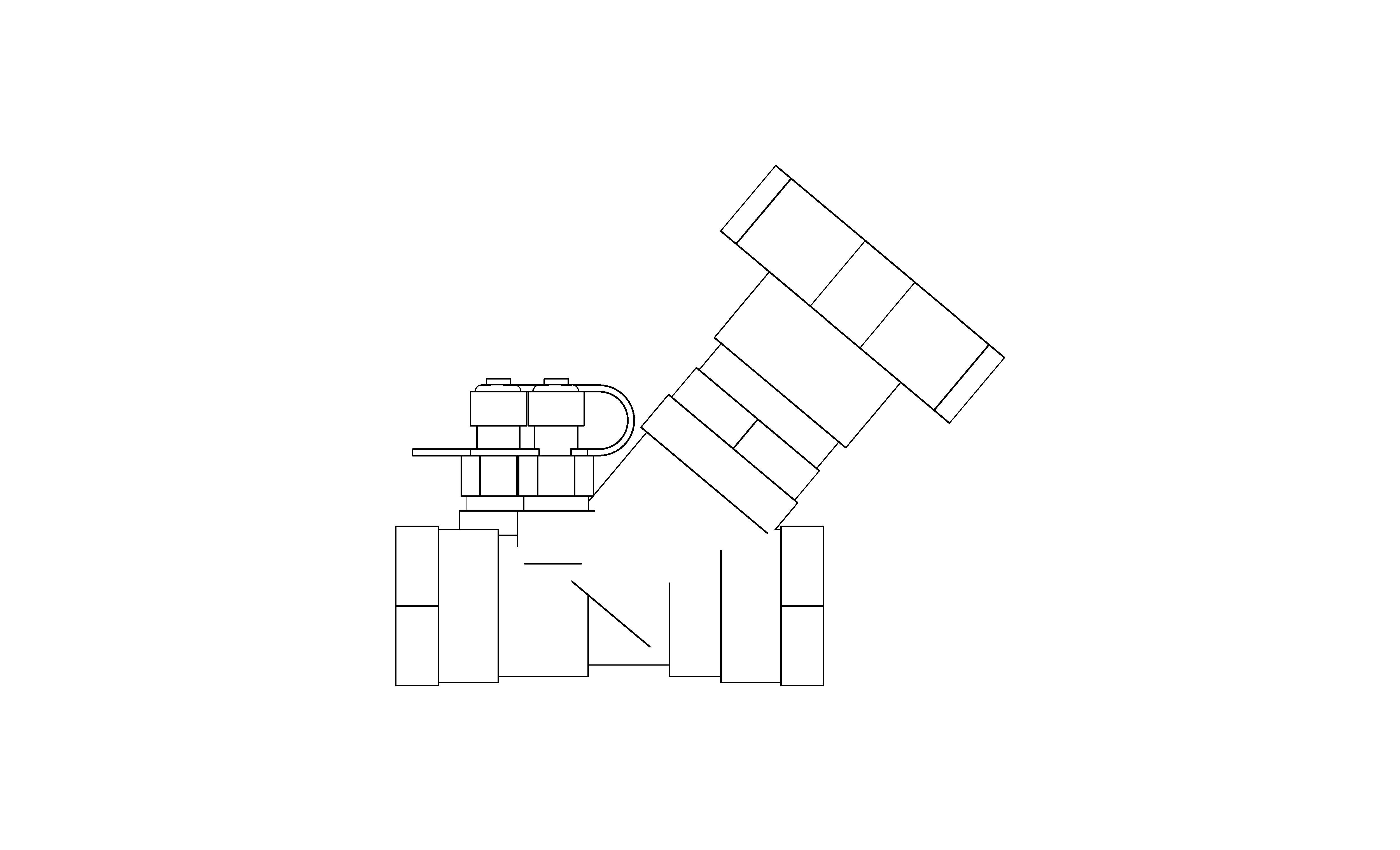

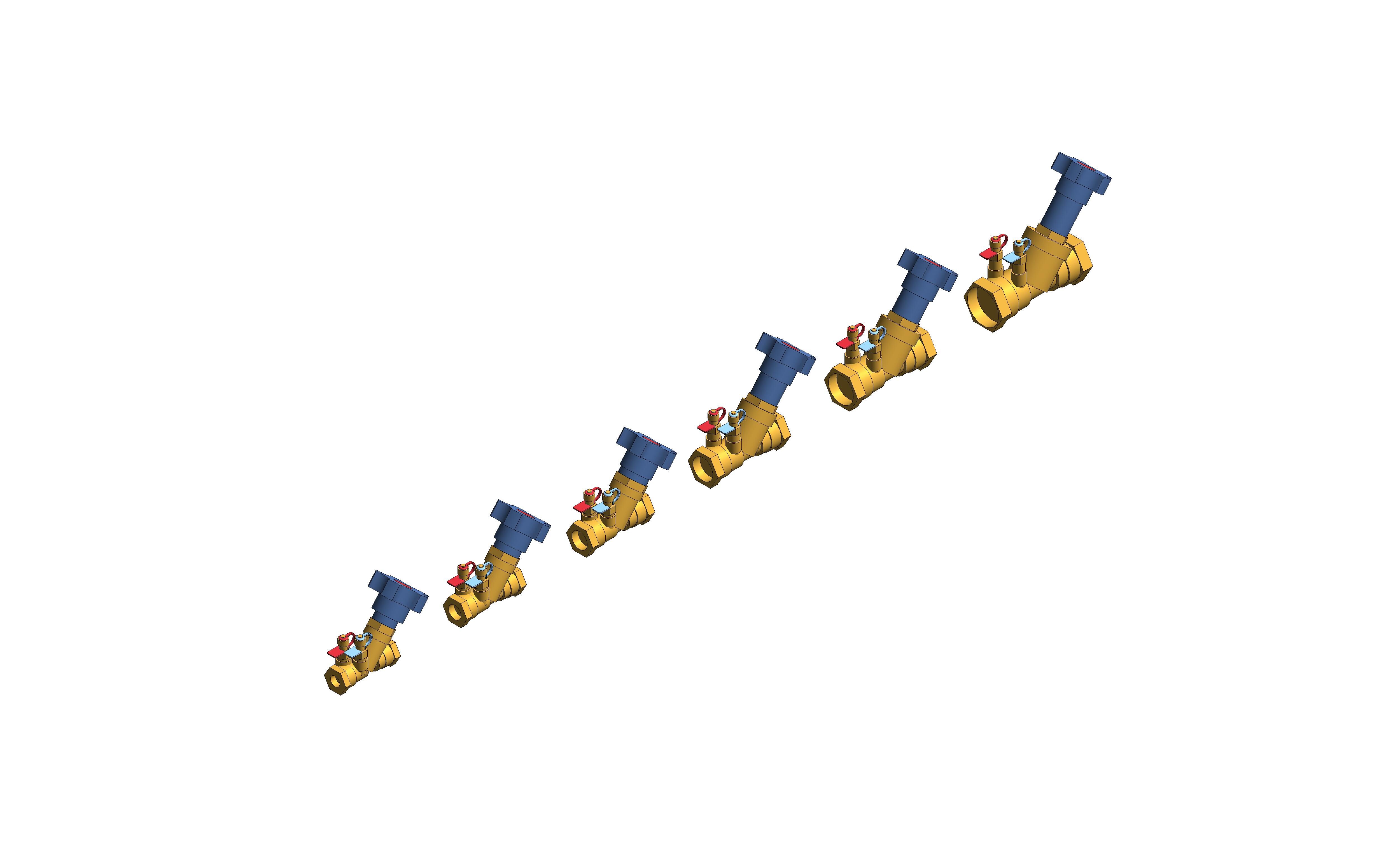

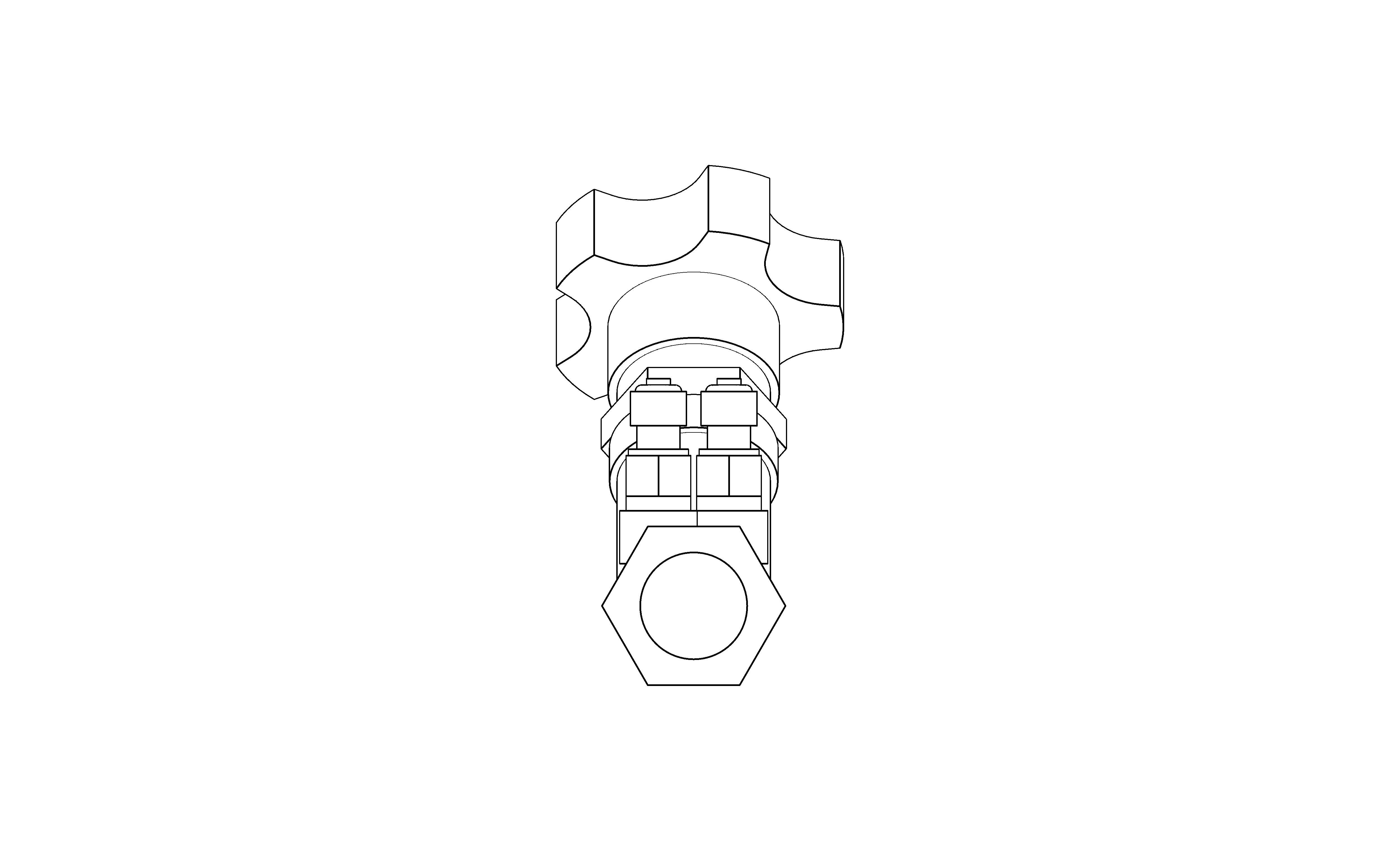

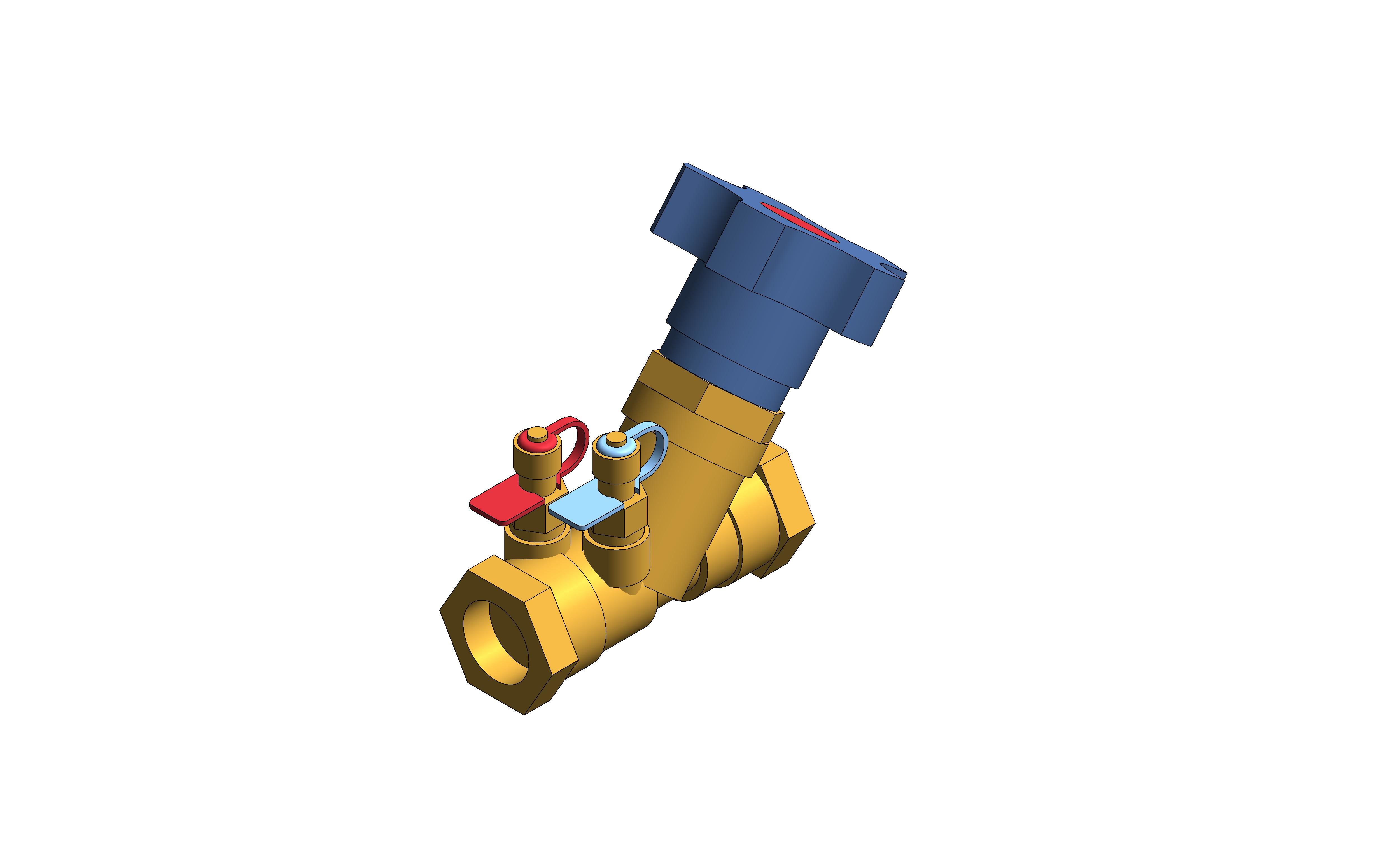

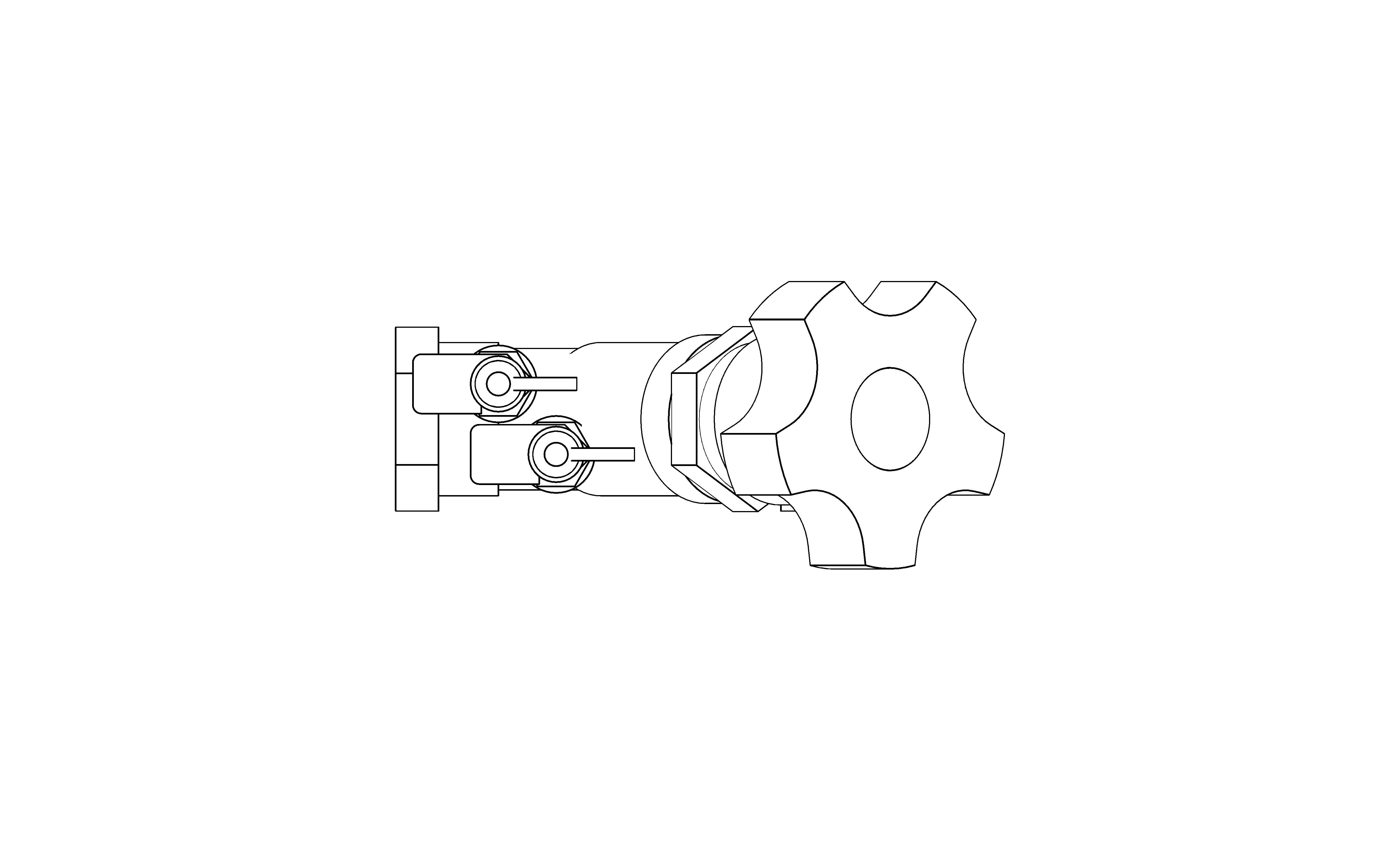

DZR Brass Fixed Orifice Balancing Valve, Complete with Test Points.

Object Data

1 Revision

Last Updated

07/09/2023

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

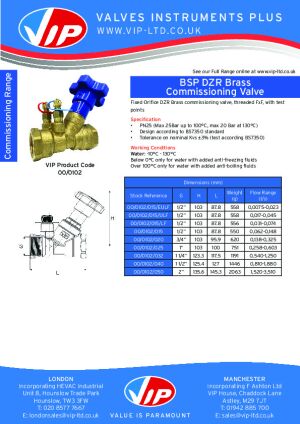

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/balancing-valve-00-0102/document/object-user-guide
a8.00 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
b12.00 mm
b 2 Rad13.04 mm
Balancing ConeDZR Brass EN12164 CW602N
BIM Object NameVIP_BalancingValve_00-0102
BodyDZR Brass EN12165 CW602N
BonnetDZR Brass EN12164 CW602N
b Rad14.62 mm
c10.00 mm
Check1
Classification NameUniclass 2015
Classification ValuePr_65_54_95_26
Code Performancen/a
Colorn/a
Connection Size15.00 mm
Connection Size Radius7.50 mm
Constituentsn/a
c Rad13.50 mm
Created Bysales@vip-ltd.co.uk
Created On2023-07-13 T:09:00:00
d6.62 mm
Default Elevation0.00 mm
DescriptionFixed orifice DZR brass double regulating valve, threaded FxF, with test points
DiscDZR Brass EN12164 CW602N
Disc O-RingEPDM Perox
Disc StemDZR Brass EN12164 CW602N
Documentation Certificateswww.bimstore.co/products/balancing-valve-00-0102/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/balancing-valve-00-0102/document/installation-guide
Documentation Literaturewww.bimstore.co/products/balancing-valve-00-0102/document/product-literature
Documentation Maintenancewww.bimstore.co/products/balancing-valve-00-0102/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/balancing-valve-00-0102/document/technical-data-sheet
Duration UnitYear
e12.36 mm
Expected Life0
f30.90 mm
Featuresn/a
Finishn/a
Flow Range0.062 - 0.148 l/s
g6.75 mm
Gasket DiscPTFE
Graden/a
h10.40 mm
H103.00 mm
HandwheelABS (Blue)
Hex Width30.40 mm
i9.00 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
j7.00 mm
k3.75 mm
K Coefficient0
KeynoteS
L87.80 mm
Loss MethodK Coefficient
ManufacturerVIP
Manufacturer NameVIP
Materialn/a
Mid Rad9.74 mm
Model00/0102/015
Model Number00/0102/015
Model Reference00-0102
NBS DescriptionDouble regulating valves
NBS Noten/a
NBS Object NameVIP - Double regulating valves
NBS Office Master Tagn/a
NBS Reference90-10-90/356
Nominal Depth0.00 mm
Nominal Height0.00 mm
Nominal Length0.00 mm
Nominal PressurePN25(Max 25bar up to 110°C, max 20bar at 120°C); PN16 with O/N kit (Max 16bar up to 30°C, max 5bar at 120°C)
NutZinc Plated Steel EN10025 Fe42
Production Year2023
Referenced StandardDesign according to BS7350 standard
Replacement Costn/a
ScrewSteel
Shapen/a
SizeDN15
Spare Partsn/a
StemBrass EN12164 CW617N
Stem Hex Width30.50 mm
Stem O-RingEPDM Perox
Stop Spring RingSpring Steel
Test Point/PlugDZR Brass EN12164 CW602N
Tolerance On Nominal Kvs±3% (test according BS7350)
Type CommentsBSP DZR Brass Balancing Valve
Type Name00/0102/015
UnionDZR Brass EN12164 CW602N
URLwww.vip-ltd.co.uk/
Venturi InsertDZR Brass EN12164 CW602N
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborn/a
Warranty Guarantor Partssales@vip-ltd.co.uk
Weight0.550 kg
Working Conditions-10°C to +10°C (below 0°C only for water with added anti-freezing fluids over 100°C only for water with added anti-boiling fluids)
