bimstore - Trade Washrooms - Adult Drinking Fountain

68
0
- / 5
Rate this product

-

Compliant

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

09/11/2020

Download BIM

Add to collection

Available for:

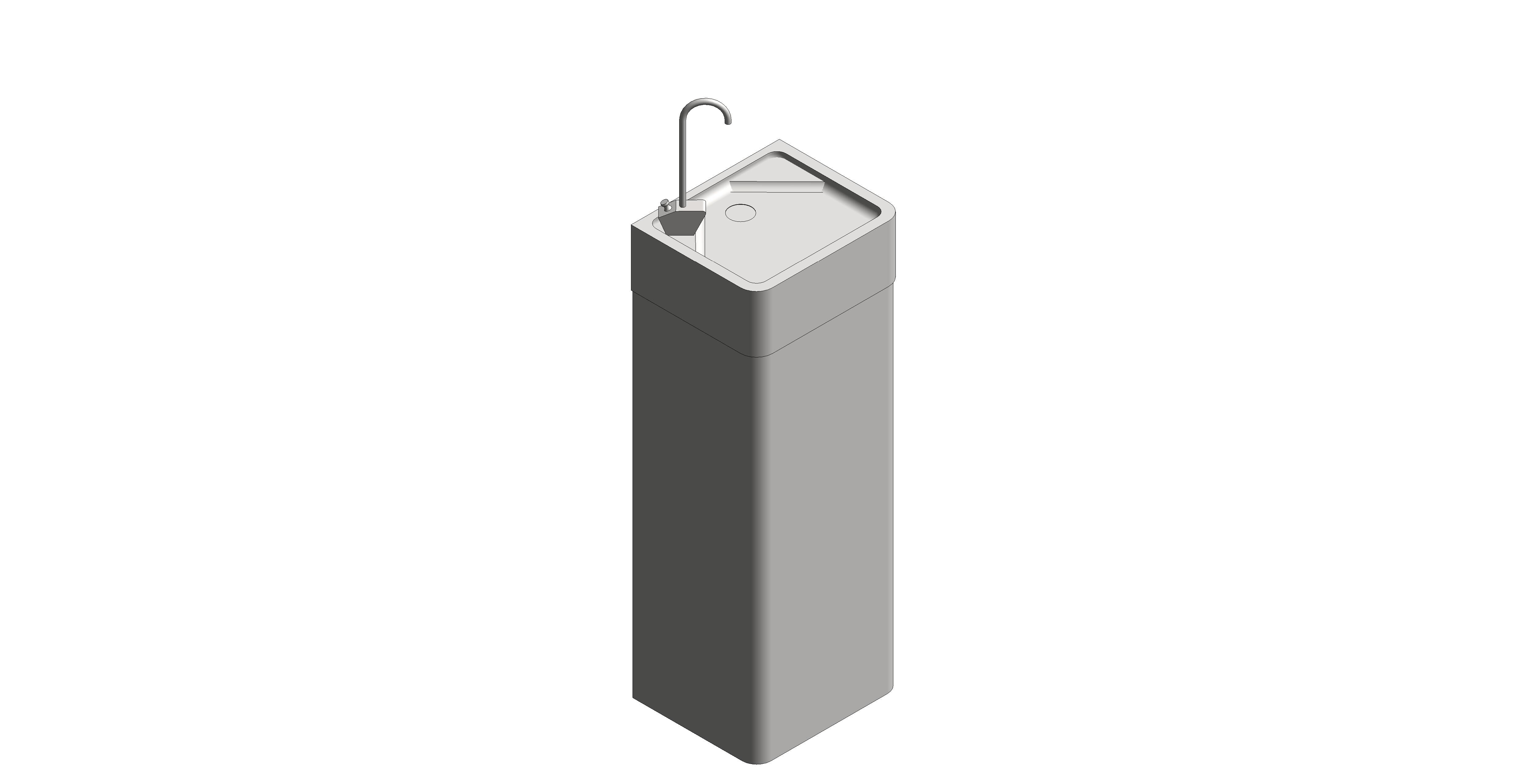

Adult-sized floor mounted drinking fountain complete with push-button water bubbler tap and protected nozzle to minimise direct contact. The full-length shroud enables both supply and waste pipework to be concealed for a clean looking installation. Manufactured in the UK from hygienic 304 stainless steel with a satin polished finish.

Object metadata

_AuthorRyan Wigham
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
Accessibility Performancen/a
Assembly CodeD2010810
Asset TypeFixed
BIM Object NameTradeWashrooms_PlumbingFixture_AdultDrinkingFountain
CategoryPr_40_70_15_24:Drinking fountains
Classification NameUniclass2015
Classification ValuePr_40_70_15_24
Code Performancen/a
ColorStainless Steel
ConstituentsDrinking fountain and bubbler tap
Created Byspec@tradewashrooms.co.uk
Created On2020-02-07T09:00:00
CW ConnectionYes
CWFU0
DescriptionAdult-sized floor mounted drinking fountain complete with push-button water bubbler tap and protected nozzle to minimise direct contact.
Documentation Certificatesn/a
Documentation Installation Guidewww.tradewashrooms.co.uk/stainless-steel/stainless-basins-troughs/adult-drinking-fountain/
Documentation Literaturewww.tradewashrooms.co.uk/stainless-steel/stainless-basins-troughs/adult-drinking-fountain/
Documentation Maintenancen/a
Documentation Technicalwww.tradewashrooms.co.uk/stainless-steel/stainless-basins-troughs/adult-drinking-fountain/
Drinking Fountain MaterialTrade Washrooms - Stainless Steel - Satin
Duration UnitYears
Expected Life10
FeaturesIncludes push-button water bubbler tap with protected nozzle to minimise direct contact
FinishSatin Polished
Grade304
HW ConnectionNo
HWFU0
Ifc Export AsIfcFlowTerminalType
Ifc Export TypeIfcSanitaryTerminalTypeEnum.SANITARYFOUNTAIN
KeynoteN13
Manufacturerspec@tradewashrooms.co.uk
Manufacturer Nameorders@tradewashrooms.co.uk
MaterialStainless Steel
ModelAdult Drinking Fountain
Model NumberSAN172
Model ReferenceAdult Drinking Fountain
NameAdult Drinking Fountain
NBS DescriptionDrinking fountains
NBS Object NameTrade Washrooms - Drinking fountains
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth350 mm
Nominal Height900 mm
Nominal Length257 mm
Plug MaterialTrade Washrooms - Chrome - Polished
Production Year2020
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size350 x 257 x 900mm
Spare Partsn/a
Sustainability Performancen/a
Type CommentsSAN172
Type NameAdult Drinking Fountain
URLwww.tradewashrooms.co.uk/
Vent ConnectionNo
Warranty Description2-year warranty on any manufacturing defect
Warranty Duration Labor0
Warranty Duration Parts2
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsorders@tradewashrooms.co.uk
Waste ConnectionYes
WFU0
