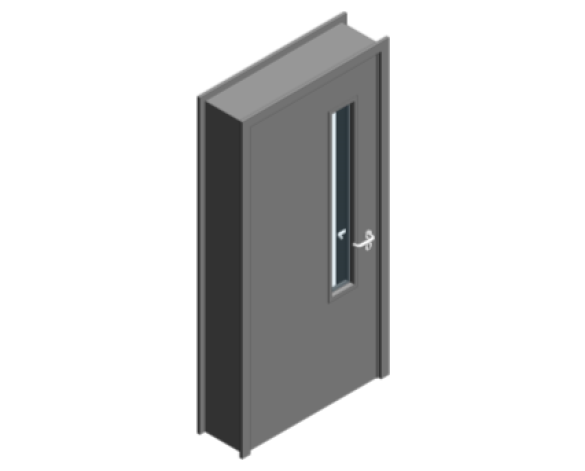

54mm Thick - Single Internal Door

Description

We understand doorsets. We work diligently to ensure performance characteristics such as fire & smoke, acoustic, security, hygiene and radiation shielding are catered for, without compromising on the overriding design vision.

This download contans the 54mm Thick - Single Internal Door Range provided by CW Fields and Son Limited.

This component is created in Revit 2015 and is in line with 2015 industry standards.

Object Data

1 Revision

Last Updated

03/01/2018

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_AuthorNigel Fields
_Bim Spec Guid0
_Bimstore Bible Versionv15
_Created Bywww.cwfields.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
Assembly CodeC1020100
Asset IdentifierPlease Record On Commisioning
Asset TypeFixed
Bar CodePlease Record On Commisioning
BIM Object NameCWFieldsAndSonLimited_Doorset_54mmThick_SingleInternalDoor
Classification NameUniclass2015
Classification ValuePr_40_20_76_90
Code Performancen/a
Colorn/a
ConstituentsC W Fields & Son Limited ,Fields DuraCore Doorset
Created Bynigel@cwfields.co.uk
Created On2017-08-09 T09:00:00
DescriptionDoor leaves constructed from 54mm high performance multilayered particleboard, The density and finish of the product permits the manufacture of door leaves without perimeter framing and additional sub-facing materials. Available as a doorset or door leaf only and can be partnered with Fields Wall Panelling for a fully coordinated design.
Documentation Certificateswww.cwfields.co.uk/resources
Documentation Installation Guidewww.cwfields.co.uk/resources
Documentation Literaturewww.cwfields.co.uk/resources
Documentation Maintenancewww.cwfields.co.uk/resources
Documentation Technicalwww.cwfields.co.uk/resources
Dura Core 54Yes
Duration UnitYears
Expected Life10
FeaturesSingle 54mm thick door set , with/without vision panel
Finishn/a
Fire Ratingn/a
FunctionInterior
Graden/a
Ifc Export AsDoorset
Ifc Export TypeIfcDoor
Installation DatePlease Record On Commisioning
KeynoteL20
ManufacturerC. W. Fields and Son Limited
Manufacturer NameC W Fields and Son Limited
MaterialParticlecore
ModelFields DuraCore Doorset
Model Number5160D
Model ReferenceC W Fields & Son Limited DuraCore
NBS DescriptionFlexible doorsets
NBS Object NameCWFields&SonLimited Flexible doorsets
NBS Office Master TagN/a
NBS Reference45-25-28/358
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Production Year2017
Referenced StandardEU9321
Replacement Costn/a
Serial NumberPlease Record On Commisioning
ShapeRectangle
SizeAs Specified
Spare Partsn/a
Thickness990 mm
Timber Core 54No
Type Comments44mm Thick DuraCore
Type NameFields DuraCore 54
URLwww.cwfields.co.uk
Wall ClosureBy host
Warranty Description10 year Structural Warranty
Warranty Duration Labor10
Warranty Duration Parts10
Warranty Duration Unityears
Warranty Guarantor Laborinfo@cwfields.co.uk
Warranty Guarantor Partsinfo@cwfields.co.uk
Warranty Start DatePlease Record On Commisioning
