3 Piece Stainless Steel Ball Valve [00/0037]

Description

3 Piece 316 Stainless Steel Full Bore Ball Valve, Carbon Filled PTFE Seats & Seals, Class 1000, Lever Handle with Locking Device, Screwed BSP Female Ends.

Object Data

2 Revision

Last Updated

04/12/2025

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

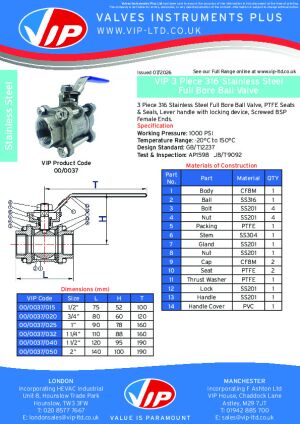

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAdam Grant
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version0
_Created ByAdam Grant
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/d7285ed0-f874-4755-b686-e10e4b0442c1/document/object-user-guide
Accessibility Performancen/a
AF32 mm
Assembly CodeD15
Asset TypeFixed
Bar Gap34 mm
Bar Length40 mm
Bar Size7 mm
BIM Object NameVIP_StainlessSteelBoreBallValve_(00-0037)
Centre Bolt H6 mm
Centre Height27 mm
Centre Width18 mm
Centre Width 211 mm
Classification NameUniclass 2024
Classification ValuePR_65_54_95_06
Code Performancen/a
ColorSilver & Blue
Connection Width25 mm
Constituentsn/a
Created Bysales@vip-ltd.co.uk
Created On2025-03-25T09:00:00
D15 mm
Default Elevation0 mm
Description3 Piece Stainless Steel Lever Operated Ball Valve
Documentation Certificateswww.bimstore.co/products/d7285ed0-f874-4755-b686-e10e4b0442c1/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/d7285ed0-f874-4755-b686-e10e4b0442c1/document/installation-guide
Documentation Literaturewww.bimstore.co/products/d7285ed0-f874-4755-b686-e10e4b0442c1/document/product-literature
Documentation Maintenancewww.bimstore.co/products/d7285ed0-f874-4755-b686-e10e4b0442c1/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/d7285ed0-f874-4755-b686-e10e4b0442c1/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
Finishn/a
Graden/a
H60 mm
KeynoteS
L64 mm
L112 mm
L26 mm
Lever CoverVIP - Blue Lever Cover
ManufacturerVIP
Manufacturer NameVIP
Model00/0037/015
Model Number00/0037/015
Model ReferenceBall Valves
NBS Descriptionn/a
NBS Noten/a
NBS Object Namen/a
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Diameter15 mm
Nut Height3 mm
Nut Size9 mm
Production Year2024
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN15
Spare Partssales@vip-ltd.co.uk
T100 mm
ThreadsISO 228
Type CommentsLever Operated Ball Valve
Type NameDN15
URLwww.vip-ltd.co.uk/Valves/VIP_Stainless_Steel_Products/00_0037/
Valve Body MaterialVIP - 316 Stainless Steel
Valve Body Thickness38 mm
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborsales@vip-ltd.co.uk
Warranty Guarantor Partssales@vip-ltd.co.uk
Working Pressure1000 PSI
Working Temperature-20°C to 220°C

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
