159XU - Check Valve

by Crane Fluid Systems

Download Add to collection

Description

Class 300 Cast Steel Swing Check Valve

Features & Benefits:

Cast Steel, bolted cap and flanged
Swing check valves prevent reversal of flow through the pipeline
Can be installed in horizontal or vertical, upward flow piping
Offer low resistance to flow and are particularly suited to low velocity service
Seat ring is seal welded to eliminate leak paths

Object Data

1 Revision

Last Updated

03/05/2022

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
a273.00 mm
Accessibility Performancen/a
Arrow Length16.00 mm
Assembly CodeD20
Asset TypeFixed
b96.00 mm
B46.10 mm
BIM Object NameCraneFS_SwingCheckValve_159XU
BodyASTM A216 WCB
Body Rad345.00 mm
BoltASTM A193 B8
Bolt Body Dia21.00 mm
Bolt Height27.00 mm
Bolt Hex Length36.00 mm
Bolt Offset A193.70 mm
Bolt Offset B207.00 mm
Bolts16
BonnetASTM A216 WCB
Bonnet GasketASTM A276 304+Graphite
b Rad464.00 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_40_13
Code Performancen/a
Colorn/a
Connection Size250.00 mm
Connection Size Radius125.00 mm
Constituentsn/a
Cotter PinASTM A276 304
Created Byenquiries@cranefs.com
Created On2022-03-01 T:09:00:00
d28.60 mm
D445.00 mm
D1387.40 mm
D2323.80 mm
D3254.00 mm
Description- Cast Steel, bolted cap and flanged - Swing check valves prevent reversal of flow through the pipeline - Can be installed in horizontal or vertical, upward flow piping - Offer low resistance to flow and are particularly suited to low velocity service - Seat ring is seal welded to eliminate leak paths
DiscASTM A216 WCB+13Cr
Documentation Certificateswww.bimstore.co/products/159xu-check-valve/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/159xu-check-valve/document/installation-guide
Documentation Literaturewww.bimstore.co/products/159xu-check-valve/document/product-literature
Documentation Maintenancewww.bimstore.co/products/159xu-check-valve/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/159xu-check-valve/document/technical-data-sheet
Duration UnitYear
e140.00 mm
Expected Life0
Eye Lifting BoltASTM A29 1020
f410.00 mm
Featuresn/a
Finishn/a
Full Thread Studn/a
g204.00 mm
GasketASTM A276 420
Graden/a
h348.00 mm
H456.00 mm
i370.00 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
j25.00 mm
k42.00 mm
K Coefficient0
KeynoteS
l16.00 mm
L622.00 mm
Loss MethodK Coefficient
ManufacturerCrane FS
Manufacturer NameCrane FS
Materialn/a
Model159XU
Model Number159XU
Model Reference159XU - Swing Check Valve - Class 300
NBS DescriptionCheck valves
NBS Noten/a
NBS Object NameCrane FS - Check valves
NBS Office Master Tagn/a
NBS Reference90-15-40/323
Nominal Depth445.00 mm
Nominal Height678.50 mm
Nominal Length622.00 mm
NutASTM A194 8
Pin Rad29.50 mm
Pressure RatingClass 300 Carbon Steel. ASTM A216 Grade WCB. 51.1 Bar / -29 to 38°C. 28.8 Bar / 425°C.
Production Year2022
Referenced StandardPressure/Temperature: ANSI B16.34; Face-to-face/End-to-end: ANSI B16.10; Flange dimensions: ANSI B16.5; Testing: API 598; Design: API 594.
Replacement Costn/a
Ring Radius31.00 mm
Ring Thickness6.00 mm
Ring VisibilityYes
RockerASTM A216 WCB
Round PinASTM A276 410
SeatASTM A105+13Cr
Set NutASTM A194 8
Shapen/a
Size10"
Spare Partsn/a
Specification NotesSwing check valves prevent reversal of flow through pipelines. Most Crane FS swing check valves can be installed in horizontal or vertical upward flow piping. They offer low resistance to flow and are particularly suited to low velocity service.
Type Comments159XU - Swing Check Valve - Class 300
Type Name159XU - Swing Check Valve - Class 300
URLwww.cranefs.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@cranefs.com
Warranty Guarantor Partsenquiries@cranefs.com
x136.50 mm
y183.50 mm
YokeASTM A216 WCB

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.

Comments

You must log in to write a comment

Login or Join

JUAN LOPZ on 10 August 2024

Excellent

Ermintrude Bimstore Cow on 29 January 2015

Nick,

based on your comment below I am guessing you are having trouble loading in the size variations of this particular valve. Please refer to the user guide contained in the download file to explain the process of loading the component via the type catalogue. Hope this helps.

Nick Milowych on 29 January 2015

Nice but where'e the rest of it?

159XU - Check Valve

Description

Object Data

Last Updated

Available Software

BS1192:4

BSB

EPD

Accompanying literature

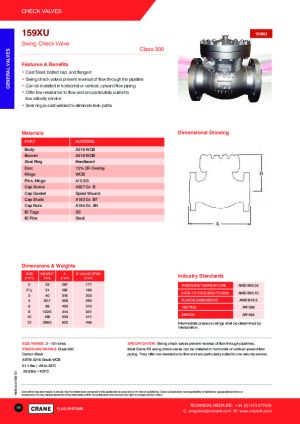

Product Literature
