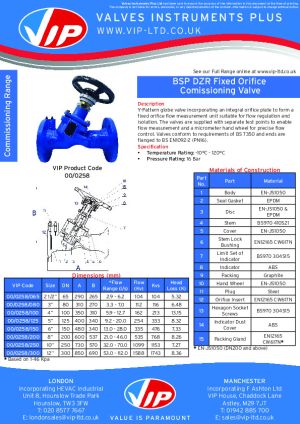

Cast Iron Fixed Orifice Commissioning Valve [00/0258]

Description

Y-Pattern valve with a characterised throttling disc and ends flanged to BS EN1092-2 PN16. The valve opening may be set to control flow at a predetermined rate. Operation of the valve is by means of a handwheel incorporating a Micrometer device. The Double Regulating feature allows the valve to be used for isolation and to be reopened to its pre-set position to maintain required flow rate.
Application:

In two unit systems, this valve has sufficient authority to regulate flow in circuits incorporating a flow measurement device.


Working Conditions:

• Working temperature: -10°C to 120°C
• Pressure rating: PN16
• Test pressure: 24 Bar (shell), 17.6 Bar (seat)
• Working medium: water
• Compliant with: BS7350
• Sizes: 2 1/2", 3", 4", 5", 6", 8"
• (other sizes may be available upon request)
