Vertical Mast Lift - GR20

by Nationwide Platforms

Download Add to collection

Description

GR20 - 7.85m Electric mast boom

The Genie low level lift GR20 provides working height of 7.85m and can be driven when fully elevated. The low level access lift also features Non-marking tyres suitable for indoor applications.

Object Data

1 Revision

Last Updated

02/06/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

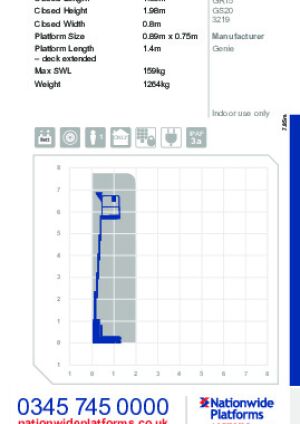

Technical Data Sheet

Product Data Sheet

Object metadata

_Authorbimstore
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/vertical-mast-lift-gr20/document/object-user-guide
Accessibility Performancen/a
Assembly CodeE1030100
Asset TypeMovable
BIM Object NameNationwidePlatforms_VerticalMastLift_GR20
Classification NameUniclass2015
Classification ValuePr_65_80_47_95
Code Performancen/a
ColorGrey & Blue
Constituentsn/a
Created Bybim@nationwideplatforms.co.uk
Created On2021-05-01T09:00:00
DescriptionThe Genie® Runabout® GR™-20 lift is a compact, low-weight machine that increases productivity on the job thanks to its ability to fit through doorways and in most passenger elevators. It can be driven through doorways with operator on board. A zero inside turning radius and full elevation drive features make it ideal for warehousing, transporting, inventory management and general maintenance.
Documentation Certificateswww.bimstore.co/products/vertical-mast-lift-gr20/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/vertical-mast-lift-gr20/document/installation-guide
Documentation Literaturewww.bimstore.co/products/vertical-mast-lift-gr20/document/product-literature
Documentation Maintenancewww.bimstore.co/products/vertical-mast-lift-gr20/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/vertical-mast-lift-gr20/document/technical-data-sheet
Duration UnitYears
Expected Life0
FeaturesThe Genie® Runabout® GR™-20 lift is a compact, low-weight machine that increases productivity on the job thanks to its ability to fit through doorways and in most passenger elevators. It can be driven through doorways with operator on board. A zero inside turning radius and full elevation drive features make it ideal for warehousing, transporting, inventory management and general maintenance.
FinishPainted Steel
Graden/a
Ifc Export AsIfcTransportElement
Ifc Export TypeIfcTransportElementType
KeynoteX
Logo MaterialNationwidePlatforms_White_Logo
ManufacturerNationwide Platforms (Genie)
Manufacturer NameNationwide Platforms (Genie)
MaterialMetal
ModelVertical Mast Lifts
Model NumberGR20
Model ReferenceVertical Mast Lifts
NBS DescriptionVertical lifting platforms
NBS Object NameNationwide Platforms - Vertical lifting platforms
NBS Office Master Tagn/a
NBS Reference90-80-65/350
Nominal Depth800 mm
Nominal Height1980 mm
Nominal Length1350 mm
Primary MaterialNationwidePlatforms_Blue_Primary
Production Year2021
Product Page Linkwww.nationwideplatforms.co.uk/en-gb/hire/low-level/gr20-7-85m-electric-vertical-mast
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size900mm x 1980mm x 1350mm
Spare Partsn/a
Type CommentsVertical Mast Lifts
Type NameVertical Mast Lifts
URLwww.nationwideplatforms.co.uk/en-gb
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborbim@nationwideplatforms.co.uk
Warranty Guarantor Partsbim@nationwideplatforms.co.uk
Zone MaterialNationwidePlatforms_Pink_Zone
