DX PHOTON 2 Outlet Thermostatic Shower Valve, finished in a high-shine polished chrome (PHO-148D/2-C/P)

Download Add to collection

Description

DX PHOTON

SKU: PHO-148D/2-C/P

2 Outlet Thermostatic Shower Valve, finished in a high-shine polished chrome

Click here to visit the product page on VADO

Object Data

1 Revision

Last Updated

02/04/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

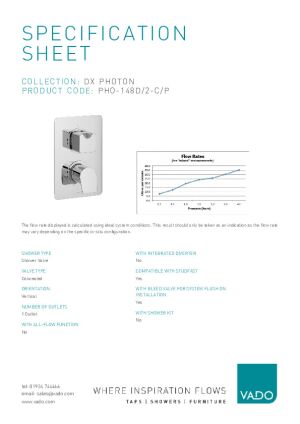

Technical Data Sheet

Product Data Sheet

Object metadata

_Authorsales@vado.com
_Authorized Bybimstore
_Bim Spec Guid1
_BS Bible Version17
_Created Bywww.vado.com/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/vado-pho-148d-2-c-p/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD2010
Asset TypeFixed
BIM Object NameVADO_ThermostaticValve_PHOTON_(PHO-148D-2-C-P)_Chrome
Classification NameUniclass 2015
Classification ValuePr_40_20_87_78
Code Performancen/a
ColorChrome
Constituentsn/a
Created Bysales@vado.com
Created On2023-01-23T09:00:00
Default Elevation1000 mm
Description2 Outlet, 2 Handle Thermostatic Valve
Documentation Certificateswww.bimstore.co/products/vado-pho-148d-2-c-p/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/vado-pho-148d-2-c-p/document/installation-guide
Documentation Literaturewww.bimstore.co/products/vado-pho-148d-2-c-p/document/product-literature
Documentation Maintenancewww.bimstore.co/products/vado-pho-148d-2-c-p/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/vado-pho-148d-2-c-p/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
Finishn/a
Flow Rate Maximum30 l/min at 3 bar pressure
FormThermostatic shower valve
Graden/a
Ifc Export AsIfcSanitaryTerminalType
Ifc Export TypeSHOWER
KeynoteN13
Manufacturersales@vado.com
Manufacturer NameVADO
MaterialBrass
Minimum Operating Pressure0.2 bar LP (shower), 1.0 bar MP (bath)
Model2 Outlet, 2 Handle Thermostatic Valve
Model NumberPHO-148D/2-C/P
Model ReferencePHOTON
NBS DescriptionShower manual water supply sets
NBS Noten/a
NBS Object NameVADO - Shower manual water supply sets
NBS Office Master Tagn/a
NBS Reference45-35-70/335
Nominal Depth95 mm
Nominal Height200 mm
Nominal Length130 mm
Pipe Connector Diameter10 mm
Production Year2023
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size130 x 200 mm
Spare Partssales@vado.com
Surface MaterialVADO_Chrome
Type CommentsPHO-148D/2-C/P
Type Name2 Outlet, 2 Handle Thermostatic Valve
URLwww.vado.com/photon-2-outlet-2-handle-thermostatic-valve
Valve MaterialVADO_Brass
Warranty Description15 Year
Warranty Duration Labor0
Warranty Duration Parts15
Warranty Duration UnitYears
Warranty Guarantor Laborguarantee@vado.com
Warranty Guarantor Partsguarantee@vado.com

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
