CELSIUS Thermostatic Bath Shower Mixer (CEL-123T-C/P)

Download Add to collection

Description

CELSIUS

CEL-123T-C/P

Wall mounted thermostatic bath shower mixer tap, finished in a high-shine polished chrome

Click here to visit the product page on VADO

Object Data

3 Revision

Last Updated

06/02/2025

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Installation Guide

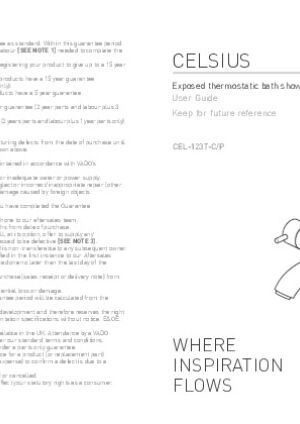

Product Literature

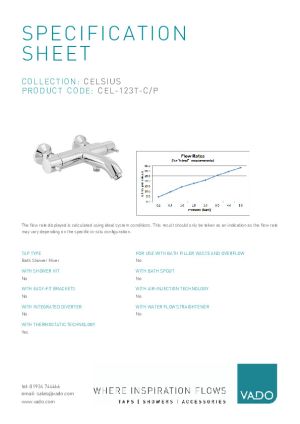

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorBS
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/vado-cel-123t-c-p/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD2010
Asset TypeFixed
BIM Object NameVADO_CELSIUS_BathShowerMixer_(CEL-123T-C-P)_Chrome
Classification NameUniclass2015
Classification ValuePr_65_54_95_88
Code Performancen/a
ColorChrome
Constituentsn/a
Created Bysales@vado.com
Created On2024-09-04T:09:00:00
Default Elevation800 mm
DescriptionCELSIUS Celsius Thermostatic Bath Shower Mixer
Documentation Certificateswww.bimstore.co/products/vado-cel-123t-c-p/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/vado-cel-123t-c-p/document/installation-guide
Documentation Literaturewww.bimstore.co/products/vado-cel-123t-c-p/document/product-literature
Documentation Maintenancewww.bimstore.co/products/vado-cel-123t-c-p/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/vado-cel-123t-c-p/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
FinishChrome
Flow Rate Maximum22.3 l/min at 3 bar pressure
FormThermostatic bath shower mixer
Graden/a
Ifc Export AsIfcValveType
Ifc Export TypeMIXING
KeynoteN13
ManufacturerVADO
Manufacturer NameVADO
Materialn/a
Minimum Operating Pressure1.5 bar MP
ModelCELSIUS Celsius Thermostatic Bath Shower Mixer
Model NumberCEL-123T-C/P
Model ReferenceCELSIUS
NBS DescriptionThermostatic mixing valves
NBS Noten/a
NBS Object NameVADO - Thermostatic mixing valves
NBS Office Master Tagn/a
NBS Reference90-10-90/370
Nominal Depth263 mm
Nominal Height0 mm
Nominal Length209 mm
Pipe Connector Diameter13 mm
Production Year2024
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size209 x 263 mm
Spare Partssales@vado.com
Tap MaterialVADO_Chrome
Type CommentsCELSIUS Celsius Thermostatic Bath Shower Mixer
Type NameCELSIUS Celsius Thermostatic Bath Shower Mixer
URLwww.vado.com/
Warranty Description15 Year
Warranty Duration Labor0
Warranty Duration Parts15
Warranty Duration UnitYears
Warranty Guarantor Laborsales@vado.com
Warranty Guarantor Partssales@vado.com
Water Flow0.0 L/s

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
