UR / URS Beam

Description

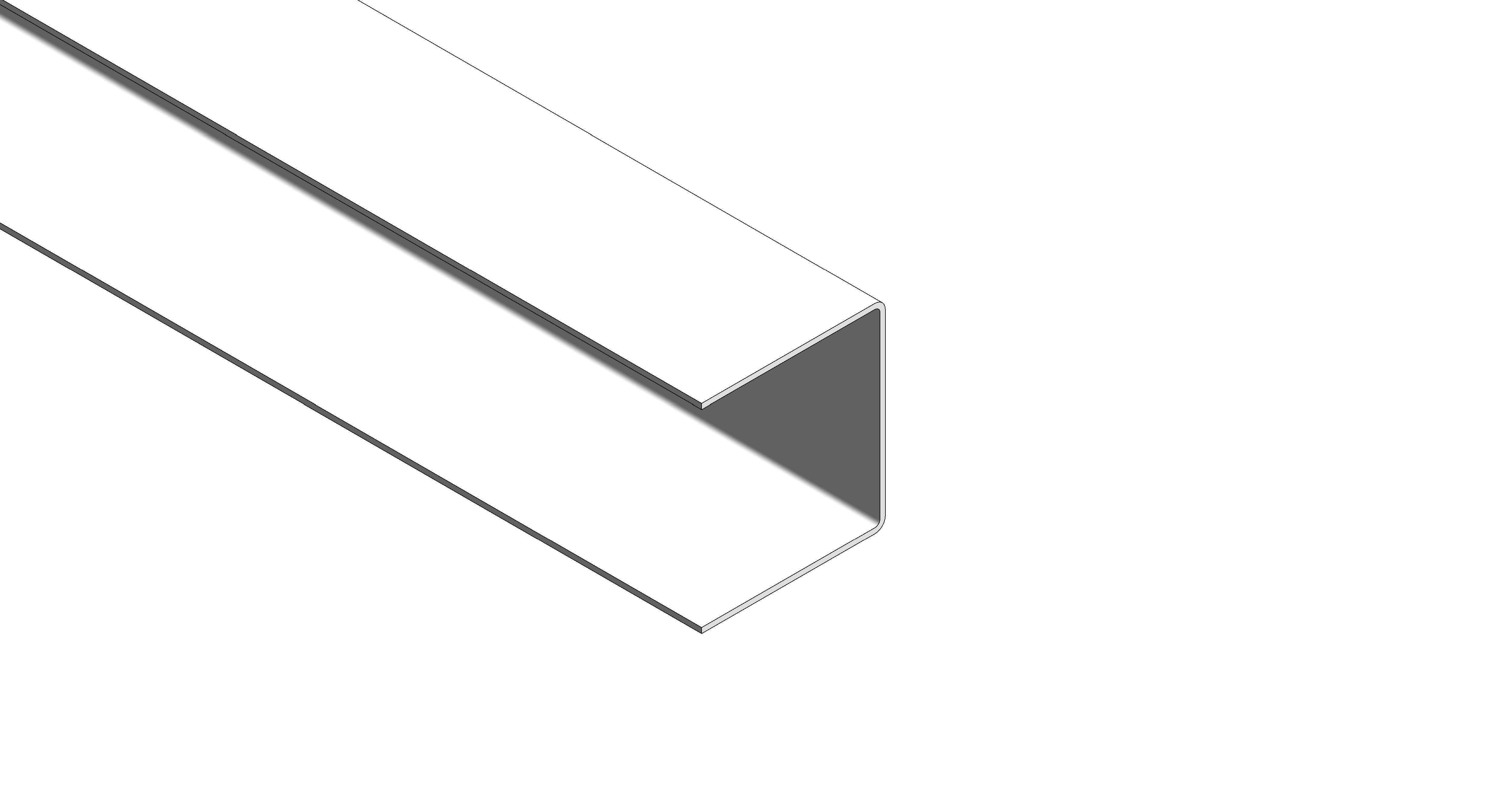

UR and URS Heavy duty channel track runner for metal stud panels. UR can be used as the base or top runner and at opening Cills and Lintels. URS is head track with vertical slots to enable deflection.

Object Data

1 Revision

Last Updated

21/05/2019

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
Accessibility Performancen/a
Assembly CodeB10
Asset TypeFixed
B70 mm
BIM Object NameAyrshireMetals_StructuralFraming_URBeam
Centroid Horizontal3.5 cm
Centroid Vertical3.8 cm
Classification NameUniclass2015
Classification ValuePr_20_76_51_21
Code PerformanceBS EN 1090-1, BS EN 10346, BS 5950-5
ColorSelf-Colour
Constituentsn/a
Created Bysales@ayrshire.co.uk
Created On2019-05-01T09:00:00
DescriptionCold rolled C Sections continue to be used extensively in storage platforms and are increasingly being used for a variety of alternative applications. Ayrshire’s comprehensive range of C Sections has been extended, and utilising Grade S390 material, provides even greater choice, flexibility and design efficiency. Load tables covering 1.5, 1.6, 1.8 and 2.0mm gauge standard sections have been produced. The wide range of sections (100 to 240 deep) on offer means that for almost any application the optimum solution can be obtained, leading to savings in material.
Documentation Certificateswww.ayrshire.co.uk/
Documentation Installation Guidewww.ayrshire.co.uk/
Documentation Literaturewww.ayrshire.co.uk/
Documentation Maintenancewww.ayrshire.co.uk/
Documentation Technicalwww.ayrshire.co.uk/
Duration UnitYears
Expected Life0
Featuresn/a
Finishn/a
Graden/a
H76 mm
Height7.6 cm
Ifc Export AsIfcBeam
Ifc Export TypeIfcBeamTypeEnum.BEAM
Inner Fillet0.2 cm
KeynoteG10
ManufacturerAyrshire Metals
Manufacturer NameAyrshire Metals
MaterialSteel
ModelAyrshire Metals UR Beam
Model NumberUR7020
Model ReferenceAyrshire Metals UR Beam
NBS DescriptionCold-formed galvanized steel sections
NBS Object NameAyrshire Metals UR Beam - Cold-formed galvanized steel sections
NBS Office Master Tagn/a
NBS Reference45-60-50/400
Nominal Depth76 mm
Nominal Height70 mm
Nominal Thickness2 mm
Product CodeUR7020
Production Year2019
r 12 mm
Referenced Standardn/a
Replacement Costn/a
ShapeU Section
Size70 x 76 mm
Spare Partsn/a
t2 mm
Type CommentsUR7020
Type NameUR7020
URLwww.ayrshire.co.uk/
Wall Nominal Thickness0.2 cm
Warranty Descriptionn/a
Warranty Duration Laborn/a
Warranty Duration Partsn/a
Warranty Duration UnitYears
Warranty Guarantor Laborsales@ayrshire.co.uk
Warranty Guarantor Partssales@ayrshire.co.uk
Width7.0 cm
y35 mm
z38 mm
