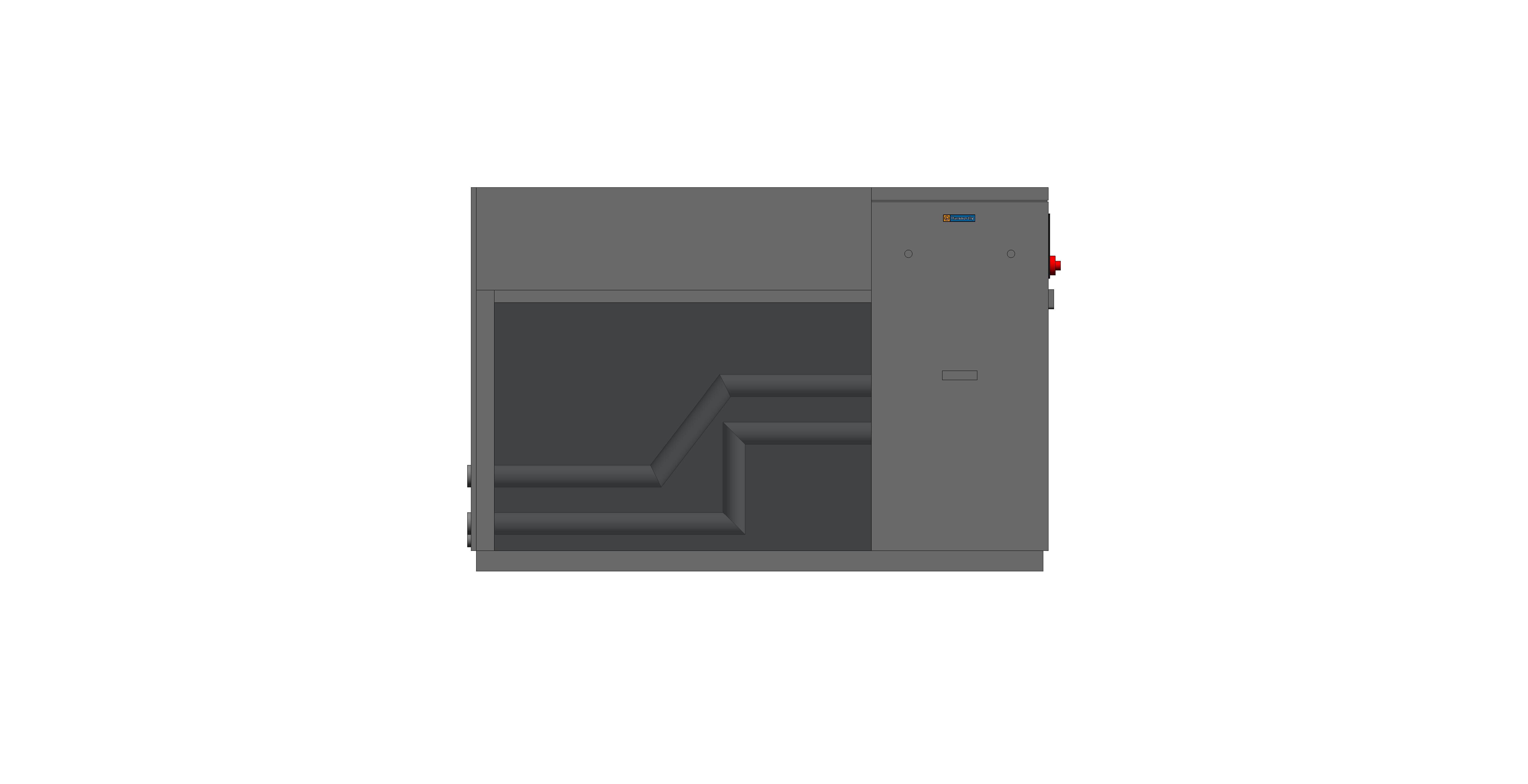

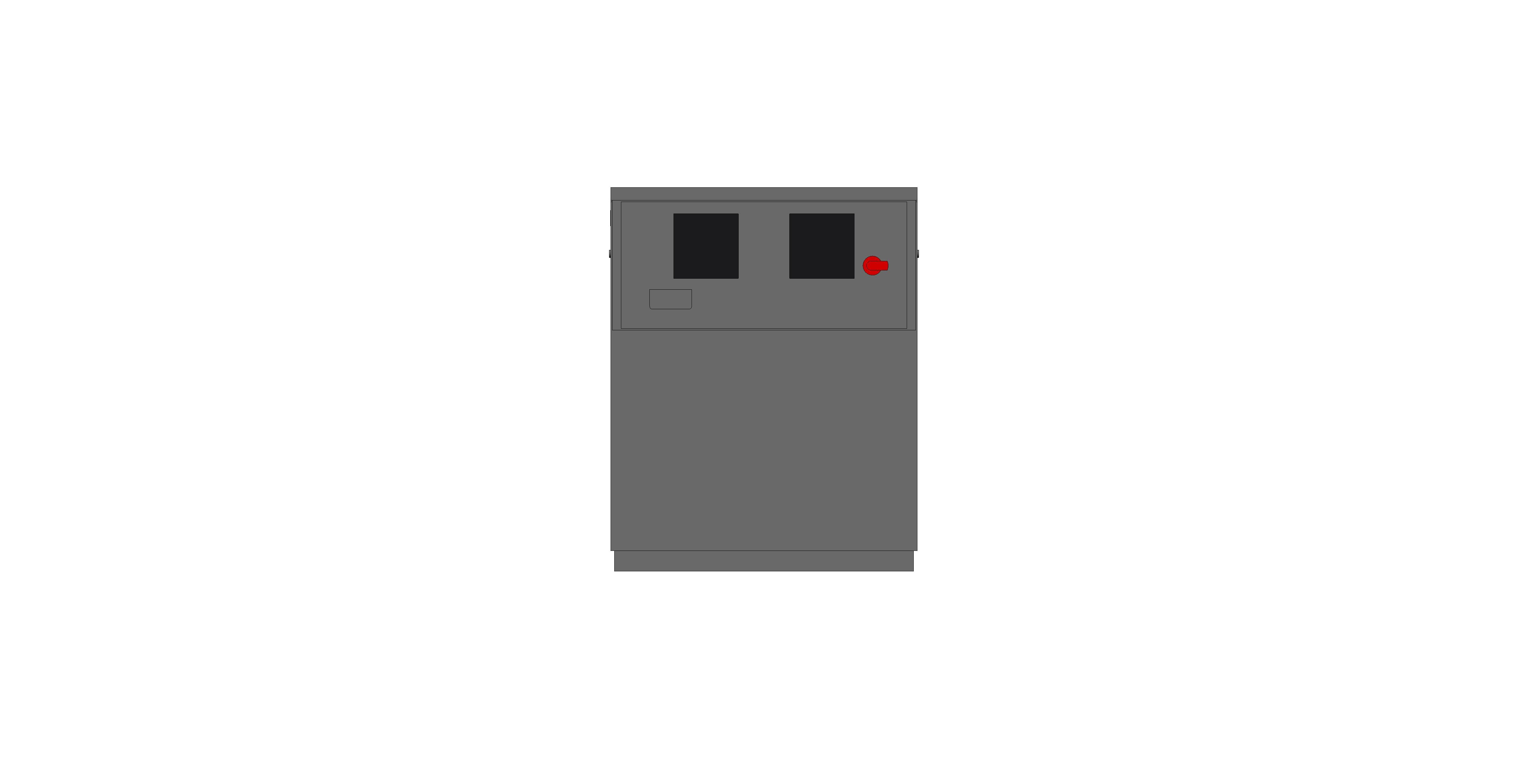

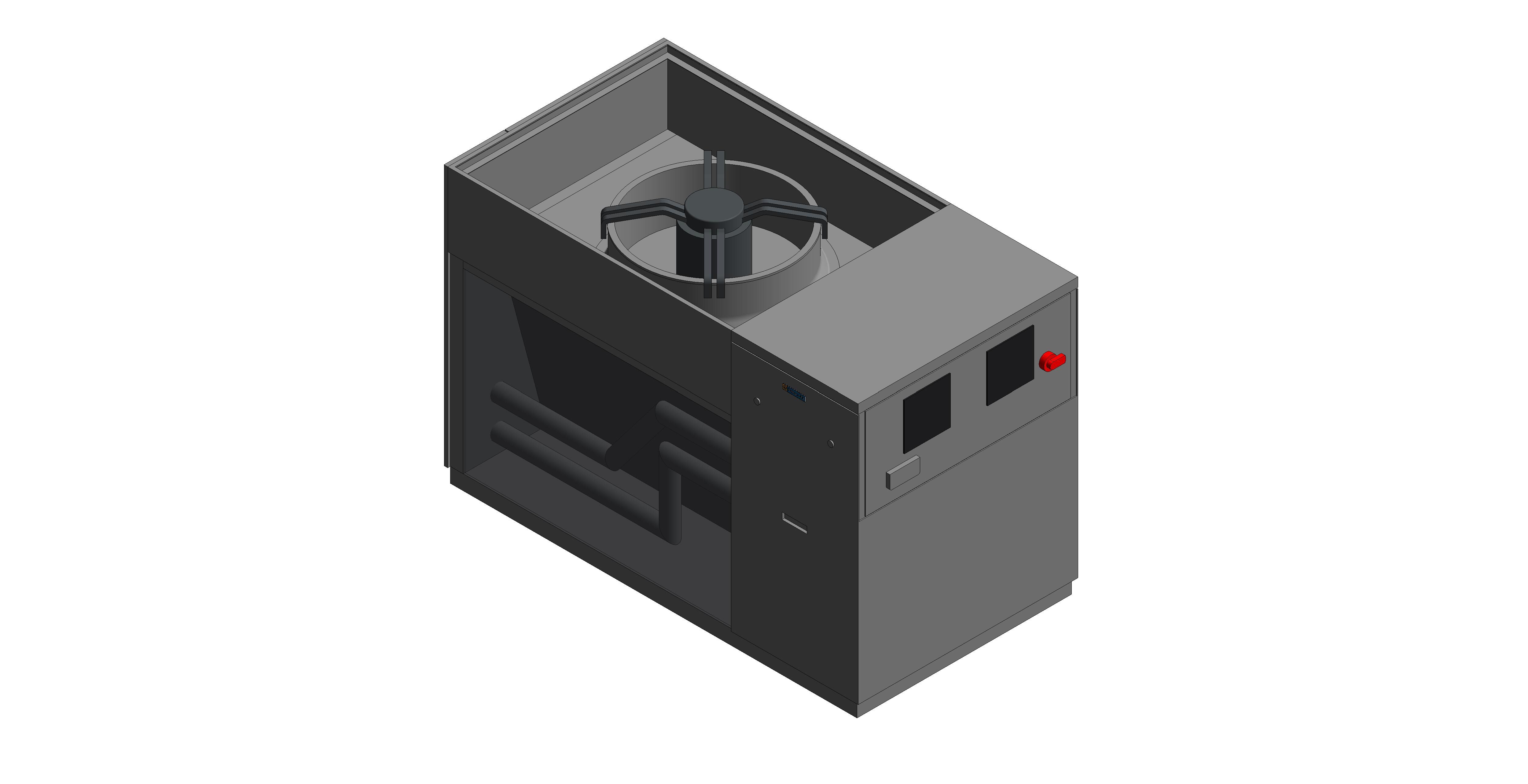

Tyneham 290 HT Monobloc Air Source Heat Pump - 65kW

Description

Using R290 natural refrigerant, the Tyneham 290HT achieves higher flow temperatures, improved efficiencies and low carbon heating.

This download is for the 65kW version.

For more product information on the Tyneham 290HT - Air Source Heat Pump visit Hamworthy Heating HERE

Object Data

1 Revision

Last Updated

04/03/2025

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

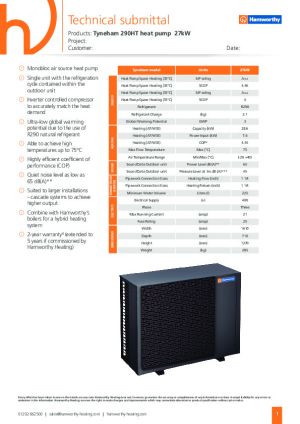

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorBS
_Authorized Bybimstore
_Bim Spec Guid1
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/4550f15f-ace1-45dd-a21c-f71a7f9695e4/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD3020100
Asset TypeFixed
BIM Object NameHamworthyHeating_HeatPump_Tyneham_290HT_65kW
Casing MaterialIdeal Heating - Grey
Classification NameUniclass 2015
Classification ValuePr_60_60_96_37
Clearance ZoneIdeal Heating - Clearance Zone
Code Performancen/a
ColorGrey
Conn Diameter86 mm
Constituentsn/a
Cover MaterialIdeal Heating - Dark Grey
Created Bytechnical@hamworthy-heating.com
Created On2025-02-26T09:00:00
Default Elevation0 mm
Depth2311 mm
DescriptionTYNEHAM 290HT NATURAL REFRIGERANT HEAT PUMP
Documentation Certificateswww.bimstore.co/products/4550f15f-ace1-45dd-a21c-f71a7f9695e4/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/4550f15f-ace1-45dd-a21c-f71a7f9695e4/document/installation-guide
Documentation Literaturewww.bimstore.co/products/4550f15f-ace1-45dd-a21c-f71a7f9695e4/document/product-literature
Documentation Maintenancewww.bimstore.co/products/4550f15f-ace1-45dd-a21c-f71a7f9695e4/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/4550f15f-ace1-45dd-a21c-f71a7f9695e4/document/technical-data-sheet
Duration UnitYears
Expected Life0
FeaturesSuitable for commercial properties. Monobloc air source heat pump.
Finishn/a
Graden/a
Grille MaterialIdeal Heating - Grille Grey
Height1496 mm
Ifc Export AsIfcPump
Ifc Export TypeIfcPumpTypeEnum.CIRCULATOR
KeynoteT32
ManufacturerHamworthy Heating
Manufacturer NameHamworthy Heating
Materialn/a
ModelTYNEHAM 290 HT
Model NumberTYNEHAM 290 HT
Model Reference65kW
NBS DescriptionHeat pump water heaters
NBS Noten/a
NBS Object NameHamworthy Heating - Heat pump water heaters
NBS Office Master Tagn/a
NBS Reference90-15-35/315
Nominal Depth2311 mm
Nominal Height1496 mm
Nominal Length1206 mm
Offset0 mm
Production Year2025
Referenced Standardn/a
Replacement Costn/a
ShapeRectangle
Size1206x1496x2311mm
Spare Partstechnical@hamworthy-heating.com
Type Comments65kW
Type Name65kW
URLwww.hamworthy-heating.com/
Warranty Description2 year warranty (extended to 5 years if commissioned by Hamworthy Heating)
Warranty Duration Labor0
Warranty Duration Parts2
Warranty Duration UnitYears
Warranty Guarantor Labortechnical@hamworthy-heating.com
Warranty Guarantor Partstechnical@hamworthy-heating.com
Width1206 mm
