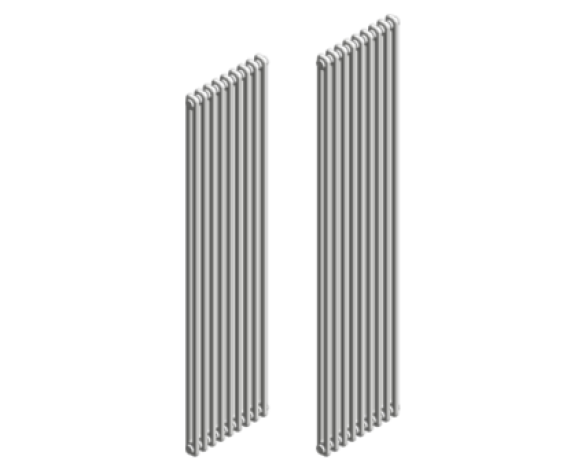

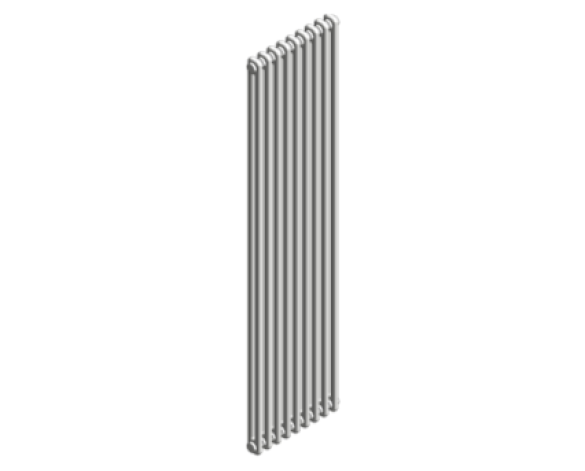

Softline Column Vertical Radiator

by Stelrad Radiators Ltd

Download Add to collection

Description

The Softline Column Vertical provides a real style statement. Ideal for use in any minimalist projects or where space is restricted.

Click here to view our interactive brochure

Object Data

2 Revision

Last Updated

20/02/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Product Literature

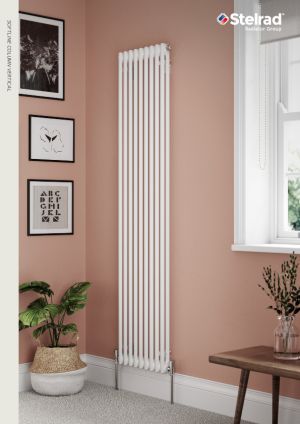

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision3
_Distributed Bywww.bimstore.co
2 ColYes
6 Monthlyn/a
Access Clearance Bottom0 mm
Access Clearance Front0 mm
Access Clearance Left0 mm
Access Clearance Rear0 mm
Access Clearance Right0 mm
Access Clearance Top0 mm
Accessibility Performancen/a
Air VentNo
Annuallyn/a
Assembly CodeD3020
Asset TypeFixed
Bespoke Timeframen/a
BIM Object NameStelrad_MechanicalEquipment_Radiators_SoftlineColumnVertical
Casing Materialn/a
CE Approvaln/a
Classification NameUniclass2015
Classification ValuePr_70_60_36_73
Code Performancen/a
ColourRAL 9016
Columns2
Constituentsn/a
Created Byinfo@stelrad.com
Created On2019-06-13 T09:00:00
D54 mm
D285 mm
Dailyn/a
DescriptionThe Softline Column Vertical provides a real statement. Ideal for use in any minimalist project or where wall space is restricted.
Documentation Certificateswww.bimstore.co/products/softline-column-vertical/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/softline-column-vertical/document/installation-guide
Documentation Literaturewww.bimstore.co/products/softline-column-vertical/document/product-literature
Documentation Maintenancewww.bimstore.co/products/softline-column-vertical/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/softline-column-vertical/document/technical-data-sheet
Drain TapNo
Duration UnitYears
Embodied Carbonn/a
Energy Technology Listn/a
Environmental Product Declarationn/a
Expected Life0
Featuresn/a
FinishPainted
FinnedNo
Graden/a
Green Guide For Specificationn/a
Gross Weight17.57 kg
Heat Emitter MaterialSteel
Heat ReflectorNo
Heat Transfer Mediumn/a
Ifc Export AsIfcSpaceHeater
Ifc Export TypeIfcSpaceHeaterTypeEnum.RADIATOR
Inlet GrilleNo
Integral Lockshield ValveNo
Integral Regulating ValveNo
Integral TRVNo
KeynoteT32
Life Cycle Analysisn/a
Location Of ManufacturerRotherham, UK
Maintenance Required 0-300hrsn/a
Maintenance Required 1001-2000hrsn/a
Maintenance Required 2001-4000hrsn/a
Maintenance Required 301-600hrsn/a
Maintenance Required 4001-8000hrsn/a
Maintenance Required 601-1000hrsn/a
Maintenance Required 8001-12000hrsn/a
ManufacturerStelrad Ltd
Manufacturer NameStelrad Ltd
Manufacturer Websitewww.stelrad.com/
MaterialSteel
Material Ingredient Reportingn/a
Maximum Operating Pressure8.0 kPa
Maximum Operating Temperature0 °C
Maximum Test Pressure10.5 kPa
ModelSoftline Column Vertical
Model Number563054
Model ReferenceSoftline Column Vertical
Monthlyn/a
NBS DescriptionRadiators
NBS Noten/a
NBS Object NameStelrad Ltd - Radiators
NBS Office Master Tagn/a
NBS Reference90-40-35/405
Nominal Depth85 mm
Nominal Height1800 mm
Nominal Length352 mm
Number Of Panels0
O&M Manualn/a
Outlet GrilleNo
Overall Height1800 mm
Overall Length352 mm
Overall Width85 mm
Pipe Connections Size26 mm
Possible Connections Positionsn/a
Pressure Drop0.0 kPa
Production Year2019
Product Literaturewww.bimstore.co/products/softline-column-vertical/document/product-literature
Product Model Number563054
Product RangeSoftline
Quarterlyn/a
Reference StandardEN 442 Certification - CETIAT tested in accordance with BS EN 442
Replacement Costn/a
Responsible Extraction Of Materialsn/a
Responsible Sourcing Of Materialsn/a
Seam Typen/a
ShapeRectangle
Shipping Weight0.00 kg
Size1800 x 352mm
Spare Partsn/a
Tag Numbern/a
Temperature Classificationn/a
Thermal Output868 W
Thermal Output-Btu/hr2962
TypeColumn
Type Comments1800mm High x 352mm Wide - 2 Col
Type Name1800mm High x 352mm Wide - 2 Col
URLwww.stelrad.com/
WA23 mm
Wall Bracket Height Offset100 mm
Wall Bracket Offset71 mm
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Partsn/a
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsinfo@stelrad.com
Warranty IDn/a
Water Content11.5 L
Water Flow Raten/a
Weeklyn/a

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
