RTV-P | Plain Roof Tile Vent

by Timloc Building Products

Download Add to collection

Description

Plain roof tile vent to enable ventilation directly into a roof space or connect to a ducted ventilation system

Uses:

On roofs with Plain roof tiles
Enables ventilation directly into a roof space
Can also be connected to a ducted ventilation system inside the building

Available in single, box and pallet quantities.

Object Data

1 Revision

Last Updated

01/09/2023

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

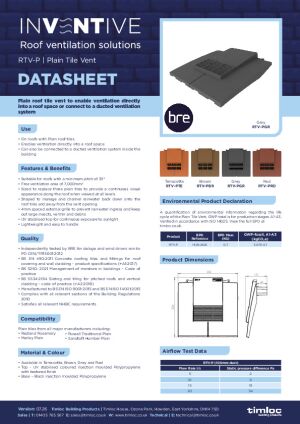

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRW
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/timloc-rtv-p/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD3060400
Asset TypeFixed
BIM Object NameTimloc_RoofTileVent_PlainTileVent
Classification NameUniclass2015
Classification ValuePr_30_59_29_73
Code Performancen/a
ColorBrown
Constituentsn/a
Created Bysales@timloc.co.uk
Created On2023-07-25T09:00:00
Default Elevation0 mm
Depth15 mm
DescriptionPlain roof tile vent to enable ventilation directly into a roof space or connect to a ducted ventilation system
Documentation Certificateswww.bimstore.co/products/timloc-rtv-p/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/timloc-rtv-p/document/installation-guide
Documentation Literaturewww.bimstore.co/products/timloc-rtv-p/document/product-literature
Documentation Maintenancewww.bimstore.co/products/timloc-rtv-p/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/timloc-rtv-p/document/technical-data-sheet
Duration UnitYear
Expected Life0
FeaturesSuitable for roofs with a minimum pitch of 35°
FinishTextured
GradeUV stabilised
Height334 mm
Ifc Export AsIfcBuildingElementProxyType
Ifc Export TypeUSERDEFINED
KeynoteH60/840
ManufacturerTimloc Building Products
Manufacturer NameTimloc Building Products
MaterialPolypropylene
ModelRTV-PBR
Model NumberRTV-PBR
Model ReferenceBrown
NBS DescriptionRoof slope ventilator tiles
NBS Object NameTimloc - Roof slope ventilator tiles
NBS Office Master Tagn/a
NBS Reference45-20-75/375
Nominal Depth15 mm
Nominal Height334 mm
Nominal Length329 mm
Production Year2023
Referenced StandardBS EN 490:2011
Replacement Costn/a
ShapeRectangular
Size334mm x 333mm x 121mm
Spare Partsn/a
Type CommentsPlain Roof Tile Vent
Type NamePlain Roof Tile Vent
URLtimloc.co.uk/
Vent MaterialTimloc_Brown
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborsales@timloc.co.uk
Warranty Guarantor Partssales@timloc.co.uk
Width329 mm

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
