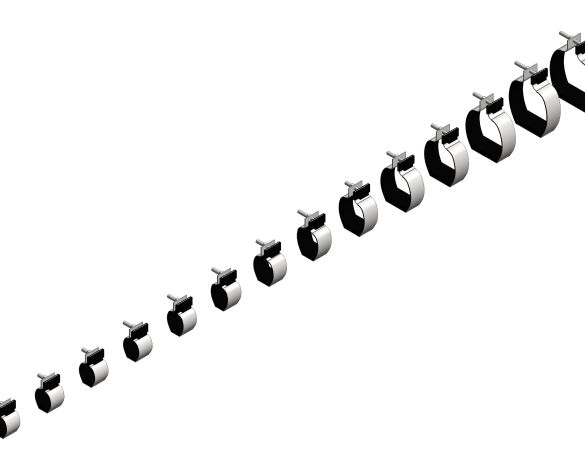

Vulcan Quad Cable Cleat
Description
Vulcan+™ Quad
Standard Duty Compact Stainless Steel Cable Cleat, for cables in quad formation.
The Ellis Vulcan+™ cable cleat has been designed, developed, tested and manufactured in accordance with IEC 61914 (cable cleats for electrical installations).
The cleat is suitable for quad formation but is also available in a range of sizes to suit single & trefoil cable formations. The frame of the cleat is manufactured from corrosion-resistant 316L grade stainless steel, the cable is supported by a liner manufactured from a low smoke zero halogen (LSOH) material.
The closure fixings are manufactured from A4-70 grade stainless steel. Vulcan+™ can be fixed to the supporting structure by either one or two M10 fixings. Non-standard cleat designs can be supplied upon request.
For more information head to the Ellis Patents website here.
Read moreObject Data
1 Revision
Last Updated
15/08/2025
Available Software
BS1192:4
Compliant
BSB
Compliant
EPD
Not Available
Sustainability & Environmental Data
Not available.
Environmental Product Declarations
There are no EPDs.
