RTV-HS | Hooded Slate Vent

Object metadata

• _AuthorRW
• _Authorized Bybimstore
• _Bim Spec Guid0
• _BS Bible Version17
• _Created Bywww.bimstore.co/
• _Current Revision1
• _Distributed Bywww.bimstore.co/
• _Object User Guidewww.bimstore.co/products/timloc-rtv-hs/document/object-user-guide
• Accessibility Performancen/a
• Assembly CodeD3060400
• Asset TypeFixed
• BIM Object NameTimloc_RoofTileVent_HoodedSlateVent
• Classification NameUniclass2015
• Classification ValuePr_30_59_29_73
• Code Performancen/a
• ColorBlack
• Constituentsn/a
• Created Bysales@timloc.co.uk
• Created On2023-07-25T09:00:00
• Default Elevation0 mm
• Depth98 mm
• DescriptionHooded Slate Vent to enable ventilation directly into a roof space or connect to a ducted ventilation system
• Documentation Certificateswww.bimstore.co/products/timloc-rtv-hs/document/product-certificates
• Documentation Installation Guidewww.bimstore.co/products/timloc-rtv-hs/document/installation-guide
• Documentation Literaturewww.bimstore.co/products/timloc-rtv-hs/document/product-literature
• Documentation Maintenancewww.bimstore.co/products/timloc-rtv-hs/document/maintenance-information

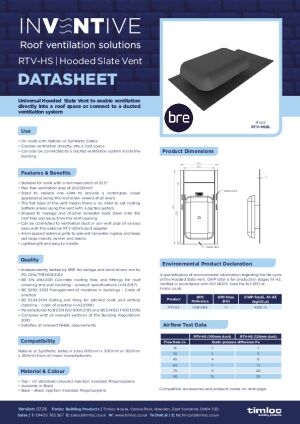

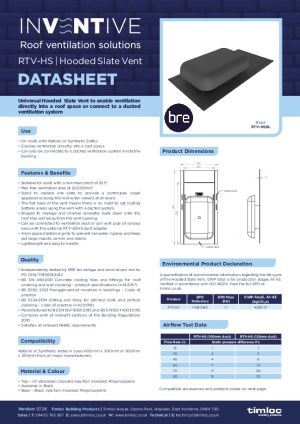

• Documentation Technicalwww.bimstore.co/products/timloc-rtv-hs/document/technical-data-sheet
• Duration UnitYear
• Expected Life0
• FeaturesSuitable for roofs with a minimum pitch of 22.5°
• FinishTextured
• GradeUV stabilised
• Height600 mm
• Ifc Export AsIfcBuildingElementProxyType
• Ifc Export TypeUSERDEFINED
• KeynoteH60/840
• ManufacturerTimloc Building Products
• Manufacturer NameTimloc Building Products
• MaterialPolypropylene
• ModelRTV-HSBL
• Model NumberRTV-HSBL
• Model ReferenceBlack
• NBS DescriptionRoof slope ventilator tiles
• NBS Object NameTimloc - Roof slope ventilator tiles
• NBS Office Master Tagn/a
• NBS Reference45-20-75/375
• Nominal Depth98 mm
• Nominal Height600 mm
• Nominal Length300 mm
• Production Year2023
• Referenced StandardBS EN 490:2011
• Replacement Costn/a
• ShapeRectangular
• Size600mm x 300mm x 98mm
• Spare Partsn/a
• Type CommentsHooded Slate Vent
• Type NameHooded Slate Vent
• URLtimloc.co.uk/
• Vent MaterialTimloc_VentTile_Black
• Warranty Descriptionn/a
• Warranty Duration Labor0
• Warranty Duration Parts0
• Warranty Duration UnitYear
• Warranty Guarantor Laborsales@timloc.co.uk
• Warranty Guarantor Partssales@timloc.co.uk
• Width300 mm
