RTV-C | Castellated Roof Tile Vent

Object metadata

• _AuthorRW
• _Authorized Bybimstore
• _Bim Spec Guid0
• _BS Bible Version17
• _Created Bywww.bimstore.co/
• _Current Revision1
• _Distributed Bywww.bimstore.co/
• _Object User Guidewww.bimstore.co/products/timloc-rtv-c/document/object-user-guide
• Accessibility Performancen/a
• Assembly CodeD3060400
• Asset TypeFixed
• BIM Object NameTimloc_RoofTileVent_Castellated
• Classification NameUniclass2015
• Classification ValuePr_30_59_29_73
• Code Performancen/a
• ColorBrown
• Constituentsn/a
• Created Bysales@timloc.co.uk
• Created On2023-07-25T09:00:00
• Default Elevation0 mm
• Depth127 mm
• DescriptionProfiled roof tile vent to enable ventilation directly into a roof space or connect to a ducted ventilation system.
• Documentation Certificateswww.bimstore.co/products/timloc-rtv-c/document/product-certificates
• Documentation Installation Guidewww.bimstore.co/products/timloc-rtv-c/document/installation-guide
• Documentation Literaturewww.bimstore.co/products/timloc-rtv-c/document/product-literature
• Documentation Maintenancewww.bimstore.co/products/timloc-rtv-c/document/maintenance-information

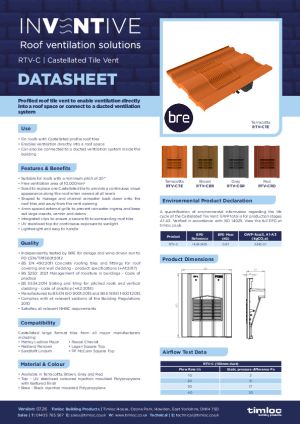

• Documentation Technicalwww.bimstore.co/products/timloc-rtv-c/document/technical-data-sheet
• Duration UnitYear
• Expected Life0
• FeaturesSuitable for roofs with a minimum pitch of 20°
• FinishTextured
• GradeUV stabilised
• Height422 mm
• Ifc Export AsIfcBuildingElementProxyType
• Ifc Export TypeUSERDEFINED
• KeynoteH60/840
• ManufacturerTimloc Building Products
• Manufacturer NameTimloc Building Products
• MaterialPolypropylene
• ModelRTV-CBR
• Model NumberRTV-CBR
• Model ReferenceBrown
• NBS DescriptionRoof slope ventilator tiles
• NBS Object NameTimloc - Roof slope ventilator tiles
• NBS Office Master Tagn/a
• NBS Reference45-20-75/375
• Nominal Depth127 mm
• Nominal Height422 mm
• Nominal Length330 mm
• Production Year2023
• Referenced StandardBS EN 490:2011
• Replacement Costn/a
• ShapeRectangular
• Size422mm x 330mm x 127mm
• Spare Partsn/a
• Type CommentsCastellated Roof Tile Vent
• Type NameCastellated Roof Tile Vent
• URLtimloc.co.uk/
• Vent MaterialTimloc_Brown
• Warranty Descriptionn/a
• Warranty Duration Labor0
• Warranty Duration Parts0
• Warranty Duration UnitYear
• Warranty Guarantor Laborsales@timloc.co.uk
• Warranty Guarantor Partssales@timloc.co.uk
• Width330 mm
