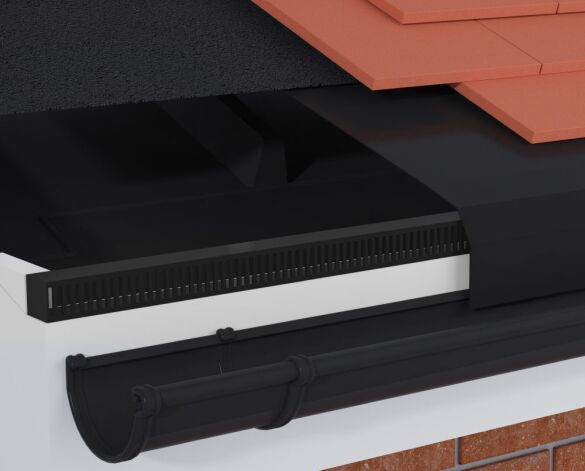

Over Fascia Vent

Description

Durable and multi-purpose primary roof ventilator suitable for new build and refurbishment projects. An over fascia vent is used when the fascia board is fitted in the ends of the rafters, creating a situation where ventilation can only be positioned over the top of the board.

Uses:

For roof eaves ventilation
For flat roof abutment ventilation
On roofs where the eaves incorporate a fascia board
On roofs which do not incorporate a soffit board, or where an unbroken soffit board is required

Free Airflow	Length	Colour	Product Code
10,000mm² per meter	300mm	Black	3011BL
10,000mm² per meter	300mm	Brown	3011BR
10,000mm² per meter	300mm	White	3011WH
25,000mm² per meter	300mm	Black	3011/25BL
25,000mm² per meter	300mm	White	3011/25WH

Click here to visit the product page on Timloc

Object Data

1 Revision

Last Updated

19/12/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

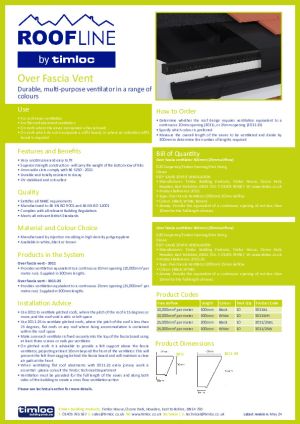

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRW
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/fc7b8ff6-768f-49cb-be26-bbdff6cda280/document/object-user-guide
3011No
3011-25Yes
Accessibility Performancen/a
Assembly CodeB1020
Asset TypeFixed
BIM Object NameTimloc_OverFasciaVent
Classification NameUniclass2015
Classification ValuePr_30_59_94_26
Code Performancen/a
ColorBlack
Constituentsn/a
Created Bysales@timloc.co.uk
Created On2024-12-18T09:00:00
Default Elevation0 mm
DescriptionDurable, multi-purpose ventilator in a range of colours
Documentation Certificateswww.bimstore.co/products/fc7b8ff6-768f-49cb-be26-bbdff6cda280/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/fc7b8ff6-768f-49cb-be26-bbdff6cda280/document/installation-guide
Documentation Literaturewww.bimstore.co/products/fc7b8ff6-768f-49cb-be26-bbdff6cda280/document/product-literature
Documentation Maintenancewww.bimstore.co/products/fc7b8ff6-768f-49cb-be26-bbdff6cda280/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/fc7b8ff6-768f-49cb-be26-bbdff6cda280/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Height54 mm
Ifc Export AsIfcBuildingElementProxyType
Ifc Export TypeUSERDEFINED
KeynoteG20/910
ManufacturerTimloc Building Products
Manufacturer NameTimloc Building Products
MaterialPolypropylene
ModelOver Fascia Vent
Model Number3011/25BL
Model ReferenceOver Fascia Vent
NBS DescriptionEaves fascia grilles
NBS Object NameTimloc - Eaves fascia grilles
NBS Office Master Tagn/a
NBS Reference45-20-75/390
Nominal Depth43 mm
Nominal Height54 mm
Primary MaterialTimloc_Black
Production Year2024
Referenced StandardBS EN ISO 9001 and BS EN ISO 14001
Replacement Costn/a
ShapeRectangular
Size43mmx54mm
Spare Partsn/a
Type Comments3011/25BL
Type Name3011/25BL
URLtimloc.co.uk/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborsales@timloc.co.uk
Warranty Guarantor Partssales@timloc.co.uk
Width43 mm
