Internal Plastic Grilles

Description

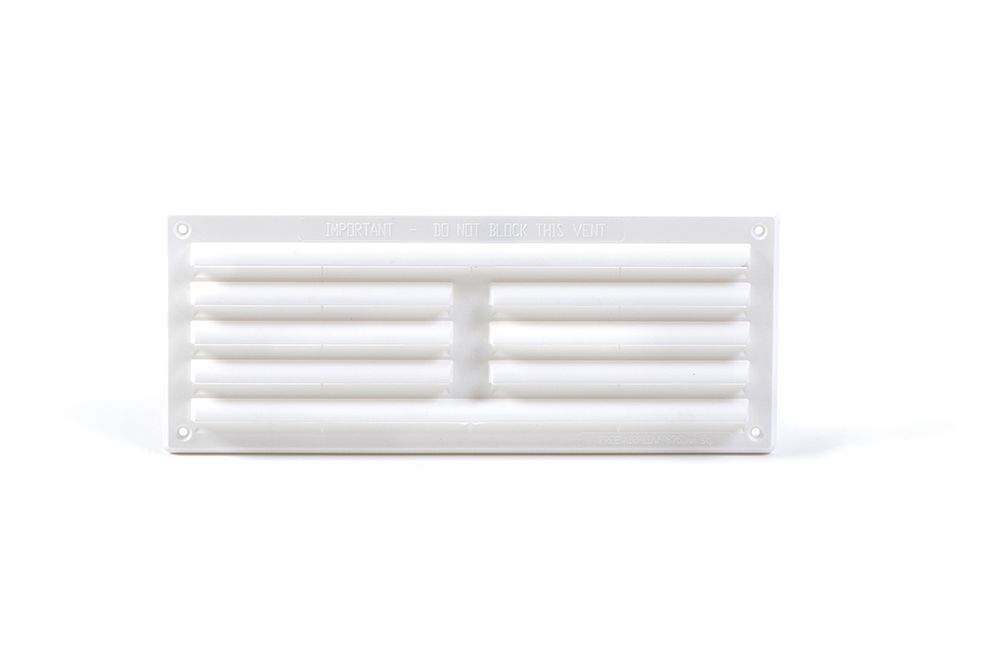

Plastic internal grille and louvre vents designed to cover the inner opening of a cavity sleeve and provide an aesthetically pleasing appearance while sustaining airflow and reducing drafts. All grilles, including the hit and miss, feature the same louvred design.

Use:

To cover the inner opening on the cavity sleeve and provide an aesthetically acceptable appearance, while still maintaining a free flow of air

Description	Colour	Fixing hole dimensions	Overall dimensions	Equivalent area	Product Code
6 x 3 louvre 'mini vent'	White	148mm x 67mm	166mm x 85mm	4100mm²	1218W
9 x 3 louvre vent	White	242mm x 86mm	260mm x 194mm	7600mm²	1207W
9 x 6 louvre vent	White	242mm x 152mm	260mm x 170mm	11300mm²	1211W
9 x 9 louvre vent	White	242mm x 217mm	260mm x 235mm	16500mm²	1212W
6 x 3 louvre vent with flyscreen	White	148mm x 67mm	166mm x 85mm	2350mm²	1218WF
9 x 3 louvre vent with flyscreen	White	242mm x 86mm	260mm x 104mm	3750mm²	1207WF
9 x 6 louvre vent with flyscreen	White	242mm x 152mm	260mm x 170mm	7150mm²	1211WF
9 x 9 louvre vent with flyscreen	White	242mm x 217mm	260mm x 235mm	8190mm²	1212WF
6 x 3 hit & miss 'mini vent'	White	148mm x 67mm	166mm x 85mm	2350mm²	1219W
9 x 3 hit & miss louvre vent	White	242mm x 86mm	260mm x 104mm	3750mm²	1208W
9 x 6 hit & miss louvre vent	White	242mm x 152mm	260mm x 170mm	7150mm²	1209W
9 x 9 hit & miss louvre vent	White	242mm x 217mm	260mm x 235mm	8190mm²	1210W

Click here to visit the product page on Timloc

Object Data

1 Revision

Last Updated

19/12/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

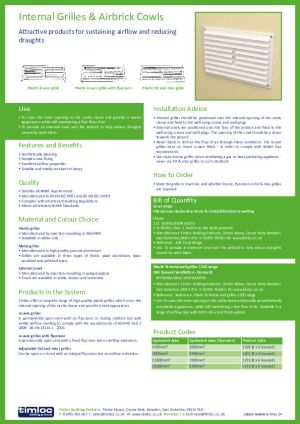

Technical Data Sheet
