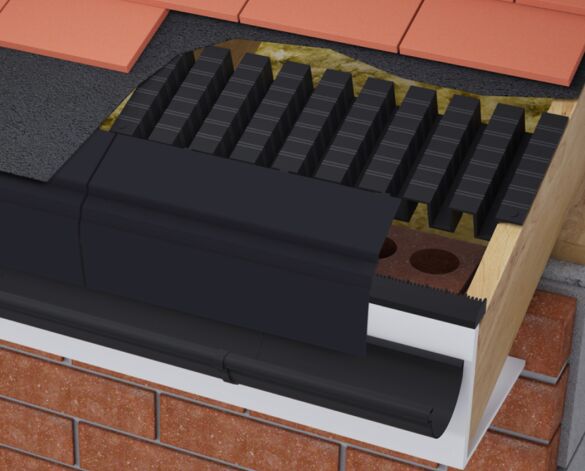

6m Eaves Vent Pack

by Timloc Building Products

Download Add to collection

Description

A complete and easy to fit ventilation system suitable for new build or refurbishment projects.
Consists of:

1 x Roll Form Eaves Vent Roll Out Rafter Tray – 300mm or 600mm width
6 x 1m Over Fascia Vent
10 x Felt Support Tray – 600mm

Uses:

For pitched roof eaves ventilation
On standard pitched roofs
On roofs with rafter spacings of between 400mm and 600mm

Free airflow	Roll form vent width	Length	Product Code
10,000mm² per meter	300mm	6m	EVP6
25,000mm² per meter	300mm	6m	EVP6/25
10,000mm² per meter	600mm	6m	EVP6/600
25,000mm² per meter	600mm	6m	EVP6/25600

Click here to visit the product page on Timloc

Object Data

1 Revision

Last Updated

19/12/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

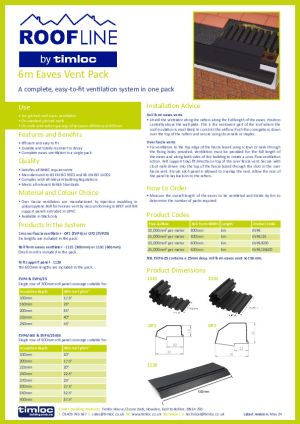

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorIH
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/timloc-1m-over-fascia-vent/document/object-user-guide
A45.15 °
Accessibility Performancen/a
Assembly CodeB1020
Asset TypeFixed
BIM Object NameTimloc_1mOverFasciaVent
Classification NameUniclass2015
Classification ValuePr_30_59_94_26
Code Performancen/a
ColorBlack
Constituentsn/a
Created Bysales@timloc.co.uk
Created On2024-09-01T09:00:00
Default Elevation0 mm
DescriptionEfficient, durable ventilator in convenient 1 m lengths.
Documentation Certificateswww.bimstore.co/products/timloc-1m-over-fascia-vent/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/timloc-1m-over-fascia-vent/document/installation-guide
Documentation Literaturewww.bimstore.co/products/timloc-1m-over-fascia-vent/document/product-literature
Documentation Maintenancewww.bimstore.co/products/timloc-1m-over-fascia-vent/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/timloc-1m-over-fascia-vent/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
Finishn/a
Graden/a
H115 mm
Ifc Export AsIfcBuildingElementProxyType
Ifc Export TypeUSERDEFINED
KeynoteH60/840
L14 mm
ManufacturerTimloc Building Products
Manufacturer NameTimloc Building Products
MaterialPolypropylene
Model1m Over Fascia Vent
Model NumberOF1BL
Model Reference1m Over Fascia Vent
NBS DescriptionEaves fascia grilles
NBS Object NameTimloc - Eaves fascia grilles
NBS Office Master Tagn/a
NBS Reference45-20-75/390
Nominal Depth37 mm
Nominal Height15 mm
Nominal Length1000 mm
OF1 BLYes
OF2 BLNo
Primary MaterialTimloc_Black
Production Year2024
Referenced StandardSatisfies all NHBC requirements. Manufactured to BS EN ISO 9001 and BS EN ISO 14001. Complies with all relevant Building Regulations. Meets all relevant British Standards.
Replacement Costn/a
ShapeRectangular
Size15 (H) x 37 (D)
Spare Partsn/a
Type CommentsOF1BL
Type NameOF1BL
URLtimloc.co.uk/products/1m-over-fascia-vent/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborsales@timloc.co.uk
Warranty Guarantor Partssales@timloc.co.uk

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
