Telescopic Boom Lift - 1350SJP

Description

1350SJP - 43.3m Diesel boom lift

The JLG boom lift 1350SJP offers a working height 43.3m and outreach of 24.38m designed to support safe and effective work at height on a wide range of applications, ranging from construction, civil engineering through to industrial maintenance. For added peace of mind, this product can be fitted with SkySentry and our BlueSky SkySiren® and available with onboard generator/power to platform.

Object Data

1 Revision

Last Updated

02/06/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

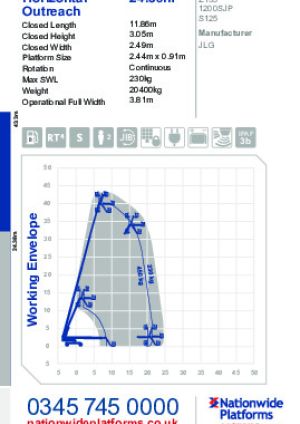

Technical Data Sheet

Object metadata

Object

Parameter Type

_Authorbimstore
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/telescopic-boom-lift-1350sjp/document/object-user-guide
Accessibility Performancen/a
AE11452.00 mm
A Ea0.85 °
A Ea 1179.15 °
Articulating Jib2.44 m
Assembly CodeE1030100
Asset TypeMovable
Auxiliary Power12V DC
Axle Oscillation0.30 m (1 ft 0 in)
BIM Object NameNationwidePlatforms_TelescopicBoomLift_1350SJP
Classification NameUniclass2015
Classification ValueTE_30_30_10_60
Code Performancen/a
Colorn/a
Constituentsn/a
Created Bybim@nationwideplatforms.co.uk
Created On2021-05-01T09:00:00
Descriptionn/a
Diesel EngineDeutz BF4M2011 87HP (65.0 kw)
Documentation Certificateswww.bimstore.co/products/telescopic-boom-lift-1350sjp/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/telescopic-boom-lift-1350sjp/document/installation-guide
Documentation Literaturewww.bimstore.co/products/telescopic-boom-lift-1350sjp/document/product-literature
Documentation Maintenancewww.bimstore.co/products/telescopic-boom-lift-1350sjp/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/telescopic-boom-lift-1350sjp/document/technical-data-sheet
Drive Speed 4 WD5.2 km/h (3.25 mph)
Duration UnitYears
E3817.33 mm
Expected Life0
Featuresn/a
FinishPainted Steel
Fuel Tank Capacity117L(31 gal)
Graden/a
Gradeability45%
Horizontal Outreach Restricted21.34 m (70 ft 0 in)
Horizontal Outreach Unrestricted24.38 m (80 ft 0 in)
Hydraulic Platform Rotator180 Degree
Hydraulic Tank Capacity208 L (55 gal)
Ifc Export AsIfcTransportElement
Ifc Export TypeIfcTransportElementType
Ja55.18 °
Ja 1124.82 °
J Ha0.85 °
J Ha 1180.85 °
Jib Overall Length2.44m (8 ft 0 in)
Jib Range Of Articulation130 Degrees (+75°/ 55°)
Jib Rotation0.00 °
KeynoteX
Logo MaterialNationwidePlatforms_White_Logo
Machine Weight ANSI20,300kg (44,750 lbs)
Machine Weight CE20,300kg (44,750 lbs)
ManufacturerNationwide Platforms (JLG)
Manufacturer NameNationwide Platforms (JLG)
MaterialMetal
Max Ground Bearing Pressure ANSI7.38 kg/cm2 (105 psi)
Max Ground Bearing Pressure CE7.38 kg/cm2 (105 psi)
ModelTelescopic Boom Lift
Model Number1350SJP
Model ReferenceTelescopic Boom Lift
NBS DescriptionLift platforms
NBS Object NameNationwide Platforms - Lift platforms
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth0.00 mm
Nominal Height0.00 mm
Nominal Length0.00 mm
P230Yes
P450No
P Ha55.18 °
P Ha 1235.18 °
Platform Capacity Restricted ANSI450 Kg (1000 lbs)
Platform Capacity Restricted CE450 Kg (1000 lbs)
Platform Capacity Unrestricted ANSI227 kg (500 lbs)
Platform Capacity Unrestricted CE230 kg
Platform Height Restricted38.35 m (125 ft 10 in)
Platform Height Unrestricted41.30 m (135 ft 6 in)
Platform Rotator180 degrees
Platform Side Entry0.91 m x 2.44 m (3 ft 0 in x 8 ft 0 in)
Platform Size0.91 m x 2.44 m (3 ft 0 in x 8 ft 0 in)
Primary MaterialNationwidePlatforms_Blue_Primary
Production Year2021
Product Page Linkwww.nationwideplatforms.co.uk/en-gb/hire/boom-lifts/1350sjp-43-3m-diesel-stick-boom-4wd
Reach8
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsn/a
Swing360 degree Continuous
Tilt Alarm Indicator Light 5 Degree
Turning Radius Inside Axles Extended2.44 m (8 ft 0 in)
Turning Radius Inside Axles Retracted4.39 m(14 ft 5 in)
Turning Radius Outside Axles Extended5.89 m (19 ft 4 in)
Turning Radius Outside Axles Retracted6.86 m (22 ft 6 in)
Type CommentsTelescopic Boom Lift
Type NameTelescopic Boom Lift
Tyres445/50D710 Foam Filled
Unique Model Reference FAPL1001261213
URLwww.nationwideplatforms.co.uk/en-gb
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborbim@nationwideplatforms.co.uk
Warranty Guarantor Partsbim@nationwideplatforms.co.uk
Zone MaterialNationwidePlatforms_Pink_Zone

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
