Surgeons Trough Full-Height IPS Panel Assembly [HBN SU]

by Trade Washrooms

Download Add to collection

Description

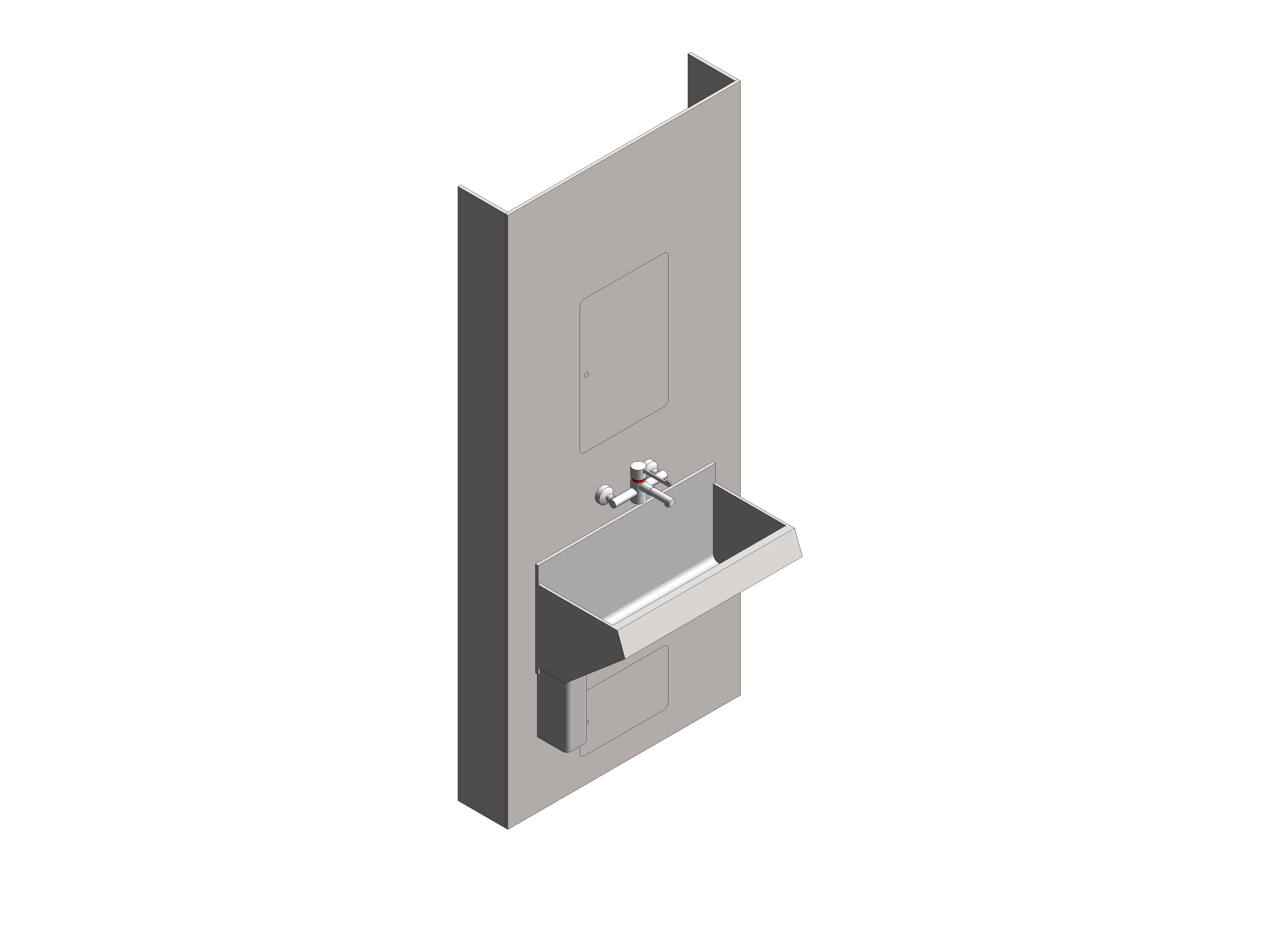

A full-height IPS assembly to create an effective and safe hand washing station for surgeons and nurses before surgical procedures.

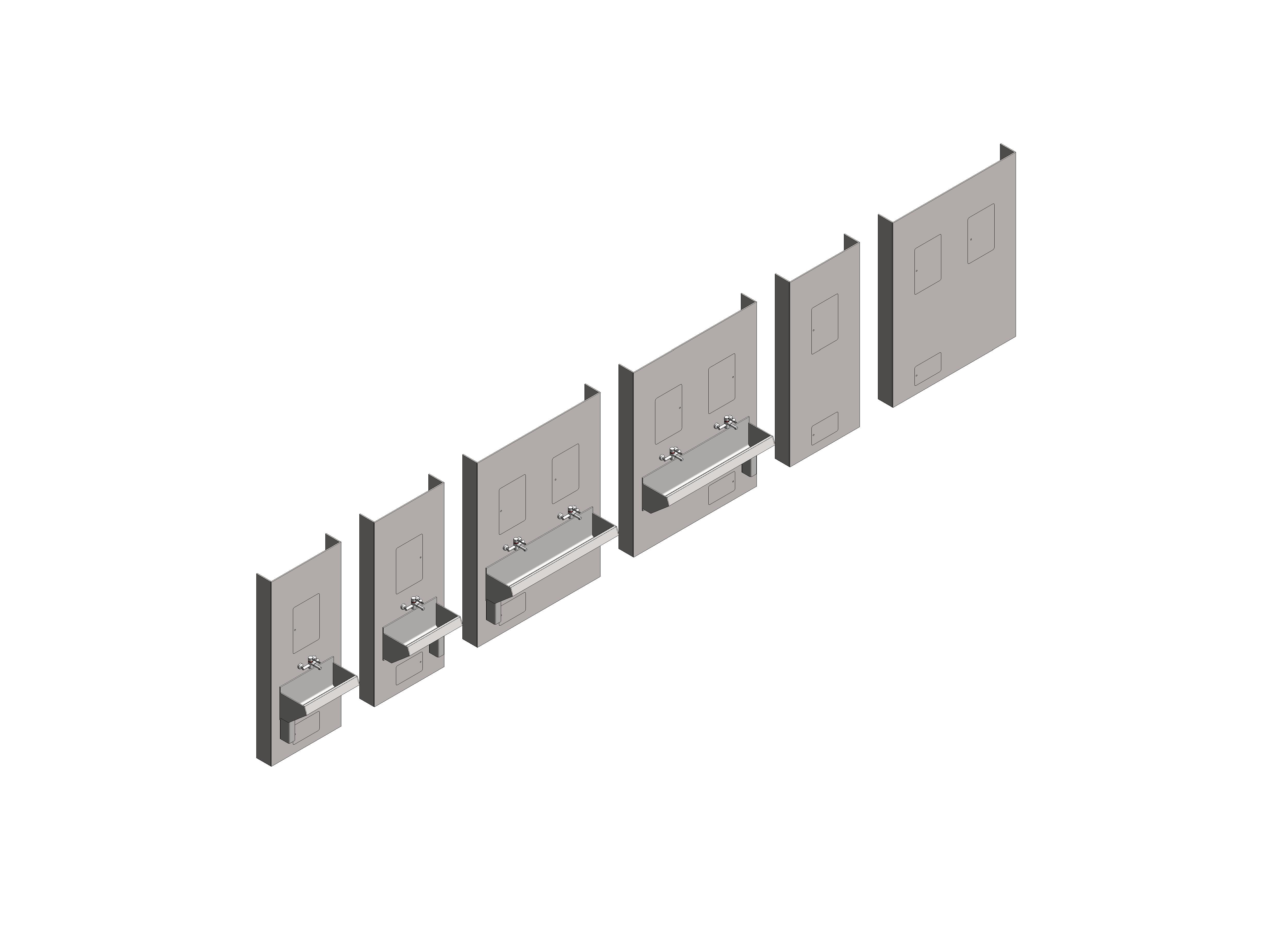

Choose from either a 1-user (800mm trough on 1050mm unit) or 2-user (1600mm trough on 1850mm unit) assembly. The full-height IPS is 2400mm, and an IPS Extension Kit is available for ceiling heights up to 3000mm.

For a HBN-compliant setup, select the IPS, Trough and Tap options, and along with your IPS unit, you will receive a loose Surgeons Scrub-Up Trough and TMV3-Approved Tap(s) for quick installation on-site.

Object Data

1 Revision

Last Updated

09/12/2025

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

_AuthorBS
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/b7d9f6b1-76b5-4057-9fc7-0a01bd0bac14/document/object-user-guide
Accessibility Performancen/a
AHNo
AHSYes
AO325 mm
Assembly CodeD2010900
Asset TypeFixed
BIM Object NameTradeWashrooms_IPS_SurgeonsTrough_FullHeight_HBNSU
CategorySs_25_25_45_25:Duct and wall panel lining systems
Classification NameUniclass2015
Classification ValueSs_25_25_45_25
Code Performancen/a
ColorGrey, Dark Grey, Blue, White
ConstituentsIPS, Trough and Tap
Created Byspec@tradewashrooms.co.uk
Created On2025-11-10T09:00:00
CW ConnectionYes
CWFU0
Default Elevation0 mm
DescriptionSurgeons Trough Full-Height IPS Panel Assembly
Documentation Certificateswww.tradewashrooms.co.uk/panel-systems/ips-panels/surgeons-trough-full-height-ips/
Documentation Installation Guidewww.tradewashrooms.co.uk/panel-systems/ips-panels/surgeons-trough-full-height-ips/
Documentation Literaturewww.tradewashrooms.co.uk/panel-systems/ips-panels/surgeons-trough-full-height-ips/
Documentation Maintenancewww.tradewashrooms.co.uk/panel-systems/ips-panels/surgeons-trough-full-height-ips/
Documentation Technicalwww.tradewashrooms.co.uk/panel-systems/ips-panels/surgeons-trough-full-height-ips/
Duration UnitYears
Expected Life10
FeaturesA full-height IPS assembly to create an effective and safe hand washing station for surgeons and nurses before surgical procedures.
FinishMelamine
Graden/a
HW ConnectionYes
HWFU0
Ifc Export AsIfcFlowTerminalType
Ifc Export TypeIfcSanitaryTerminalTypeEnum.SINK
KeynoteN13
LHYes
L HlockNo
L Hlock SYes
Manufacturerspec@tradewashrooms.co.uk
Manufacturer Nameorders@tradewashrooms.co.uk
MaterialCompacMEL Plus
Material Thickness12 mm
Model1 User - LH Waste
Model NumberIPS, Trough and Tap
Model ReferenceSurgeons Trough Full-Height IPS Panel Assembly
NameSurgeons Trough Full-Height IPS Panel Assembly
NBS DescriptionPre-plumbed installation frames
NBS Object NameTrade Washrooms - Pre-plumbed installation frames
NBS Office Master Tagn/a
NBS Reference45-35-70/421
Nominal Depth225 mm
Nominal Height2400 mm
Nominal Length1050 mm
Production Year2025
Referenced StandardHBN
Replacement Costn/a
RHNo
R HlockNo
R Hlock SNo
ShapeRectangle
Size2400 x 1050 x 225mm
Spare Partsn/a
Sustainability PerformanceCompacMel saves up to 80% of the emission of greenhouse gases compared to traditional solid grade laminates, and the material is fully recyclable.
TapYes
TO0 mm
TroughYes
Trough TypeTradeWashrooms_PlumbingFixture_ScrubUpTrough : SSUT0800L
Type CommentsIPS, Trough and Tap
Type Name1 User - LH Waste
URLwww.tradewashrooms.co.uk/
Vent ConnectionNo
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsorders@tradewashrooms.co.uk
Waste ConnectionYes
WFU0
