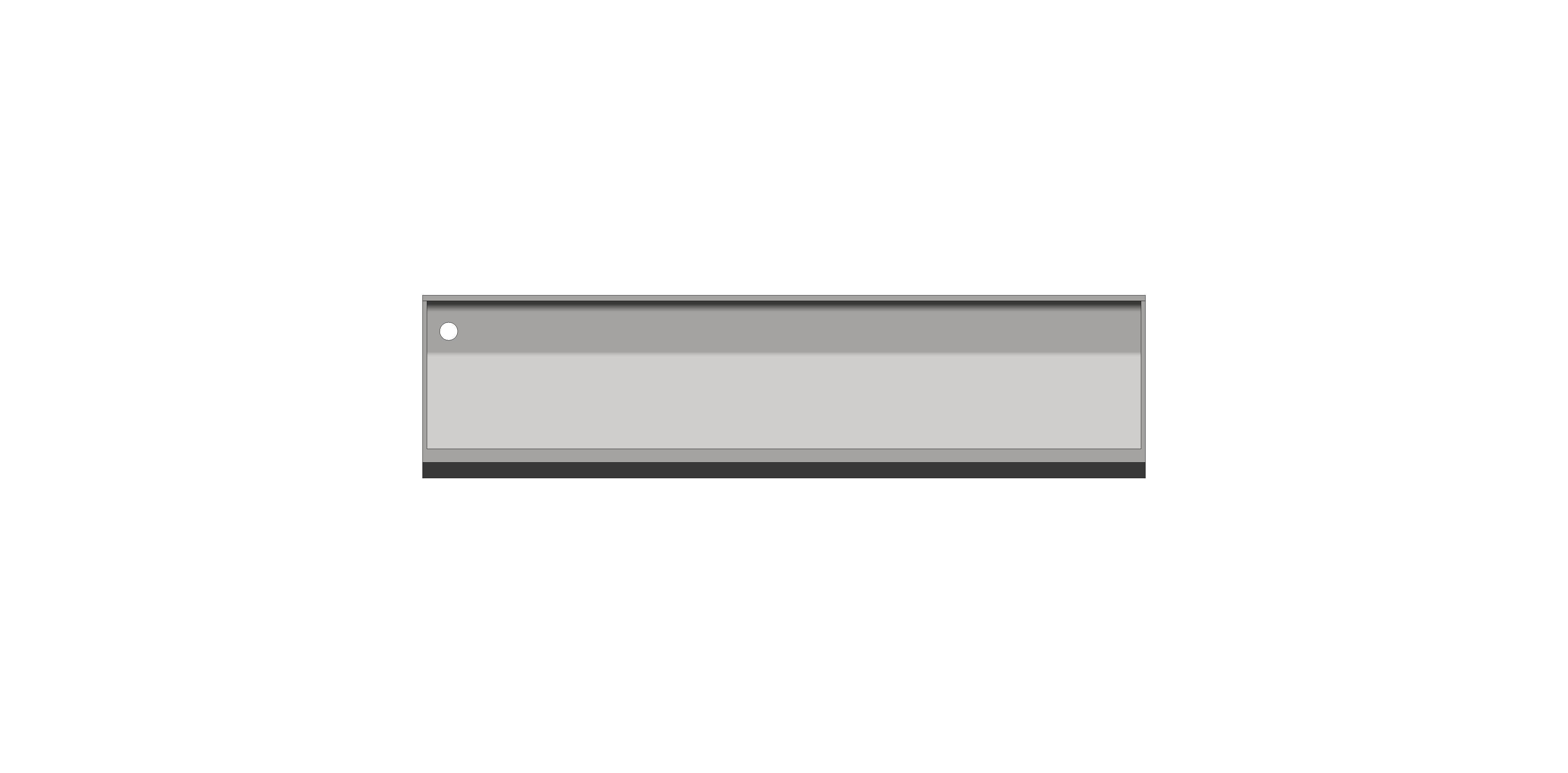

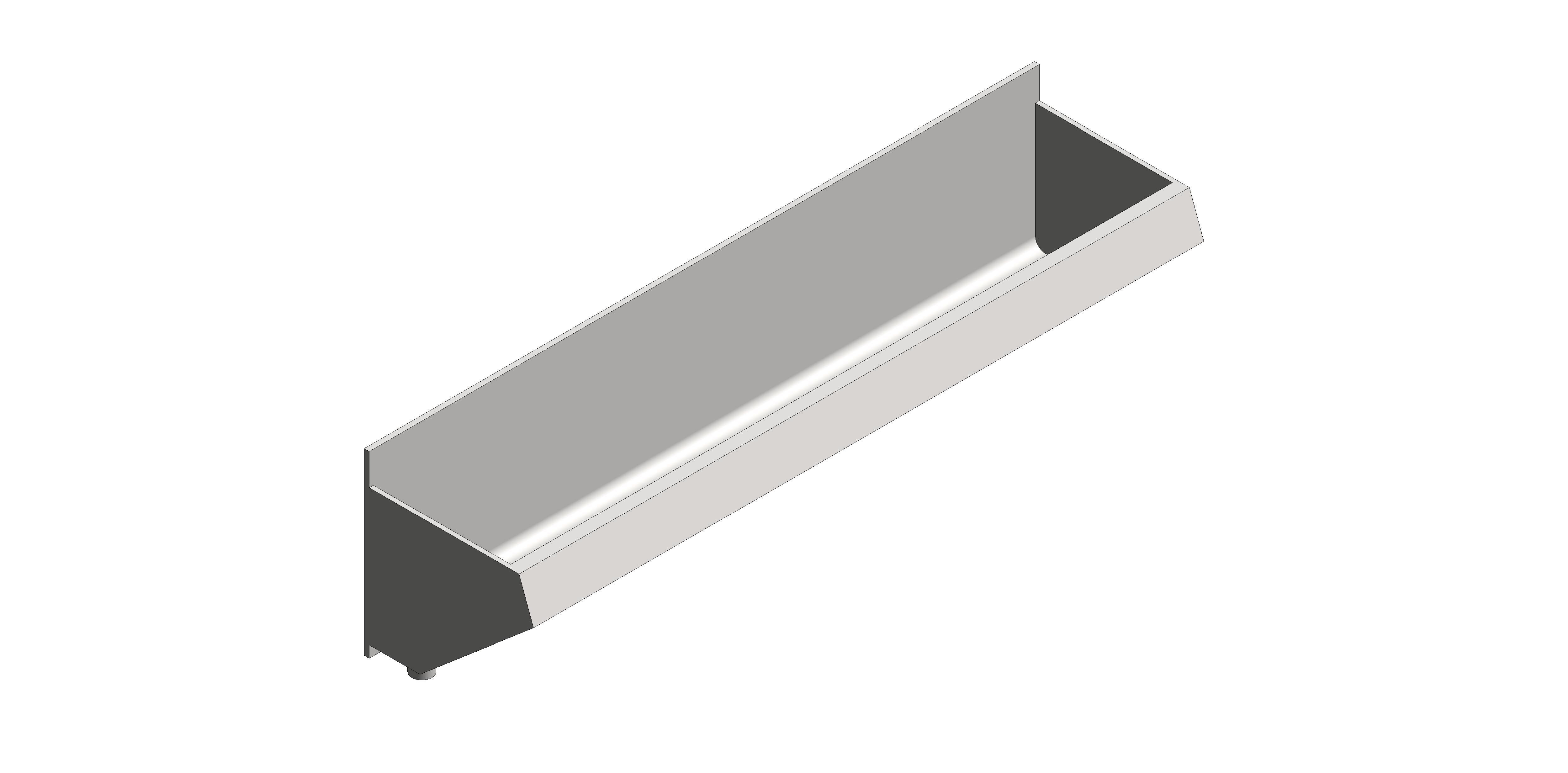

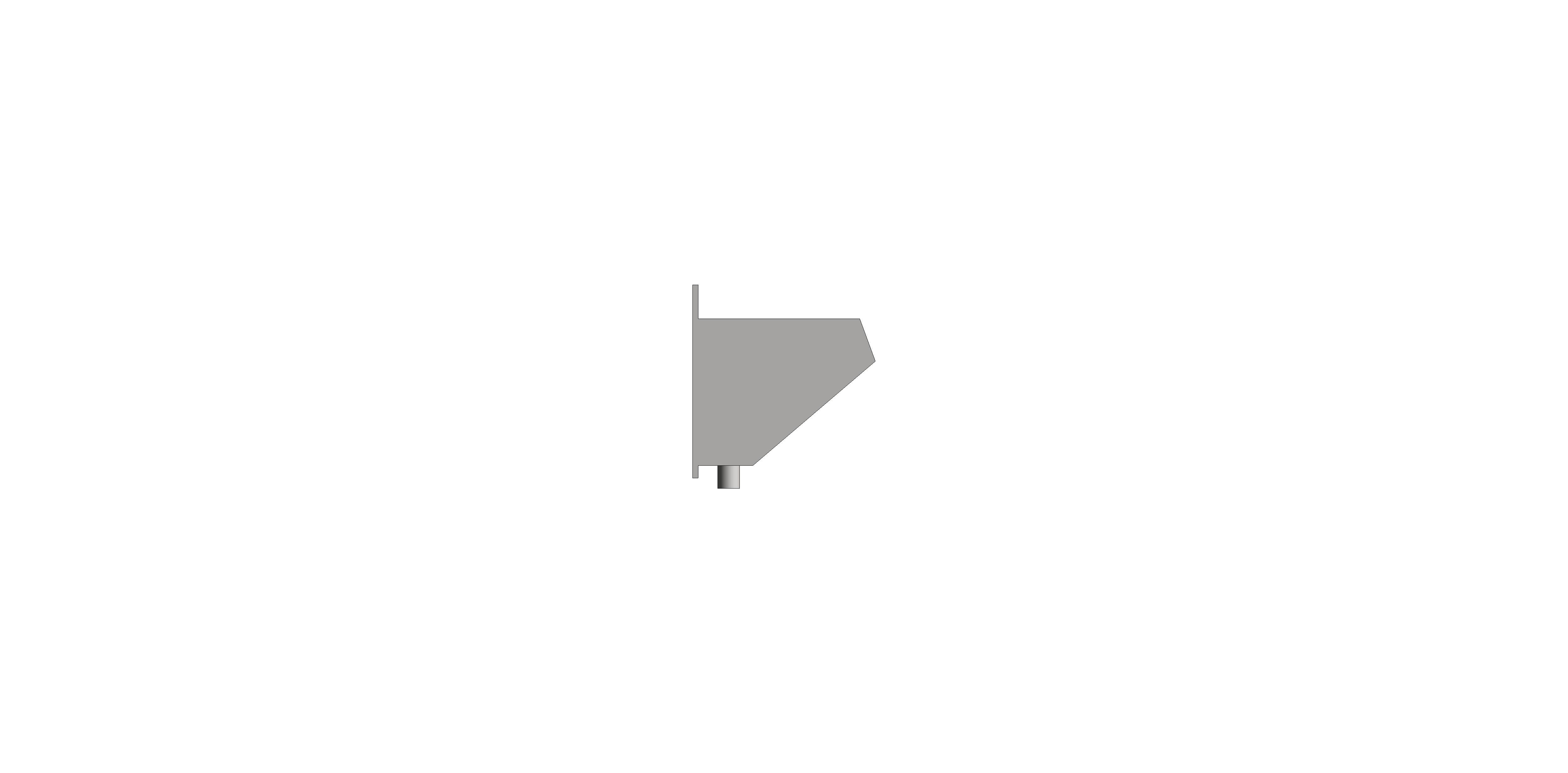

HTM64 / HBN 00-10 compliant surgeons scrub-up trough with an integral low-level splashback, designed for use with wall-mounted taps.

Choose from 800mm (1 user), 1600mm (2 users) or 2400mm (3 users) trough size, and either left hand (LH) or right-hand (RH) waste outlet. Optional stainless steel scrub-up trough trap shroud also available.

Object metadata

_AuthorRyan Wigham
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
Accessibility Performancen/a
Assembly CodeD2010400
Asset TypeFixed
Basin MaterialTrade Washrooms - Stainless Steel - Satin
BIM Object NameTradeWashrooms_PlumbingFixture_SurgeonsScrubUpTrough_StainlessSteel
CategoryPr_40_20_96_40:Hospital pattern scrub-up troughs
Classification NameUniclass2015
Classification ValuePr_40_20_96_40
Code PerformanceHBN: SU H1
ColorStainless Steel
ConstituentsTrough and optional trap shroud (HSHROUD)
Created Byspec@tradewashrooms.co.uk
Created On2020-12-03T09:00:00
CW ConnectionNo
CWFU0
DescriptionHTM64 / HBN 00-10 compliant surgeons scrub-up trough with an integral low-level splashback, designed for use with wall-mounted taps.
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturewww.tradewashrooms.co.uk/stainless-steel/stainless-basins-troughs/surgeons-scrub-up-trough/
Documentation Maintenancen/a
Documentation Technicalwww.tradewashrooms.co.uk/stainless-steel/stainless-basins-troughs/surgeons-scrub-up-trough/
Duration UnitYears
Expected Life10
FeaturesIntegral low-level splashback, LH outlet
FinishBright Polished
Grade304
Height LH325 mm
Height RH317 mm
HW ConnectionNo
HWFU0
Ifc Export AsIfcFlowTerminalType
Ifc Export TypeIfcSanitaryTerminalTypeEnum.SINK
KeynoteN13
LHYes
Manufacturerspec@tradewashrooms.co.uk
Manufacturer Nameorders@tradewashrooms.co.uk
MaterialStainless Steel
Model800mm Surgeons Scrub-Up Trough - LH Outlet
Model NumberHSUT0800L
Model Reference800mm Surgeons Scrub-Up Trough - LH Outlet
NameSurgeons Scrub-Up Trough
NBS DescriptionHospital pattern scrub-up troughs
NBS Object NameTrade Washrooms - Hospital pattern scrub-up troughs
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth400 mm
Nominal Height400 mm
Nominal Length800 mm
Outlet Offset75 mm
Production Year2020
Referenced Standardn/a
Replacement Costn/a
RHNo
Shapen/a
Size800 x 400 x 400mm
Spare Partsn/a
Sustainability Performancen/a
Type CommentsHSUT0800L
Type Name800mm Surgeons Scrub-Up Trough - LH Outlet
URLwww.tradewashrooms.co.uk/
Vent ConnectionNo
Warranty Description2-year warranty on any manufacturing defect
Warranty Duration Labor0
Warranty Duration Parts2
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsorders@tradewashrooms.co.uk
Waste ConnectionYes
WFU0
