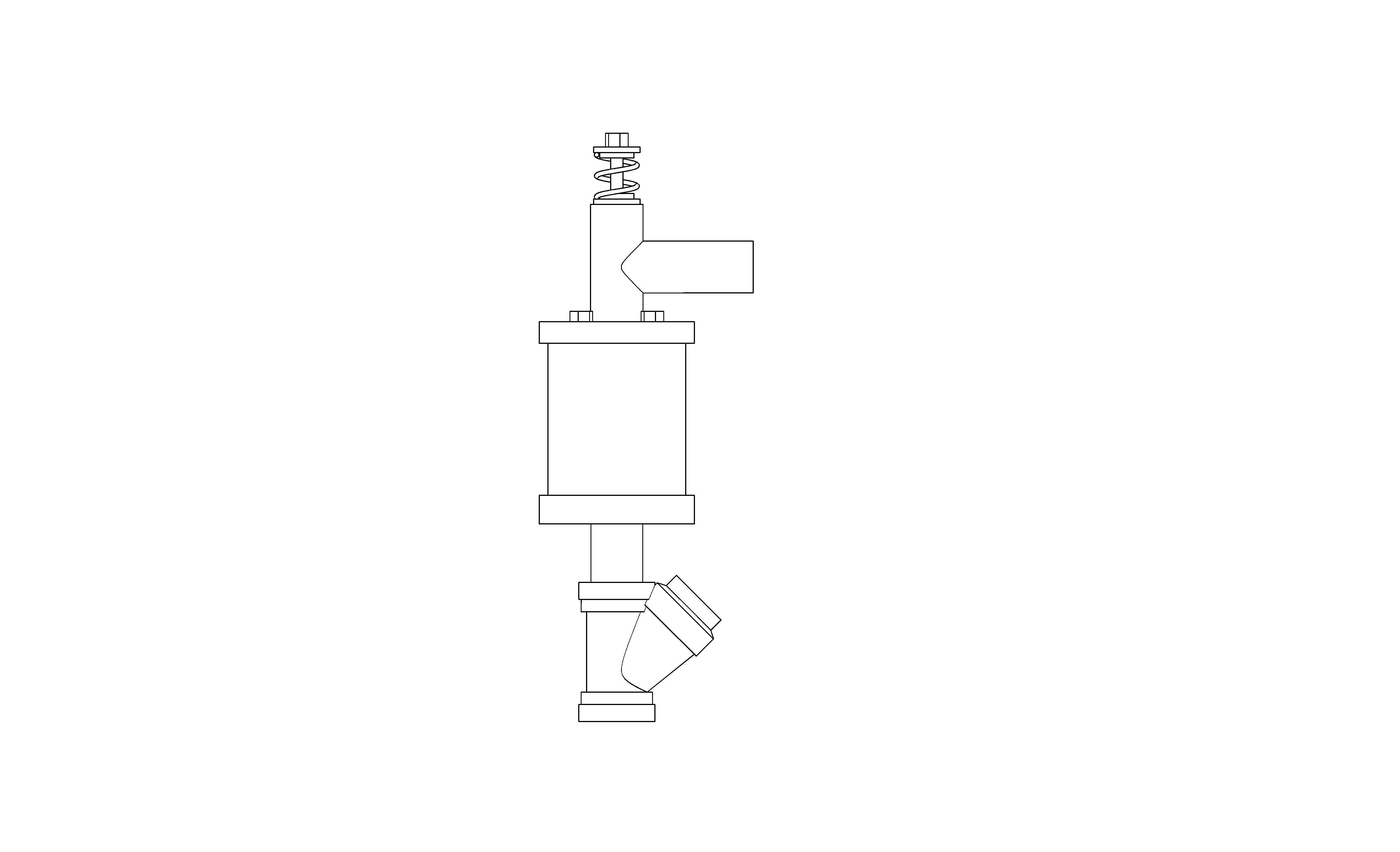

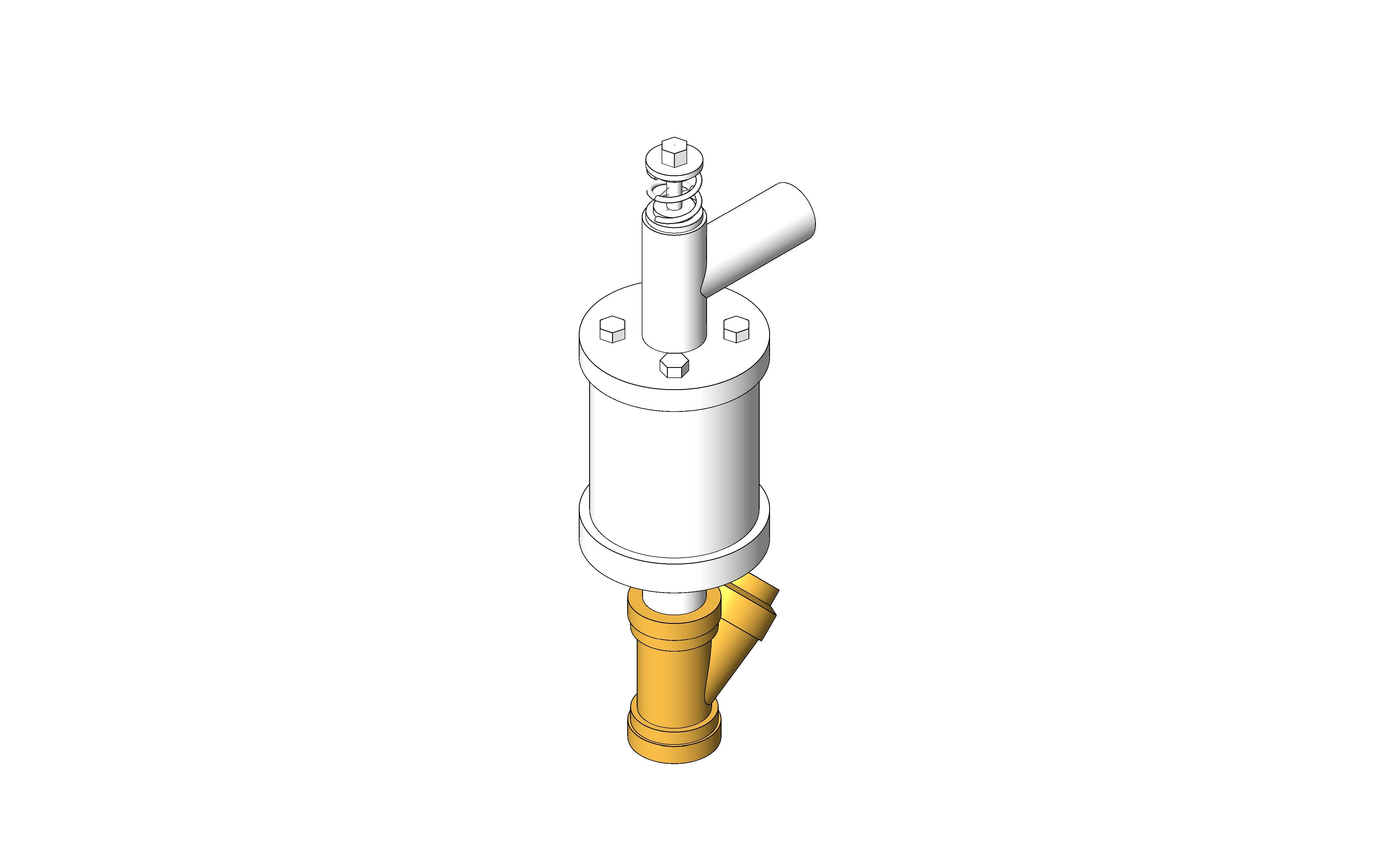

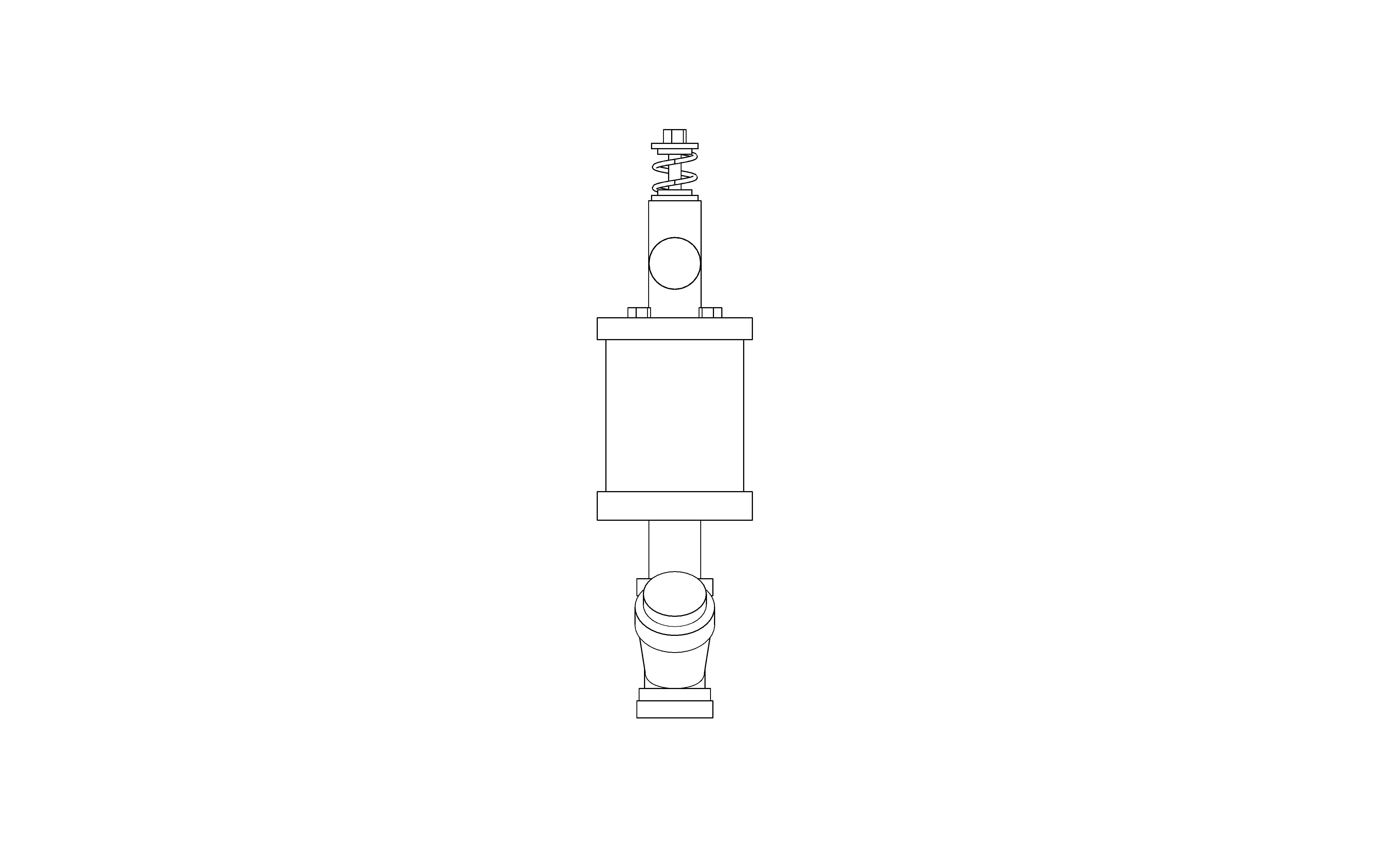

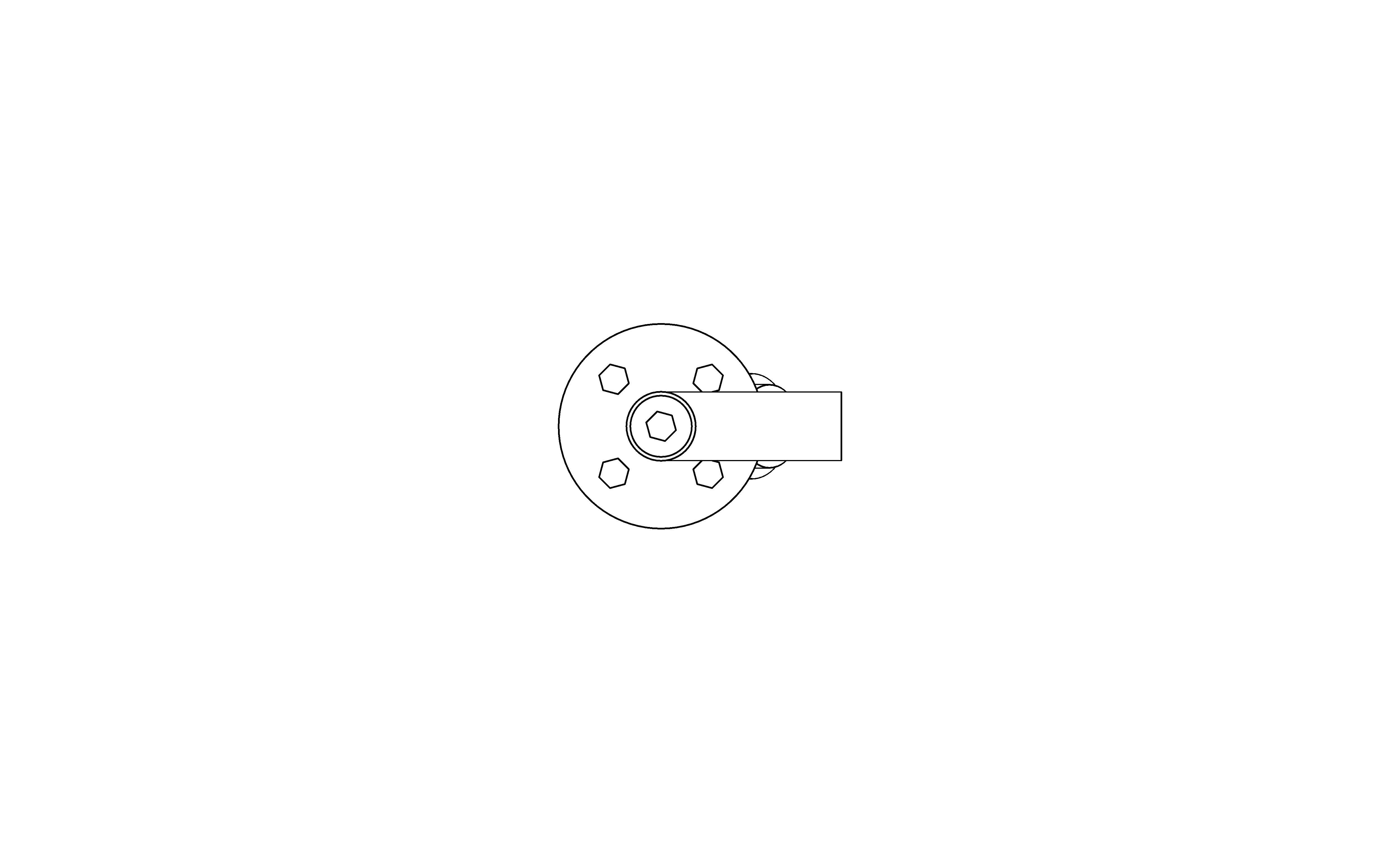

CLA-VAL Model Vent-A-Riser Surge Arrestor incorporates as standard:

Automatic Surge Protection - The “always on” controlled air release function prevents hammer and surges in the line when filling or refilling pipes.
Vacuum Protection - The large orifice admits air in the riser to prevent vacuum and damage to pipes and fittings from occurring when the booster set is down (powered off).
Effective Air Release - The small orifice functionality allows air to be removed from the system while the system is pressurised, preventing the formation of air locks in the system and keeping the system running efficiently.
Guaranteed performance - Every valve is pressure tested to ensure trouble free operation.

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
Accessibility Performancen/a
Air Intake Capacity(-0.1bar/-10k Pa)49 Normal l/sec 176 m3/h
Assembly CodeD20
Asset TypeFixed
BIM Object NameClaVal_PipeAccessories_SurgeArrestor_VentARiser
Classification NameUniclass2015
Classification ValuePr_65_54_95_28
Code Performancen/a
ColorStainless Steel/Brass
Connection Size25.00 mm
Constituentsn/a
Created Bysales@cla-val.co.uk
Created On2019-12-04T09:00:00
DescriptionCLA-VAL Model Vent-A-Riser Surge Arrester incorporates as standard: 1. Automatic Surge Protection - The “always on” controlled air release function prevents hammer and surges in the line when filling or refilling pipes. 2. Vacuum Protection - The large orifice admits air in the riser to prevent vacuum and damage to pipes and fittings from occurring when the booster set is down (powered off). 3. Effective Air Release - The small orifice functionality allows air to be removed from the system while the system is pressurised, preventing the formation of air locks in the system and keeping the system running efficiently. 4. Guaranteed performance - Every valve is pressure tested to ensure trouble free operation.
Documentation Certificateswww.cla-val.co.uk/
Documentation Installation Guidewww.cla-val.co.uk/
Documentation Literaturewww.cla-val.co.uk/
Documentation Maintenancewww.cla-val.co.uk/
Documentation Technicalwww.cla-val.co.uk/
Duration UnitYear
Expected Life0
Featuresn/a
FinishStainless Steel
Graden/a
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
KeynoteS
ManufacturerCla-Val
Manufacturer NameCla-Val
MaterialBody: Grade 304 Stainless Steel; Floats: HDPE; Rubber parts: EPDM - Suitable for potable water use
Maximum Operating Pressure10.0 bar
Maximum Surge Pressure40.0 bar
Minimum Operating Pressure0.3 bar
ModelSurge Arrester and Air Release Valve
Model NumberVent-A-Riser
Model ReferenceSurge Arrester and Air Release Valve
NBS DescriptionExcess pressure valves
NBS Object NameClaVal - Excess pressure valves
NBS Office Master Tagn/a
NBS Reference90-20-80/365
Nominal Depth100.00 mm
Nominal Height380.00 mm
Nominal Length138.00 mm
Operating Temperatures2°c - 60°c
Production Year2019
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeVent-A-Riser
Size DN25
Spare Partsn/a
Strainer FinishCla-Val - Brass
Thread Inch1
Thread Millimetre25.40 mm
Type CommentsVent-A-Riser
Type NameSurge Arrester and Air Release Valve
URLwww.cla-val.co.uk/
Valve FinishCla-Val - Stainless Steel
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborsales@cla-val.co.uk
Warranty Guarantor Partssales@cla-val.co.uk
Weight3.5kg
