Nickel Plated Brass Isolation Valve, Inbuilt Strainer [00/2026]

by Valves Instruments Plus

Download Add to collection

Description

Nickel Plated Brass Isolation Valve with a built in strainer, BSP Female Ends, 'T' Handle, WRAS Approved.

Object Data

1 Revision

Last Updated

23/02/2026

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

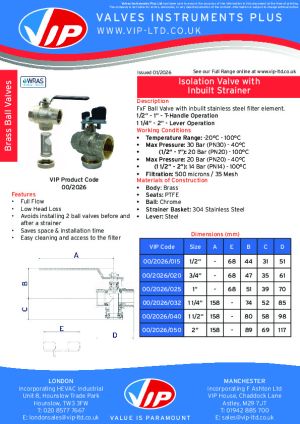

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorEllis Lee
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version0
_Created ByEllis Lee
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/d6171c99-e12d-451d-b2f7-0421ceb78451/document/object-user-guide
A5 mm
A1158 mm
A268 mm
Accessibility Performancen/a
Assembly CodeDN15
Asset TypeFixed
BIM Object NameVIP_IsolationValveInbuiltStrainer_(00_2026)
Body MaterialVIP-Nickel Plated Brass
Bottom21 mm
Bottom Full31 mm
BrassVIP-Brass
C14 mm
Classification NameUniclass 2024
Classification ValuePR_65_54_95_06
Code Performancen/a
ColorSilver & Black
Constituentsn/a
Created Bysales@vip-ltd.co.uk
Created On2025-03-28T09:00:00
D15 mm
Default Elevation0 mm
DescriptionIsolation Ball Valve with Inbuilt Strainer
DN15 mm
Documentation Certificateswww.bimstore.co/products/d6171c99-e12d-451d-b2f7-0421ceb78451/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/d6171c99-e12d-451d-b2f7-0421ceb78451/document/installation-guide
Documentation Literaturewww.bimstore.co/products/d6171c99-e12d-451d-b2f7-0421ceb78451/document/product-literature
Documentation Maintenancewww.bimstore.co/products/d6171c99-e12d-451d-b2f7-0421ceb78451/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/d6171c99-e12d-451d-b2f7-0421ceb78451/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
Filtration500 microns / 35 Mesh
Finishn/a
G9 mm
Graden/a
H44 mm
Handle Thickness4 mm
Handle Width16 mm
Handle A1No
Handle A2Yes
HH25 mm
I93 mm
Inner15 mm
In Strainer24 mm
K26 mm
KeynoteS
L51 mm
Lever MaterialVIP-Stainless Steel
ManufacturerVIP
Manufacturer NameVIP
Maximum Pressure(DN15-DN25)30 Bar - 40°C | 20 Bar - 100°C
Maximum Pressure(DN32-DN50)20 Bar - 40°C | 14 Bar - 100°C
Model00-2026 Isolation Ball Valve with Inbuilt Strainer
Model Number00/2026/015
Model ReferenceIsolation Ball Valves
NBS Descriptionn/a
NBS Noten/a
NBS Object Namen/a
NBS Office Master Tagn/a
NBS Referencen/a
Nut Size7 mm
O30 mm
Overall Width0 mm
Production Year2024
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sides34 mm
SizeDN15
SP90 mm
Spare Partssales@vip-ltd.co.uk
ThreadsISO 7/1 Rp
Type CommentsGas Ball Valve Lever Operated
Type NameDN15
U15 mm
URLwww.vip-ltd.co.uk/Valves/VIP_Gas_Ball_Valve_Range/00_2031/
V10 mm
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborsales@vip-ltd.co.uk
Warranty Guarantor Partssales@vip-ltd.co.uk
Working Temperature-20°C to 100°C
WRAS ApprovedYes
X27 mm

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
