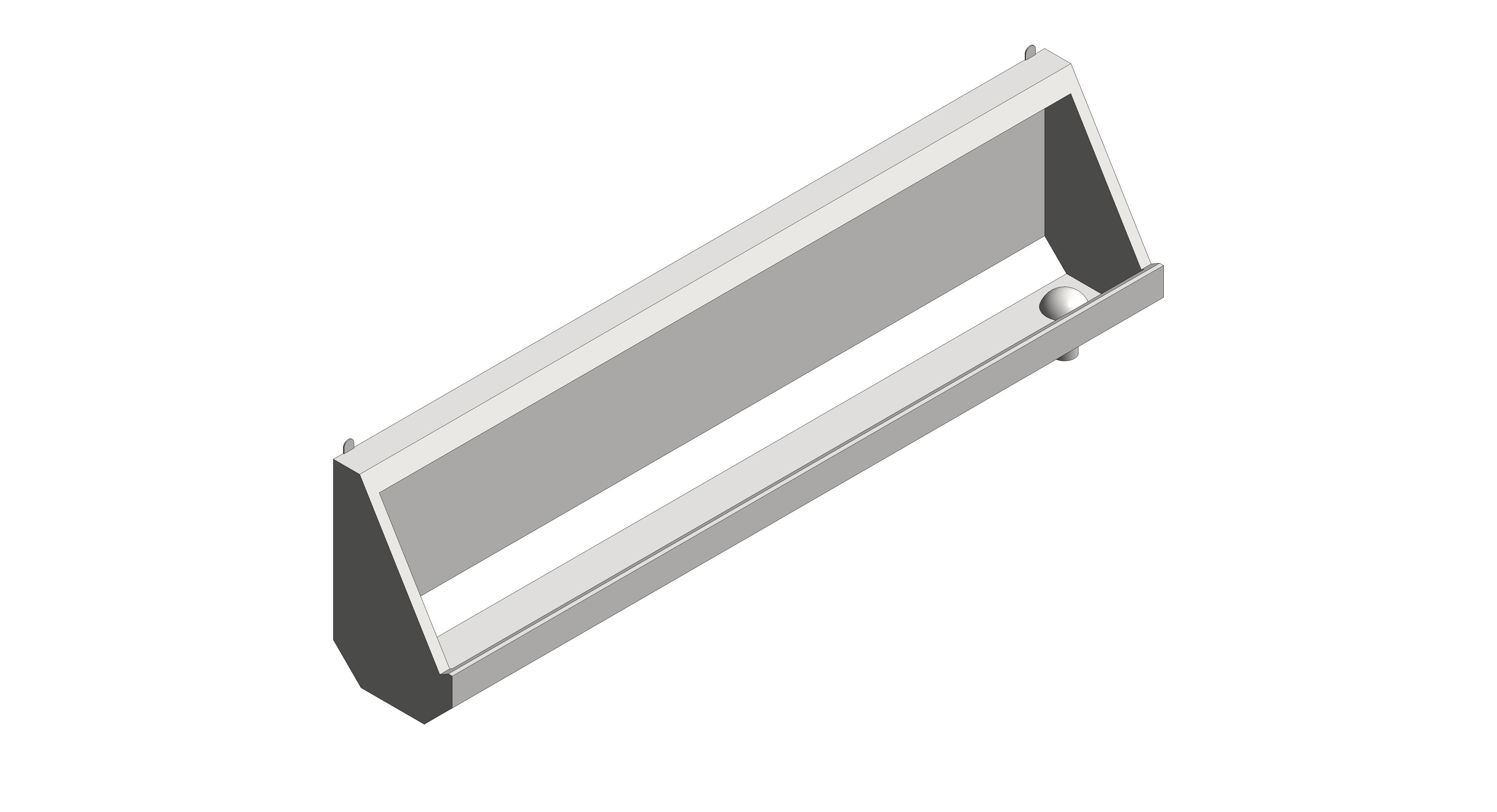

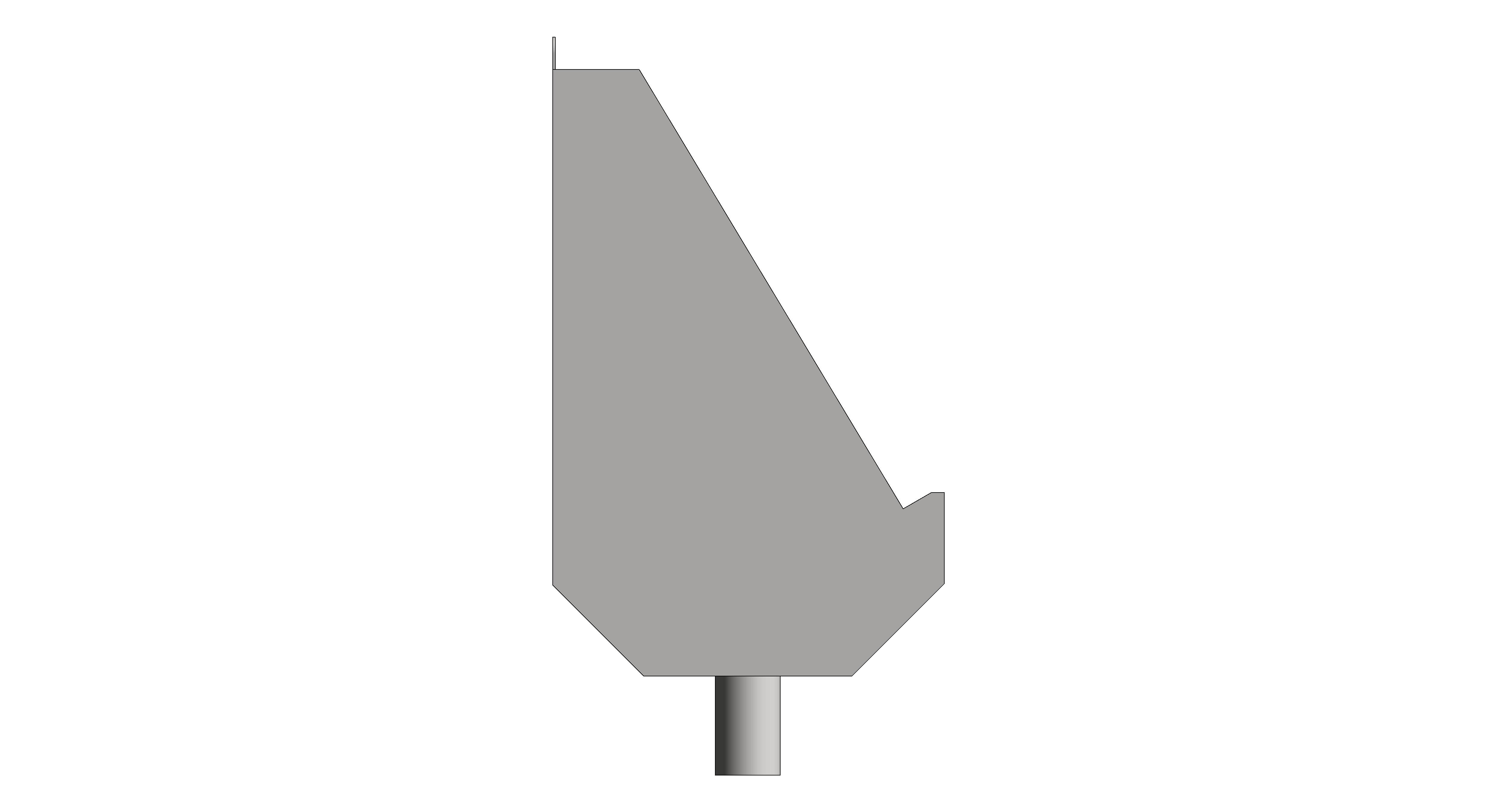

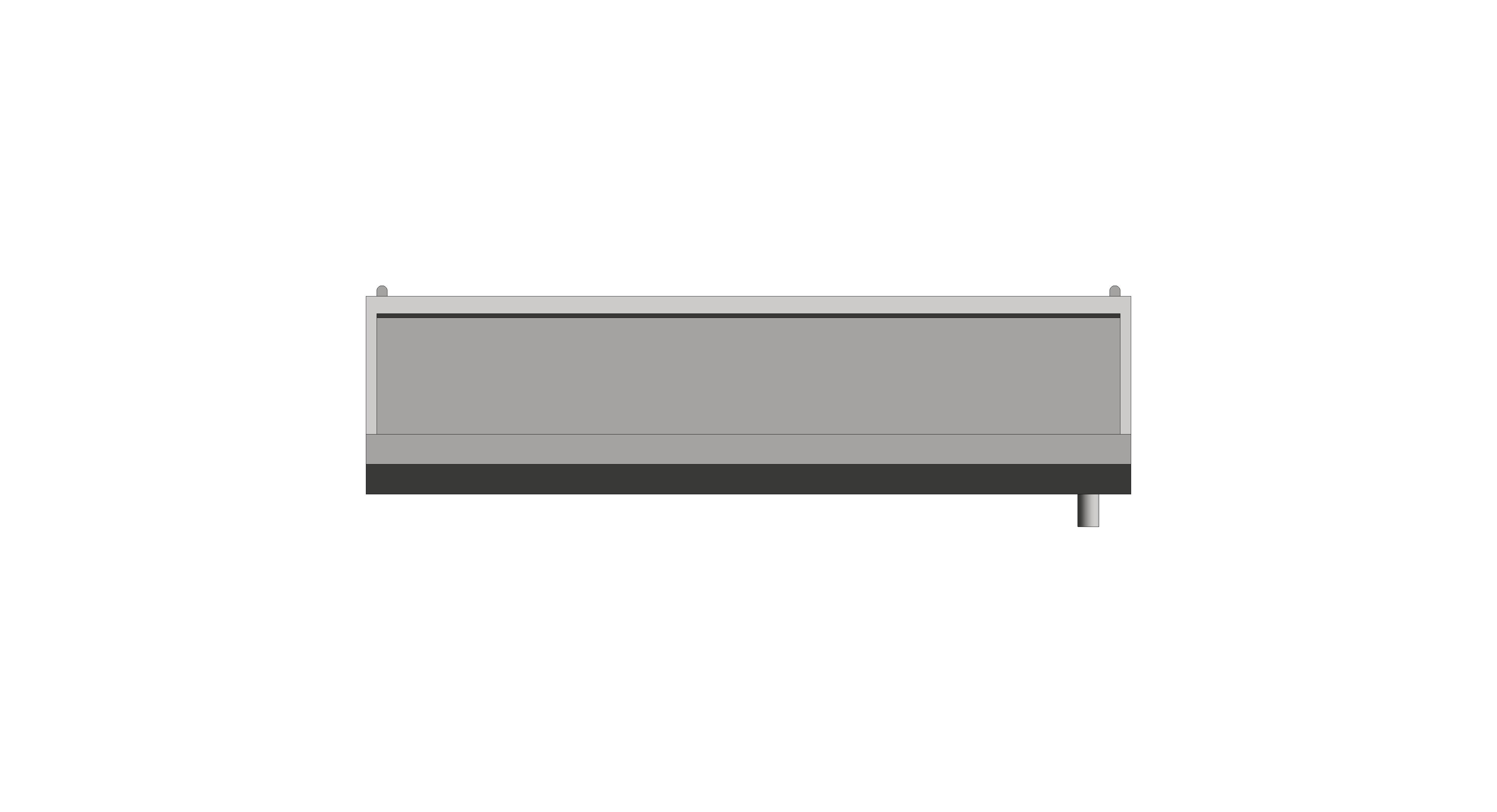

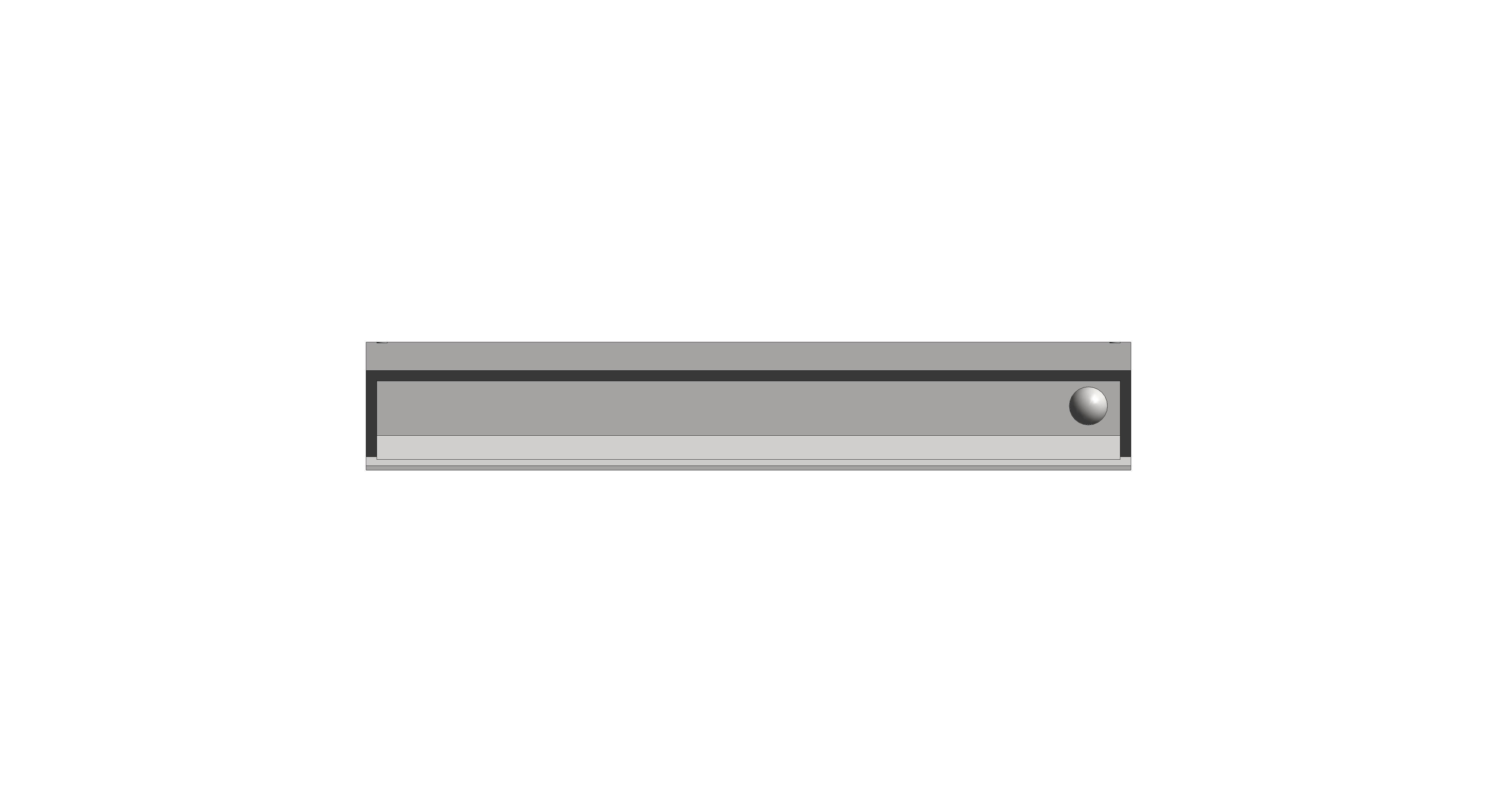

Stainless Steel Trough Urinal

by Trade Washrooms

Download Add to collection

Description

A stainless steel trough urinal pack featuring a universal inlet, which can be installed as either a top (exposed) or back (concealed) inlet. Supplied with a plastic auto-cistern, stainless steel flush pipes, and a 2-inch domed urinal waste.

Choose from 1200mm, 1500mm, 1800mm or 2400mm with left-hand (LH) or right-hand (RH) waste outlet options.

Object Data

1 Revision

Last Updated

07/12/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

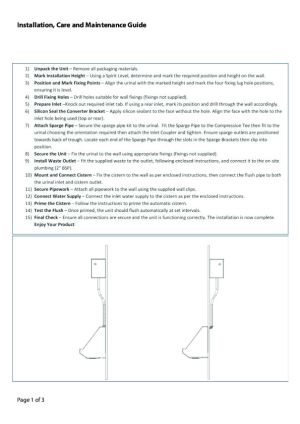

Installation Guide

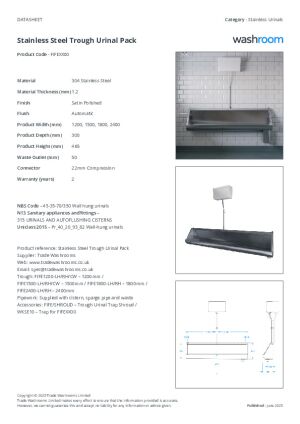

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRyan Wigham
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
Accessibility Performancen/a
Assembly CodeD2010200
Asset TypeFixed
BIM Object NameTradeWashrooms_PlumbingFixture_UrinalTrough_StainlessSteel
CategoryPr_40_20_93_82:Wall-hung urinals
Classification NameUniclass2015
Classification ValuePr_40_20_93_82
Code Performancen/a
ColorStainless Steel
ConstituentsUrinal trough, cistern, sparge pipework, domed waste
Created Byspec@tradewashrooms.co.uk
Created On2020-12-03T09:00:00
CW ConnectionYes
CWFU0
DescriptionStainless steel trough urinal pack supplied complete with plastic cistern, factory-fitted sparge pipe and 2-inch domed urinal waste.
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturewww.tradewashrooms.co.uk/stainless-steel/stainless-urinals/trough-urinal-pack/
Documentation Maintenancen/a
Documentation Technicalwww.tradewashrooms.co.uk/stainless-steel/stainless-urinals/trough-urinal-pack/
Duration UnitYears
Expected Life10
FeaturesSparge pipe located below an integral valance, RH outlet
FinishSatin Polished
Grade304
HW ConnectionNo
HWFU0
Ifc Export AsIfcFlowTerminalType
Ifc Export TypeIfcSanitaryTerminalTypeEnum.URINAL
KeynoteN13
LHNo
Manufacturerspec@tradewashrooms.co.uk
Manufacturer Nameorders@tradewashrooms.co.uk
MaterialStainless Steel
Model1200mm Trough Urinal Pack - RH Outlet
Model NumberSAN6155-TI
Model Reference1200mm Trough Urinal Pack - RH Outlet
NameStainless Steel Urinal Trough
NBS DescriptionWall-hung urinals
NBS Object NameTrade Washrooms - Wall-hung urinals
NBS Office Master Tagn/a
NBS Reference45-35-70/350
Nominal Depth301 mm
Nominal Height466 mm
Nominal Length1200 mm
Outlet Offset1100 mm
Production Year2020
Referenced Standardn/a
Replacement Costn/a
RHYes
Shapen/a
Size1200 x 301 x 466mm
Spare Partsn/a
Sustainability Performancen/a
Type CommentsSAN6155-TI
Type Name1200mm Trough Urinal Pack - RH Outlet
Urinal MaterialTrade Washrooms - Stainless Steel - Satin
URLwww.tradewashrooms.co.uk/
Vent ConnectionNo
Warranty Description2-year warranty on any manufacturing defect
Warranty Duration Labor0
Warranty Duration Parts2
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsorders@tradewashrooms.co.uk
Waste ConnectionYes
WFU0
