Stainless Steel Spring Loaded Check Valve [00/0161]

by Valves Instruments Plus

Download Add to collection

Description

316 Stainless Steel Spring Loaded Check Valve, PTFE Seat, BSPP Screwed Female Ends.

Object Data

1 Revision

Last Updated

23/02/2026

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

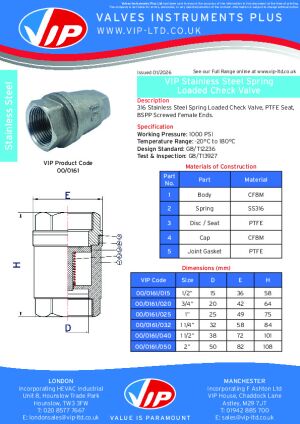

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAA
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version0
_Created ByAA
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/25adfa20-e576-47ae-a388-1555761e9eec/document/object-user-guide
Accessibility Performancen/a
Assembly CodeDN15
Asset TypeFixed
BIM Object NameVIP_StainlessSteelSpringLoadedCheckValve(00/0161)
Circle35 mm
Classification NameUniclass 2024
Classification ValuePR_65_54_95_06
Code Performancen/a
ColorSilver
Constituentsn/a
Created Bysales@vip-ltd.co.uk
Created On2025-04-07T09:00:00
D15 mm
Default Elevation0 mm
DescriptionStainless Steel Spring Loaded Check Valve
Design StandardGB/T12236
DN15 mm
Documentation Certificateswww.bimstore.co/products/25adfa20-e576-47ae-a388-1555761e9eec/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/25adfa20-e576-47ae-a388-1555761e9eec/document/installation-guide
Documentation Literaturewww.bimstore.co/products/25adfa20-e576-47ae-a388-1555761e9eec/document/product-literature
Documentation Maintenancewww.bimstore.co/products/25adfa20-e576-47ae-a388-1555761e9eec/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/25adfa20-e576-47ae-a388-1555761e9eec/document/technical-data-sheet
Duration UnitYears
E36 mm
Expected Life0
Featuresn/a
Finishn/a
Graden/a
H58 mm
KeynoteS
L112 mm
ManufacturerVIP
Manufacturer NameVIP
Max Working Pressure1000 PSI
Model00/0161 Stainless Steel Spring Loaded Check Valve
Model Number00/0161/015
Model ReferenceBall Valves
NBS Descriptionn/a
NBS Noten/a
NBS Object Namen/a
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Diameter15 mm
Opening20 mm
Production Year2024
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN15
Spare Partssales@vip-ltd.co.uk
T25 mm
Test & InspectionGB/T13927
Type Comments00/0161/015
Type NameDN15
URLwww.vip-ltd.co.uk/Valves/VIP_Stainless_Steel_Products/00_0161/
Valve Body MaterialVIP - Stainless Steel
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborsales@vip-ltd.co.uk
Warranty Guarantor Partssales@vip-ltd.co.uk
Working Temperature-20°C to 180°C

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
