Stainless Steel Press Ball Valve, ‘M’ Profile [82/1160]

Description

Lever Operated Stainless Steel ‘M’ profile press fit ball valve. Suitable uses include water, drainage and compressed air. Not suitable for Oils.
Sizes from 15mm - 54mm.

Object Data

1 Revision

Last Updated

11/06/2026

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

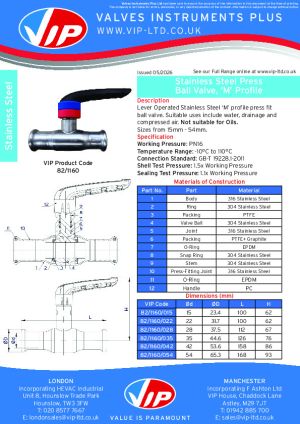

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAG
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version0
_Created ByAG
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/95a74169-a528-43ef-9a17-1bfda650eb48/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD15
Asset TypeFixed
BH8 mm
BIM Object NameVIP_SS_PRESS_BALL_VALVE_M_PROFILE(82-1160)
Blue BandVIP Blue Rubber
BodyVIP 316 Stainless Steel
C26 mm
Classification NameUniclass 2026
Classification ValuePr_65_54_95_06
Code Performancen/a
ColorBlack, Silver, Red & Blue
Constituentsn/a
Created Bysales@vip-ltd.co.uk
Created On2026-06-10T09:00:00
CW17 mm
CW219 mm
D23 mm
Default Elevation0 mm
DescriptionStainless Steel Press Ball Valve 'M' Profile
DN15 mm
Documentation Certificateswww.bimstore.co/products/95a74169-a528-43ef-9a17-1bfda650eb48/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/95a74169-a528-43ef-9a17-1bfda650eb48/document/installation-guide
Documentation Literaturewww.bimstore.co/products/95a74169-a528-43ef-9a17-1bfda650eb48/document/product-literature
Documentation Maintenancewww.bimstore.co/products/95a74169-a528-43ef-9a17-1bfda650eb48/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/95a74169-a528-43ef-9a17-1bfda650eb48/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
Finishn/a
Graden/a
H62 mm
JointVIP 316 Stainless Steel
KeynoteS
L100 mm
L26 mm
LeverVIP Black Plastic
ManufacturerVIP
Manufacturer NameVIP
Model82/1160
Model Number82/1160/015
Model ReferenceCommissioning Valves
NBS Descriptionn/a
NBS Noten/a
NBS Object Namen/a
NBS Office Master Tagn/a
NBS Referencen/a
O-RingVIP EPDM
PackingVIP PTFE / Graphite
Press-fitting JointVIP 316 Stainless Steel
Production Year2026
Red BandVIP Red Rubber
Referenced Standardn/a
Replacement Costn/a
RingVIP 304 Stainless Steel
Shapen/a
SizeDN15
Snap RingVIP 304 Stainless Steel
Spare Partssales@vip-ltd.co.uk
StemVIP 304 Stainless Steel
T2 mm
Type Comments82/1160/015
Type NameDN15
URLwww.vip-ltd.co.uk
Valve BallVIP 304 Stainless Steel
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborsales@vip-ltd.co.uk
Warranty Guarantor Partssales@vip-ltd.co.uk
Z40 mm
