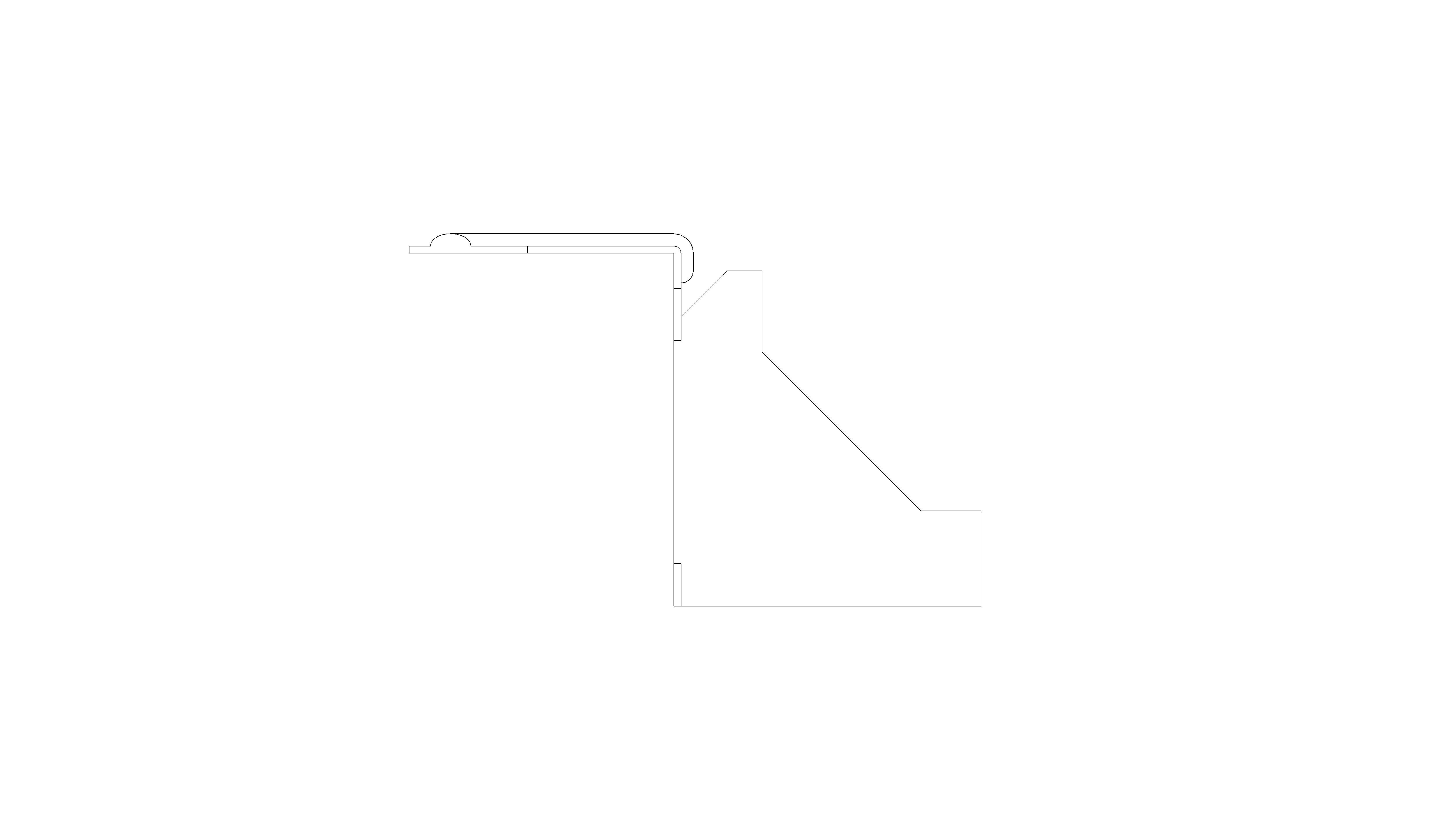

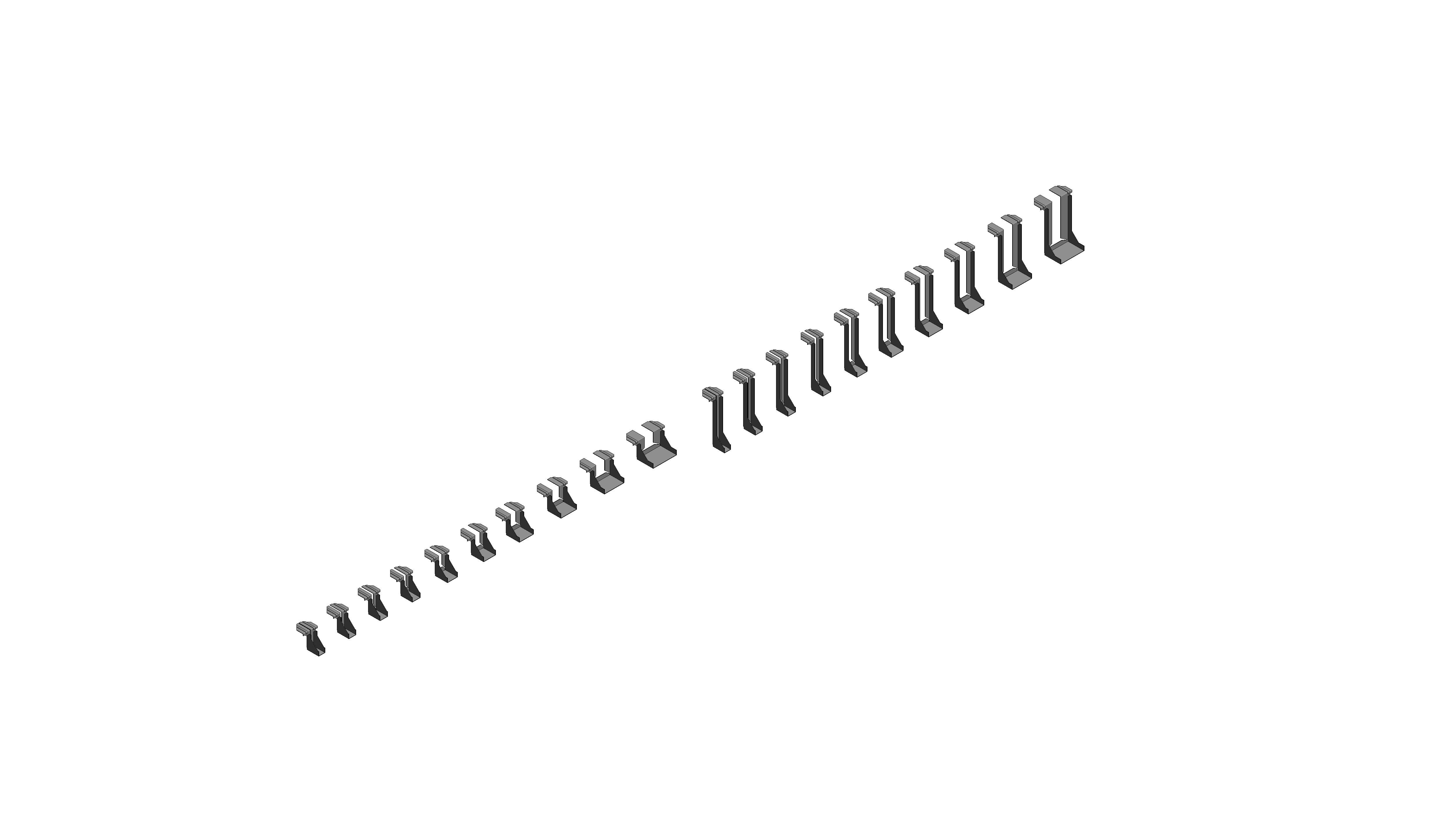

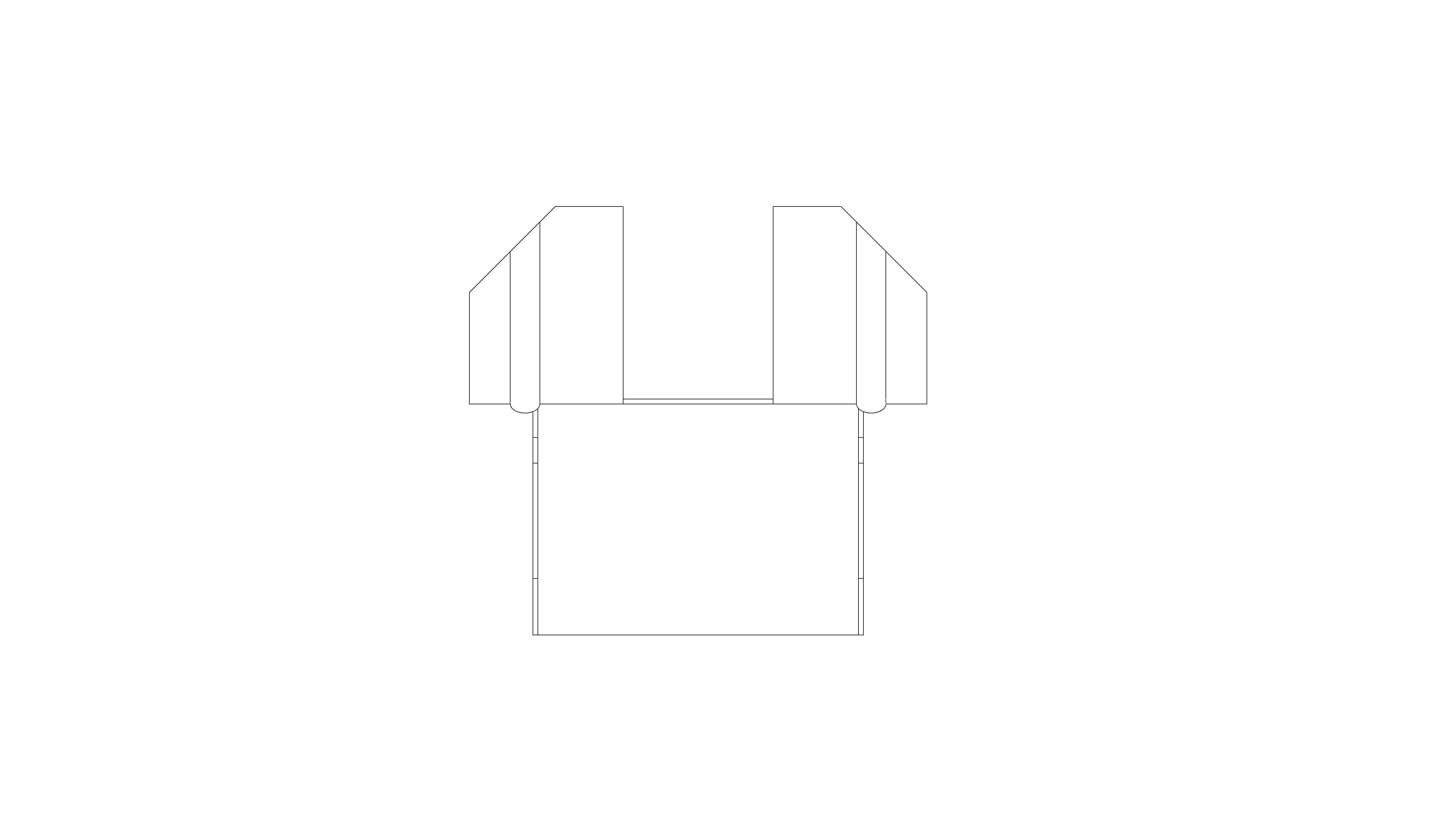

SPHS Joist Hanger

Download Add to collection

Description

Object Data

1 Revision

Last Updated

03/09/2019

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/sphs-joist-hanger/document/object-user-guide
Accessibility Performancen/a
Assembly CodeB10
Asset TypeFixed
Bearing Length76.00 mm
BIM Object NameExpamet_JoistHangers_SPHS
Classification NameUniclass2015
Classification ValuePr_20_29_31_44
Code PerformanceBS EN845-1:2013+A1:2016, BS EN 846-8:2000, BS EN 10346:2015, DX51D + Z600
ColorSteel
Constituentsn/a
Created Byinfo@birtleygroup.co.uk
Created On2019-06-18 T09:00:00

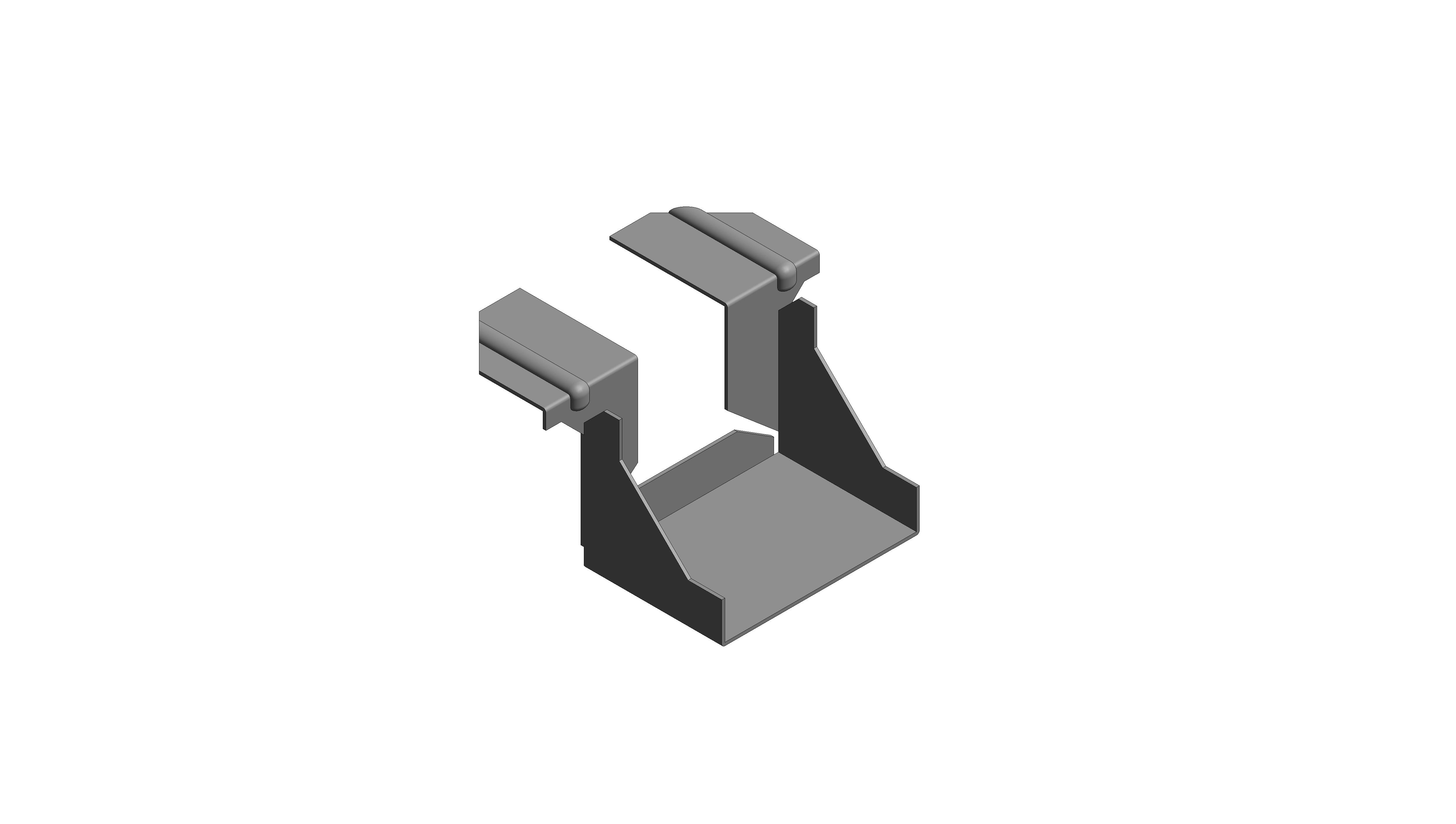

DescriptionA single piece timber to masonry joist hanger for building into the inner leaf of external cavity walls and internal walls.
Documentation Certificateswww.birtleygroup.co.uk
Documentation Installation Guidewww.birtleygroup.co.uk
Documentation Literaturewww.birtleygroup.co.uk
Documentation Maintenancewww.birtleygroup.co.uk
Documentation Technicalwww.birtleygroup.co.uk
Duration UnitYears
Expected Life0
FeaturesWider masonary flange to increase loadings on masonry of compressive strength 2.8N/mm² and greater. All hangers 150mm deep and over are manufactured 10mm less to allow for notching and regularisation of timber joists. Gusset nail holes are non-coaxial.
Finish600g/m² Zinc Coating
Flange Width47.50 mm
Graden/a
Ifc Export AsIfcMember
Ifc Export TypeIfcMemberTypeEnum.PLATE
Joist Hanger MaterialExpamet_GalvanizedSteel
Joist Height100.00 mm
Joist Width75.00 mm
KeynoteG20/790
ManufacturerExpamet
Manufacturer NameExpamet
MaterialPre-galvanized mild steel
ModelSPHS10038
Model NumberSingle piece timber to masonry joist hanger
Model ReferenceSPHS10038
NBS DescriptionJoist hangers
NBS Object NameExpamet JoistHangers
NBS Office Master Tagn/a
NBS Reference45-50-50/410
Nominal Depth76.00 mm
Nominal Height100.00 mm
Nominal Length128.50 mm
Production Year2019
Referenced StandardBS EN845-1:2013+A1:2016, BS EN 846-8:2000, BS EN 10346:2015, DX51D + Z600
Replacement Costn/a
Safe Working Load5 kN
Shapen/a
Size38mm x 100mm
Spare Partsn/a
Type CommentsSingle piece timber to masonry joist hanger
Type NameSPHS10038
Vertical Load Capacity10 kN
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo@birtleygroup.co.uk
Warranty Guarantor Partsinfo@birtleygroup.co.uk

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
