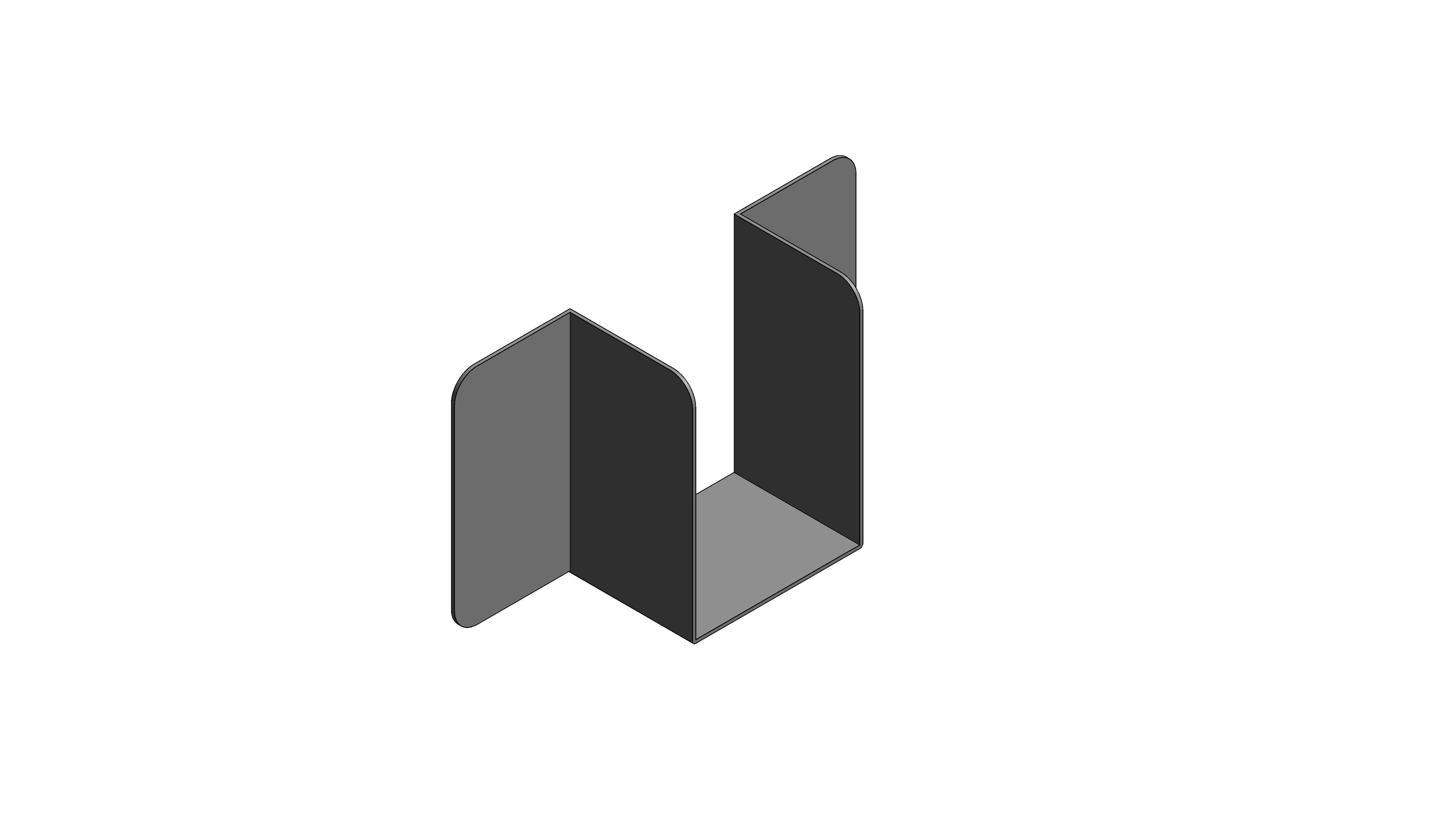

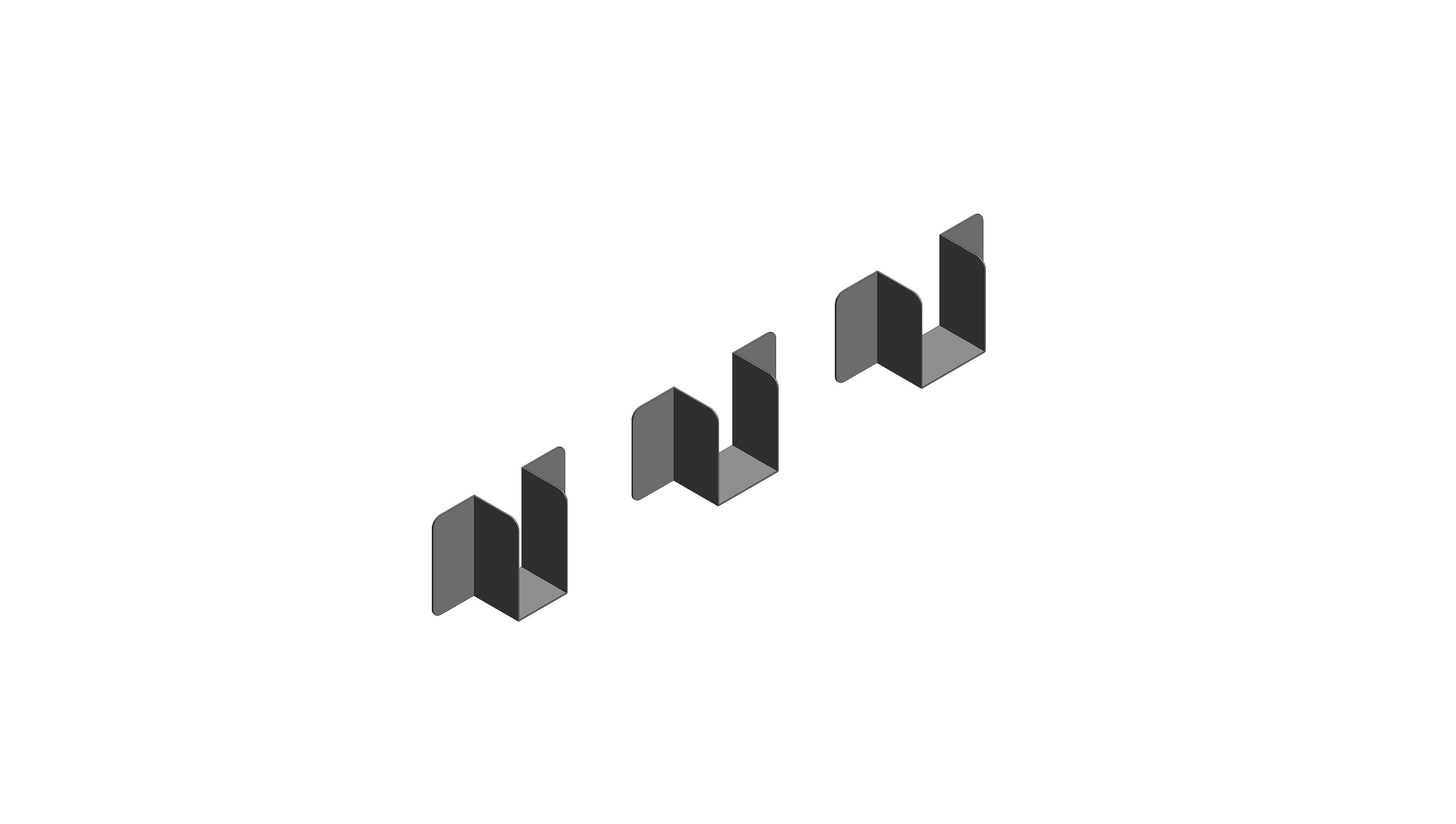

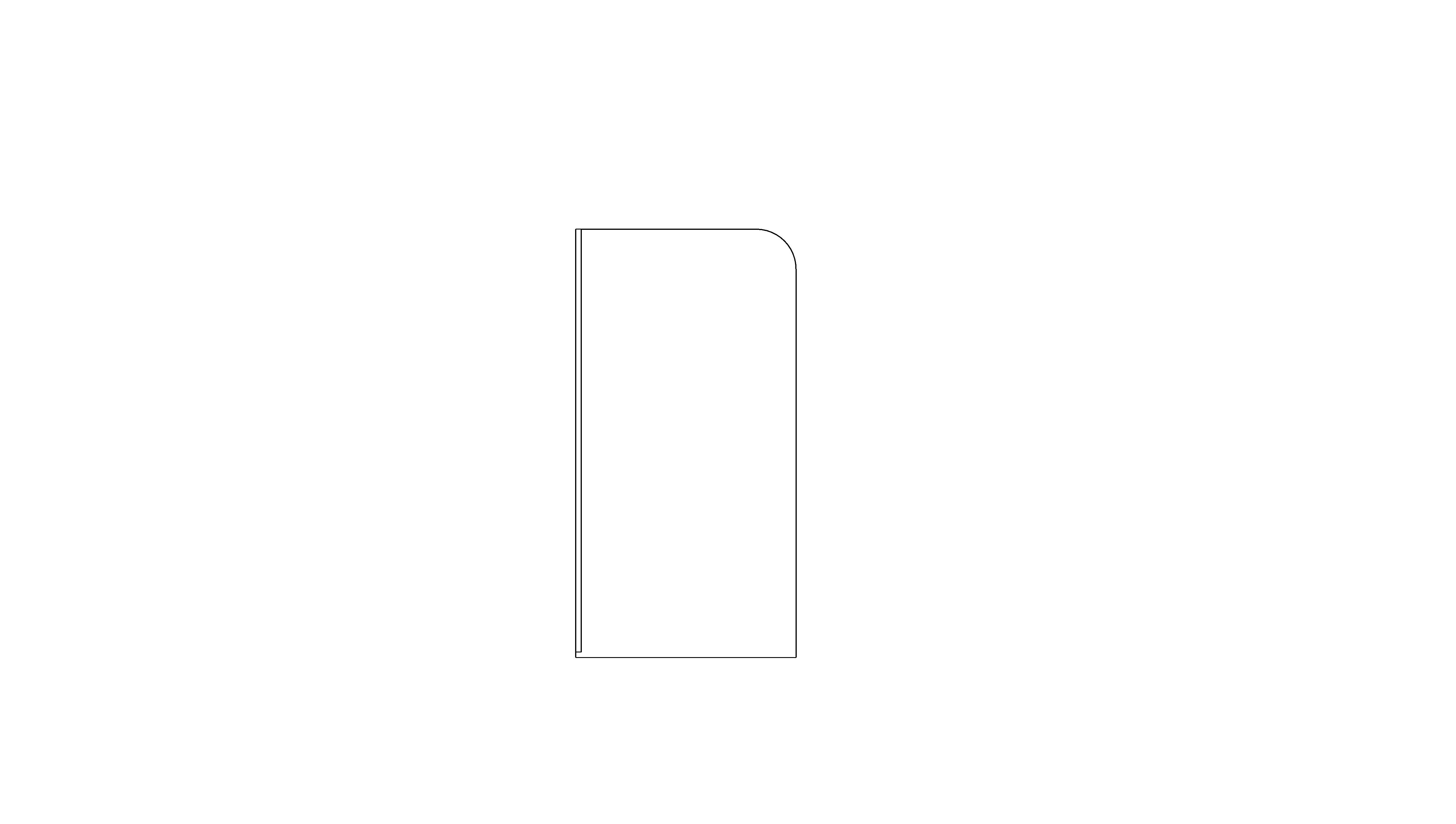

Speedy Minor Joist Hanger

Download Add to collection

Description

Safe and practical joist hanger for light duty applications and are suitable for use with joists up to 100mm maximum depth.

Object Data

1 Revision

Last Updated

03/09/2019

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/speedy-minor-joist-hanger/document/object-user-guide
Accessibility Performancen/a
Assembly CodeB10
Asset TypeFixed
Bearing Length36.00 mm
BIM Object NameExpamet_JoistHangers_SpeedyMinor
Characteristic Load Capacity3.2 kN
Classification NameUniclass2015
Classification ValuePr_20_29_31_44
Code PerformanceETAG015 (ETA13/0803), BS EN 10346:2015, DX51D + Z275
ColorSteel
Constituentsn/a
Created Byinfo@birtleygroup.co.uk
Created On2019-06-18 T09:00:00
DescriptionSpeedy joist hangers provide a quick and safe method of joist trimimg for light and medium duty joints.
Documentation Certificateswww.birtleygroup.co.uk
Documentation Installation Guidewww.birtleygroup.co.uk
Documentation Literaturewww.birtleygroup.co.uk
Documentation Maintenancewww.birtleygroup.co.uk
Documentation Technicalwww.birtleygroup.co.uk
Duration UnitYears
Expected Life0
Featuresn/a
Finish275g/m² Zinc Coating
Flange Height70.00 mm
Graden/a
Ifc Export AsIfcMember
Ifc Export TypeIfcMemberTypeEnum.PLATE
Joist Hanger MaterialExpamet_GalvanizedSteel
Joist Width38.00 mm
KeynoteG20/790
ManufacturerExpamet
Manufacturer NameExpamet
MaterialGalvanized mild steel
ModelSM38
Model NumberSingle piece timber to timber joist hanger
Model ReferenceSM38
NBS DescriptionJoist hangers
NBS Object NameExpamet JoistHangers
NBS Office Master Tagn/a
NBS Reference45-50-50/410
Nominal Depth36.00 mm
Nominal Height100.00 mm
Nominal Length91.50 mm
Production Year2019
Referenced StandardETAG015 (ETA13/0803), BS EN 10346:2015, DX51D + Z275, ETAG015/TR016
Replacement Costn/a
Shapen/a
Size38mm x 70mm
Spare Partsn/a
Type CommentsSingle piece timber to timber joist hanger
Type NameSM38
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo@birtleygroup.co.uk
Warranty Guarantor Partsinfo@birtleygroup.co.uk

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
