SONAS 1160mm Universal Frame & Cistern for Wall Hung WC (USW0548)

by SONAS Bathrooms

Download Add to collection

Description

SONAS 1160mm Universal Frame & Cistern for Wall Hung WC

Universal frame cistern
Front operation
Adjustable dual flush 3/6L
Suitable for Wall Hung WC-WC not included

For more information visit the SONAS website here.

Object Data

1 Revision

Last Updated

17/02/2026

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

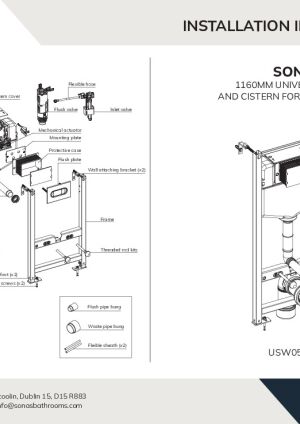

Installation Guide

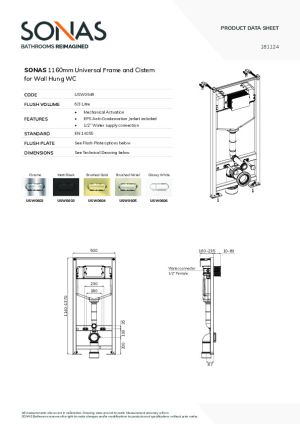

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRL
_Authorized ByBS
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/01d9eac2-ac9f-432e-bded-a2c193db6446/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD2010
Asset TypeFixed
BIM Object NameSONAS_UniversalFrameAndCisternForWallHungWC_1160mm_USW0548
Classification NameUniclass 2015
Classification ValuePr_40_20_93_89
Code Performancen/a
Colorn/a
Constituentsn/a
Created Byinfo@sonasbathrooms.com
Created On2026-02-16T09:00:00
Default Elevation0 mm
DescriptionUniversal frame cistern, front operated
Documentation Certificateswww.bimstore.co/products/01d9eac2-ac9f-432e-bded-a2c193db6446/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/01d9eac2-ac9f-432e-bded-a2c193db6446/document/installation-guide
Documentation Literaturewww.bimstore.co/products/01d9eac2-ac9f-432e-bded-a2c193db6446/document/product-literature
Documentation Maintenancewww.bimstore.co/products/01d9eac2-ac9f-432e-bded-a2c193db6446/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/01d9eac2-ac9f-432e-bded-a2c193db6446/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Ifc Export AsIfcFlowTerminalType
Ifc Export TypeIfcSanitaryTerminalTypeEnum.TOILETPAN
KeynoteN13
ManufacturerSONAS
Manufacturer NameSONAS
Materialn/a
ModelSONAS 1160mm Universal Frame & Cistern for Wall Hung WC
Model NumberUSW0548
Model ReferenceSONAS 1160mm Universal Frame & Cistern for Wall Hung WC
NBS DescriptionWC cisterns
NBS Noten/a
NBS Object NameSONAS - WC cisterns
NBS Office Master Tagn/a
NBS Reference45-35-70/383
Nominal Depth160 mm
Nominal Height1160 mm
Nominal Length500 mm
Primary MaterialSONAS - Steel Painted Matte Black
Production Year2026
Referenced StandardEN 14055
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsinfo@sonasbathrooms.com
Type CommentsSONAS 1160mm Universal Frame & Cistern for Wall Hung WC
Type NameSONAS 1160mm Universal Frame & Cistern for Wall Hung WC
URLwww.sonasbathrooms.com/en/sonas-1160mm-universal-frame-cistern-for-wall-hung-wc.html
Warranty Description10 years on frame & cistern; 2 years on inlet valve and flushing mechanism
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo@sonasbathrooms.com
Warranty Guarantor Partsinfo@sonasbathrooms.com
White PlasticSONAS - Gloss White Acrylic

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
