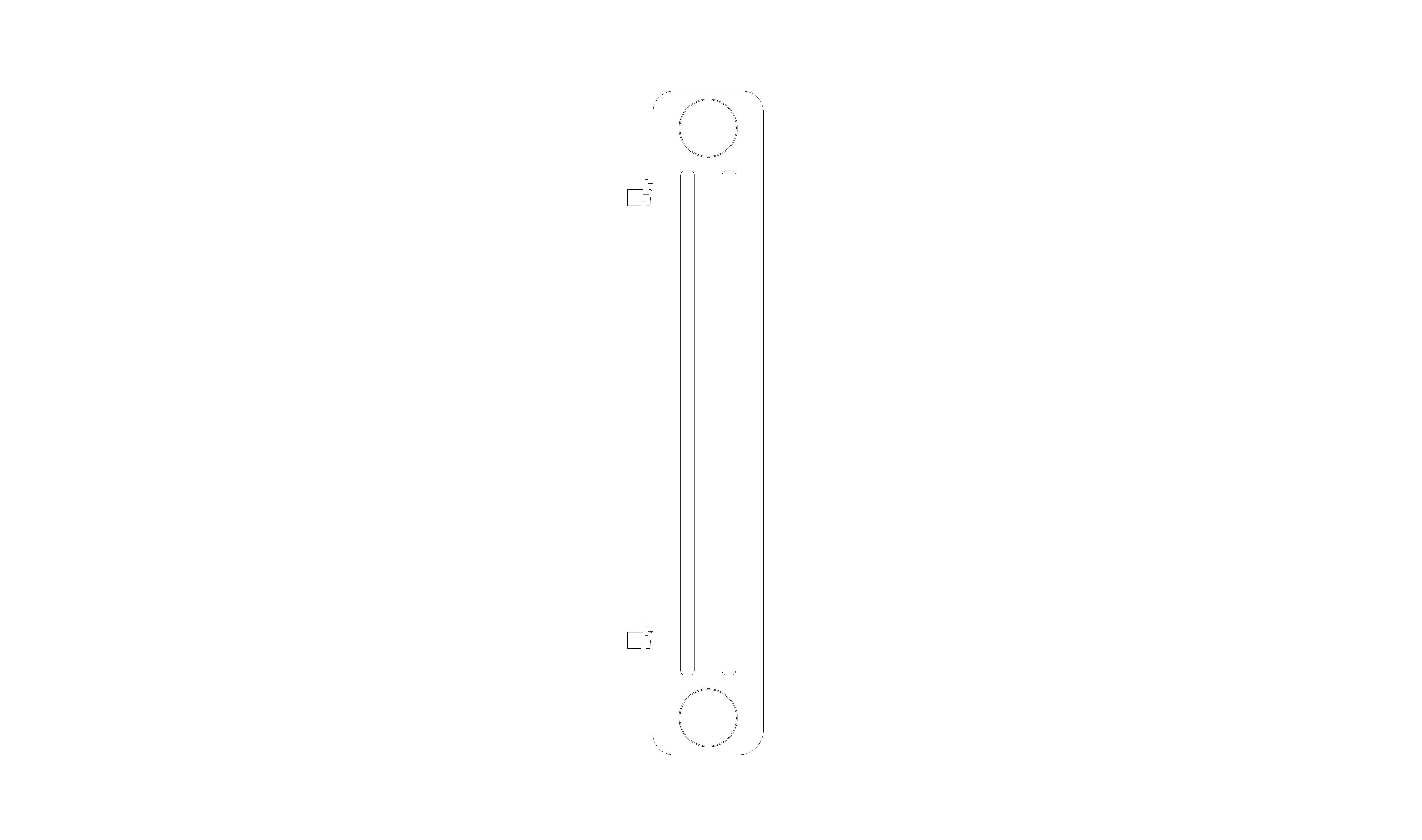

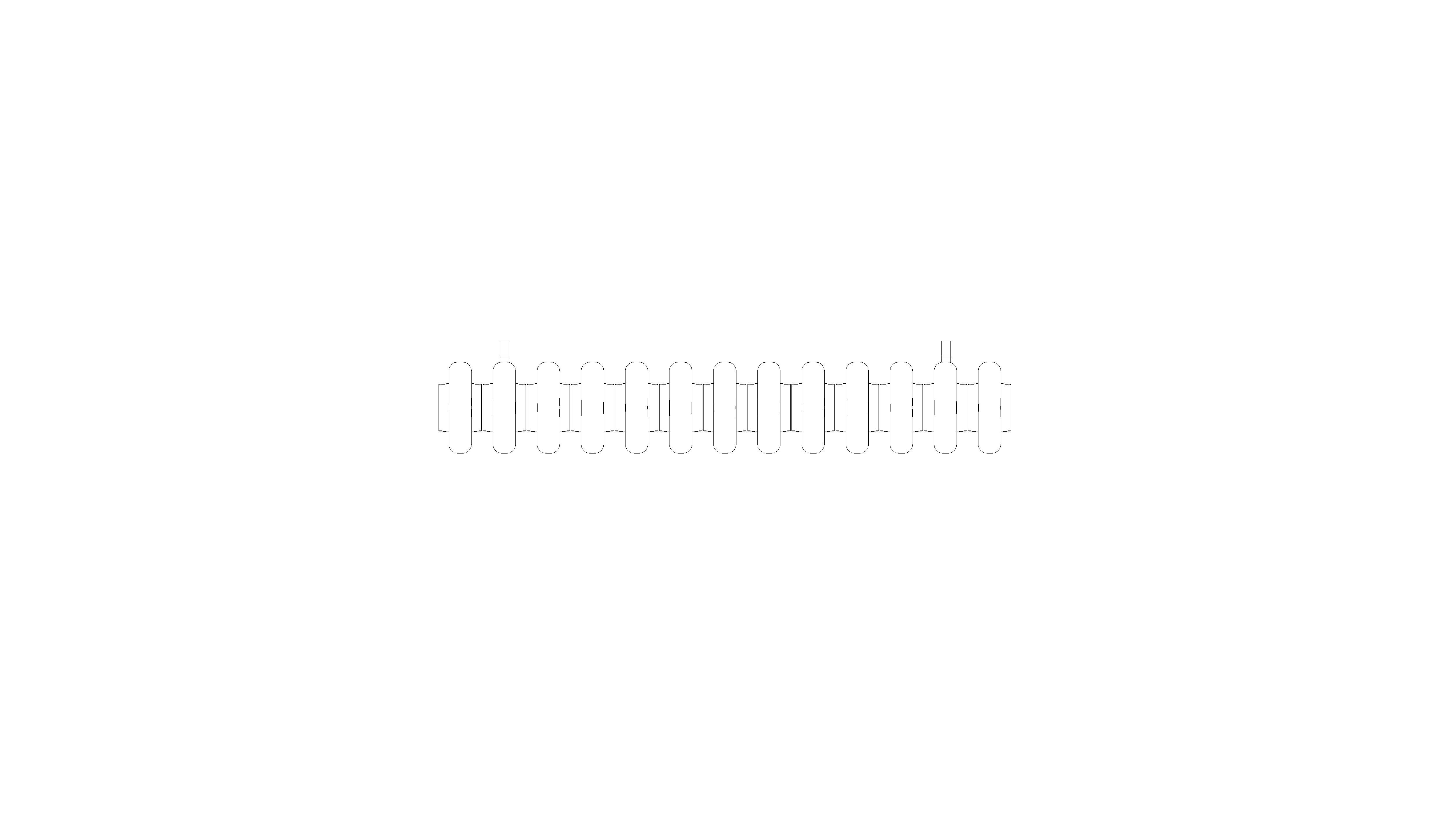

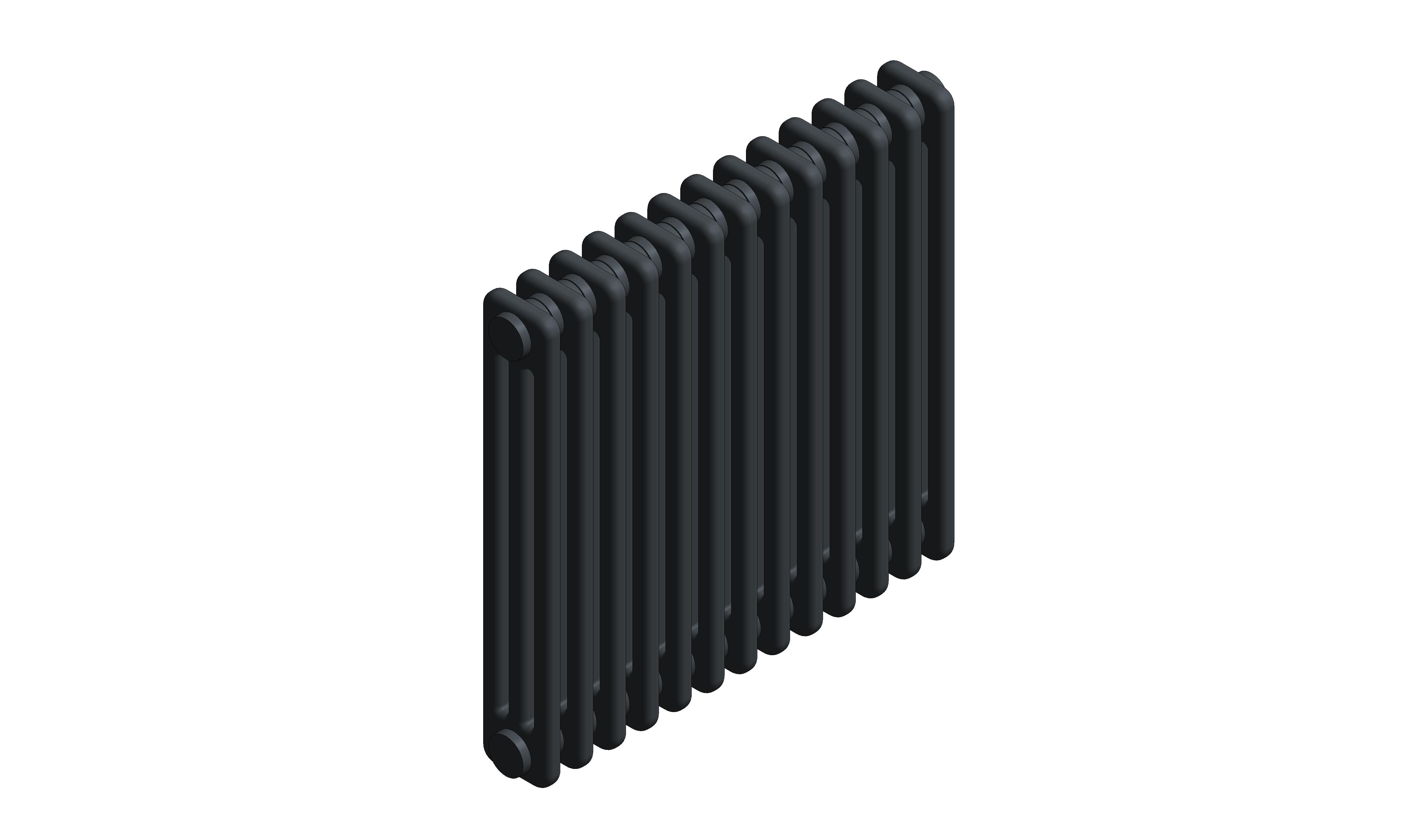

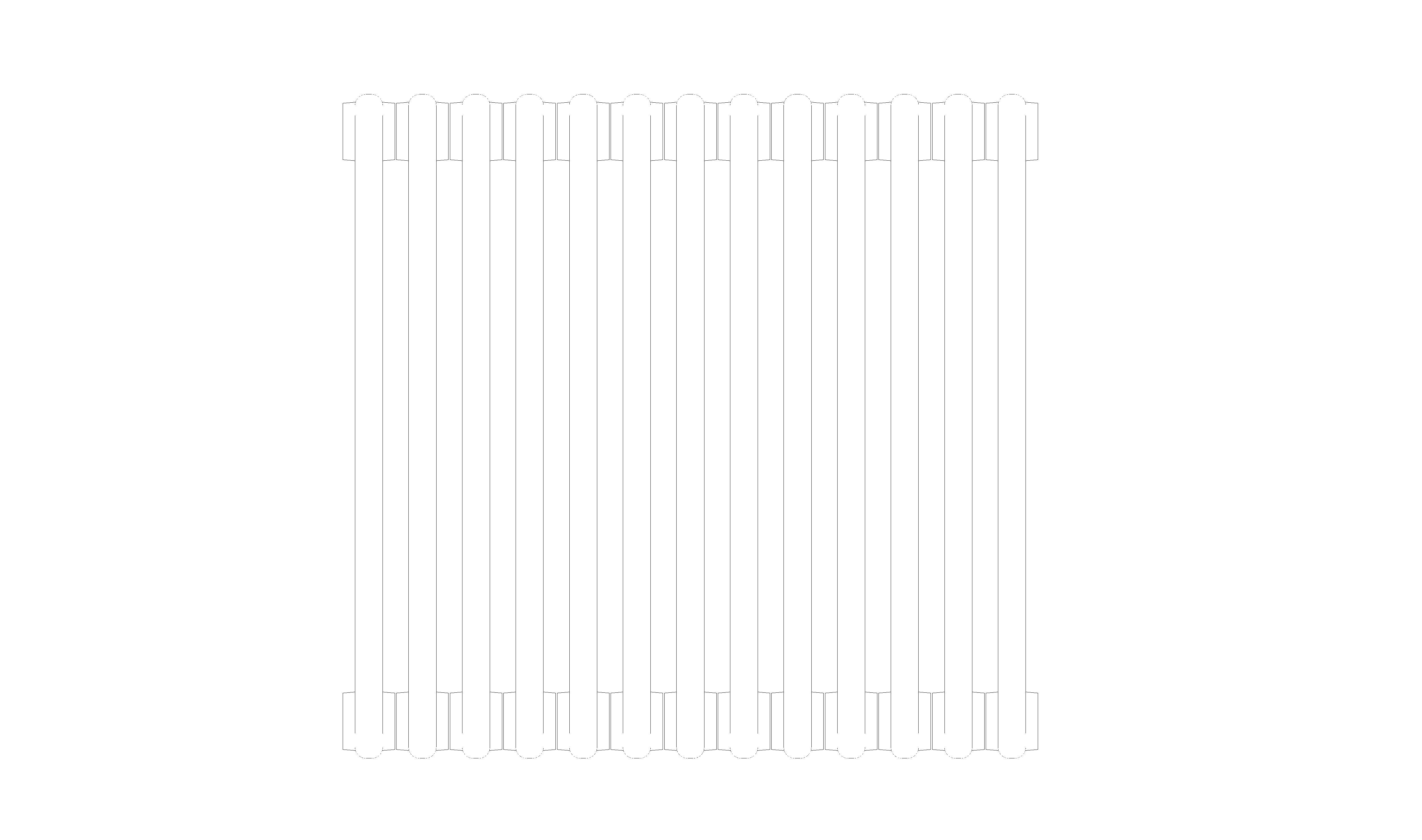

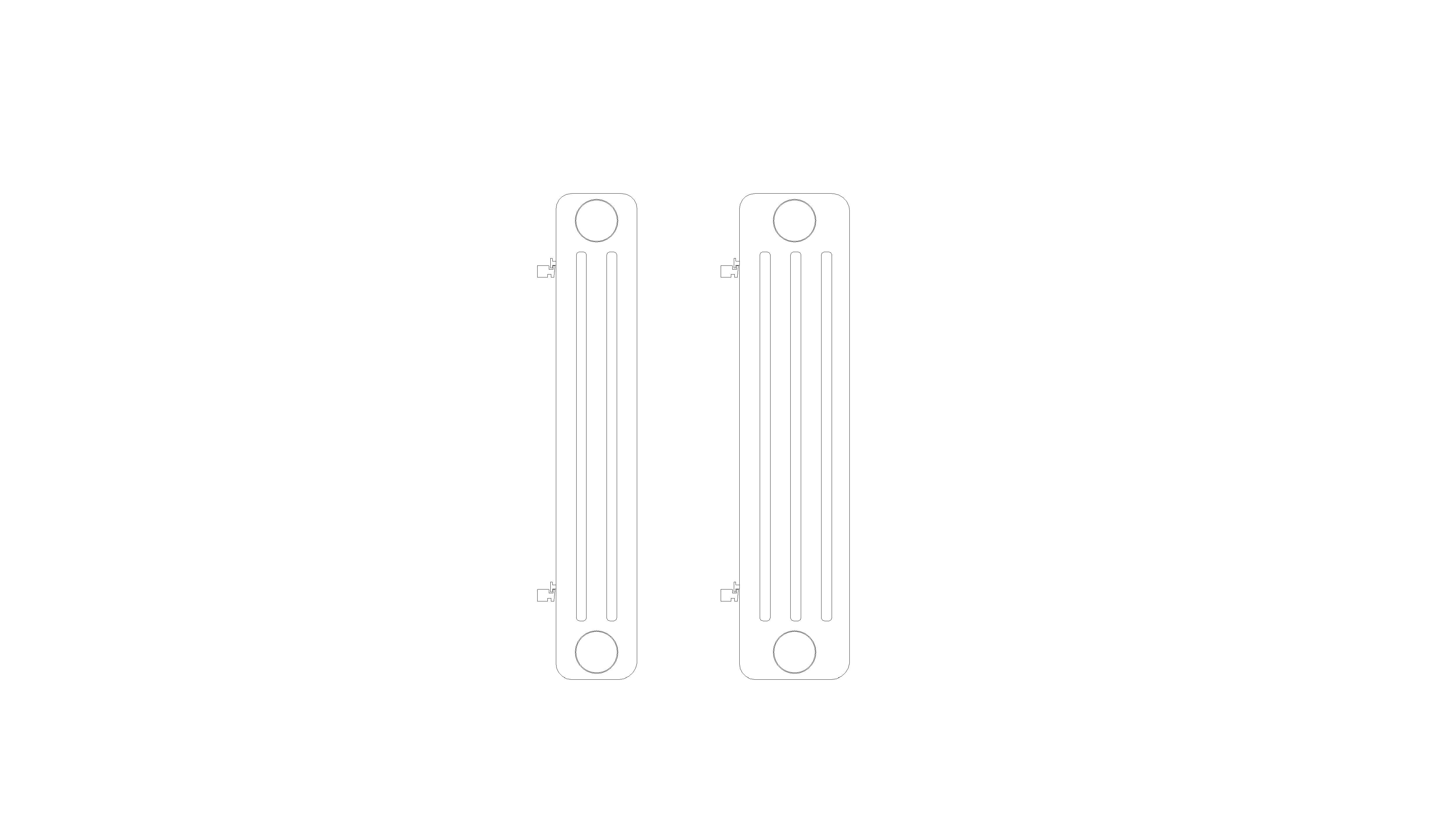

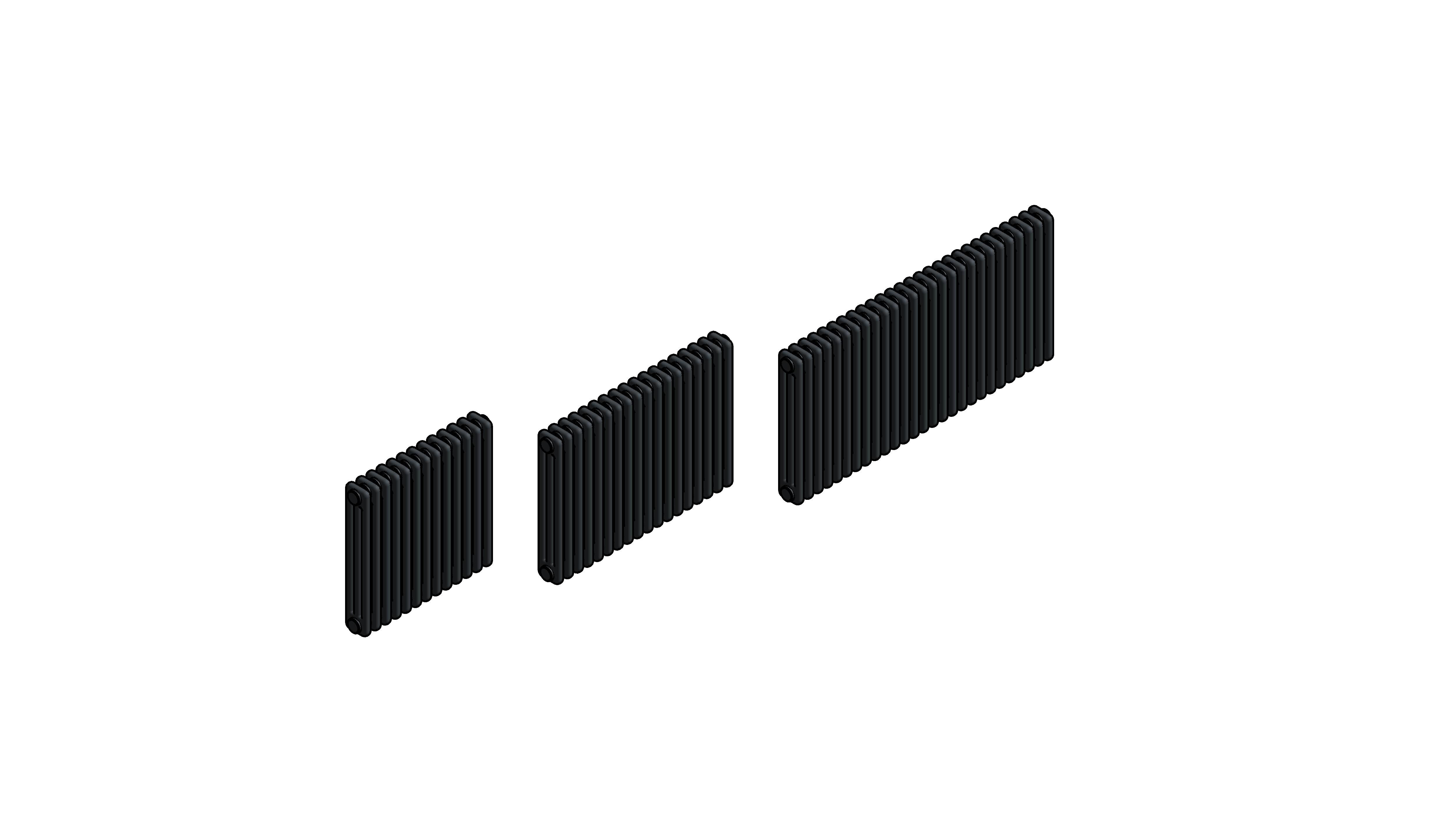

Softline Column Concept Radiator

by Stelrad Radiators Ltd

Download Add to collection

Description

Add a little colour to your home with the new Anthracite Grey radiator, it’s the ideal choice if you want to be ‘IN’ fashion this season. Available in a range of sizes to complement every room.

Click here to view our interactive brochure

Object Data

1 Revision

Last Updated

20/02/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Product Literature

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision2
_Distributed Bywww.bimstore.co
2 ColNo
3 ColYes
4 ColNo
6 Monthlyn/a
Access Clearance Bottom0 mm
Access Clearance Front0 mm
Access Clearance Left0 mm
Access Clearance Rear0 mm
Access Clearance Right0 mm
Access Clearance Top0 mm
Accessibility Performancen/a
Air VentYes
AnnuallyAnnual Service
Assembly CodeD3020
Asset TypeFixed
Bespoke Timeframen/a
BIM Object NameStelrad_Radiators_SoftlineConceptColumn_600x1042mm-3Col
Casing Materialn/a
CE Approvaln/a
Classification NameUniclass2015
Classification ValuePr_70_60_36_73
Code Performancen/a
ColourA7016 Anthracite Grey
Columns3
Constituentsn/a
Created Byinfo@stelrad.com
Created On2019-01-31 T09:00:00
D73 mm
D2123 mm
Dailyn/a
DescriptionA timeless, classic design that?s an ideal statement piece for both period and modern interiors.
Documentation Certificateswww.stelrad.com/
Documentation Installation Guidewww.stelrad.com/
Documentation Literaturewww.bimstore.co/product/095d7dcb-ab86-4c4b-bad4-1263fbd71b0d/document/7b094131-fffa-4b54-8800-14e879973b1e/download
Documentation Maintenancewww.stelrad.com/
Documentation Technicalwww.stelrad.com/
Drain TapNo
Duration UnitYears
Elements22
Embodied Carbonn/a
Energy Technology Listn/a
Environmental Product Declarationn/a
Expected Life0
Featuresn/a
FinishPainted
FinnedNo
Graden/a
Green Guide For Specificationn/a
Gross Weight0 kg
Heat Emitter MaterialSteel
Heat ReflectorNo
Heat Transfer Mediumn/a
Ifc Export AsIfcSpaceHeater
Ifc Export TypeIfcSpaceHeaterTypeEnum.RADIATOR
Inlet GrilleNo
Integral Lockshield ValveNo
Integral Regulating ValveNo
Integral TRVNo
KeynoteT32
Life Cycle Analysisn/a
Location Of ManufacturerRotherham, United Kingdom
Maintenance Required 0-300hrsn/a
Maintenance Required 1001-2000hrsn/a
Maintenance Required 2001-4000hrsn/a
Maintenance Required 301-600hrsn/a
Maintenance Required 4001-8000hrsn/a
Maintenance Required 601-1000hrsn/a
Maintenance Required 8001-12000hrsn/a
ManufacturerStelrad Ltd
Manufacturer NameStelrad Ltd
Manufacturer Websitewww.stelrad.com/
MaterialSteel
Material Ingredient Reportingn/a
Maximum Operating Pressure8000 kPa
Maximum Operating Temperature0 °C
Maximum Test Pressure10500 kPa
ModelSoftline Column Concept
Model Number463135
Model ReferenceSoftline Column Concept
Monthlyn/a
Mounting TypeWall Mounted
NBS DescriptionRadiators
NBS Noten/a
NBS Object NameStelrad Ltd - Radiators
NBS Office Master Tagn/a
NBS Reference90-40-35/405
Nominal Depth123 mm
Nominal Height600 mm
Nominal Length1042 mm
Number Of Panels0
Number Of Sections22
O&M Manualn/a
Outlet GrilleNo
Overall Height600 mm
Overall Length1042 mm
Overall Width123 mm
Pipe Connections Size26 mm
Possible Connections PositionsTBOE Top, Bottom Opposite End
Pressure Drop0 kPa
Production Year2019
Product Literaturewww.bimstore.co/product/095d7dcb-ab86-4c4b-bad4-1263fbd71b0d/document/7b094131-fffa-4b54-8800-14e879973b1e/download
Product Model Number463135
Product RangeSoftline
Quarterlyn/a
Referenced Standardn/a
Reference StandardEN 442 Certification - CETIAT tested in accordance with BS EN 442
Replacement Costn/a
Responsible Extraction Of Materialsn/a
Responsible Sourcing Of Materialsn/a
Seam Typen/a
ShapeRectangle
Shipping Weight0 kg
Size600 x 1042mm
Spare Partsn/a
Tag Numbern/a
Temperature Classificationn/a
Thermal Output1340 W
Thermal Output-Btu/hr4573
TypeColumn
Type Comments600mm High x 1042mm Wide - 3 Col
Type Name600mm High x 1042mm Wide - 3 Col
URLwww.stelrad.com/
WA23 mm
Wall Bracket Height Offset100 mm
Wall Bracket Offset71.1 mm
Wall BracketsYes
Warranty Description5 year parts
Warranty Duration Labor0
Warranty Duration Parts5
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsinfo@stelrad.com
Warranty IDSerial number and end user registration
Water Content0.05 L
Water Flow Raten/a
Weeklyn/a
