SONAS REFLECTIONS Back to Wall Pan & Alpha Soft Close Seat (REFBTW06)

by SONAS Bathrooms

Download Add to collection

Description

REFLECTIONS Rimless Back To Wall WC & Alpha Soft Close Seat

Unified Water Label Flush Value/Capacity 3L*
Contemporary Design
Rimless Design
Back to Wall
*Registered with the Unified Water Label -Classified as Rate Band 1 -Products registered with the Unified Water Label help the end user make an informed decision, when choosing bathroom products. The label offers clear, concise and easy to understand messaging about water and energy consumption.

For more information visit the SONAS website here.

Object Data

1 Revision

Last Updated

24/04/2026

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

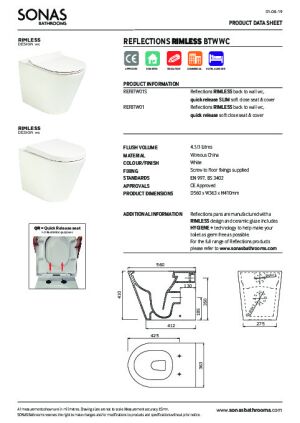

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRL
_Authorized ByBS
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/ed7302d5-d12c-452d-b389-486e25463c26/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD2010
Asset TypeFixed
BIM Object NameSONAS_Reflections_BackToWallPanWithAlphaSoftCloseSeat_(REFBTW06)
Classification NameUniclass 2015
Classification ValuePr_40_20_93_94
Code Performancen/a
Colorn/a
Constituentsn/a
Created Byinfo@sonasbathrooms.com
Created On2026-04-23T09:00:00
Default Elevation0 mm
DescriptionBack to Wall Pan & Alpha Soft Close Seat
Documentation Certificateswww.bimstore.co/products/ed7302d5-d12c-452d-b389-486e25463c26/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/ed7302d5-d12c-452d-b389-486e25463c26/document/installation-guide
Documentation Literaturewww.bimstore.co/products/ed7302d5-d12c-452d-b389-486e25463c26/document/product-literature
Documentation Maintenancewww.bimstore.co/products/ed7302d5-d12c-452d-b389-486e25463c26/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/ed7302d5-d12c-452d-b389-486e25463c26/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Ifc Export AsIfcFlowTerminalType
Ifc Export TypeIfcSanitaryTerminalTypeEnum.TOILETPAN
KeynoteN13
ManufacturerSONAS
Manufacturer NameSONAS
MaterialVitreous China
ModelReflections Back to Wall Pan & Alpha Soft Close Seat
Model NumberREFBTW06
Model ReferenceReflections Back to Wall Pan & Alpha Soft Close Seat
NBS DescriptionWC pans
NBS Noten/a
NBS Object NameSONAS - WC pans
NBS Office Master Tagn/a
NBS Reference45-35-70/384
Nominal Depth560 mm
Nominal Height410 mm
Nominal Length363 mm
Primary MaterialSONAS - Ceramic
Production Year2026
Referenced StandardCE / EN997 / BS 3402
Replacement Costn/a
SeatSONAS - Gloss White Acrylic
Secondary MaterialSONAS - Brushed Chrome
Shapen/a
Sizen/a
Spare Partsinfo@sonasbathrooms.com
Type CommentsReflections Back to Wall Pan & Alpha Soft Close Seat
Type NameReflections Back to Wall Pan & Alpha Soft Close Seat
URLwww.sonasbathrooms.com/en/reflections-rimless-back-to-wall-wc-alpha-soft-close-seat.html
Warranty DescriptionLifetime on Pan, 2 Years on Seat
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo@sonasbathrooms.com
Warranty Guarantor Partsinfo@sonasbathrooms.com

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
