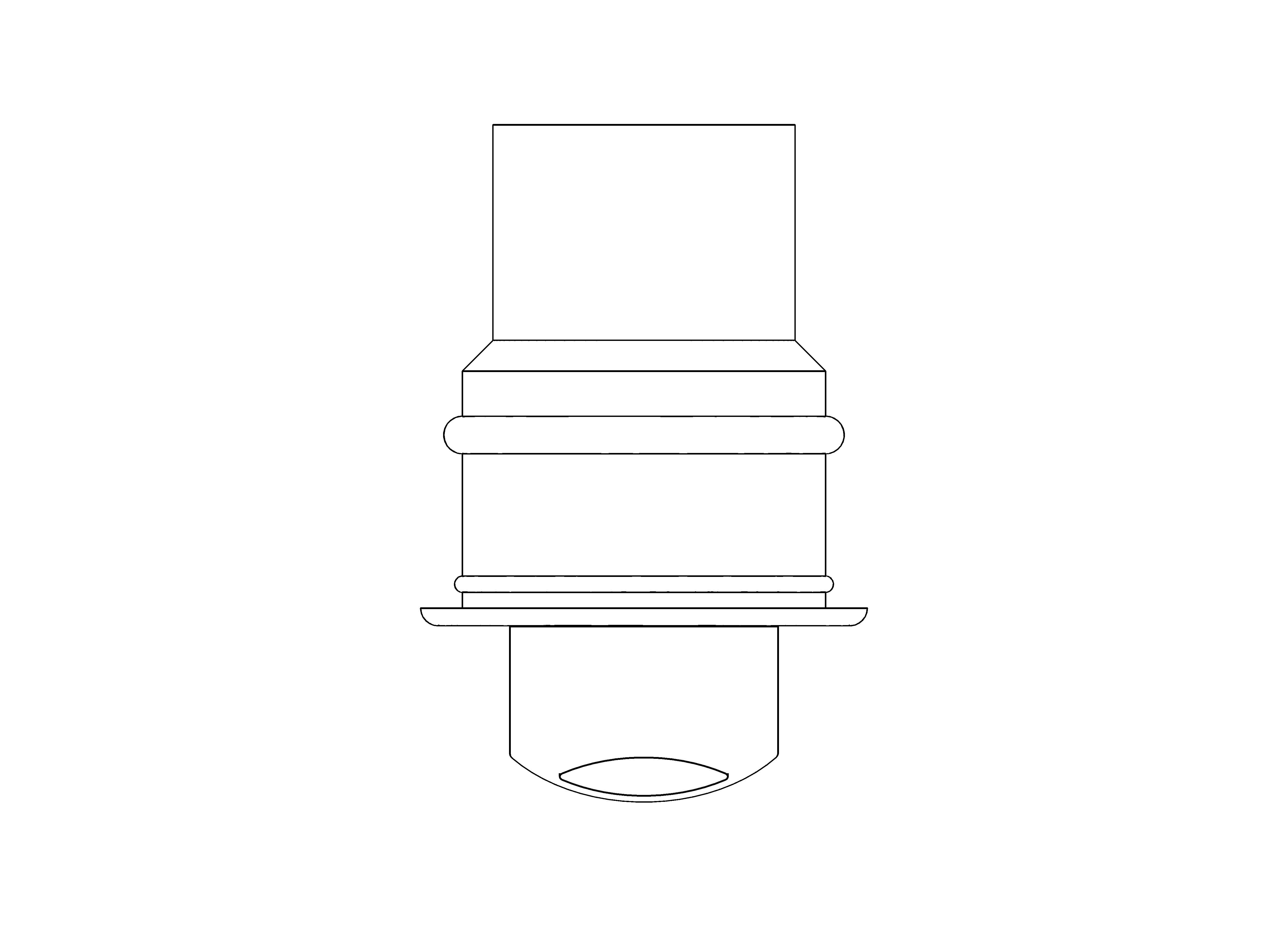

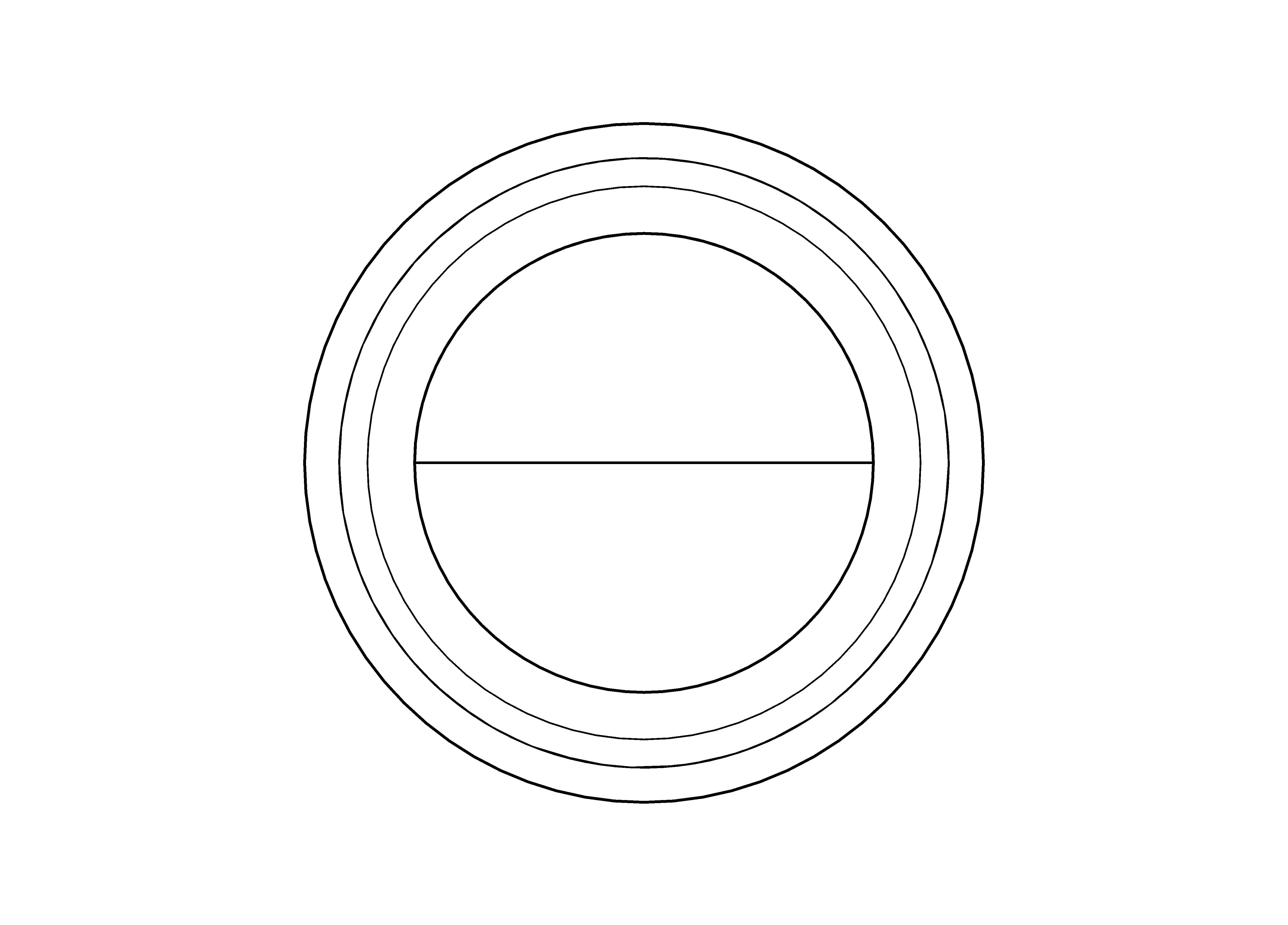

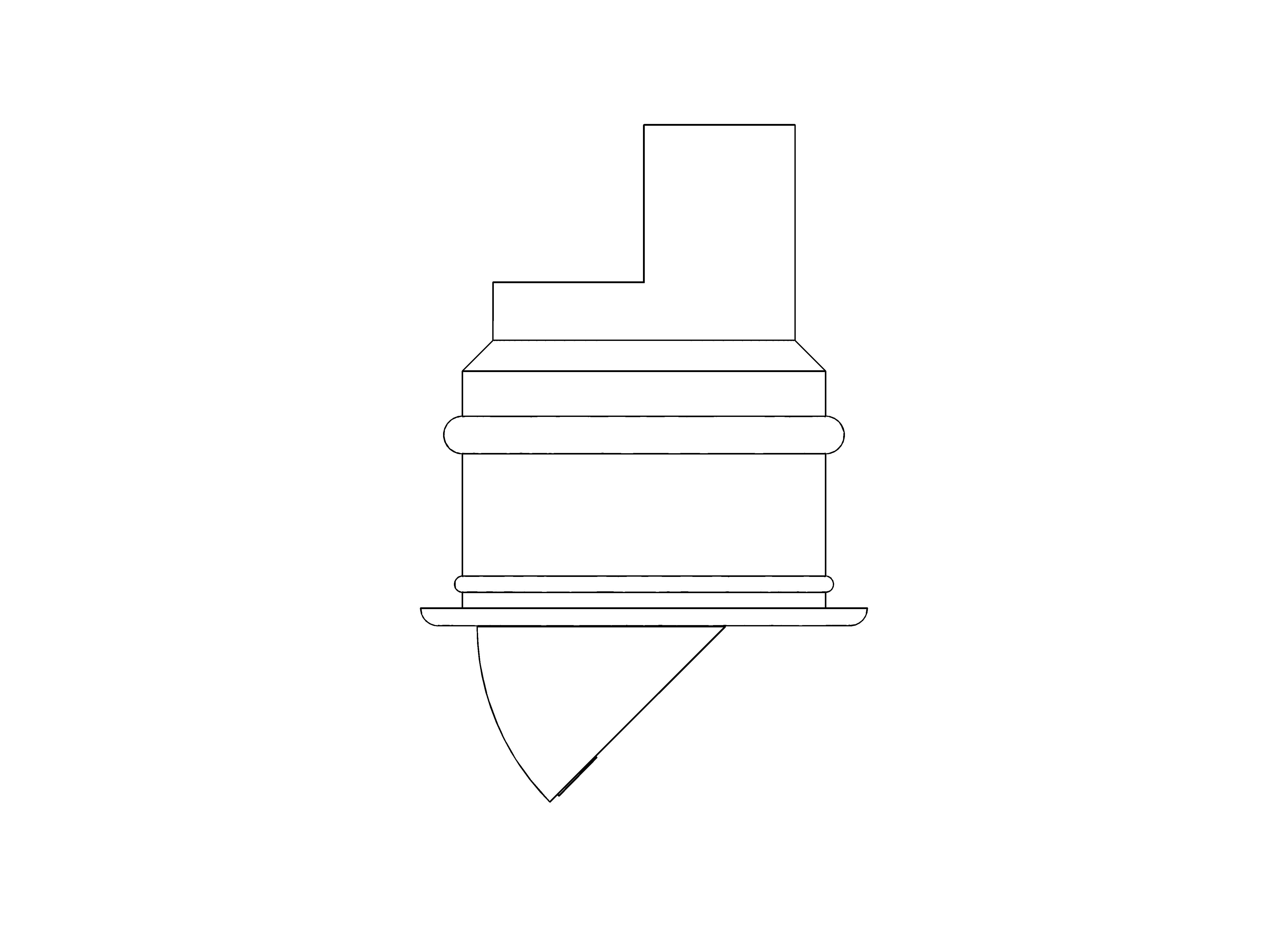

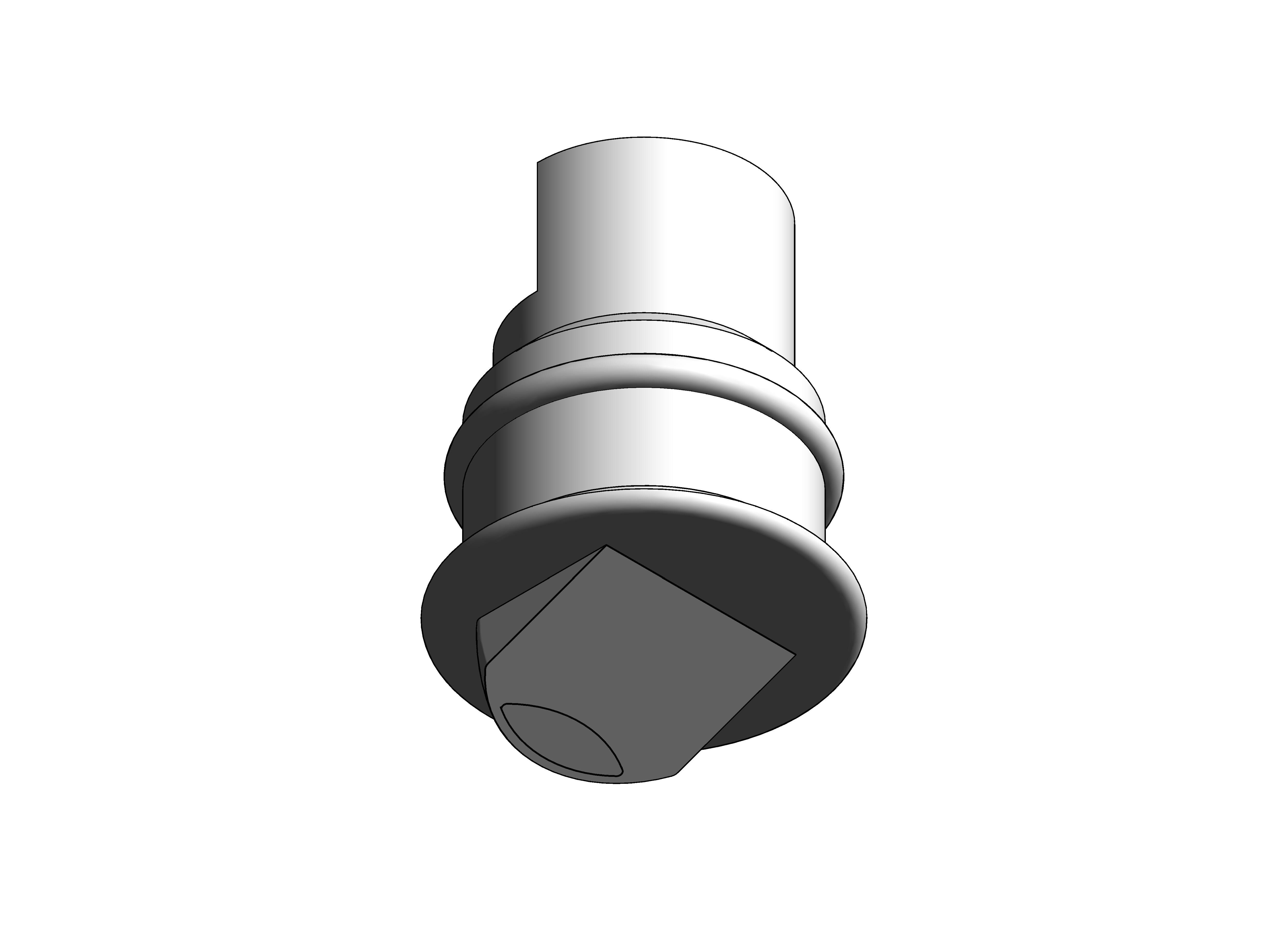

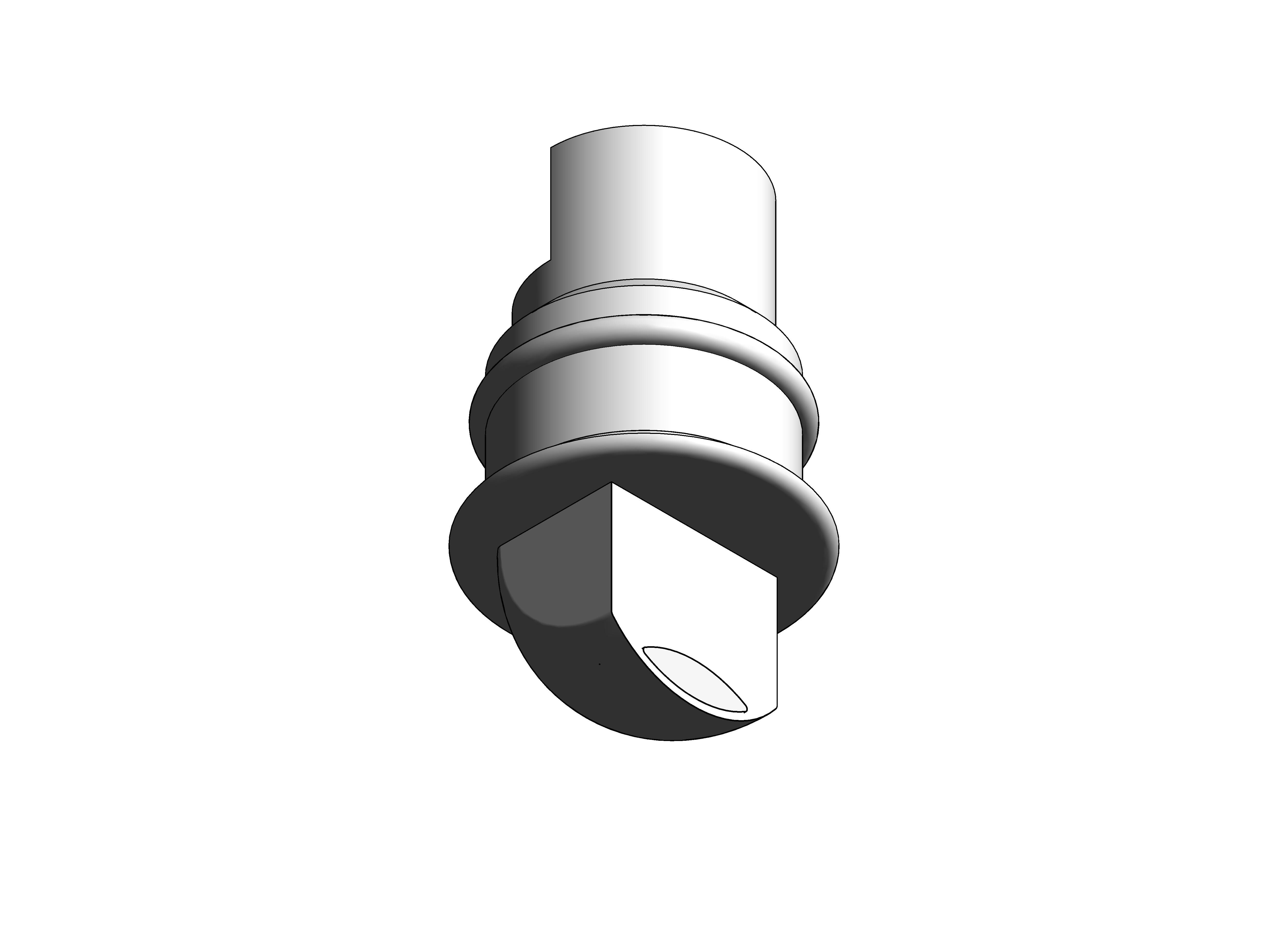

PIR presence detectors (VITP7-MWS3A)

by CP Electronics

Download Add to collection

Description

Vitesse Plus adjustable head microwave presence/absence detector

Key features:

Adjustable head
Adjustable detection sensitivity
RJ45 connection
Can be flush or surface mounted
Ideal for corridors or corner mounted applications
Infrared programmable

Object Data

1 Revision

Last Updated

06/11/2019

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_AuthorIan Holmes
_Authorized ByIan Holmes
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
Apparent Load0 VA
Assembly CodeD50
Asset TypeFixed
BIM Object NameCPElectronics_ElectricalFixtures_PresenceDetector_(VITP7-MWS3A)
Classification NameUniclass2015
Classification ValuePr_70_70_48_26
Code Performancen/a
ColorWhite RAL9003
ComplianceEMC-2004/108/EC; LVD-2006/95/EC
Constituentsn/a
Coverage0.00 °
Created Byinfo@cpelectronics.co.uk
Created On2018-06-18T09:00:00
Cut Out Diameter64 mm
Default Elevation0 mm
DescriptionCeiling microwave presence detector
Detector MaterialFlame Retardant ABS
Documentation Certificateswww.cpelectronics.co.uk/product-guides
Documentation Installation Guidewww.cpelectronics.co.uk/product-guides
Documentation Literaturewww.cpelectronics.co.uk/product-guides
Documentation Maintenancewww.cpelectronics.co.uk/product-guides
Documentation Technicalwww.cpelectronics.co.uk/product-guides
Duration UnitYears
Expected Life0
External Depth4 mm
FeaturesAdjustable head, Adjustable detection sensitivity, RJ45 connection, Can be flush or surface mounted, Ideal for corridors or corner mounted applications, Infrared programmable.
Field Of Vision2.6m x 23m (maximum)
Finishn/a
Graden/a
Humidity5 to 95% non-condensing
Ifc Export AsIfcJunctionBox
Ifc Export TypeIfcJunctionBoxTypeEnum.POWER
IP Ratingn/a
KeynoteW41/320
Load0 A
ManufacturerCP Electronics
Manufacturer NameCP Electronics
MaterialFlame retardant ABS and PC/ABS
ModelVITP7
Model NumberVITP7-MWS3A
Model ReferenceVITP7
Mounting Height3 mm
NBS DescriptionElectrical low mounted way-guidance lighting module housings
NBS Object NameCP Electronics - Electrical low mounted way-guidance lighting module housings
NBS Office Master Tagn/a
NBS Reference90-60-50/480
Nominal Depth85 mm
Nominal Height0 mm
Nominal Length96 mm
Power Consumption Off0mW
Power Consumption On0mW
Production Year2018
R35 mm
Recessed Depth92 mm
Referenced Standardn/a
Replacement Costn/a
ShapeCylindrical
Sizen/a
Spare Partsn/a
Temperature RangeMinus 10°C to + 35°C
Type CommentsVITP7-MWS3A
Type NameVITP7-MWS3A
URLwww.cpelectronics.co.uk/
Voltage12 V
Warranty Descriptionn/a
Warranty Duration Labor5
Warranty Duration Parts5
Warranty Duration UnitYears
Warranty Guarantor Laborinfo@cpelectronics.co.uk
Warranty Guarantor Partsinfo@cpelectronics.co.uk
Weight0.10 kg

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
