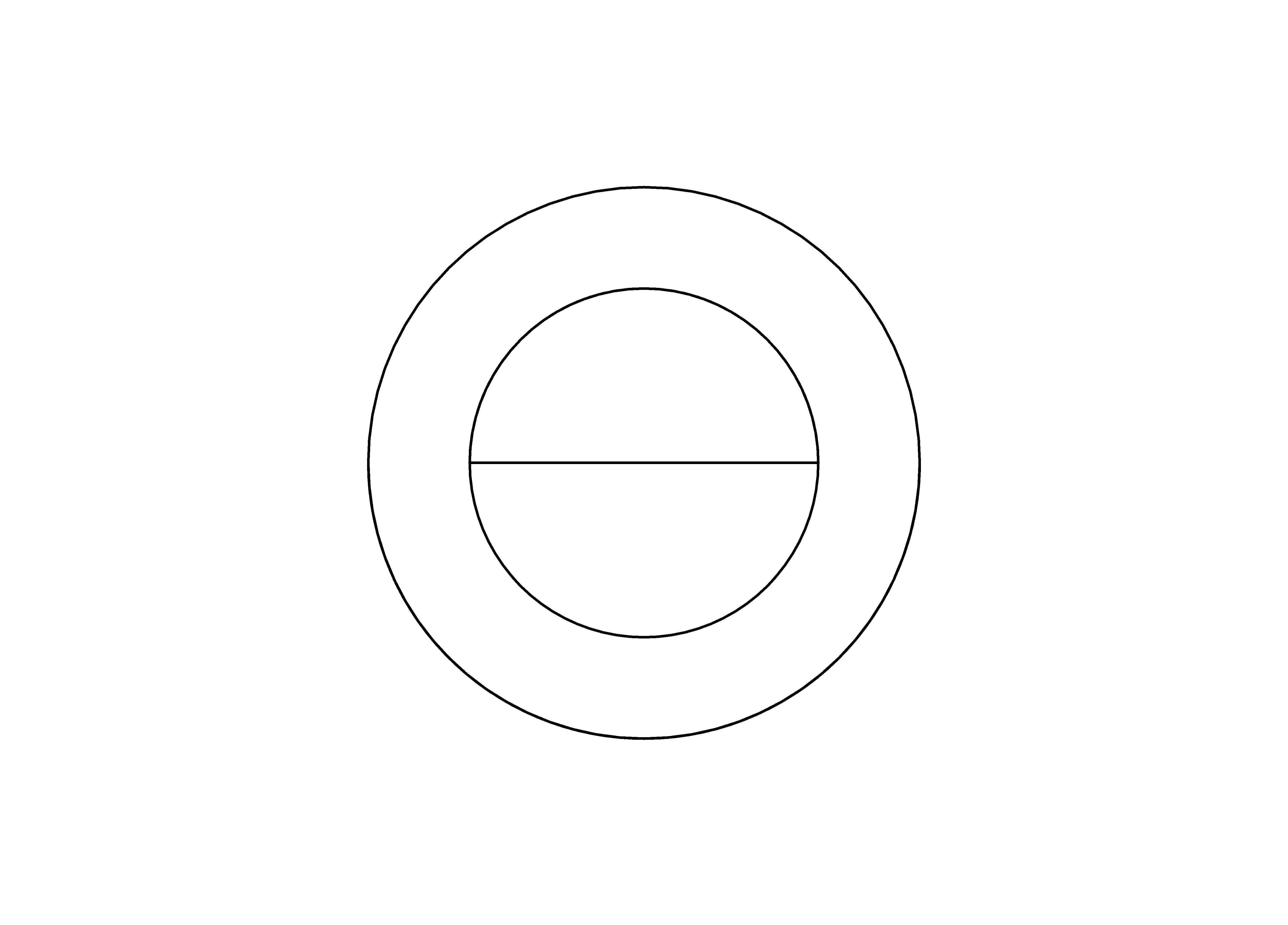

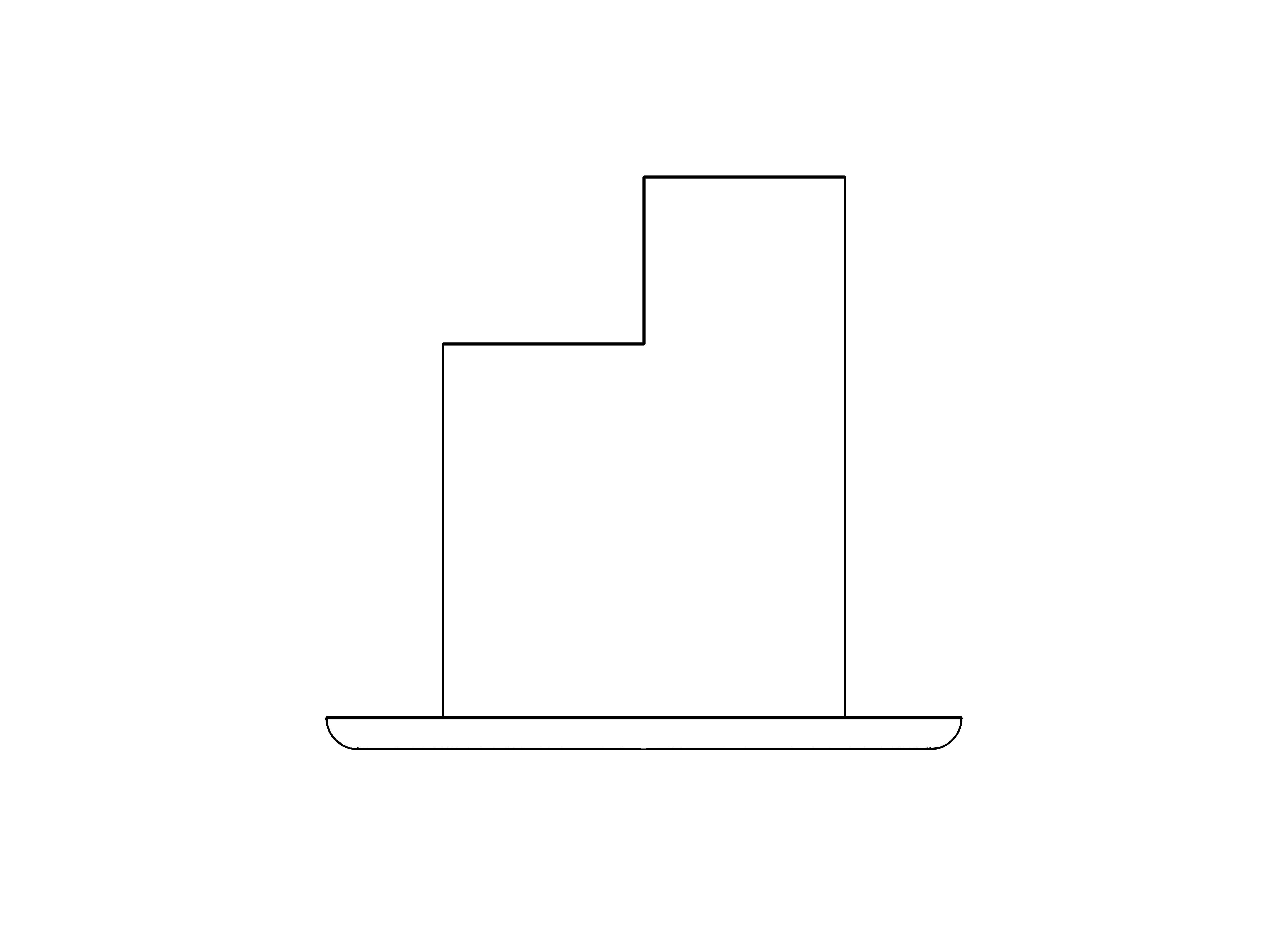

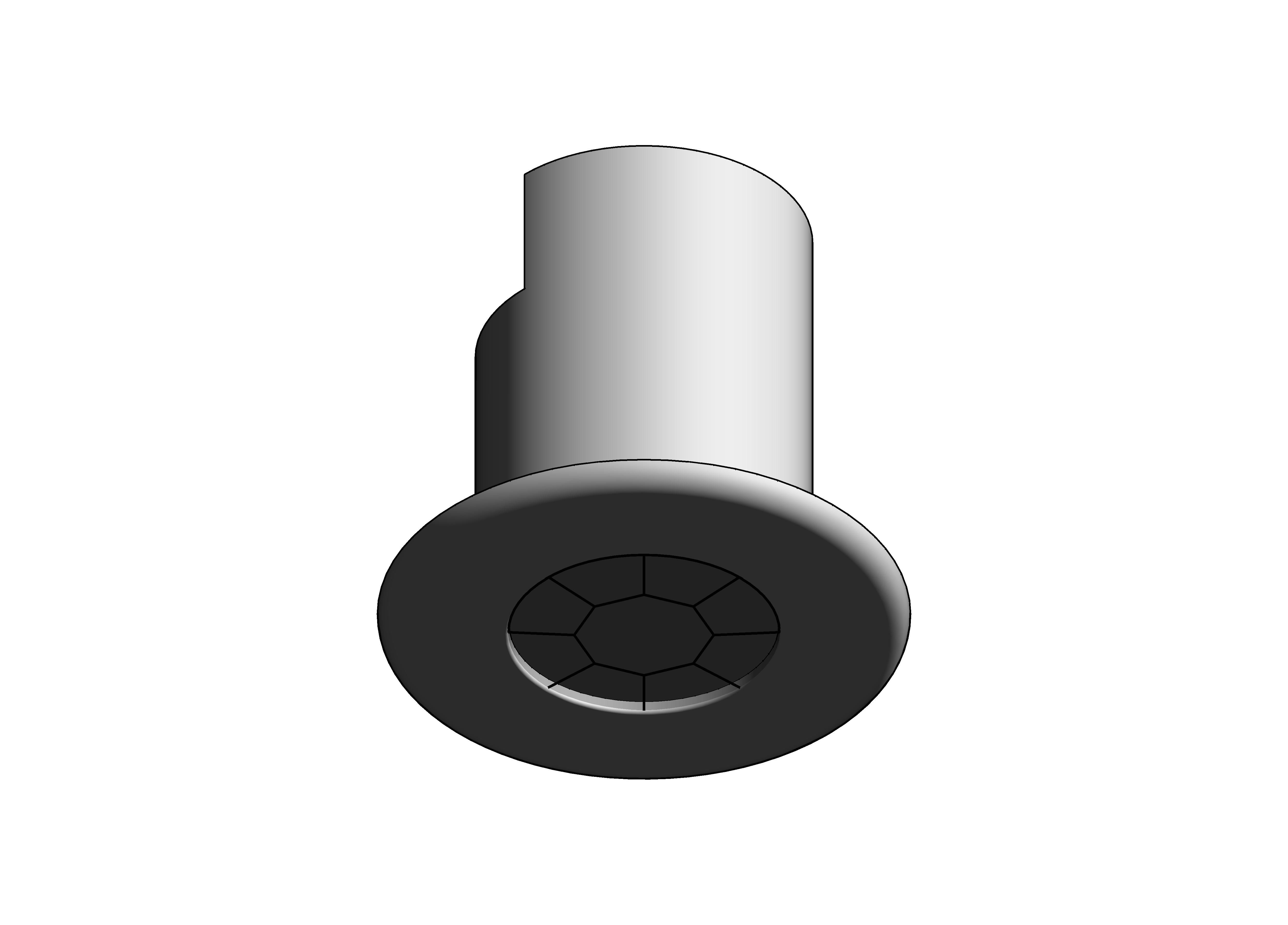

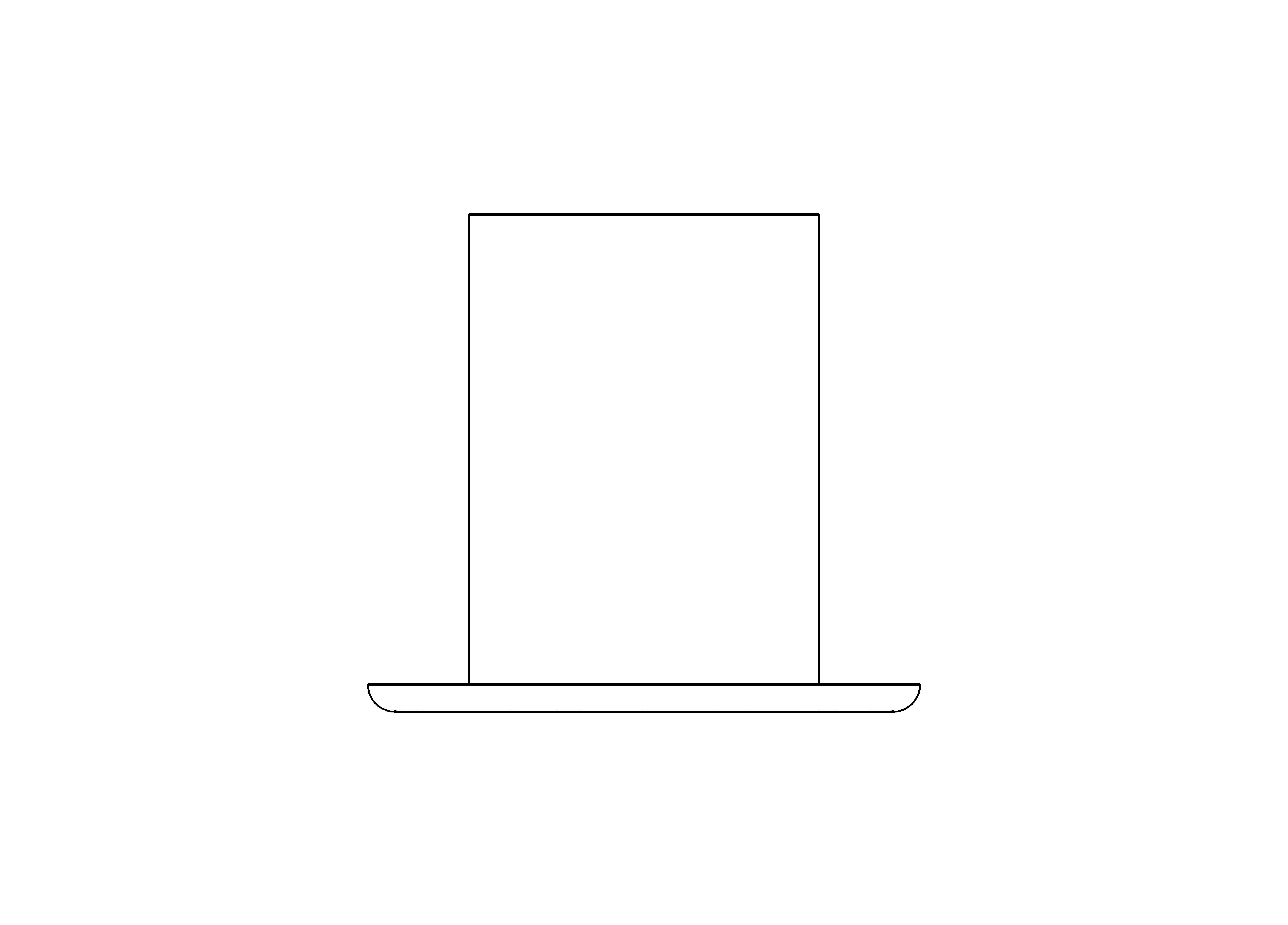

PIR presence detectors (VITP7-EBDSPIR)

by CP Electronics

Download Add to collection

Description

Compact PIR Presence Detector – 7m range at 2.8m.

Key features:

Low profile design
RJ45 connection
Can be flush or surface mounted
Infrared programmable

Object Data

1 Revision

Last Updated

06/11/2019

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_AuthorIan Holmes
_Authorized ByIan Holmes
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
Apparent Load0 VA
Assembly CodeD50
Asset TypeFixed
BIM Object NameCPElectronics_ElectricalFixtures_PresenceDetector_(VITP7-EBDSPIR)
Classification NameUniclass2015
Classification ValuePr_70_70_48_26
Code Performancen/a
ColorWhite RAL9003
ComplianceEMC-2004/30/EU; LVD-2014/35/EU
Constituentsn/a
Coverage360.00 °
Created Byinfo@cpelectronics.co.uk
Created On2018-06-18T09:00:00
Cut Out Diameter64 mm
Default Elevation0 mm
DescriptionCeiling mounted PIR presence/absence detector
Detector MaterialFlame Retardant ABS
Documentation Certificateswww.cpelectronics.co.uk/product-guides
Documentation Installation Guidewww.cpelectronics.co.uk/product-guides
Documentation Literaturewww.cpelectronics.co.uk/product-guides
Documentation Maintenancewww.cpelectronics.co.uk/product-guides
Documentation Technicalwww.cpelectronics.co.uk/product-guides
Duration UnitYears
Expected Life0
External Depth4 mm
FeaturesLow profile design, RJ45 connection, Can be flush or surface mounted, Infrared programmable.
Field Of Vision2.8m x 7m
Finishn/a
Graden/a
Humidity5 to 95% non-condensing
Ifc Export AsIfcJunctionBox
Ifc Export TypeIfcJunctionBoxTypeEnum.POWER
IP Ratingn/a
KeynoteW41/320
Load10 A
ManufacturerCP Electronics
Manufacturer NameCP Electronics
MaterialFlame retardant ABS and PC/ABS
ModelVITP7
Model NumberVITP7-EBDSPIR
Model ReferenceVITP7
Mounting Height3 mm
NBS DescriptionElectrical low mounted way-guidance lighting module housings
NBS Object NameCP Electronics - Electrical low mounted way-guidance lighting module housings
NBS Office Master Tagn/a
NBS Reference90-60-50/480
Nominal Depth76 mm
Nominal Height0 mm
Nominal Length69 mm
Power Consumption Off0mW
Power Consumption On0mW
Production Year2018
Recessed Depth65 mm
Referenced Standardn/a
Replacement Costn/a
ShapeCylindrical
Sizen/a
Spare Partsn/a
Temperature RangeMinus 10°C to + 35°C
Type CommentsVITP7-EBDSPIR
Type NameVITP7-EBDSPIR
URLwww.cpelectronics.co.uk/
Voltage12 V
Warranty Descriptionn/a
Warranty Duration Labor5
Warranty Duration Parts5
Warranty Duration UnitYears
Warranty Guarantor Laborinfo@cpelectronics.co.uk
Warranty Guarantor Partsinfo@cpelectronics.co.uk
Weight0.10 kg

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
