PIR presence detectors (EBDRC-PRM-DD-AD)

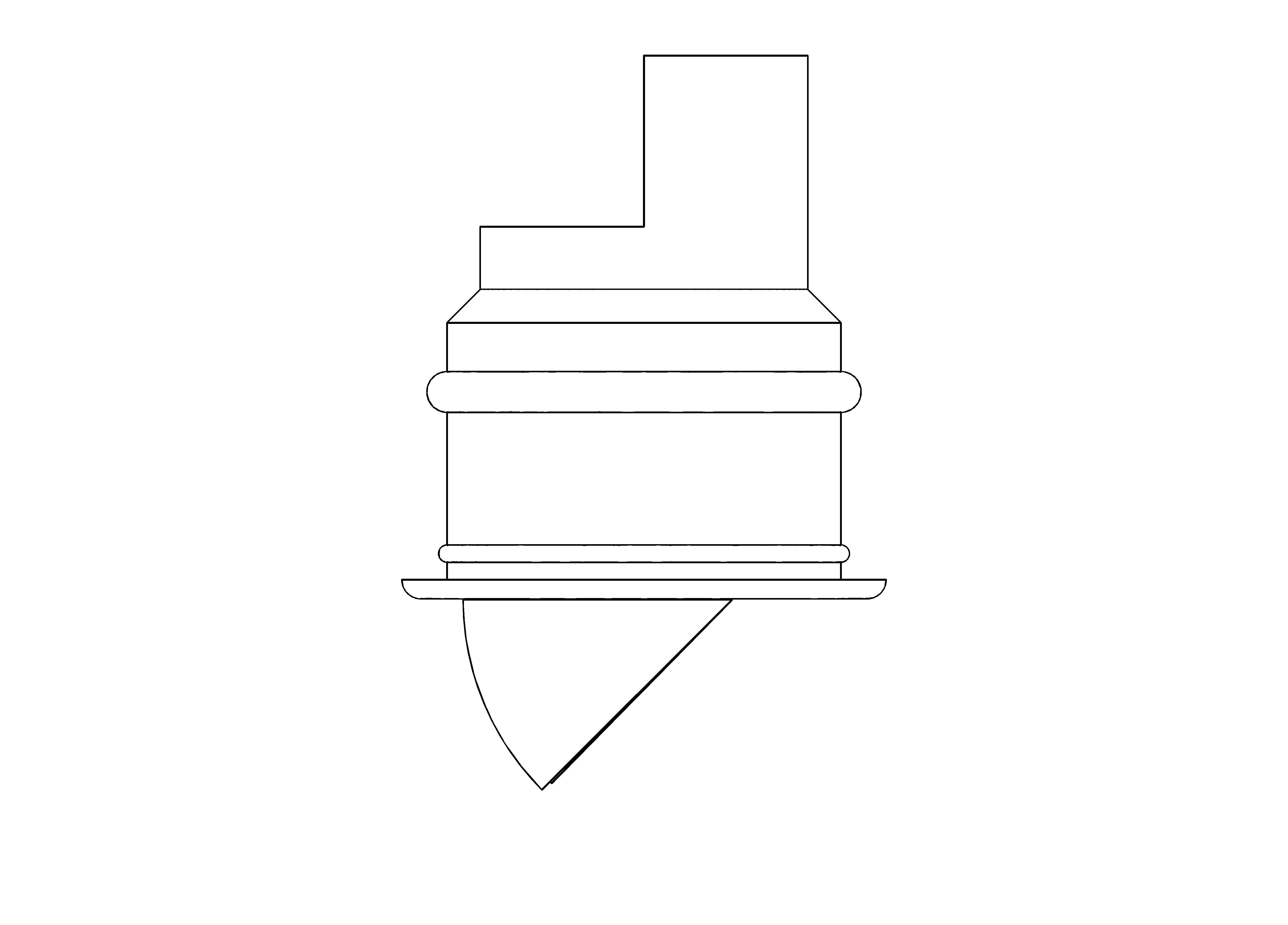

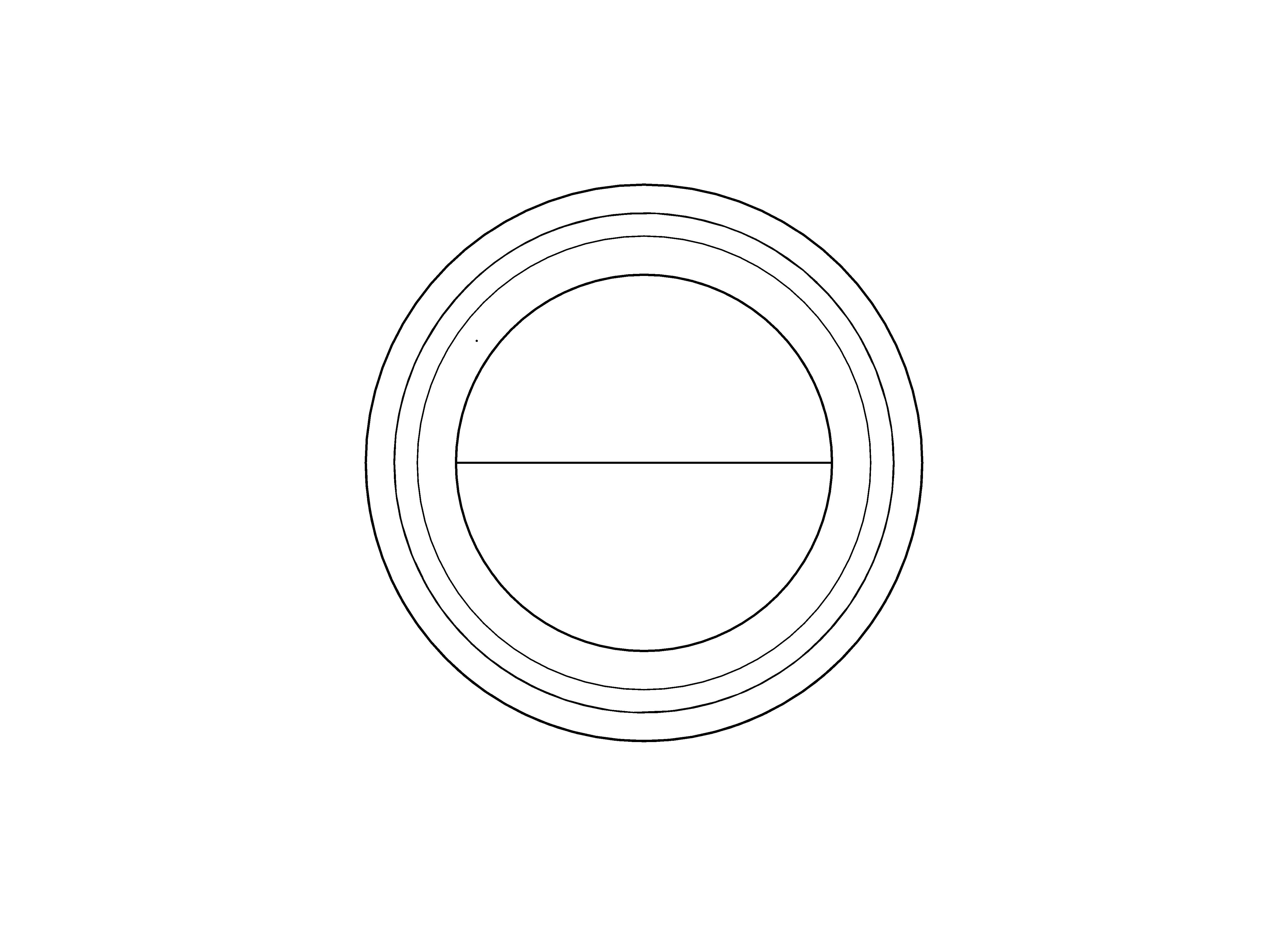

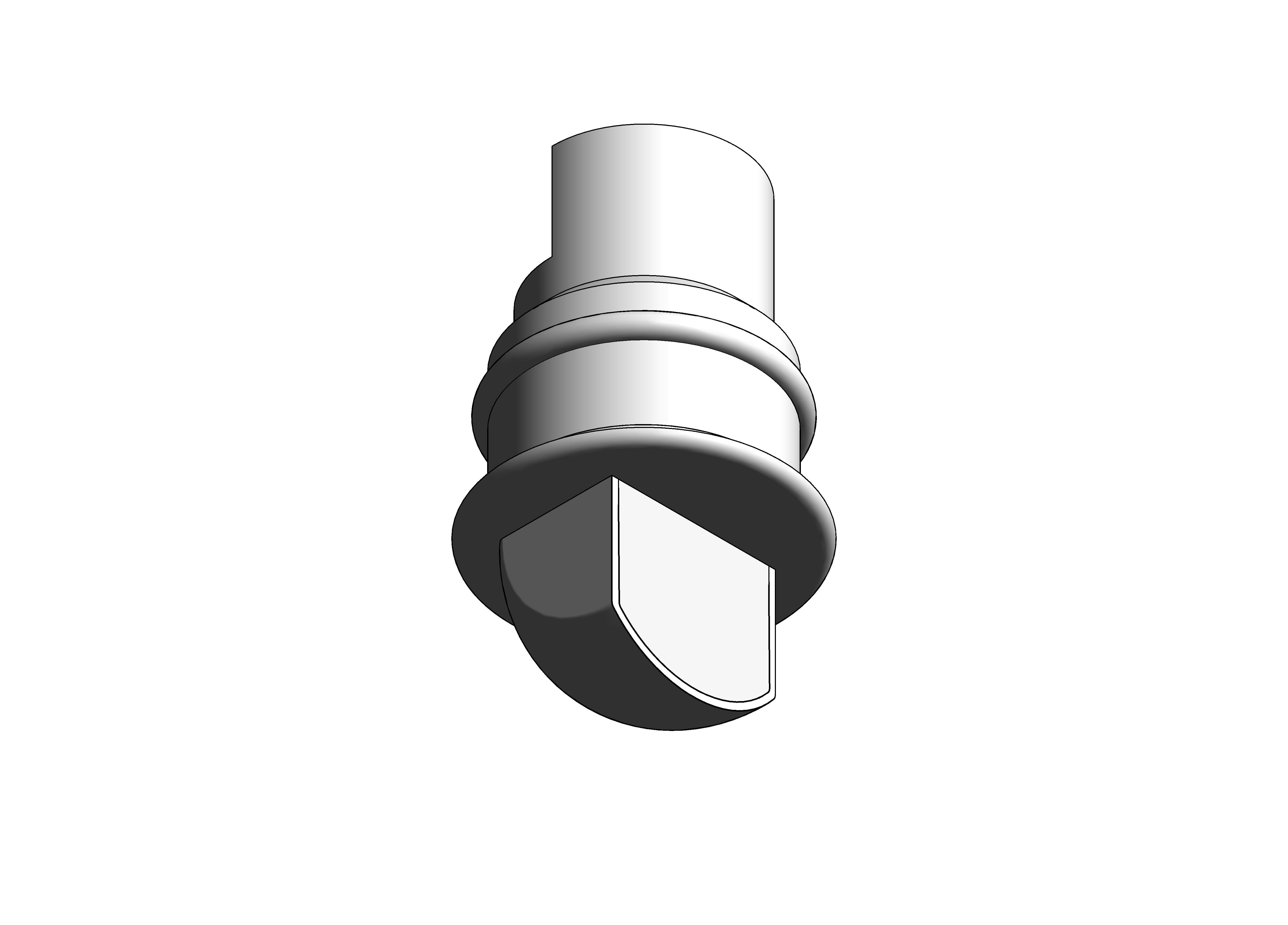

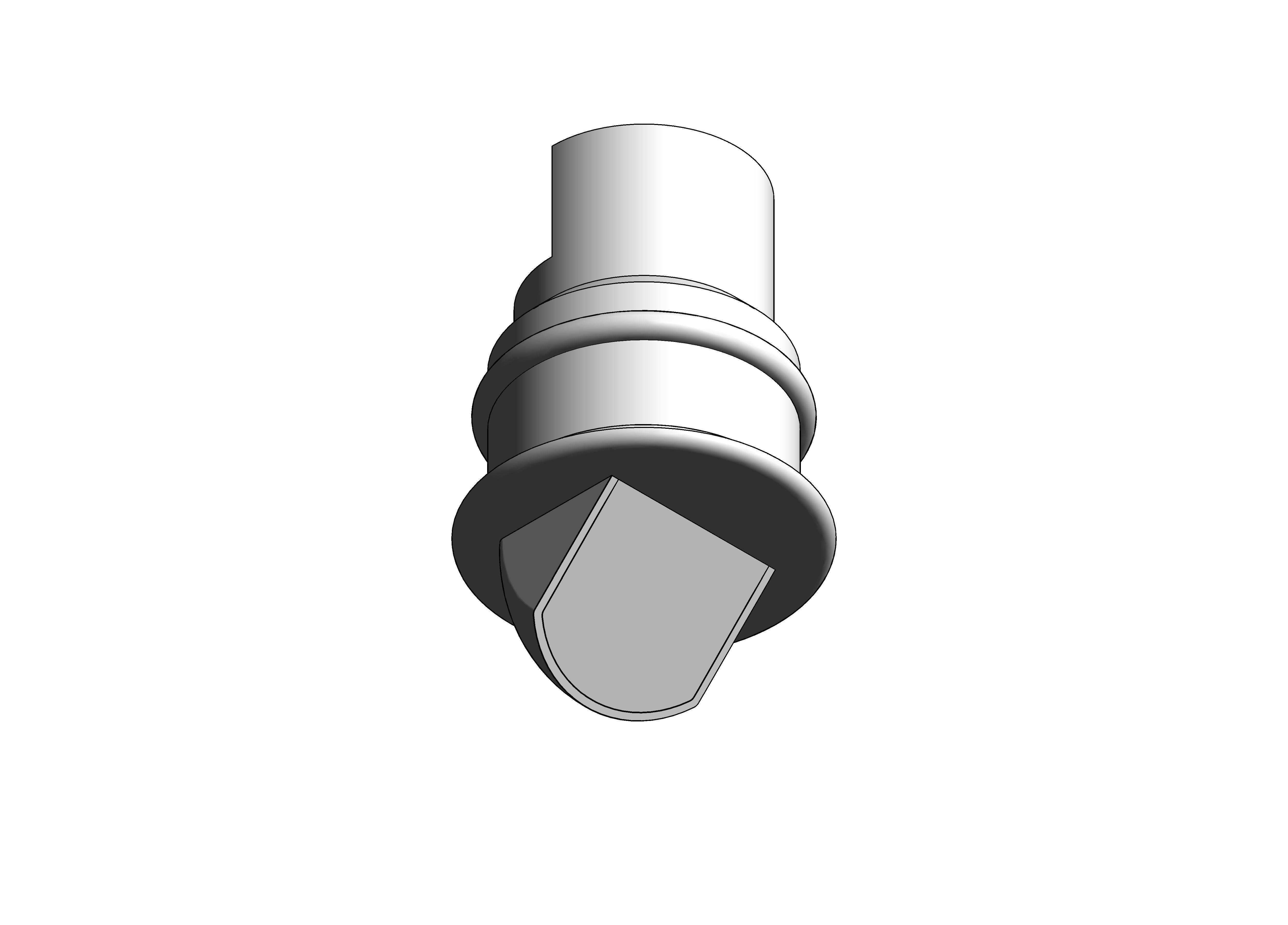

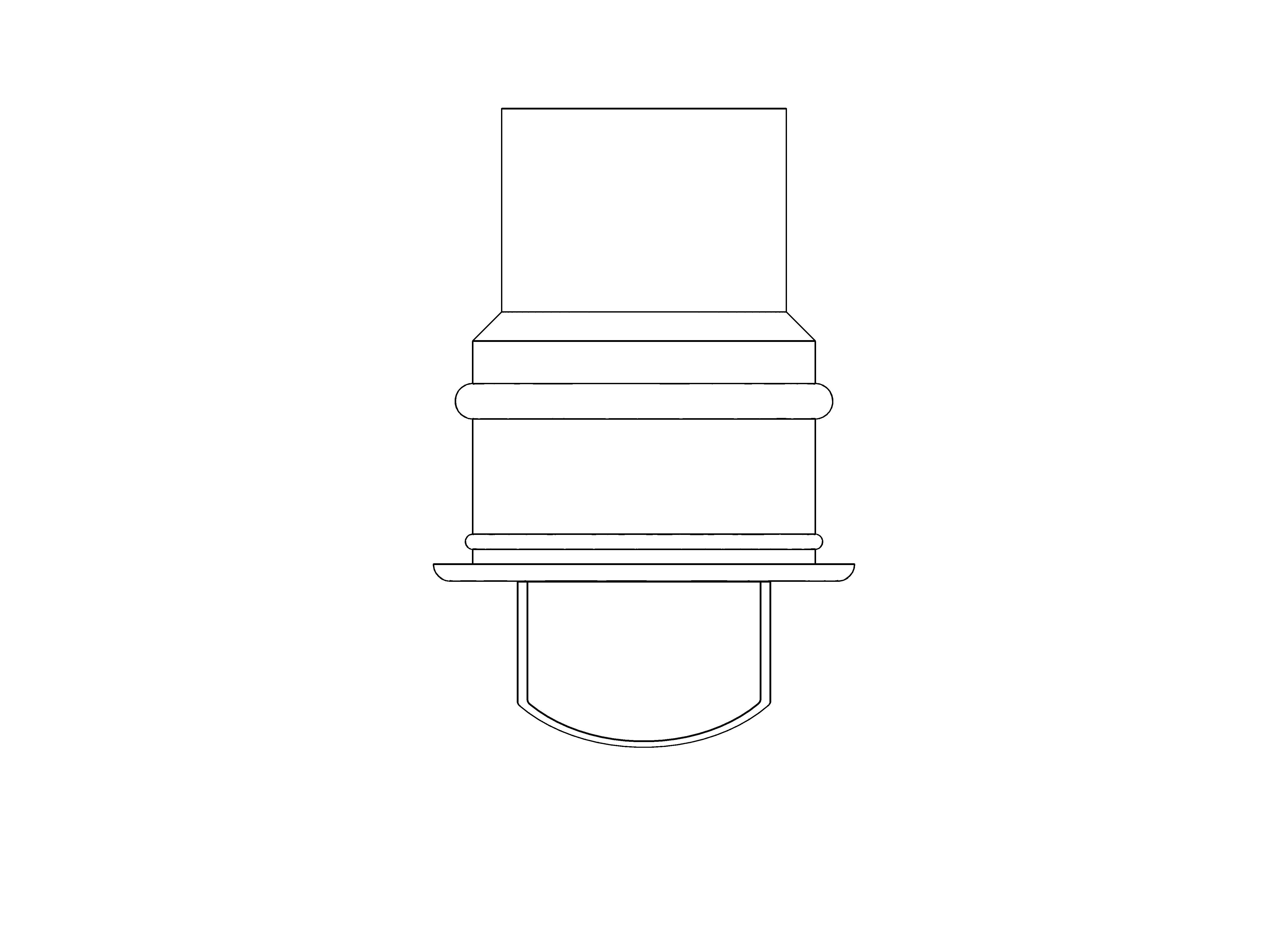

Description

The EBDRC PIR series contains an adjustable head, and is fitted with a curtain style lens for long range detection. Directional PIR is suitable for mounting in corridors and low bay applications where a long narrow detection pattern is required.

Key features:

Adjustable head
Curtain style lens for longer detection range - ideal for corridor lighting control
Programme time delay and lux settings via infrared handset
IP40 rated
Ideal for corridor applications

Object Data

1 Revision

Last Updated

06/11/2019

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_AuthorIan Holmes
_Authorized ByIan Holmes
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
Adjustable Head0-90'
Apparent Load0 VA
Assembly CodeD50
Asset TypeFixed
BIM Object NameCPElectronics_ElectricalFixtures_PresenceDetector_(EBDRC-AD)
Classification NameUniclass2015
Classification ValuePr_70_70_48_26
Code Performancen/a
ColorWhite RAL9003
ComplianceEMC-2004/30/EU; LVD-2014/35/EU
Constituentsn/a
Control Method1-10V Analogue Dimming
Coverage0.00 °
Created Byinfo@cpelectronics.co.uk
Created On2018-06-18T09:00:00
Default Elevation0 mm
DescriptionCeiling microwave presence detector
Detector MaterialFlame Retardant ABS
Device Ballast Controlup to 10 drivers/ballasts
Documentation Certificateswww.cpelectronics.co.uk/product-guides
Documentation Installation Guidewww.cpelectronics.co.uk/product-guides
Documentation Literaturewww.cpelectronics.co.uk/product-guides
Documentation Maintenancewww.cpelectronics.co.uk/product-guides
Documentation Technicalwww.cpelectronics.co.uk/product-guides
Duration UnitYears
Expected Life0
External Depth4 mm
FeaturesAdjustable head, Adjustable detection sensitivity, RJ45 connection, Can be flush or surface mounted, Ideal for corridors or corner mounted applications, Infrared programmable.
Field Of Vision3m x 24m
Finishn/a
Frequency50Hz
Graden/a
Humidity5 to 95% non-condensing
Ifc Export AsIfcJunctionBox
Ifc Export TypeIfcJunctionBoxTypeEnum.POWER
InsulationClass 2
IP RatingIP40
KeynoteW41/320
Load10 A
ManufacturerCP Electronics
Manufacturer NameCP Electronics
MaterialFlame retardant ABS and PC/ABS
ModelEBDRC-AD
Model NumberEBDRC-AD
Model ReferenceEBDRC-AD
Mounting Height3 mm
NBS DescriptionElectrical low mounted way-guidance lighting module housings
NBS Object NameCP Electronics - Electrical low mounted way-guidance lighting module housings
NBS Office Master Tagn/a
NBS Reference90-60-50/480
Nominal Depth85 mm
Nominal Height0 mm
Nominal Length96 mm
Power Consumption Off724mW
Power Consumption On0mW
Production Year2018
R35 mm
Recessed Depth92 mm
Referenced Standardn/a
Replacement Costn/a
ShapeCylindrical
Sizen/a
Spare Partsn/a
Temperature RangeMinus 10°C to + 35°C
Terminal Capacity2.5mm2
Time Out Range10s - 99m
Type CommentsEBDRC-AD
Type NameEBDRC-AD
URLwww.cpelectronics.co.uk/
Voltage230 V
Warranty Descriptionn/a
Warranty Duration Labor5
Warranty Duration Parts5
Warranty Duration UnitYears
Warranty Guarantor Laborinfo@cpelectronics.co.uk
Warranty Guarantor Partsinfo@cpelectronics.co.uk
Weight0.11 kg
