Nickel Plated Brass Ball Valve, Compression Ends [00/0198]

by Valves Instruments Plus

Download Add to collection

Description

Nickel Plated Brass Ball Valve, Compression Ends, Lever Operated, WRAS Approved.

Object Data

1 Revision

Last Updated

23/02/2026

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

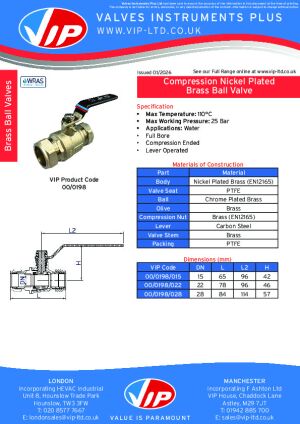

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAA
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version0
_Created ByAA
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/eefdd495-2a82-46b9-8789-0f87618d894d/document/object-user-guide
A96 mm
A237 mm
Accessibility Performancen/a
Assembly CodeDN15
Asset TypeFixed
A Support 120 mm
A Support 219 mm
B42 mm
B239 mm
BIM Object NameVIP_NPBrassCxCBallValveLever_(00_0198)
Body 15 mm
Body 25 mm
Body 33 mm
Body 48 mm
Body 56 mm
Body 61 mm
Body 71 mm
Body 81 mm
Body MaterialBrass
Body Thickness32 mm
Body Bronze15 mm
Body Bronze 214 mm
Body Inner RoundVIP - NewMetal
Body Steel MaterialVIP - Stainless Steel
C65 mm
C378 mm
Centre Body Width32 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_06
Code Performancen/a
ColorGrey and Black
Compression Nut Width20 mm
Connection Size15 mm
Connection Size Radius10 mm
Constituentsn/a
Created Bysales@vip-ltd.co.uk
Created On2025-03-04T09:00:00
D15 mm
Default Elevation0 mm
DescriptionNP Brass CxC Ball Valve Lever
DN15 mm
Documentation Certificateswww.bimstore.co/products/eefdd495-2a82-46b9-8789-0f87618d894d/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/eefdd495-2a82-46b9-8789-0f87618d894d/document/installation-guide
Documentation Literaturewww.bimstore.co/products/eefdd495-2a82-46b9-8789-0f87618d894d/document/product-literature
Documentation Maintenancewww.bimstore.co/products/eefdd495-2a82-46b9-8789-0f87618d894d/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/eefdd495-2a82-46b9-8789-0f87618d894d/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
Fields of ApplicationWater
Finishn/a
Graden/a
Handle Thickness3 mm
Handle Width14 mm
Hex Width3 mm
IFC Export AsIfcValve
IFC Export TypeIfcValveTypeEnum.ISOLATING
Inner Nut Size22 mm
Inner Nut Thickness2 mm
Inner New26 mm
KeynoteS
Lever Cover 15 mm
Lever Height41 mm
Lever MaterialVIP - Stainless Steel
Lever New coverVIP Black
Lever Gap2 mm
ManufacturerVIP
Manufacturer NameVIP
Max Working Pressure25 Bar
Model00/0198 NP Brass CxC Ball Valve Lever
Model Number00/0198/015
Model ReferenceBrass CxC Ball Valve Lever
NBS Descriptionn/a
NBS Noten/a
NBS Object Namen/a
NBS Office Master Tagn/a
NBS Reference90-10-90/330 Ball valves
Nominal Diameter15 mm
Nut Center7 mm
Nut End Radius10 mm
Nut Width20 mm
Nut Width 24 mm
Open50 mm
Opening8 mm
Outer BodyNickel
Outer Nut3 mm
Production Year2025
Referenced Standardn/a
Replacement Costn/a
Right Outside Diameter22 mm
Ring4 mm
Shapen/a
SizeDN15
Spare Partssales@vip-ltd.co.uk
Type Comments00/0198/015
Type NameDN15
URLwww.vip-ltd.co.uk
Valve Inner Width13 mm
Valve Width20 mm
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborsales@vip-ltd.co.uk
Warranty Guarantor Partssales@vip-ltd.co.uk
Working Temperature110°C

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
