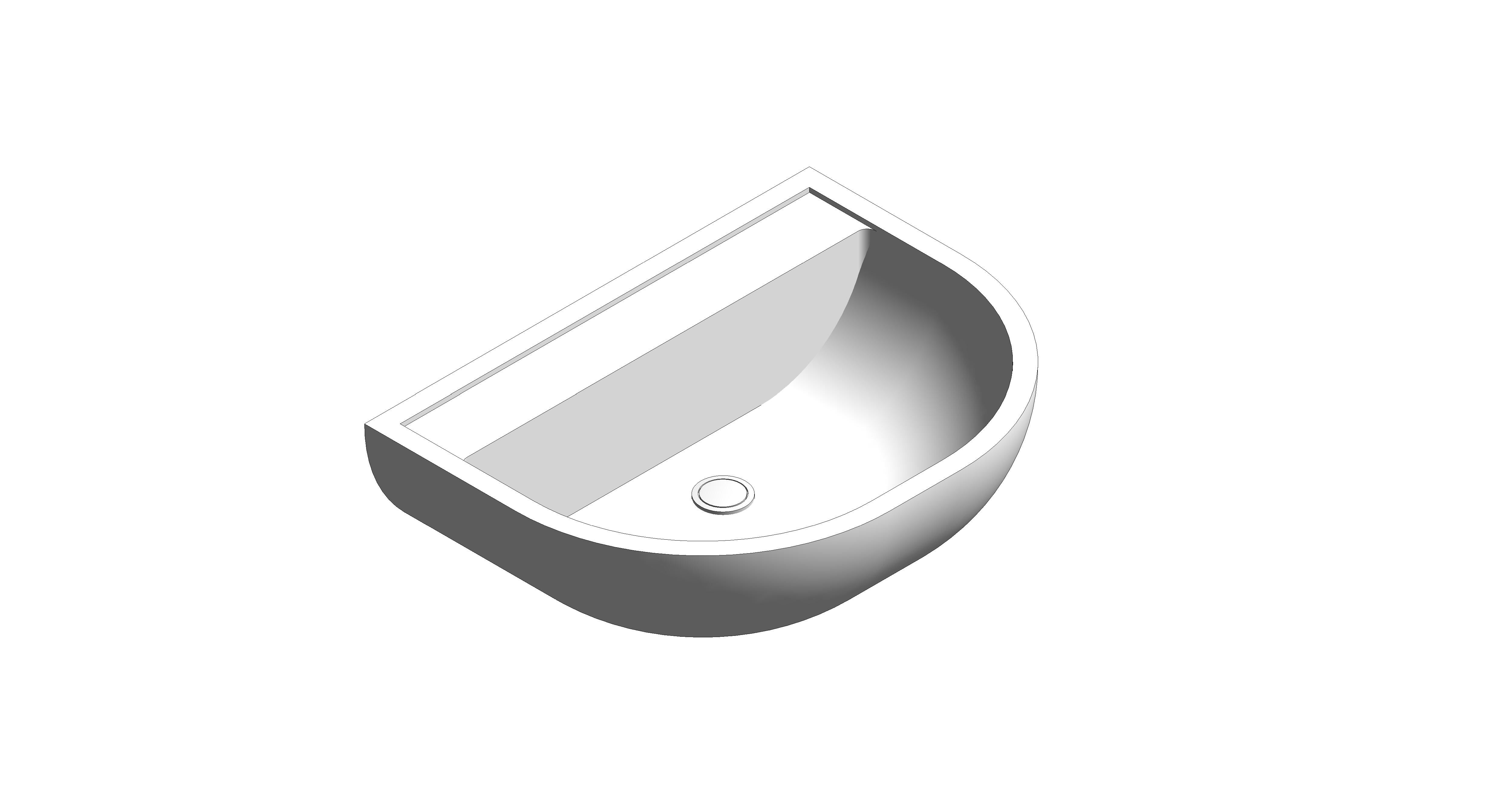

Non Clinical Wash Hand Basin

Object metadata

• _AuthorRyan Wigham
• _Authorized Bybimstore
• _Bim Spec Guid0
• _BS Bible Version16
• _Created Bywww.bimstore.co
• _Current Revision1
• _Distributed Bywww.bimstore.co
• Accessibility PerformanceDoc M
• Assembly CodeD2010400
• Asset TypeFixed
• BIM Object NameTradeWashrooms_PlumbingFixture_Basin_NonClinicalWashHandBasin_WithoutTapHole
• CategoryPr_40_20_96_37:Healthcare general washbasins
• Classification NameUniclass2015
• Classification ValuePr_40_20_96_37
• Code Performancen/a
• ColorWhite
• ConstituentsBasin and wall-fixing bolts
• Created Byspec@tradewashrooms.co.uk
• Created On2020-02-07T09:00:00
• CW ConnectionNo
• CWFU0
• Description500mm non-clinical wash hand basin with no overflow, for use in general areas and domestic services in healthcare buildings
• Documentation Certificatesn/a
• Documentation Installation Guiden/a
• Documentation Literaturewww.tradewashrooms.co.uk/wash-basins/wall-hung-basins/non-clinical-wash-hand-basin/
• Documentation Maintenancen/a

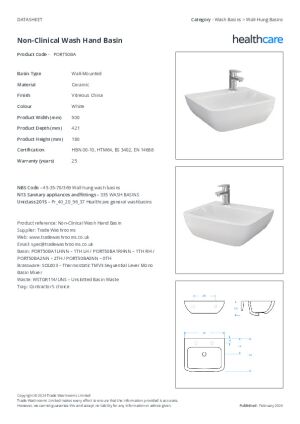

• Documentation Technicalwww.tradewashrooms.co.uk/wash-basins/wall-hung-basins/non-clinical-wash-hand-basin/
• Duration UnitYears
• Expected Life25
• FeaturesNo overflow - HBN 00-10 Part C compliant
• FinishVitreous China
• GradeBS 3402
• HW ConnectionNo
• HWFU0
• Ifc Export AsIfcFlowTerminalType
• Ifc Export TypeIfcSanitaryTerminalTypeEnum.SINK
• KeynoteN13
• Manufacturerspec@tradewashrooms.co.uk
• Manufacturer Nameorders@tradewashrooms.co.uk
• MaterialCeramic
• ModelNon-Clinical Wash Hand Basin - Without Tap Hole
• Model NumberCOM50BASSN
• Model ReferenceNon-Clinical Wash Hand Basin - Without Tap Hole
• NameNon-Clinical Wash Hand Basin - Without Tap Hole
• NBS DescriptionHealth care general wash basins
• NBS Object NameTrade Washrooms - Health care general wash basins
• NBS Office Master Tagn/a
• NBS Referencen/a
• Nominal Depth380 mm
• Nominal Height195 mm
• Nominal Length500 mm
• Plug MaterialTrade Washrooms - Chrome - Polished
• Production Year2020
• Referenced StandardBS 3402, EN 14688
• Replacement Costn/a
• Shapen/a
• Size500 x 380 x 195mm
• Spare Partsn/a
• Sustainability PerformanceEN 14688
• Type CommentsCOM50BASSN
• Type NameNon-Clinical Wash Hand Basin - Without Tap Hole
• URLwww.tradewashrooms.co.uk/
• Vent ConnectionNo
• Warranty Description25-year warranty on any manufacturing defect
• Warranty Duration Labor0
• Warranty Duration Parts25
• Warranty Duration UnitYears
• Warranty Guarantor Laborn/a
• Warranty Guarantor Partsorders@tradewashrooms.co.uk
• Waste ConnectionYes
• WFU0
