Multipoint Tankless 16i Internal Water Heater

by Rinnai UK

Download Add to collection

Description

Rinnai Multipoint Tankless 16i is the perfect solution to hot water requirements for domestic properties/dwellings and light commercial use. It is designed to allow maximum flexibility when choosing where to install it, as it does not have to be mounted on an external wall. The Rinnai Multipoint Tankless 16i is designed for use directly off the mains and therefore there is no need for large, ungainly storage vessels.

This download includes the 16i Continuous Water Heater water heater from Rinnai UK.

Object Data

1 Revision

Last Updated

25/01/2016

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

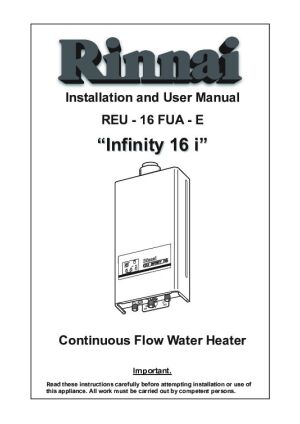

Installation Guide

Product Literature

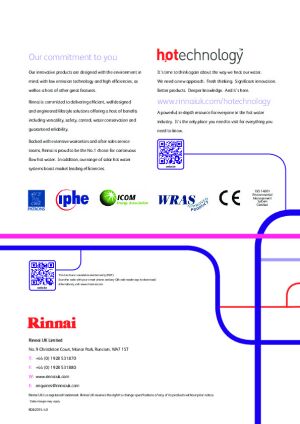

Technical Data Sheet

Product Data Sheet

Object metadata

_authorized byKris Atkinson
_BIMspec_GUID0
_created byRinnai UK
_current revision1
_distributed bywww.bimstore.co.uk
6 Monthly0
Access Clearance Bottom300 mm
Access Clearance Front600 mm
Access Clearance Left50 mm
Access Clearance Rear0 mm
Access Clearance Right50 mm
Access Clearance Top300 mm
Accessibility Performancen/a
Additional Technical Detailswww.rinnaiuk.com/products/domestic/tankless-16i/
Air Inlet Connection Size0 mm
AnnuallyService (Clean & Inspection of parts, attributed to combustion process)
Assembly CodeD3020100
Asset TypeFixed
Bespoke Timeframe0
BMS LinksYes
CE ApprovalYes
Classification ValuePr_60_60_96_27
Clean Out and Inspection Opening Size0
Code Performancen/a
ColorSilver
ColourWhite
Condensate Drain Size0
Condensate Drain TypeNon Condensing
Constituentsn/a
Continuous output at 21 degree differential (l/h)1116
Continuous output at 44 degree differential (l/h)540
Continuous output at 50 degree differential (l/h)468
Control Thermostat Range (DegC)37 - 75
Created Bywww.rinnaiuk.com/
Created OnAmended January 2016
CWS25 mm
Daily0
Depth139 mm
DescriptionNon-Condensing Water Heater
Documentation Certificatesn/a
Documentation Installation Guidespecifi.bimstore.co.uk/document/share/1462
Documentation Literaturespecifi.bimstore.co.uk/document/share/1461
Documentation Maintenancen/a
Documentation Technicalspecifi.bimstore.co.uk/document/share/1461
Drain Connection Size0
Drain Connection TypeThreaded
Duration UnitYears
Embodied Carbonn/a
Emissions (mg/kWh)138
Energy Technology List0
Environmental Product Declarationn/a
ErP Energy LabelYes
Expected Life (Years)10 - 25 years depending on application.
Expected Life0
External MaterialSteel
Extidentifiern/a
FinishPainted
Flow Connection Size1/2 inches
Flow Connection TypeThreaded
Flowrate @ 25 Delta T16 l/min
Flue Connection Size60 mm
Flue or Air Intake ClassificationC13, C33
Flue Spigot Inside59 mm
Flue Spigot Outside100 mm
Frequency (Hertz)50
FuelNatural Gas & LPG
Fuel Connection Size1/2 inches
Fuel Connection TypeThreaded
Full Load Current (Amps)0
Fuse Rating (Amps)3
GAS25 mm
Gas Consumption rate (m3/h)3.26
Gas Flow Rate (m3/hr)0
Graden/a
Green Guide for Specificationn/a
Gross Input (kW)34.9
Gross Weight (kg)15
Heat Exchanger MaterialCopper
Heat Generator Efficiency (%)80
Heat up time (mins)0
Height675 mm
HWS25 mm
InterlocksYes
KeynoteT
Life Cycle Analysisn/a
Location of Manufacturern/a
LPG - Consumption2.6kg/hour
LPG - Output30kW
Maintenance Required 0-300hrs0
Maintenance Required 1001-2000hrs0
Maintenance Required 2001-4000hrs0
Maintenance Required 301-600hrs0
Maintenance Required 40001-8000hrs0
Maintenance Required 601-1000hrs0
Maintenance Required 8001-12000hrs0
ManufacturerRinnai
Manufacturer AddressRinnai UK Limited, Registered Office, 9 Christleton Court, Manor Park, Runcorn, WA7 1ST
Manufacturer Fax01928 531 880
Manufacturer Tel01928 531870
Manufacturer Websitewww.rinnaiuk.com
MaterialAluminium
Material Ingredient Reportingn/a
Max Operating Pressure when Open Vented (bar)10
Max Operating Pressure when Unvented (bar)10
Maximum Gas Inlet Pressure (mbar)24
Maximum Power Consumption (W)100
Maximum water temperature (degC)75
Min Operating Pressure (bar)1.4
Minimum Gas Inlet Pressure (mbar)19
Minimum Power Consumption (W)2
ModelInfinity 16i
Model NumberInfinity 16i
Monthly0
MountingInternal Wall Mounted
Natural Gas - Consumption3.26m3/hour
Natural Gas - Output28kW
NBS DescriptionInstantaneous water heaters, electric
NBS Object NameInstantaneous water heaters, electric
NBS Reference90-15-35/400
Nominal Gas Inlet Pressure (mbar)20
O&M Manualwww.rinnaiuk.com/resources/downloads/?category=25&download_type=34#main
OperationModulating
Overall Diameter0 mm
Overall Height675 mm
Overall Length0 mm
Overall Width370 mm
Product Literaturewww.rinnaiuk.com/products/domestic/tankless-16i/
Product Model NumberREU-16FUA-E
Product RangeInfinity 16i
Production Year2016
Quarterly0
Recovery Rate (Litre/min)0
Reference StandardEN26
Referenced Standardn/a
Replacement Cost0
Responsible Extraction of Materialsn/a
Responsible Sourcing of Materialsn/a
Safety Valve Connection Size0
Safety Valve Connection TypeThreaded
ShapeRectangular (Vertical)
Shipping Weight (kg)18
Size370 x 675 x 139 mm
Sound Pressure Level (dBA)63
Spare Partsn/a
Starting Current (Amps)0
Supply Phase1
Tag Numbern/a
TypeDirect fired
Type CommentsIternal Continuous Water Heater
Type NameIternal Continuous Water Heater
Unit ReferenceREU-16FUA
URLwww.rinnaiuk.com
Voltage (Volts)230
Warranty ID3 year parts, 1 year labour.
Warranty Descriptionn/a
Warranty Duration Laborn/a
Warranty Duration Partsn/a
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsn/a
Water Content (Litres)1
Weekly0
Width370 mm
WRAS ApprovalYes

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
