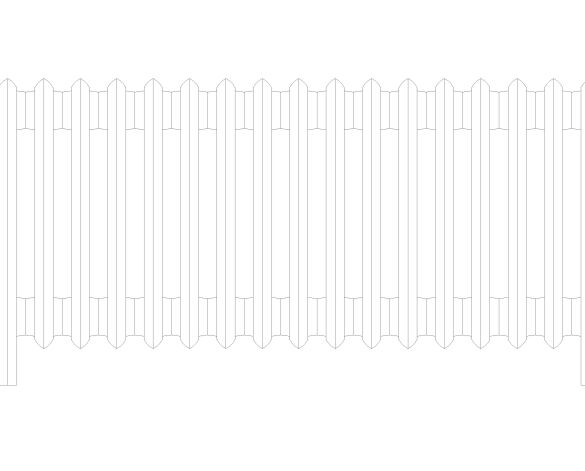

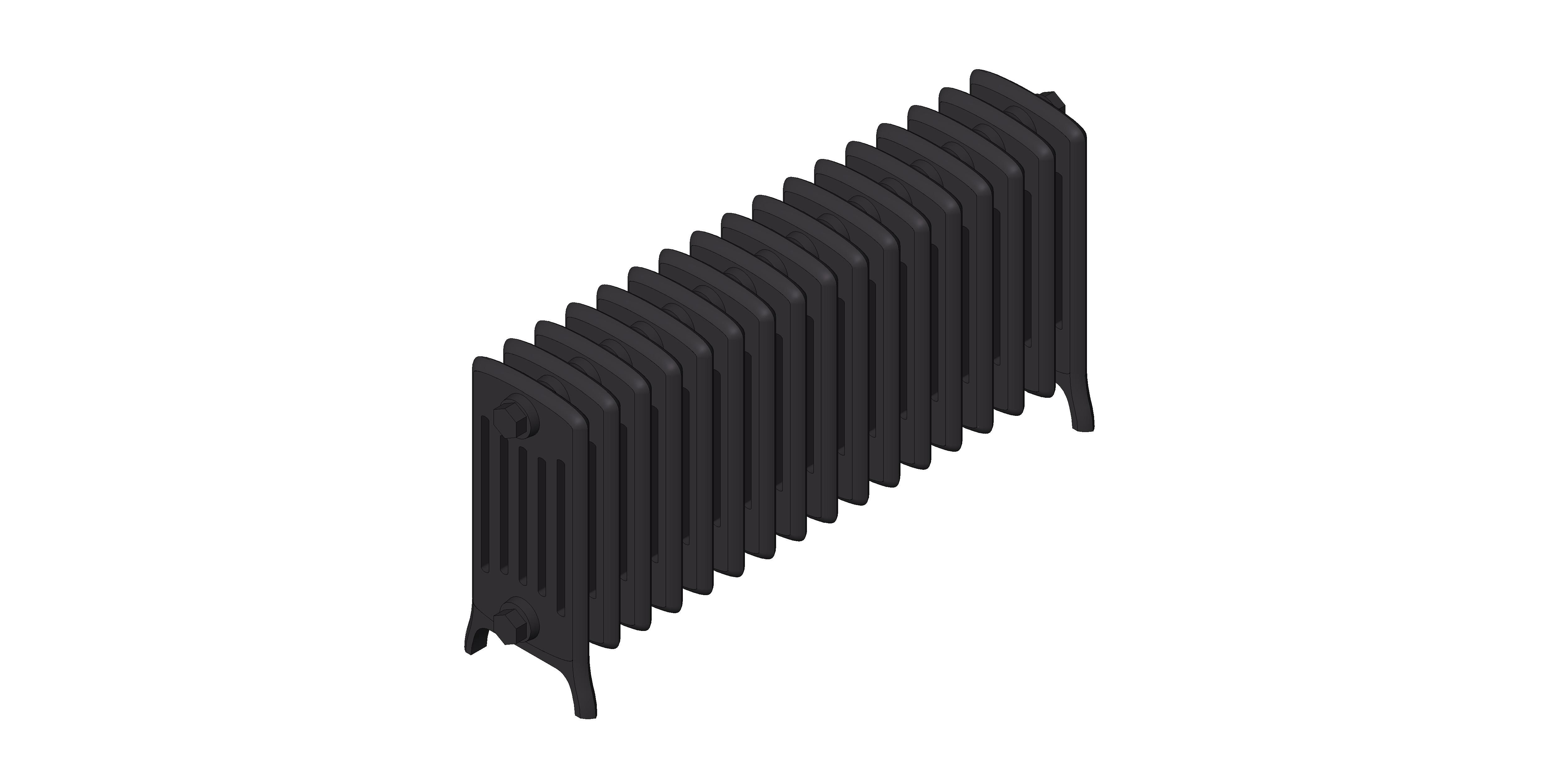

Hattersley Cast Iron Column Radiator (6 Columns)

Description

The stylish Stelrad Hattersley Cast Iron Column radiator has the classic cleanliness of a column. With a softly curved top and flared legs its elegant design means that it is a popular choice and well suited for either a modern or period home setting.

The Stelrad Hattersley Cast Iron Column compatible with low heat temperature systems such as heat pumps, it has a 10 year warranty and is made in England.

Object Data

1 Revision

Last Updated

02/09/2026

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorBS
_Authorized ByBS
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision3
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/6f892c9e-03d2-4b8b-a9a5-22a52f3e6f92/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD3020
Asset TypeFixed
BIM Object NameStelrad_Radiator_HattersleyCastIronColumn_6Column
Bush Width20 mm
CL111 mm
Classification NameUniclass2015
Classification ValuePr_70_60_36_73
Code Performancen/a
ColorMultiple colours available
Connection Diameter13 mm
Connection Radius6 mm
Constituentsn/a
Created Byinfo@stelrad.com
Created On2026-06-29T09:00:00
Default Elevation0 mm
Depth221 mm
DescriptionThe stylish cast iron radiator, has the classic clean lines of a column. It’s elegant design mean that it is a popular choice and well suited for either a modern or period home setting.
Documentation Certificateswww.bimstore.co/products/6f892c9e-03d2-4b8b-a9a5-22a52f3e6f92/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/6f892c9e-03d2-4b8b-a9a5-22a52f3e6f92/document/installation-guide
Documentation Literaturewww.bimstore.co/products/6f892c9e-03d2-4b8b-a9a5-22a52f3e6f92/document/product-literature
Documentation Maintenancewww.bimstore.co/products/6f892c9e-03d2-4b8b-a9a5-22a52f3e6f92/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/6f892c9e-03d2-4b8b-a9a5-22a52f3e6f92/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
FinishPainted
Graden/a
Gross Weight142.00 kg
Ifc Export AsIfcSpaceHeater
Ifc Export TypeIfcSpaceHeaterTypeEnum.RADIATOR
KeynoteT32
Length1020 mm
Length Inc Bush Ends1060 mm
ManufacturerStelrad
Manufacturer NameStelrad
MaterialSteel
Maximum Operating Pressure600.0 kPa
Maximum Operating Temperature90 °C
Maximum Test Pressure780.0 kPa
ModelCast Iron Column (6 Column)
Model Number264046
Model ReferenceCast Iron Column (6 Column)
NBS DescriptionRadiators
NBS Noten/a
NBS Object NameStelrad - Radiators
NBS Office Master Tagn/a
NBS Reference90-40-35/405
Nominal Depth252 mm
Nominal Height505 mm
Nominal Length1060 mm
Number Of Sections17
Offset From Floor150 mm
Offset From Wall15 mm
Overall Height505 mm
Overall Length221 mm
Overall Width1060 mm
Pipe Connection Size13 mm
Possible Connections PositionsBBOE (Standard) - TBSE and TBOE on Request
Production Year2027
Referenced Standardn/a
Replacement Costn/a
Sections17
Section Width60 mm
ShapeRectangle
Shipping Weight142.00 kg
Size505 (H) x 1060 (L) mm
Spare Partsinfo@stelrad.com
Temperature ClassificationEN 442
Thermal Output BT Us5597
Thermal Output WATTS1641
Type CommentsCast Iron Column (6 Column)
Type NameCast Iron Column (6 Column)
URLwww.stelrad.com/
Warranty Description10 Years
Warranty Duration Labor0
Warranty Duration Parts10
Warranty Duration UnitYears
Warranty Guarantor Laborinfo@stelrad.com
Warranty Guarantor Partsinfo@stelrad.com
Water Content20.4 L
