Metal Beads for Dry Lining - 567

Description

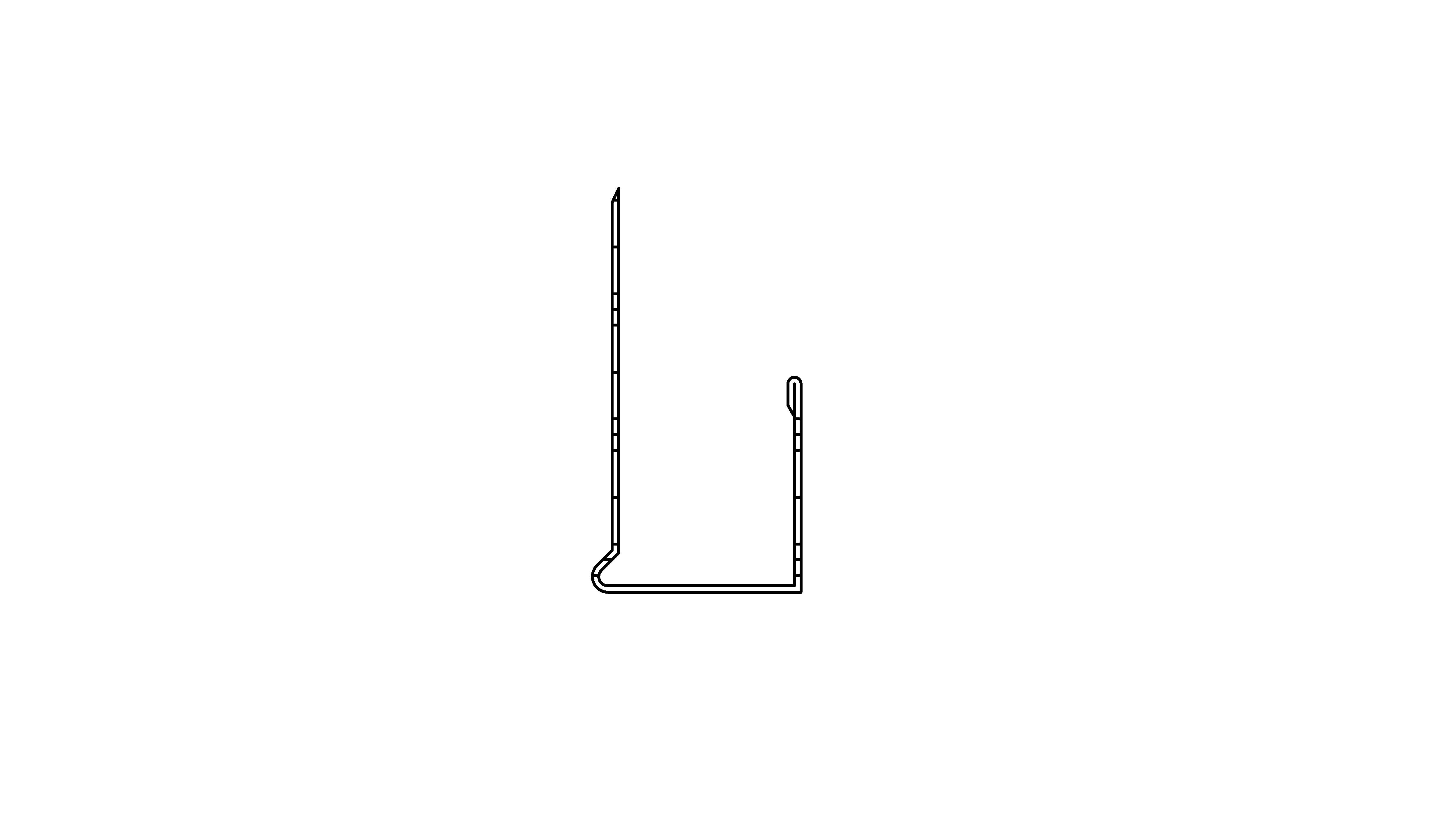

Skim-coat plaster beads - Internal Use. Plasterboard edging bead. Designed to fit 9.5mm plasterboard. Provides a clean straight edge protecting and concealing cut plasterboard edges.

Object Data

1 Revision

Last Updated

04/09/2019

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Accompanying literature coming soon.

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/metal-beads-for-dry-lining-513/document/object-user-guide
Accessibility Performancen/a
Assembly CodeB10
Asset TypeFixed
BIM Object NameExpamet_MetalBeadsExternalUse_567
Classification NameUniclass2015
Classification ValuePr_20_85_09_33
Code PerformanceDX51D+Z275 to EN10346:2015, BS EN14353:2007+A1:2010
ColorSteel
Constituentsn/a
Created Byinfo@birtleygroup.co.uk
Created On2019-06-18 T09:00:00
DescriptionSkim-coat plaster beads - Internal Use. Plasterboard edging bead. Designed to fit 9.5mm plasterboard. Provides a clean straight edge protecting and concealing cut plasterboard edges.
Documentation Certificateswww.expamet.co.uk/
Documentation Installation Guidewww.expamet.co.uk/
Documentation Literaturewww.expamet.co.uk/
Documentation Maintenancewww.expamet.co.uk/
Documentation Technicalwww.expamet.co.uk/
Duration UnitYears
Expected Life0
Featuresn/a
FinishSteel
Graden/a
Ifc Export AsIfcBuildingElementProxyType
Ifc Export TypeNOTDEFINED
KeynoteM20/634
ManufacturerExpamet
Manufacturer NameExpamet
MaterialGalvanised Mild Steel
Model567 Plaster Beads
Model NumberSkim-coat plaster beads - Internal Use
Model Reference567 Plaster Beads
NBS DescriptionThin-coat plaster beads
NBS Object NameExpamet; Thin-coat plaster beads
NBS Office Master Tagn/a
NBS Reference45-75-05/360
Nominal Depth12.70 mm
Nominal Height24.60 mm
Nominal Length0.00 mm
Overall Height24.60 mm
Overall Width12.70 mm
Production Year2019
Referenced StandardDX51D+Z275 to EN10346:2015, BS EN14353:2007+A1:2010
Replacement Costn/a
Shapen/a
Size40mm x 12mm
Spare Partsn/a
Thickness1.00 mm
Type CommentsSkim-coat plaster beads - Internal Use
Type Name567 Plaster Beads
URLwww.expamet.co.uk/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo@birtleygroup.co.uk
Warranty Guarantor Partsinfo@birtleygroup.co.uk
