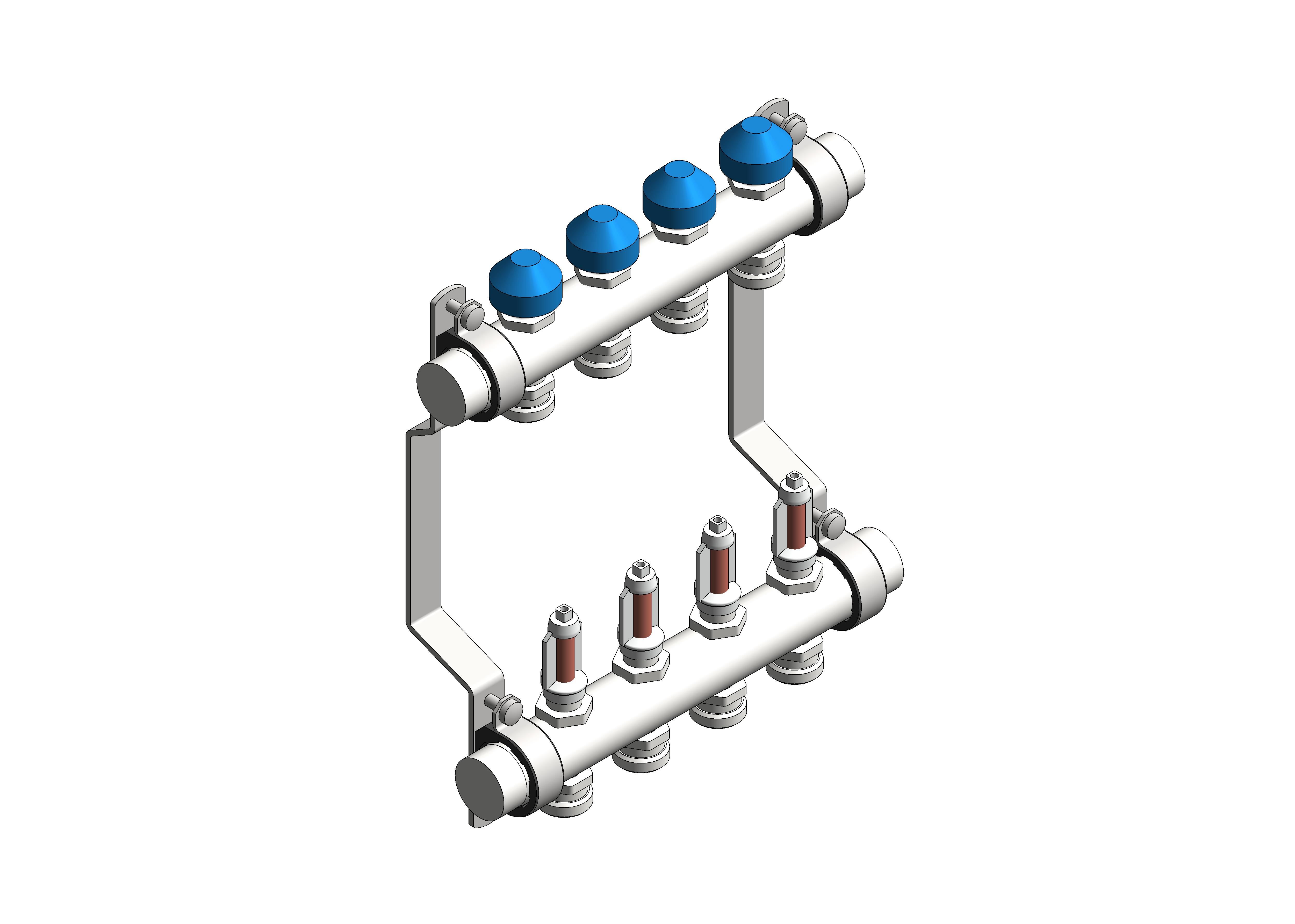

Manifold Stainless Steel HKV2013A (0-4L)

  • Views 450
  • Comments 0
  • Rating- / 5
    Rate this product
    1/5 Rating1/5 Rating2/5 Rating2/5 Rating3/5 Rating3/5 Rating4/5 Rating4/5 Rating5/5 Rating5/5 Rating

EN ISO 23386

Compliant

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

26/05/2020

Available for:
  • Logo: Autodesk Revit

Stainless steel round pipe heating circuit manifold according to EN 1264-4. Flat sealing connections 1”M. Low installation depth. Connection nipple G3/4” with Eurocone, 50 mm distance. Function and pressure tested.

SUPPLY: Flowmeter 0 - 4 l/min with low pressure drop and shut-off function.
RETURN: Control and shut-off valve with adaption M30 x 1,5.

Technical Features:

  • Max. admissible operation temperature: +90 °C
  • Min. admissible operation temperature: -10 °C
  • Max. admissible operation pressure: 10 bar
  • Valves and fittings: Stainless steel
  • Manifold Pipe: Stainless steel
  • O-Rings: EPDM Elastomers
  • Washers: EPDM Elastomers or Aramid AFM34
  • Ball seat: PTFE
  • Polymers: Impact- and temperature resistant
  • Brackets: Steel, galvanized

Products: HKV2013A VA02 / HKV2013A VA03 / HKV2013A VA04 / HKV2013A VA05 / HKV2013A VA06 / HKV2013A VA07 / HKV2013A VA08 / HKV2013A VA09 / HKV2013A VA10 / HKV2013A VA11 / HKV2013A VA12
