Lockable Angle Ball Valve Bibcock [00/2099]

by Valves Instruments Plus

Download Add to collection

Description

Lockable Angle Ball Valve Bibcock with Hose Connection.

Object Data

1 Revision

Last Updated

23/02/2026

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

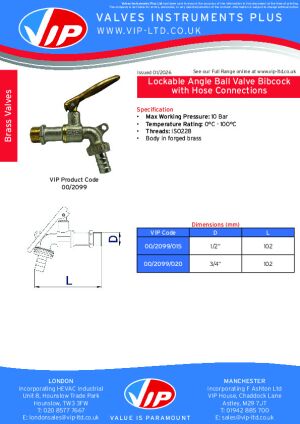

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAA
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version0
_Created ByAA
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/9cec3e3c-4d8c-48b2-8c1b-2c1fb50fc2fd/document/object-user-guide
Accessibility Performancen/a
Assembly CodeDN15
Asset TypeFixed
BIM Object NameVIP_LockableAngleBallValveHose_(00/2099)
Classification NameUniclass 2024
Classification ValuePR_65_54_95_06
Code Performancen/a
ColorSilver & Yellow
Constituentsn/a
Cover MaterialVIP - Stainless Steel
Created Bysales@vip-ltd.co.uk
Created On2025-04-07T09:00:00
Default Elevation0 mm
DescriptionLockable Angle Ball Valve Bibock with Hose Connection
Diameter16 mm
DN15 mm
Documentation Certificateswww.bimstore.co/products/9cec3e3c-4d8c-48b2-8c1b-2c1fb50fc2fd/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/9cec3e3c-4d8c-48b2-8c1b-2c1fb50fc2fd/document/installation-guide
Documentation Literaturewww.bimstore.co/products/9cec3e3c-4d8c-48b2-8c1b-2c1fb50fc2fd/document/product-literature
Documentation Maintenancewww.bimstore.co/products/9cec3e3c-4d8c-48b2-8c1b-2c1fb50fc2fd/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/9cec3e3c-4d8c-48b2-8c1b-2c1fb50fc2fd/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Handle MaterialVIP - Brass
Height87 mm
Inner Body Diameter 116 mm
Inner Body Diameter 215 mm
Inner Body Support 120 mm
Inner Ring 119 mm
Inner Ring 222 mm
K Coefficient0
KeynoteS
Length102 mm
ManufacturerVIP
Manufacturer NameVIP
Max Working Pressure10 Bar
Model00/2099 Lockable angle Ball Valve
Model Number00/2099/015
Model ReferenceLockable Angle Ball Valve
NBS DescriptionLockable Angle Ball Valve with Hose Connection
NBS Noten/a
NBS Object NameBall Valves
NBS Office Master Tagn/a
NBS Reference90-10-90/330 Ball valves
Outer Body Diameter 118 mm
Outer Body Diameter 217 mm
Production Year2024
Referenced Standardn/a
Replacement Costn/a
Round Width55 mm
Shapen/a
SizeDN15
Spare Partssales@vip-ltd.co.uk
Support MaterialVIP - Brass
Temperature Rating0°C - 100°C
ThreadsISO228
Type CommentsLockable Angle Ball Valve Bibock with Hose Connection
URLwww.vip-ltd.co.uk/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborsales@vip-ltd.co.uk
Warranty Guarantor Partssales@vip-ltd.co.uk

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
