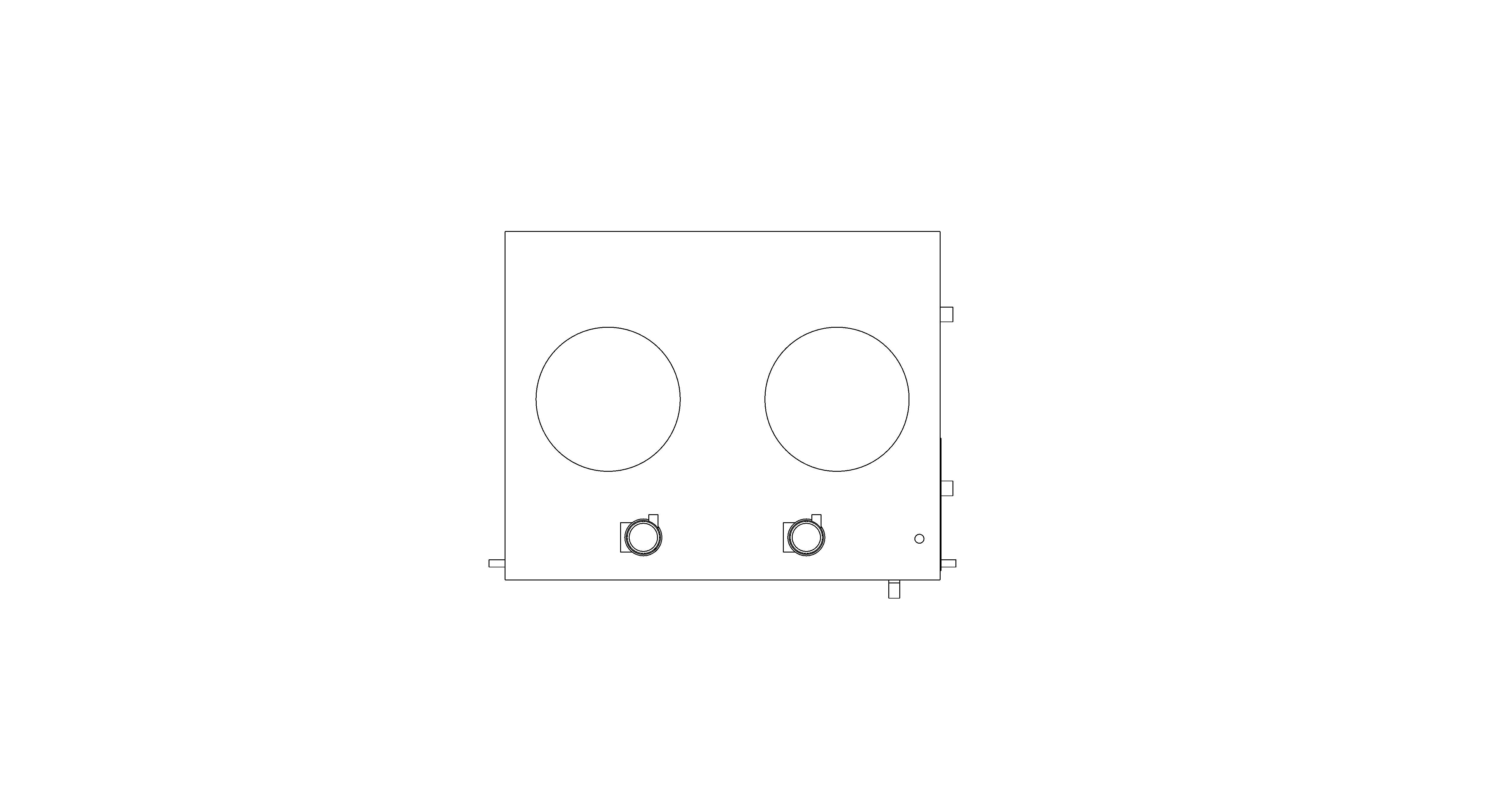

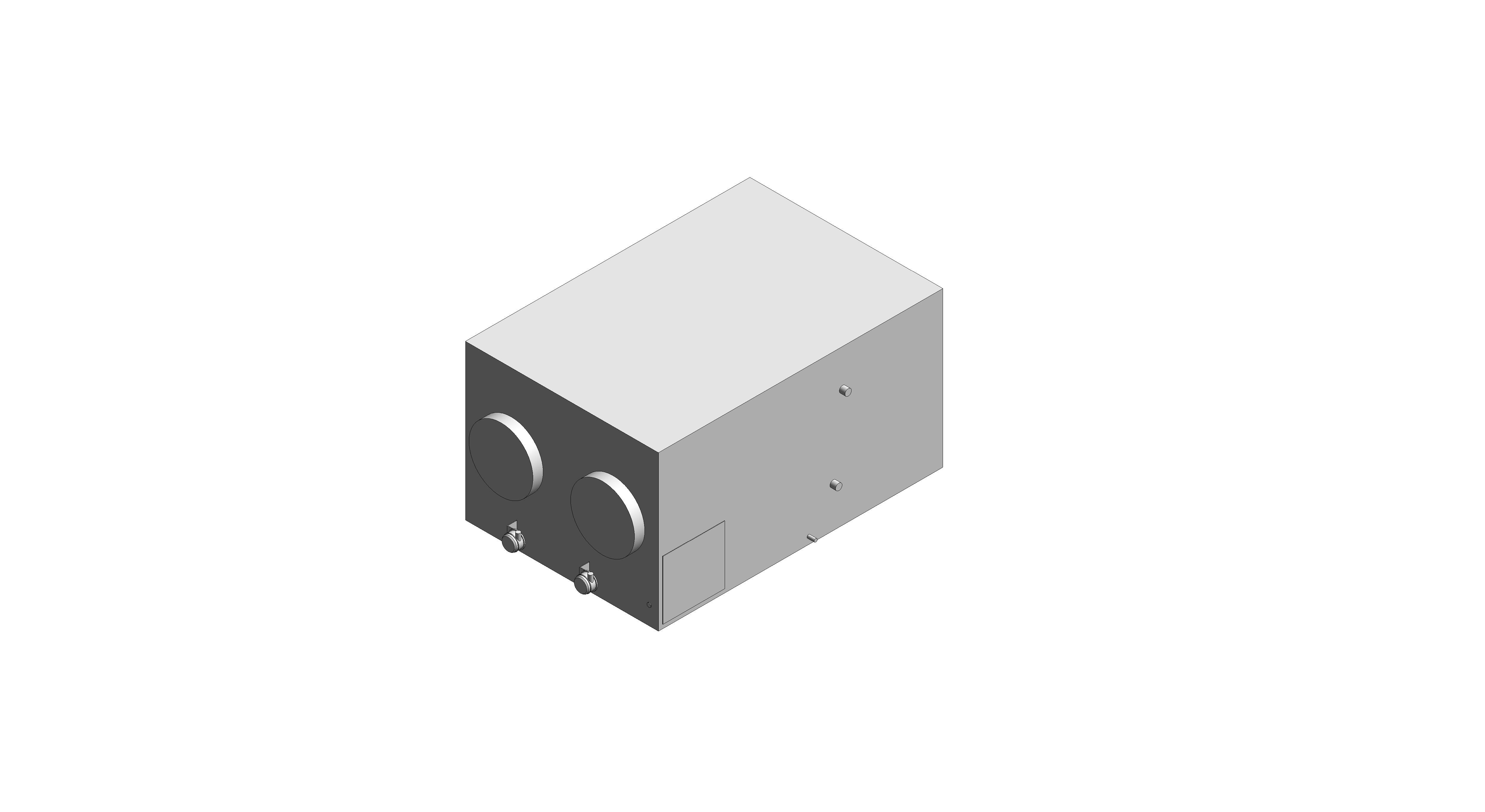

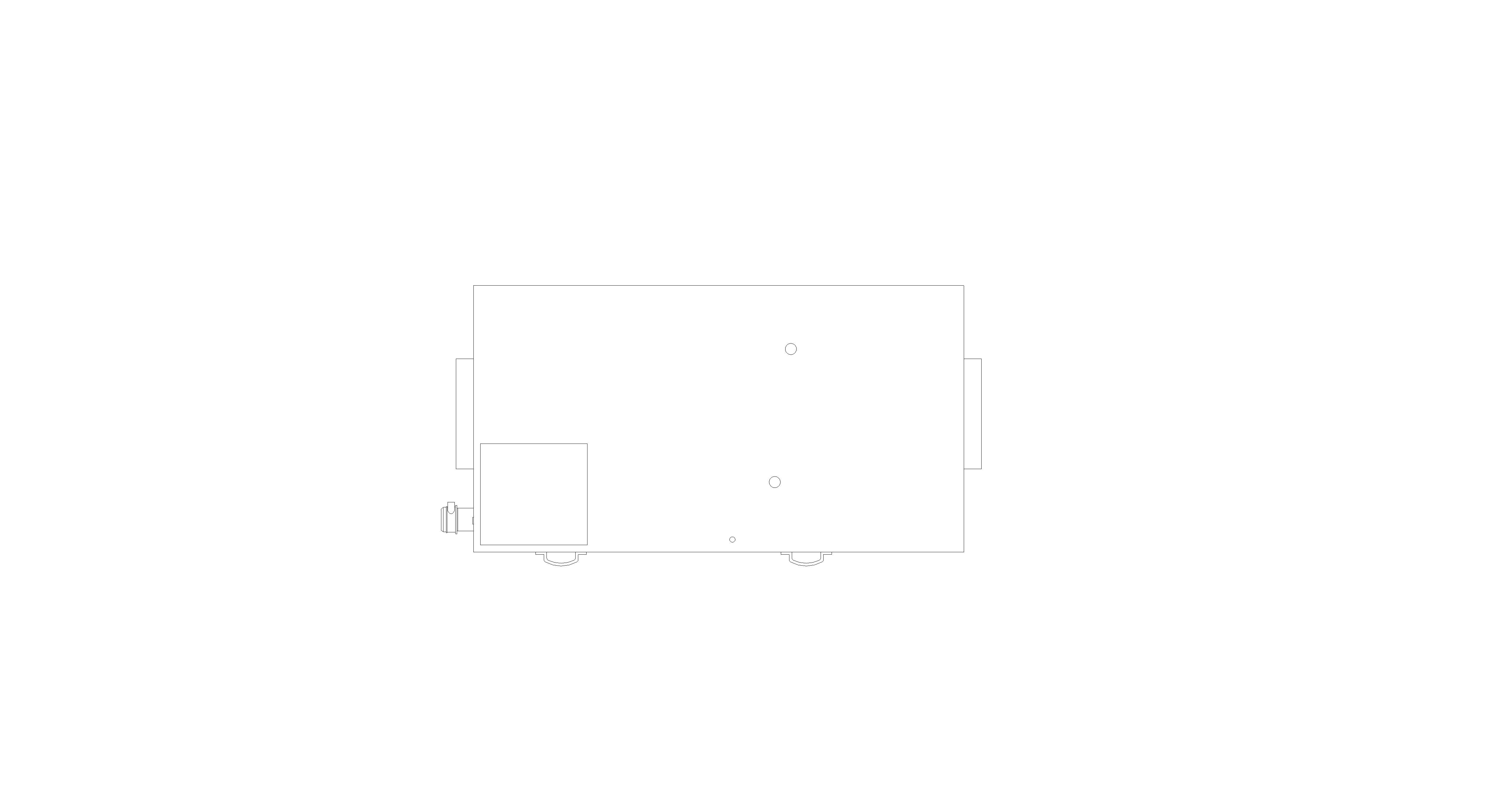

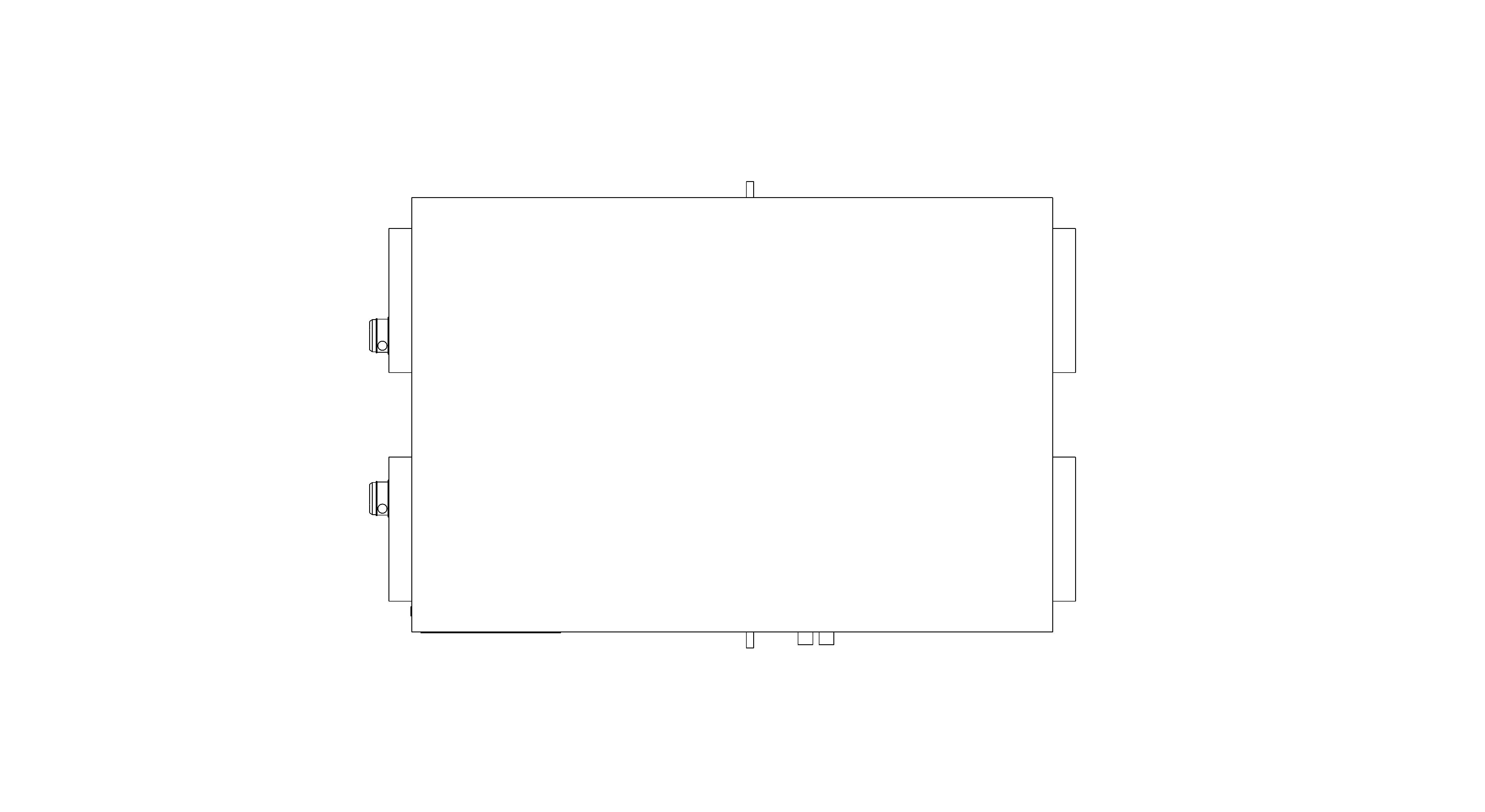

KOMFORT EC DBW 2000 - Heat Recovery Unit

by Blauberg

Download Add to collection

Description

Air handling units for efficient energy saving supply and exhaust ventilation in commercial properties

Highly efficient G4 & F7 pollen, allergy and hay fever filters fitted as standard

Built in LTHW Heater

Fully controlable via App

Summer bypass

Included Objects:

KOMFORT EC DBW 2000 S21

Object Data

1 Revision

Last Updated

15/09/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Installation Guide

Product Literature

Product Data Sheet

Object metadata

_Authortechnicalsupport@blauberg.co.uk
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created ByBlauberg UK
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/komfort-ec-dbw-2000-s21-1/document/object-user-guide
Accessibility Performancen/a
Asset TypeFixed
B950 mm
B1225 mm
B2225 mm
BIM Object Nameblauberg_MechanicalEquipment_Komfort_EC_DBW_20002
Bottom Maintenance Zone Height600 mm
Casing MaterialMetal Zinc
Classification NameUniclass2015
Classification ValuePr_60_65_03_86
Code Performancen/a
Colorn/a
Constituentsn/a
Created Bytechnicalsupport@blauberg.co.uk
Created On2021-08-31T09:00:00
Current5 A
D315 mm
DescriptionAir Handling Unit
Documentation Certificateswww.bimstore.co/products/komfort-ec-dbw-2000-s21-1/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/komfort-ec-dbw-2000-s21-1/document/installation-guide
Documentation Literaturewww.bimstore.co/products/komfort-ec-dbw-2000-s21-1/document/product-literature
Documentation Maintenancewww.bimstore.co/products/komfort-ec-dbw-2000-s21-1/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/komfort-ec-dbw-2000-s21-1/document/technical-data-sheet
DPS_B1302 mm
DPS_B2292 mm
DPS_H93 mm
Drain Connection Diameter16 mm
Drain D16 mm
Drain PipeYes
Duct Connection Diameter315 mm
Duration UnitYears
Expected Life0
Extract Air FilterG4
Featuresn/a
Finishn/a
Graden/a
H762 mm
H1367 mm
Handle B100 mm
Handle L1250 mm
Handle L2450 mm
H Drain Con36 mm
Heater Connection Diameter32 mm
Heater Return Con H658 mm
Heater Return Con L494 mm
Heater Supply Con H158 mm
Heater Supply Con L540 mm
Heat Exchanger Materialaluminium
Heat Exchanger Typecross-flow
Heatrecoveryefficiency Percentage50..67
Ifc Export AsIfcEnergyConversionDeviceType
Ifc Export TypeIfcUnitaryEquipmentTypeEnum.AIRCONDITIONINGUNIT
L1400 mm
L Drain Con35 mm
L Drain Con 1661 mm
L Duct Con50 mm
Load ClassificationHVAC
Maintenance Zone MaterialMaintenance Zone
ManufacturerBlauberg
Manufacturer NameBlauberg UK
Materialn/a
Maximum Air Flow2100 m³/h
Maximum Unit Current5 A
Maximum Unit Power876 W
ModelKOMFORT EC DBW 2000 S21
Model NumberKomfort EC DBW 20002
Model ReferenceKOMFORT EC DBW 2000 S21
NBS DescriptionSupply air handling units
NBS Object NameBlauberg UK - Air Handling Units
NBS Office Master Tagn/a
NBS Reference90-45-15/310
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Number Of Poles3
Plastic MaterialPolypropylene Black
Power876 W
Power Factor1
Production Year2021
Referenced Standardn/a
Replacement Costn/a
RP Mmin 12920
SEC ClassNRVU
Shapen/a
Side Maintenance Zone Height500 mm
Sizen/a
Sound Pressure Levelat 3m DBA36
Spare Partsn/a
Supply Air FilterG4
Transported Air Temperature Degrees C-25…+40
Type CommentsAir Handling Unit KOMFORT EC DBW 2000 S21
Type NameAir Handling Unit KOMFORT EC DBW 2000 S21
URLblaubergventilatoren.de/en/product/komfort-ec-dbw-2000-s21
Voltage400 V
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partstechnicalsupport@blauberg.co.uk
Weight140.00 kg
