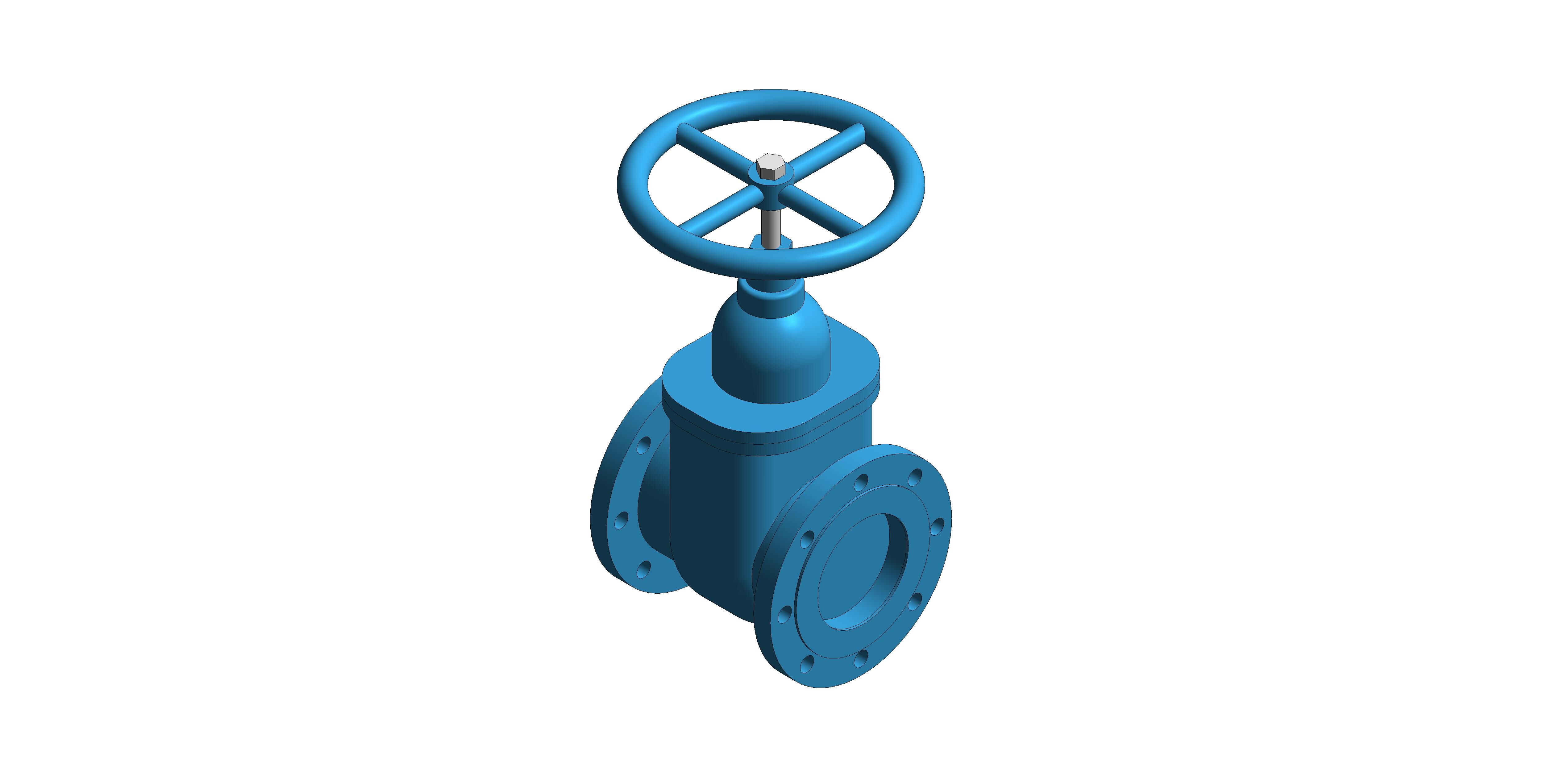

Fig. M541 - Gate Valve - Cast Iron

by Hattersley

Download Add to collection

Description

Gate Valves - Cast Iron

Fig. M541

Features & Benefits

Cast Iron with integral flanges.
Flanged ends require no pipe threading.
Inside screw pattern with non-rising stem

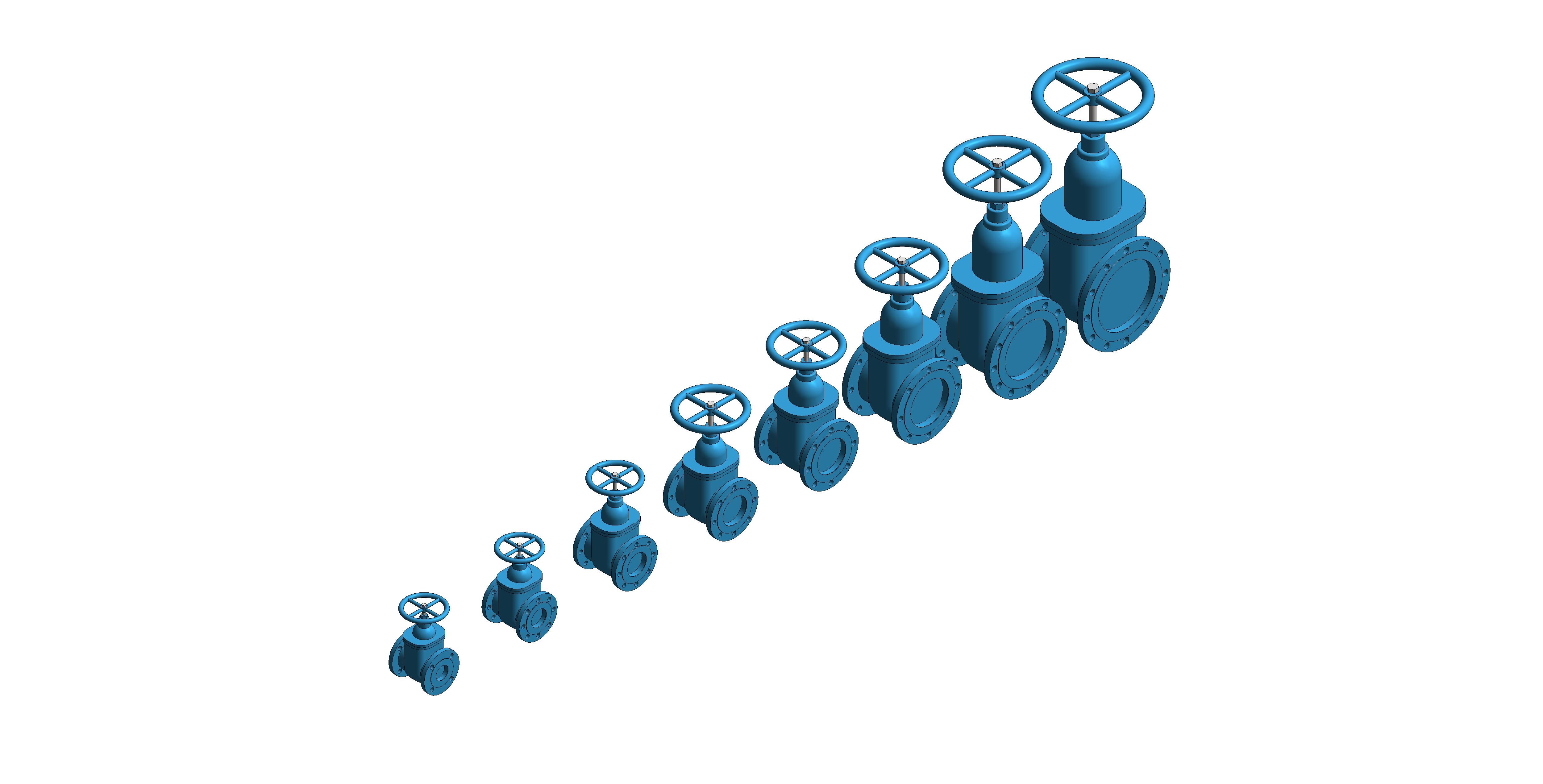

Size	50mm to 300mm
Pressure Rating	PN16
Product Material	Cast Iron
End Connections	Flanged to BS EN 1092-2 PN16
Test Pressure	Shell: 24 bar Seat: 17.6 bar

Object Data

1 Revision

Last Updated

07/10/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Installation Guide

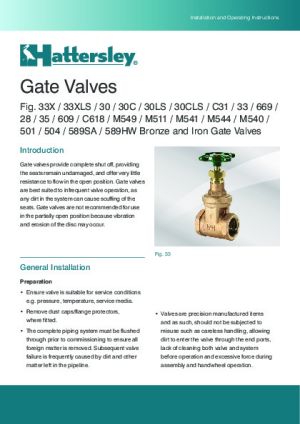

Maintenance Information

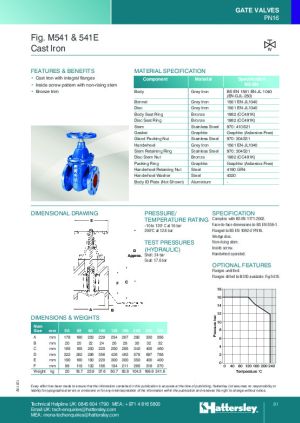

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/hattersley-fig-m541/document/object-user-guide
12 HolesNo
4 HolesNo
8 HolesYes
A229 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
B24 mm
BIM Object NameHattersley_GateValve_FigM541
Body Radius73 mm
Body Width181 mm
Bonnet Disk Depth12 mm
Bonnet Disk Length183 mm
Bonnet Gap0 mm
C220 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_96
Code Performancen/a
Colorn/a
Connection Size100 mm
Connection Size Radius50 mm
Constituentsn/a
Created Byenquiries@hattersley.com
Created On2021-08-31T:09:00:00
D356 mm
DescriptionFig. M541 - Gate Valve - Cast Iron
Documentation Certificateswww.bimstore.co/products/hattersley-fig-m541/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/hattersley-fig-m541/document/installation-guide
Documentation Literaturewww.bimstore.co/products/hattersley-fig-m541/document/product-literature
Documentation Maintenancewww.bimstore.co/products/hattersley-fig-m541/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/hattersley-fig-m541/document/technical-data-sheet
Dome Offset35 mm
Duration UnitYear
E220 mm
End Connector Hole Centre180 mm
End Connector Hole Diameter19 mm
End Connector Raised Height3 mm
Expected Life0
F156 mm
Featuresn/a
Finishn/a
Gland Length207 mm
Gland Packing Nut Diameter28 mm
Graden/a
Handle MaterialHattersley - Cast Iron - Blue
Handlewheel Radius110 mm
Handwheel Nut Diameter18 mm
Handwheel Nut Height9 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.ISOLATING
K Coefficient1125.41
KeynoteS
Loss MethodK Coefficient
ManufacturerHattersley
Manufacturer NameHattersley
Materialn/a
ModelFig. M541 - Gate Valve - Cast Iron
Model NumberFig. M541
Model ReferenceFig. M541 - Gate Valve - Cast Iron
NBS DescriptionWaterworks gate valves
NBS Noten/a
NBS Object NameHattersley - Waterworks gate valves
NBS Office Master Tagn/a
NBS Reference90-10-90/312
Nominal Depth220 mm
Nominal Height466 mm
Nominal Length229 mm
Production Year2021
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size100mm
Spare Partsn/a
Stem Corner Radius35 mm
Stem Height87 mm
Stem Loop Depth174 mm
Stem Loop Width115 mm
Stem Lower Circle Radius87 mm
Stem MaterialHattersley - Metal - Stainless Steel
Stem Radius7 mm
Top Of Dome38 mm
Top Of Stem132 mm
Type CommentsFig. M541 - Gate Valve - Cast Iron
Type NameFig. M541 - Gate Valve - Cast Iron
URLwww.hattersley.com/
Valve MaterialHattersley - Cast Iron - Blue
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@hattersley.com
Warranty Guarantor Partsenquiries@hattersley.com

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
