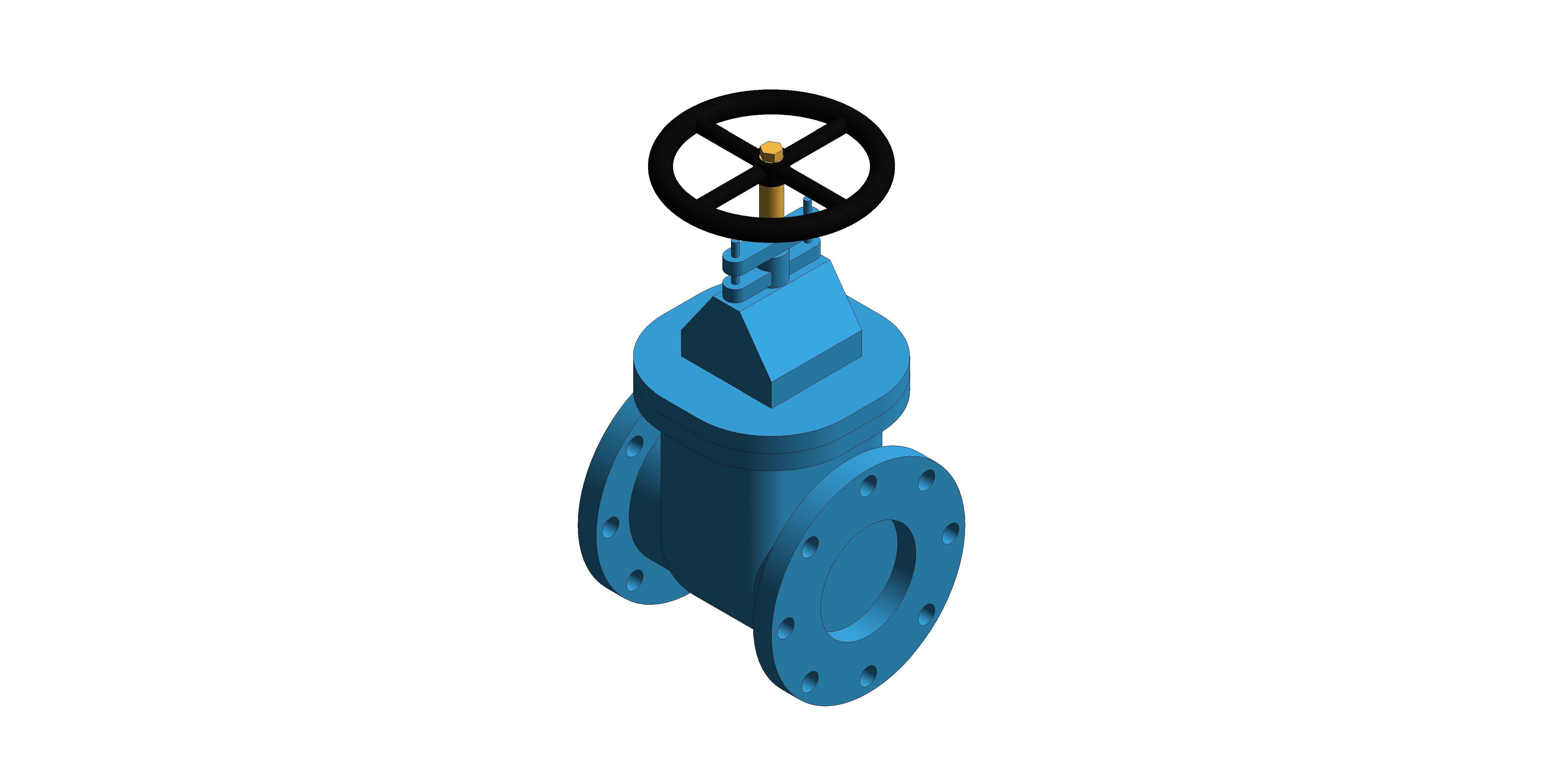

Fig. 501 - Gate Valve - Cast Iron

by Hattersley

Download Add to collection

Description

Gate Valves - Cast Iron

Fig. 501

Features & Benefits

Case iron with integral flanges.
Inside screw pattern with non-rising stem.
Ideal for use for non- corrosive and reasonably clean services.
Seat rings are threaded and securely fixed into the body.

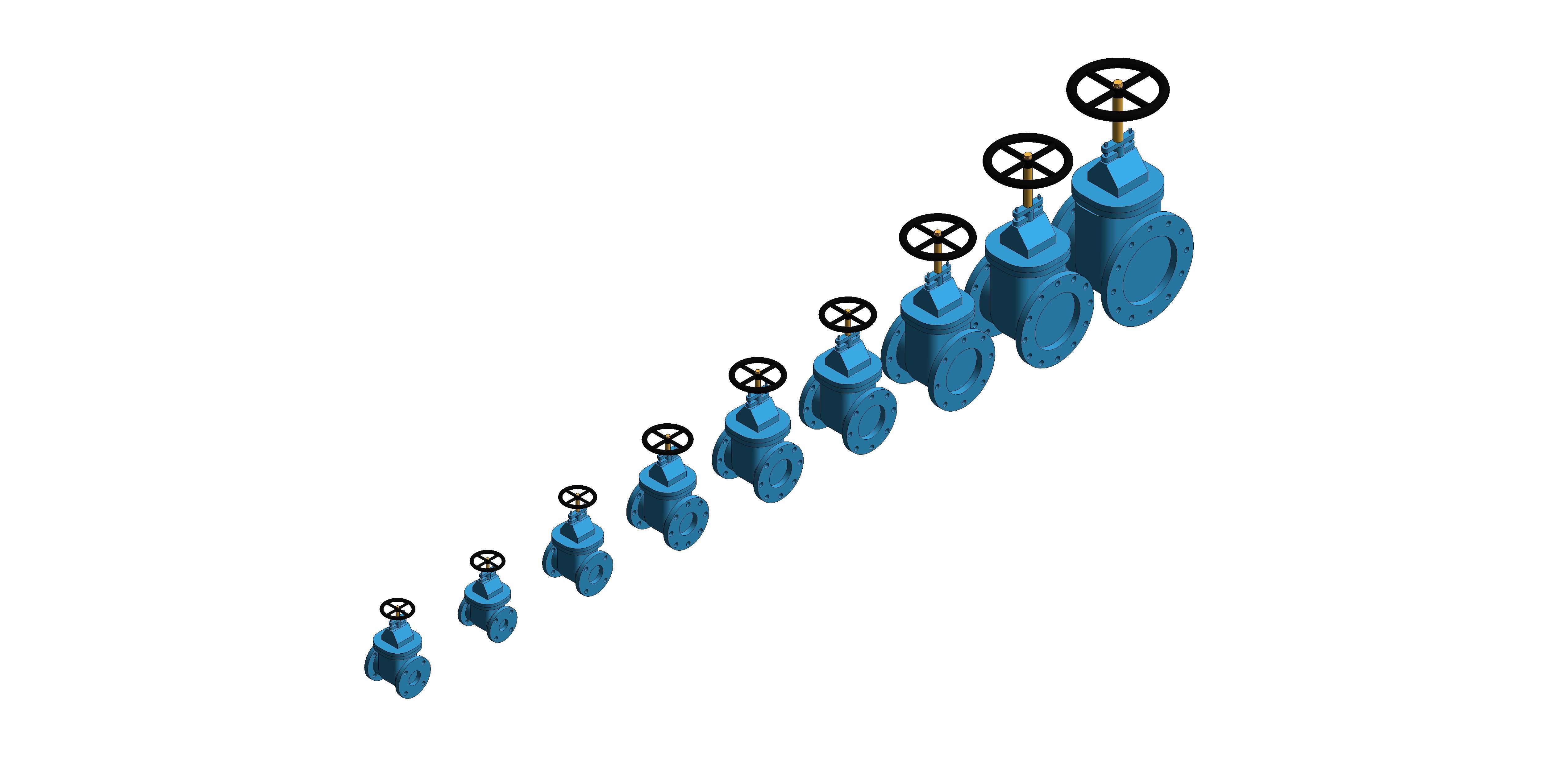

Size	2" to 12"
Pressure Rating	Class 125
Product Material	Cast Iron
End Connections	Flanged to ANSI B16.1 Class 125 and BS 1560 3.2
Test Pressure	Shell: 24.1 bar Seat: 15.2 bar

Object Data

1 Revision

Last Updated

07/10/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Installation Guide

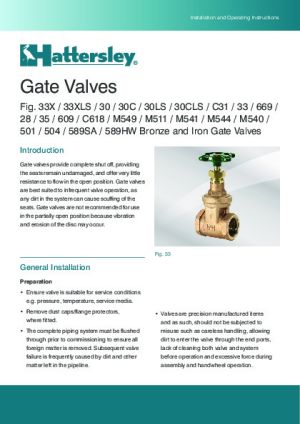

Maintenance Information

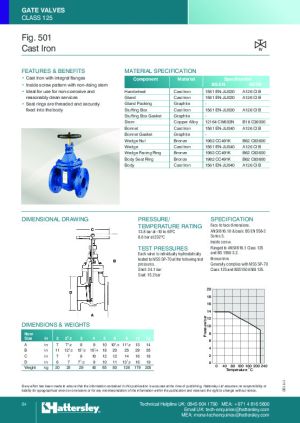

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/hattersley-fig-501/document/object-user-guide
12 HolesYes
4 HolesNo
8 HolesNo
A330 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
B30 mm
BIM Object NameHattersley_GateValve_Fig501
Body Radius134 mm
Body Width270 mm
Bonnet Base Height39 mm
Bonnet Disk Depth26 mm
Bonnet Disk Diameter311 mm
Bonnet Gap0 mm
Bonnet Length155 mm
C406 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_96
Code Performancen/a
Colorn/a
Connection Size250 mm
Connection Size Radius125 mm
Constituentsn/a
Created Byenquiries@hattersley.com
Created On2021-08-31T:09:00:00
D722 mm
DescriptionFig. 501 - Gate Valve - Cast Iron
Documentation Certificateswww.bimstore.co/products/hattersley-fig-501/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/hattersley-fig-501/document/installation-guide
Documentation Literaturewww.bimstore.co/products/hattersley-fig-501/document/product-literature
Documentation Maintenancewww.bimstore.co/products/hattersley-fig-501/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/hattersley-fig-501/document/technical-data-sheet
Duration UnitYear
E356 mm
End Connector Hole Centre362 mm
End Connector Hole Diameter25 mm
Expected Life0
Featuresn/a
Finishn/a
Flange Cut Out Centres344 mm
Flange Cut Out Radius16 mm
Graden/a
Handle MaterialHattersley - PVC - Black
Handlewheel Radius178 mm
Handwheel Nut Diameter30 mm
Handwheel Nut Height15 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.ISOLATING
K Coefficient7681.73
KeynoteS
Loss MethodK Coefficient
ManufacturerHattersley
Manufacturer NameHattersley
Materialn/a
ModelFig. 501 - Gate Valve - Cast Iron
Model NumberFig. 501
Model ReferenceFig. 501 - Gate Valve - Cast Iron
NBS DescriptionWaterworks gate valves
NBS Noten/a
NBS Object NameHattersley - Waterworks gate valves
NBS Office Master Tagn/a
NBS Reference90-10-90/312
Nominal Depth406 mm
Nominal Height925 mm
Nominal Length330 mm
Production Year2021
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size10"
Spare Partsn/a
Stem Corner Radius59 mm
Stem Height233 mm
Stem Loop Depth295 mm
Stem Loop Width194 mm
Stem Lower Circle Radius147 mm
Stem MaterialHattersley - Metal - Bronze
Stem Radius18 mm
Top Of Stem244 mm
Type CommentsFig. 501 - Gate Valve - Cast Iron
Type NameFig. 501 - Gate Valve - Cast Iron
URLwww.hattersley.com/
Valve MaterialHattersley - Cast Iron - Blue
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@hattersley.com
Warranty Guarantor Partsenquiries@hattersley.com
