Fig. 4970G - Fully-Lugged Gearbox Operated Butterfly Valve - Ductile Iron (2019-2025 Design)

by Hattersley

Download Add to collection

Description

Fully-Lugged Gearbox Operated Butterfly Valve - Ductile Iron

Fig. 4970G

Features & Benefits

Fully Lugged for secure installation
Stainless steel disc to suit a wide range of applications
Long neck for insulation
Epoxy coating for improved durability

Size	DN50 to DN600
Pressure Rating	PN16
Product Material	Ductile Iron
Operating Pressure	16 bar from -10 to 120ºC. 15.7 bar at 130ºC.
Test Pressure	Seat: 17.6 bar Shell: 24 bar

Object Data

1 Revision

Last Updated

12/08/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

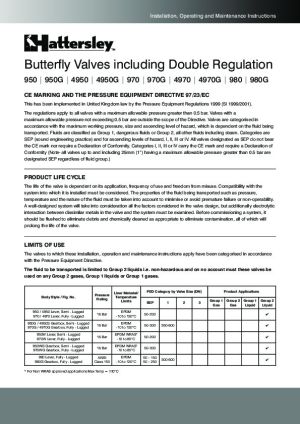

Installation Guide

Maintenance Information

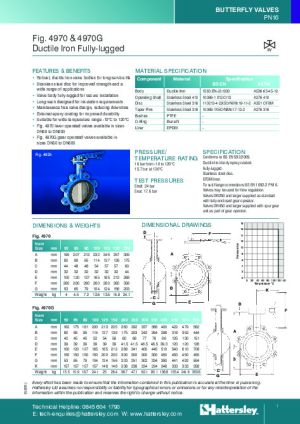

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/hattersley-fig-4970g/document/object-user-guide
284.00 mm
383.00 mm
443.00 mm
570.00 mm
625.00 mm
A163.00 mm
Accessibility Performancen/a
Angle 122.50 °
Angle 222.50 °
Angle 322.50 °
Assembly CodeD20
Asset TypeFixed
B108.00 mm
BIM Object NameHattersley_ButterflyValve_FullyLuggedGearboxOperated_Fig4970G
C52.00 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_08
Code Performancen/a
Colorn/a
Connection Size100.00 mm
Connection Size Radius50.00 mm
Constituentsn/a
Created Byenquiries@hattersley.com
Created On2021-08-10T:09:00:00
D32.00 mm
DescriptionFig. 4970G - Fully-Lugged Gearbox Operated Butterfly Valve - Ductile Iron
Disc MaterialHattersley - Metal - Stainless Steel
Documentation Certificateswww.bimstore.co/products/hattersley-fig-4970g/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/hattersley-fig-4970g/document/installation-guide
Documentation Literaturewww.bimstore.co/products/hattersley-fig-4970g/document/product-literature
Documentation Maintenancewww.bimstore.co/products/hattersley-fig-4970g/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/hattersley-fig-4970g/document/technical-data-sheet
Duration UnitYear
E157.00 mm
Expected Life0
F150.00 mm
Featuresn/a
Finishn/a
G104.40 mm
Graden/a
h54.00 mm
H45.00 mm
Handwheel MaterialHattersley - Metal - Iron - Ductile Epoxy Paint - Blue
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
Inner Radius50.00 mm
K Coefficient512
KeynoteS
Loss MethodK Coefficient
Lug Hole Offset90.00 mm
Lug Hole Radius8.00 mm
Lug Inner Radius78.00 mm
Lug Outer Radius14.00 mm
M39.00 mm
ManufacturerHattersley
Manufacturer NameHattersley
Materialn/a
Mid Radius68.25 mm
ModelFig. 4970G - Fully-Lugged Gearbox Operated Butterfly Valve - Ductile Iron
Model NumberFig. 4970G
Model ReferenceFig. 4970G - Fully-Lugged Gearbox Operated Butterfly Valve - Ductile Iron
NBS DescriptionButterfly valves
NBS Noten/a
NBS Object NameHattersley - Butterfly valves
NBS Office Master Tagn/a
NBS Reference90-10-90/332
Nominal Depth52.00 mm
Nominal Height385.00 mm
Nominal Length247.00 mm
Outer Radius78.00 mm
Production Year2021
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN100
Spare Partsn/a
Symbol Length60.00 mm
Type CommentsFig. 4970G - Fully-Lugged Gearbox Operated Butterfly Valve - Ductile Iron
Type NameFig. 4970G - Fully-Lugged Gearbox Operated Butterfly Valve - Ductile Iron
URLwww.hattersley.com/
Valve MaterialHattersley - Metal - Iron - Ductile Epoxy Paint - Blue
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@hattersley.com
Warranty Guarantor Partsenquiries@hattersley.com
