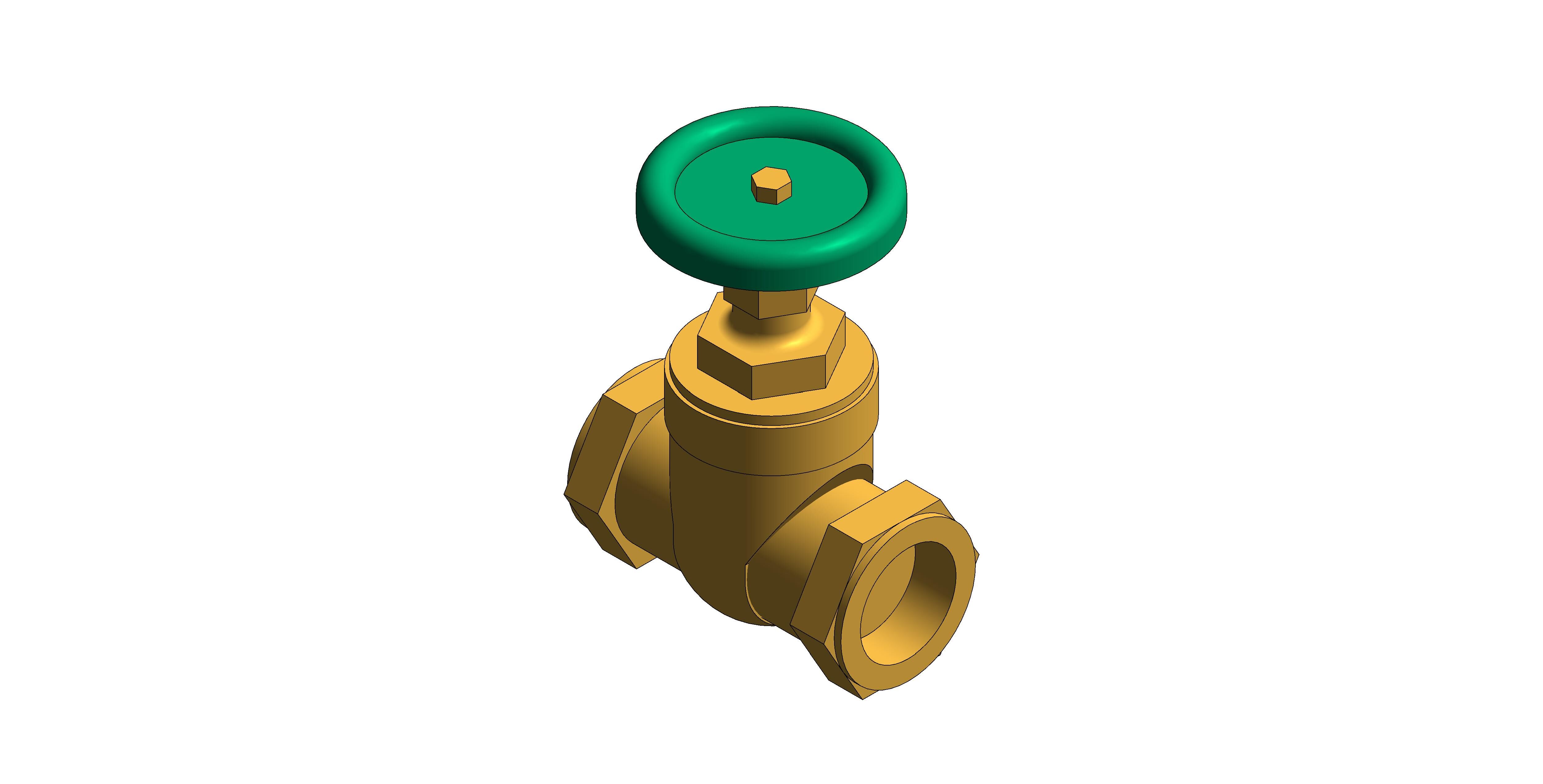

Fig. 30C - Gate Valves - Bronze

by Hattersley

Download Add to collection

Description

Gate Valves - Bronze

Fig. 30C

Features & Benefits

Robust and high quality bronze body with integral seating surfaces.
Offers the ultimate in dependable service wherever minimum pressure drop is important.
WRAS Approved for use with potable water.
Inside screw pattern with non-rising stem.

* Please refer to Datasheet for full technical information

Size	15mm to 54mm
Pressure Rating	PN16
Product Material	Bronze
End Connections	Compression ends to BS EN 1057:2006: Half hard R250.

Object Data

2 Revision

Last Updated

10/11/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Installation Guide

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/hattersley-fig-30c/document/object-user-guide
Accessibility Performancen/a
Amm69 mm
Assembly CodeD20
Asset TypeFixed
BIM Object NameHattersley_GateValve_30C
Bmm74 mm
Body Bonnet Connect Radius15 mm
Body Centre Depth31 mm
Body Centre Width88 mm
Body Radius13 mm
Body Width44 mm
Bonnet Lower Radius16 mm
Bonnet Lower Thickness8 mm
Bonnet Upper Radius16 mm
Bonnet Upper Thickness2 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_96
Cmm53 mm
Code Performancen/a
Colorn/a
Connection Size15 mm
Connection Size Radius8 mm
Constituentsn/a
Created Byenquiries@hattersley.com
Created On2021-08-31T:09:00:00
DescriptionFig. 30C - Gate Valves - Bronze
Dmm27 mm
Documentation Certificateswww.bimstore.co/products/hattersley-fig-30c/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/hattersley-fig-30c/document/installation-guide
Documentation Literaturewww.bimstore.co/products/hattersley-fig-30c/document/product-literature
Documentation Maintenancewww.bimstore.co/products/hattersley-fig-30c/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/hattersley-fig-30c/document/technical-data-sheet
Duration UnitYear
End Connector Diameter29 mm
End Connector Protrusion Depth2 mm
End Connector Thickness10 mm
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Handwheel MaterialPVC, Green
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.ISOLATING
K Coefficient21.32
KeynoteS
Loss MethodK Coefficient
ManufacturerHattersley
Manufacturer NameHattersley
Materialn/a
ModelFig. 30C - Gate Valves - Bronze
Model NumberFig. 30C
Model ReferenceFig. 30C - Gate Valves - Bronze
NBS DescriptionWaterworks gate valves
NBS Noten/a
NBS Object NameHattersley - Waterworks gate valves
NBS Office Master Tagn/a
NBS Reference90-10-90/312
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Packing Nut Diameter17 mm
Packing Nut Height9 mm
Packing Ring Diameter20 mm
Packing Ring Height9 mm
Packing Ring Neck Diameter6 mm
Packing Ring Neck Height8 mm
Production Year2021
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size15mm
Spare Partsn/a
Stem Diameter3 mm
Stem Height8 mm
Top Of Stem20 mm
Type CommentsFig. 30C - Gate Valves - Bronze
Type NameFig. 30C - Gate Valves - Bronze
URLwww.hattersley.com/
Valve MaterialBrass, Soft Yellow
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@hattersley.com
Warranty Guarantor Partsenquiries@hattersley.com
