Fig. 30 - Gate Valve - DZR Brass

by Hattersley

Download Add to collection

Description

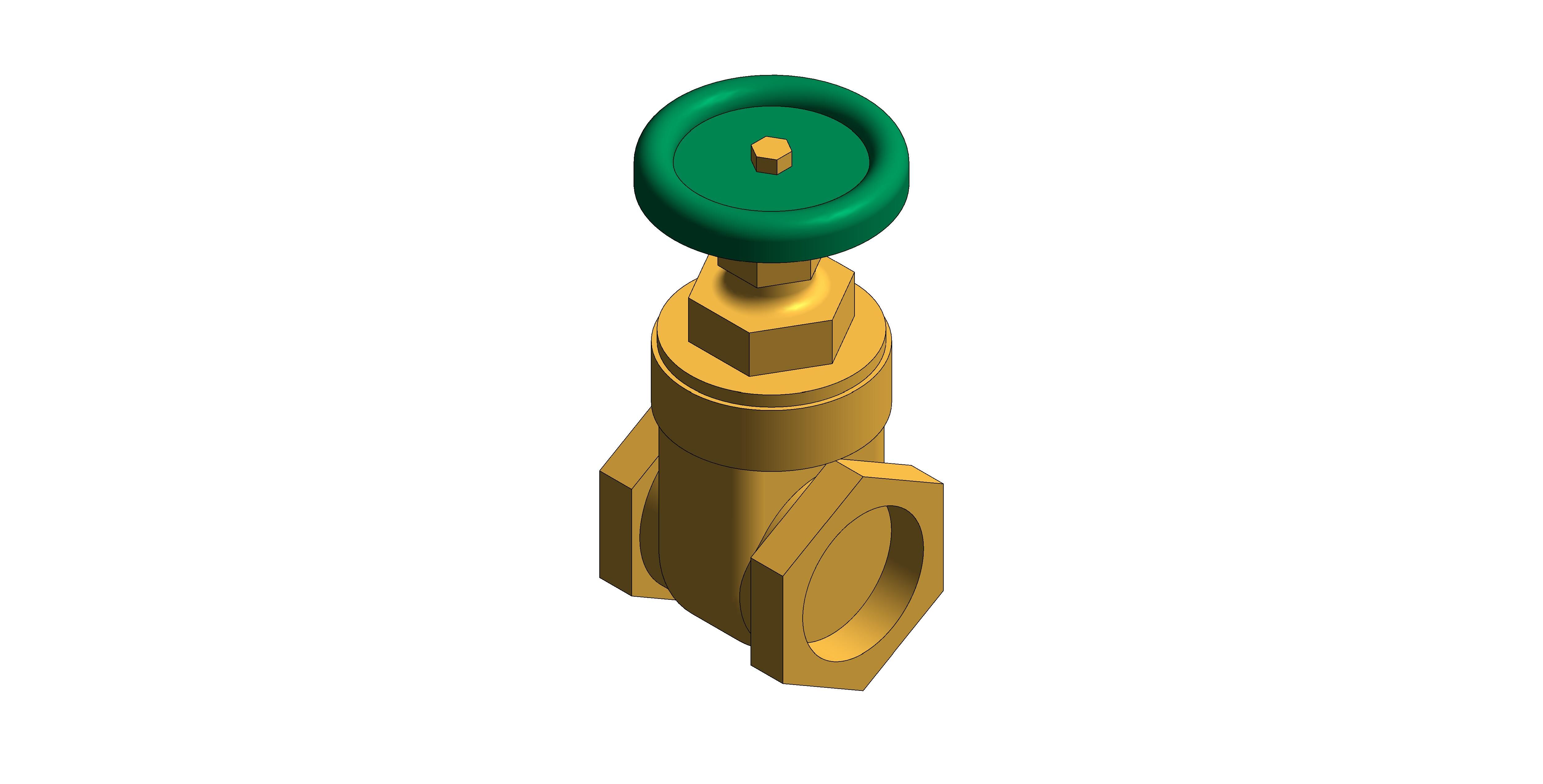

Gate Valve - DZR Brass

Fig. 30

Features & Benefits

Dezincification Resistant Brass prevents corrosion and fungal growth.
Kitemarked to BS EN 12288.
WRAS approved for use with potable water. Inside screw pattern with non-rising stem
Inside screw pattern with non-rising stem

Size	1/2" to 2"
Pressure Rating	PN20
Product Material	DZR Brass
Operating Pressure	BSEN12288 PN20 Series B 9 bar at 180°C 20 bar from -10 to 100°C WRAS Approved Product to 85°C
End Connections	Taper threaded BS EN 10266 (ISO 7-1) formerly BS 21
Test Pressure	Shell: 30 bar Seat: 20 bar

Object Data

1 Revision

Last Updated

07/10/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

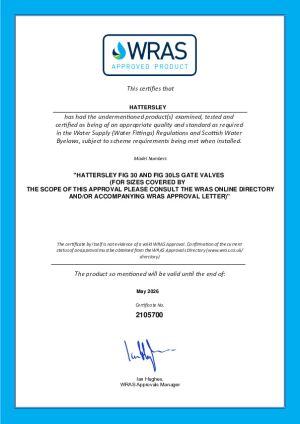

Product Certificates

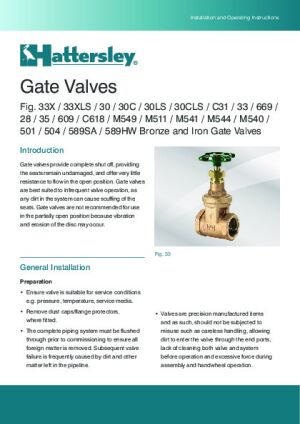

Installation Guide

Maintenance Information

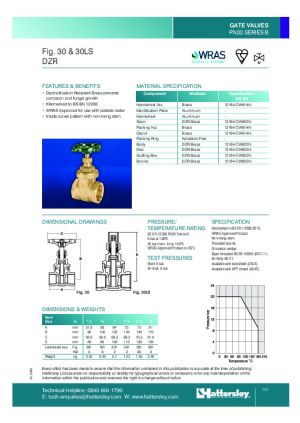

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/hattersley-fig-30/document/object-user-guide
A72 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
B125 mm
BIM Object NameHattersley_GateValve_Fig30
Body Radius26 mm
Body Width44 mm
Bonnet Lower Radius31 mm
Bonnet Lower Thickness17 mm
Bonnet Upper Radius30 mm
Bonnet Upper Thickness3 mm
C70 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_96
Code Performancen/a
Colorn/a
Connection Size42 mm
Connection Size Radius21 mm
Constituentsn/a
Created Byenquiries@hattersley.com
Created On2021-08-31T:09:00:00
DescriptionFig. 30 - Gate Valve - DZR Brass
Documentation Certificateswww.bimstore.co/products/hattersley-fig-30/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/hattersley-fig-30/document/installation-guide
Documentation Literaturewww.bimstore.co/products/hattersley-fig-30/document/product-literature
Documentation Maintenancewww.bimstore.co/products/hattersley-fig-30/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/hattersley-fig-30/document/technical-data-sheet
Duration UnitYear
End Connector Diameter58 mm
End Connector Thickness14 mm
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Handwheel MaterialHattersley - PVC - Green
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.ISOLATING
K Coefficient161.93
KeynoteS
Loss MethodK Coefficient
ManufacturerHattersley
Manufacturer NameHattersley
Materialn/a
ModelFig. 30 - Gate Valve - DZR Brass
Model NumberFig. 30
Model ReferenceFig. 30 - Gate Valve - DZR Brass
NBS DescriptionWaterworks gate valves
NBS Noten/a
NBS Object NameHattersley - Waterworks gate valves
NBS Office Master Tagn/a
NBS Reference90-10-90/312
Nominal Depth70 mm
Nominal Height159 mm
Nominal Length72 mm
Packing Nut Diameter25 mm
Packing Nut Height15 mm
Packing Ring Diameter38 mm
Packing Ring Height15 mm
Packing Ring Neck Diameter11 mm
Packing Ring Neck Height11 mm
Production Year2021
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size1 1/2"
Spare Partsn/a
Stem Corner Radius9 mm
Stem Diameter5 mm
Stem Height11 mm
Stem Loop35 mm
Stem Loop Depth57 mm
Stem Loop Width25 mm
Stem Lower Circle Radius29 mm
Top Of Stem39 mm
Type CommentsFig. 30 - Gate Valve - DZR Brass
Type NameFig. 30 - Gate Valve - DZR Brass
URLwww.hattersley.com/
Valve MaterialHattersley - Metal - Brass
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@hattersley.com
Warranty Guarantor Partsenquiries@hattersley.com
