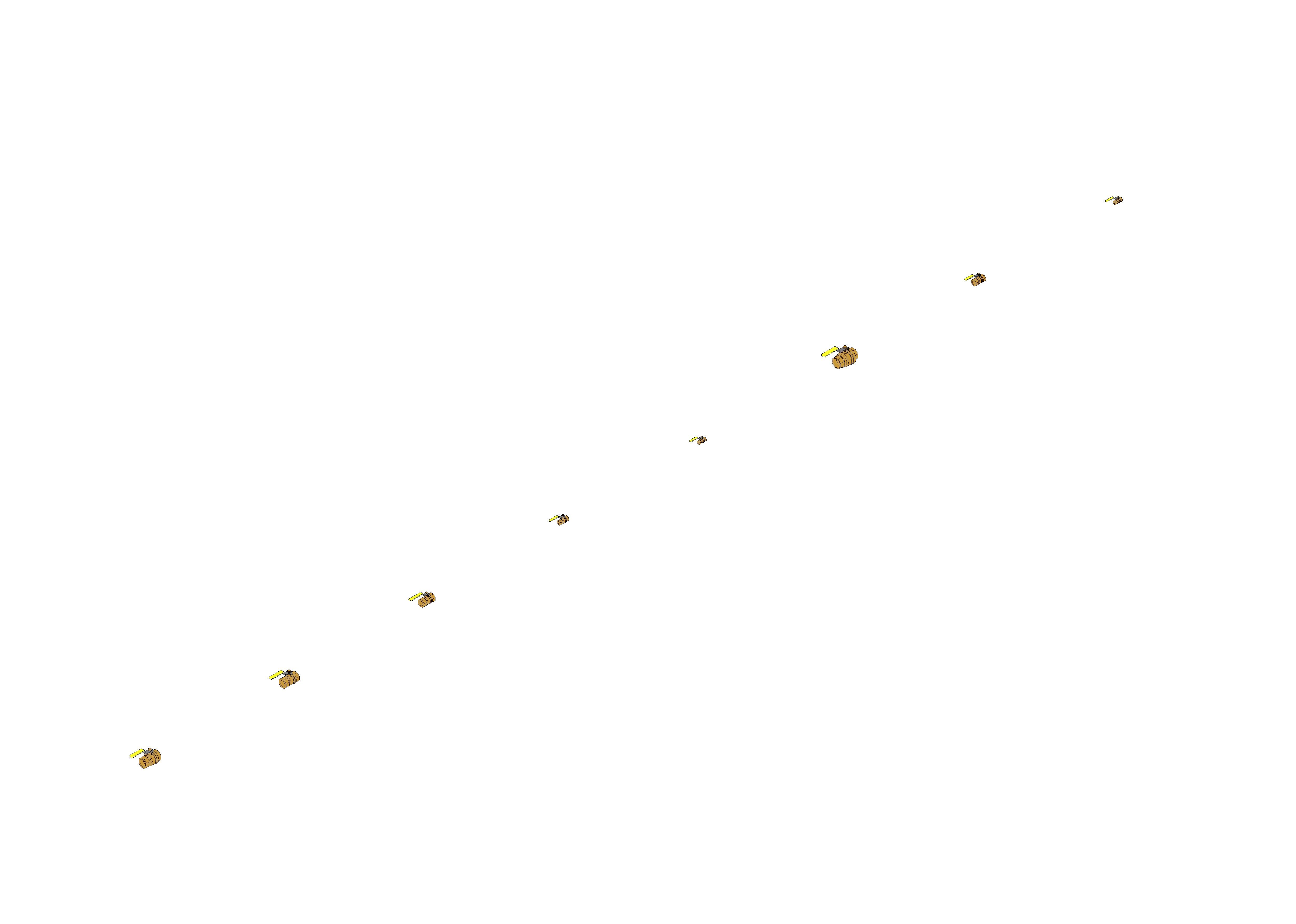

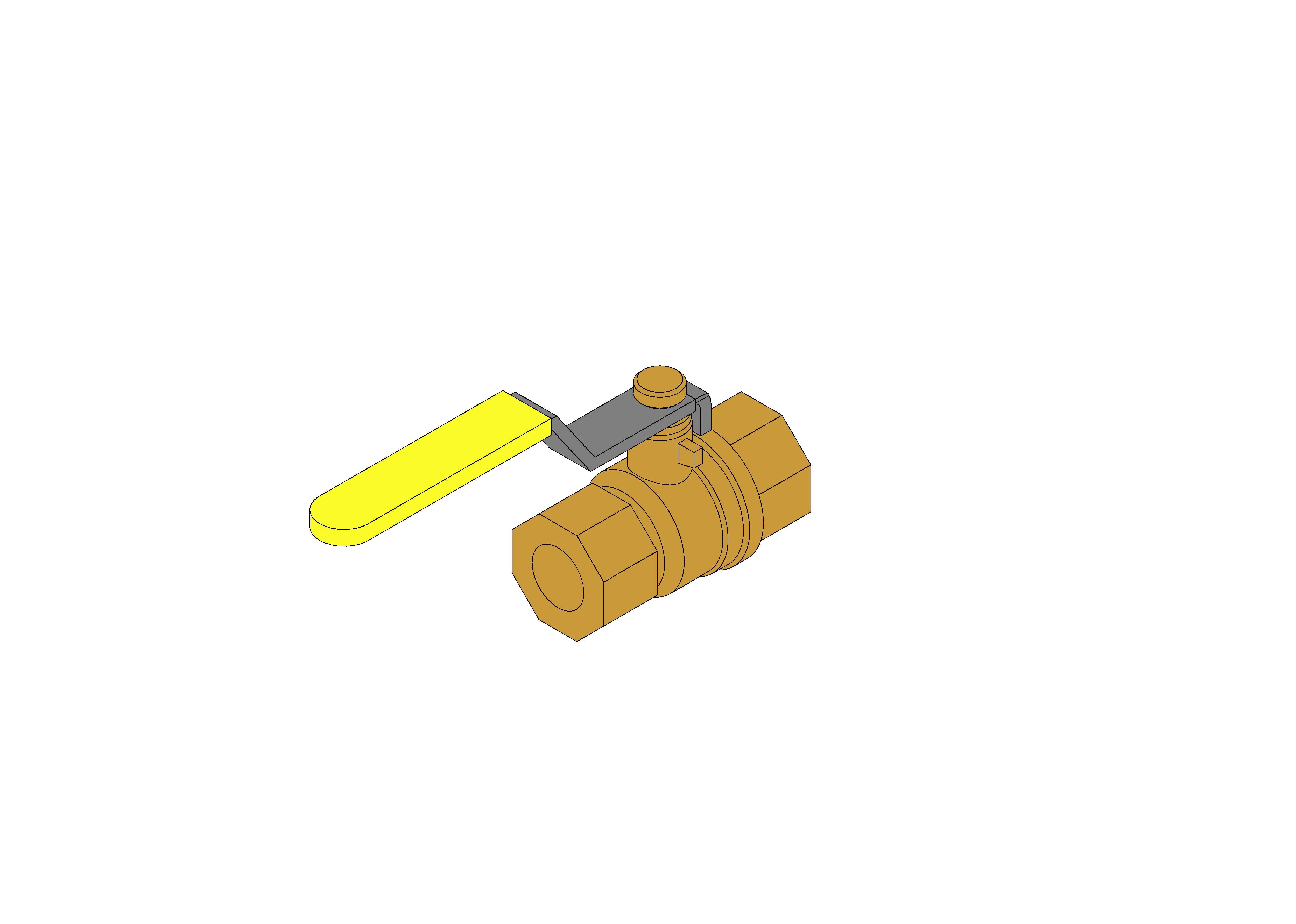

Fig. 100YL - Ball Valve - DZR Brass

by Hattersley

Download Add to collection

Description

Ball Valve - DZR Brass

Fig. 100YL

Features & Benefits

Dezincification resistant.
Light, compact, easy to install and operate.
Improved leak protection.
More resistant to damage during installation.

Size	1/4" to 2"
Pressure Rating	PN25
Product Material	DZR Brass
End Connections	BS EN 10226-2:2005 formerly BS21 Taper

Object Data

1 Revision

Last Updated

31/08/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

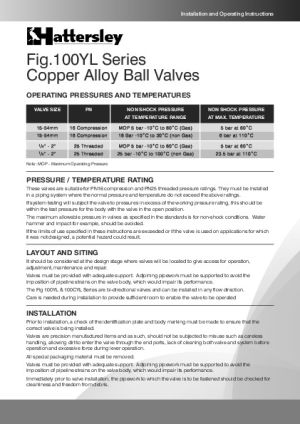

Installation Guide

Maintenance Information

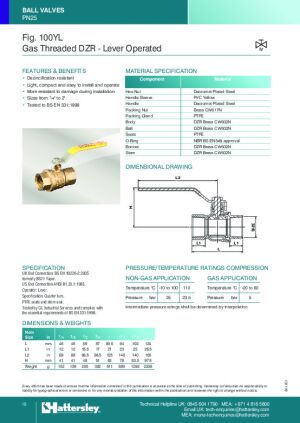

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/hattersley-fig-100yl/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
BIM Object NameHattersley_BallValve_Fig100YL
Brake Downstand18.00 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_06
Code Performancen/a
Colorn/a
Connection Size42.00 mm
Constituentsn/a
Created Byenquiries@hattersley.com
Created On2021-08-31T:09:00:00
DescriptionFig. 100YL - Ball Valve - DZR Brass
Dim X17.00 mm
Dim XX19.00 mm
Documentation Certificateswww.bimstore.co/products/hattersley-fig-100yl/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/hattersley-fig-100yl/document/installation-guide
Documentation Literaturewww.bimstore.co/products/hattersley-fig-100yl/document/product-literature
Documentation Maintenancewww.bimstore.co/products/hattersley-fig-100yl/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/hattersley-fig-100yl/document/technical-data-sheet
Duration UnitYear
Expected Life0
Featuresn/a
Finishn/a
Graden/a
H85.05 mm
Handle Calc12.00 mm
Handle Collar Length39.00 mm
Handle Downstand28.00 mm
Handle Length90.00 mm
Handle MaterialHattersley - PVC - Yellow
Handle Width24.00 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.ISOLATING
K Coefficient96
KeynoteS
L102.00 mm
L123.00 mm
L2140.00 mm
Loss MethodK Coefficient
ManufacturerHattersley
Manufacturer NameHattersley
Materialn/a
ModelFig. 100YL - Ball Valve - DZR Brass
Model NumberFig. 100YL
Model ReferenceFig. 100YL - Ball Valve - DZR Brass
NBS DescriptionBall valves
NBS Noten/a
NBS Object NameHattersley - Ball valves
NBS Office Master Tagn/a
NBS Reference90-10-90/330
Nominal Depth72.30 mm
Nominal Height121.20 mm
Nominal Length191.00 mm
Production Year2021
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size1 1/2"
Sizemm21.00 mm
Spare Partsn/a
Symbol Length31.50 mm
Type CommentsFig. 100YL - Ball Valve - DZR Brass
Type NameFig. 100YL - Ball Valve - DZR Brass
URLwww.hattersley.com/
Valve Hex Calc59.00 mm
Valve Hex Calc 261.00 mm
Valve MaterialHattersely - Metal - Brass
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@hattersley.com
Warranty Guarantor Partsenquiries@hattersley.com
