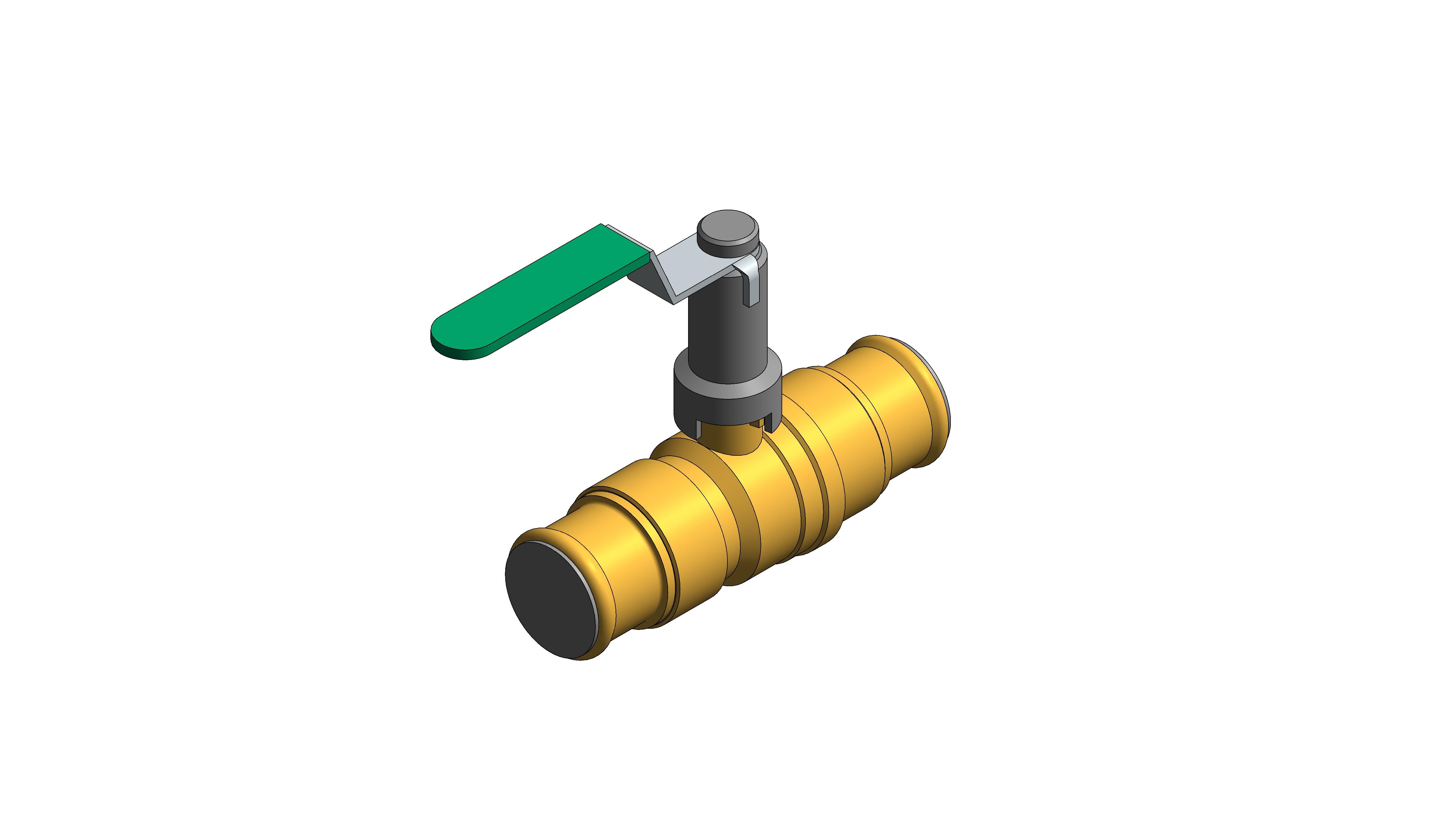

Fig. 100EXT.PF - Ball Valve With Extension Stem Lever - DZR

Download Add to collection

Description

Object Data

1 Revision

Last Updated

10/11/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/hattersley-fig-100ext-pf/document/object-user-guide

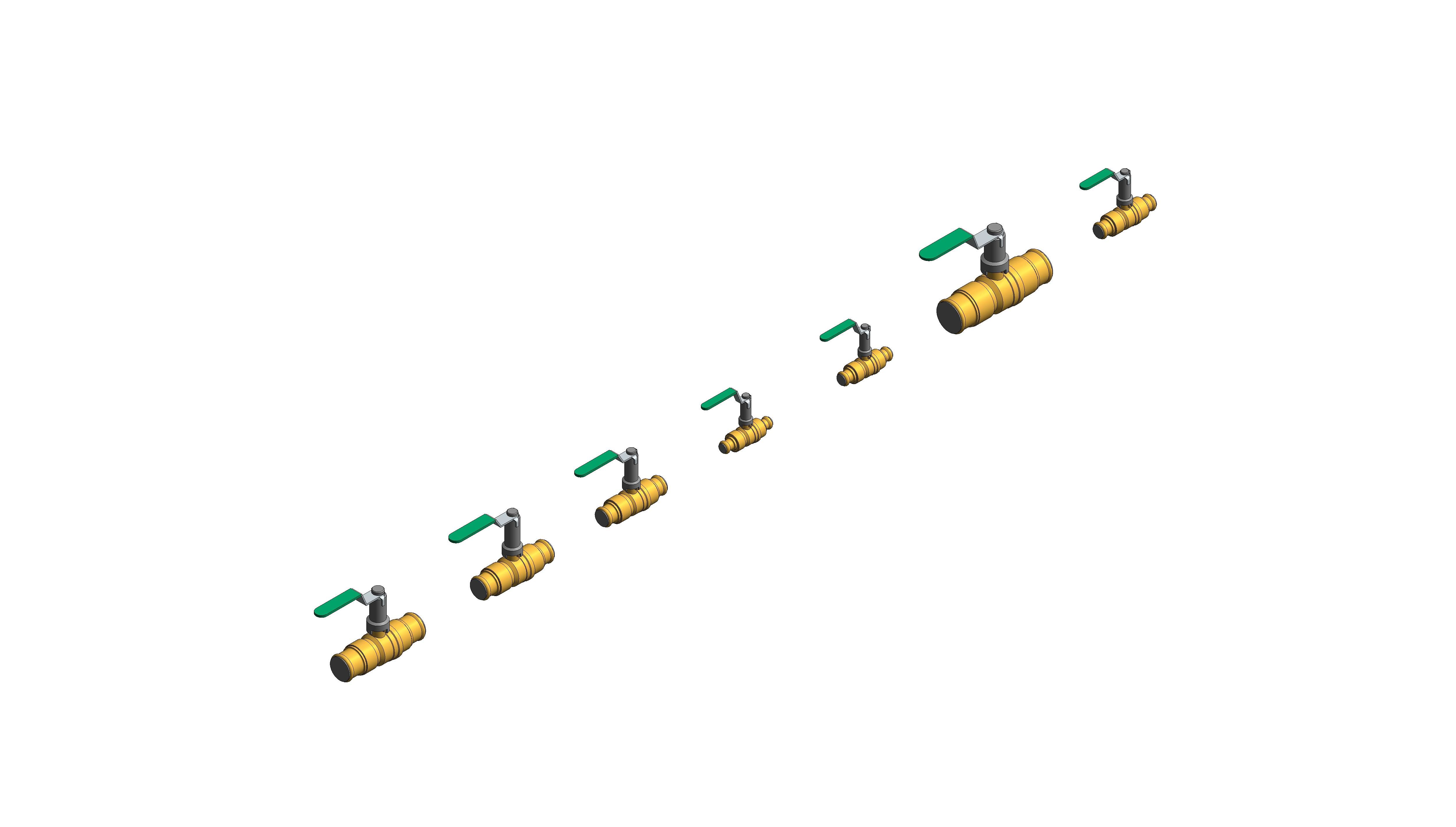

15mmNo
18mmNo
22mmNo
28mmNo
35mmNo
42mmYes
54mmNo
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
BIM Object NameHattersley_BallValve_ExtensionStemLever_100EXTPF
Brake Downstand16 mm
BSYes
Classification NameUniclass 2015
Classification ValuePr_65_54_95_06
Code Performancen/a
Colorn/a
Connection Calc27 mm
Connection Size42 mm
Constituentsn/a
Created Byenquiries@hattersley.com
Created On2021-08-31T:09:00:00
DescriptionFig. 100EXT.PF - Ball Valve With Extension Stem Lever - DZR
Documentation Certificateswww.bimstore.co/products/hattersley-fig-100ext-pf/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/hattersley-fig-100ext-pf/document/installation-guide
Documentation Literaturewww.bimstore.co/products/hattersley-fig-100ext-pf/document/product-literature
Documentation Maintenancewww.bimstore.co/products/hattersley-fig-100ext-pf/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/hattersley-fig-100ext-pf/document/technical-data-sheet
Duration UnitYear
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Handle Calc12 mm
Handle Collar Length40 mm
Handle Downstand25 mm
Handle Length90 mm
Handle Width24 mm
Hmm135 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.ISOLATING
K Coefficient96
KeynoteS
L1mm102 mm
L2mm170 mm
L3mm140 mm
Lmm102 mm
Loss MethodK Coefficient
ManufacturerHattersley
Manufacturer NameHattersley
Materialn/a
ModelFig. 100EXT.PF - Ball Valve With Extension Stem Lever - DZR
Model NumberFig. 100EXT.PF
Model ReferenceFig. 100EXT.PF - Ball Valve With Extension Stem Lever - DZR
NBS DescriptionBall valves
NBS Noten/a
NBS Object NameHattersley - Ball valves
NBS Office Master Tagn/a
NBS Reference90-10-90/330
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Production Year2021
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size1 1/2" x 42mm
Sizemm21 mm
Spare Partsn/a
Type CommentsFig. 100EXT.PF - Ball Valve With Extension Stem Lever - DZR
Type NameFig. 100EXT.PF - Ball Valve With Extension Stem Lever - DZR
URLwww.hattersley.com/
Valve MaterialBrass, Soft Yellow
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@hattersley.com
Warranty Guarantor Partsenquiries@hattersley.com

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
